Front Axle Pair for Can-Am Maverick XMR 1000 2014-2018, 705401387 705401388

Location on vehicle: Front,Left,Right

CA-119/CA-219

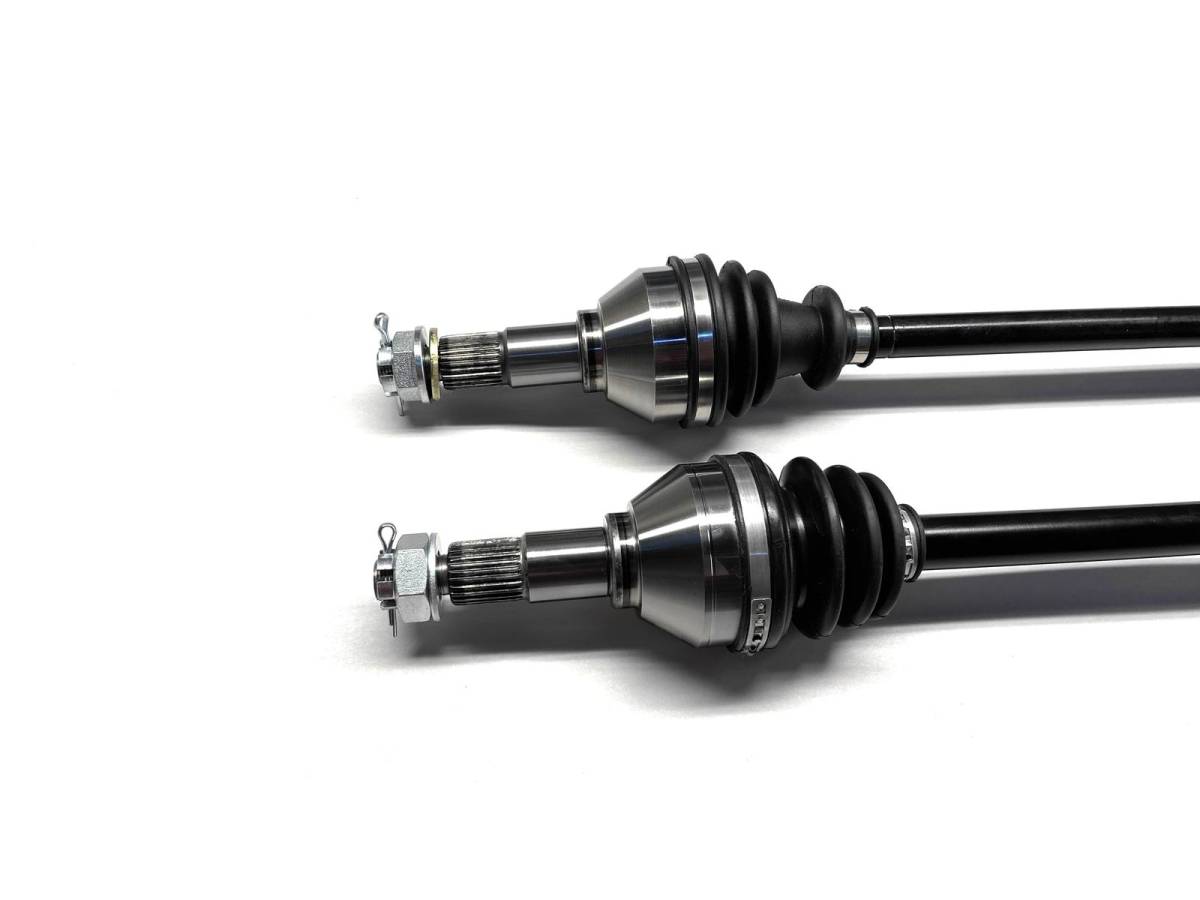

This is a pair of new Front CV axles for a Can-Am UTV.

They fit the following 4x4 applications:

2014-2018 ... Maverick XMR 1000

Front, Left & Right

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left- 730.5 mm, Right- 773 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $144.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmMaverick 1000R4x4 XMR DPS
2014Can-AmMaverick 1000RXMR
2016Can-AmMaverick 1000R4x4 XMR DPS
2017Can-AmMaverick 1000R4x4 XMR DPS
2018Can-AmMaverick 1000R4x4 XMR DPS

Product Notes

  • Fits front, left and right on the following Can-Am models: 2014-2018 Maverick XMR 1000. Please note these will only fit X-MR (Mud Racer) editions.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # Left- 705401387, 705401663, Right- 705401388, 705401878. Compressed Length: Left- 730.5 mm, Right- 773 mm, Inboard Spline Count - 21 (both), Outboard Spline Count - 26 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Warranty

    1 year factory defect limited warranty

    Details

    • CA-119/CA-219
    • CA-119/CA-219
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 27.0 lbs.
    • W10.0000” x H5.0000” x L35.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
