CV Axle Set for Can-Am Maverick 1000 STD XRS Max 2013-2015

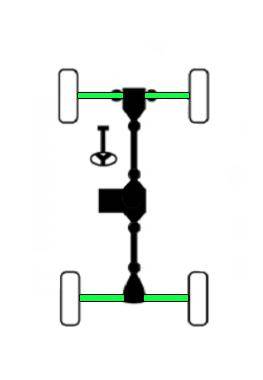

Location on vehicle: Front,Rear,Left,Right

CA-117/CA-217/CA-307/CA-307

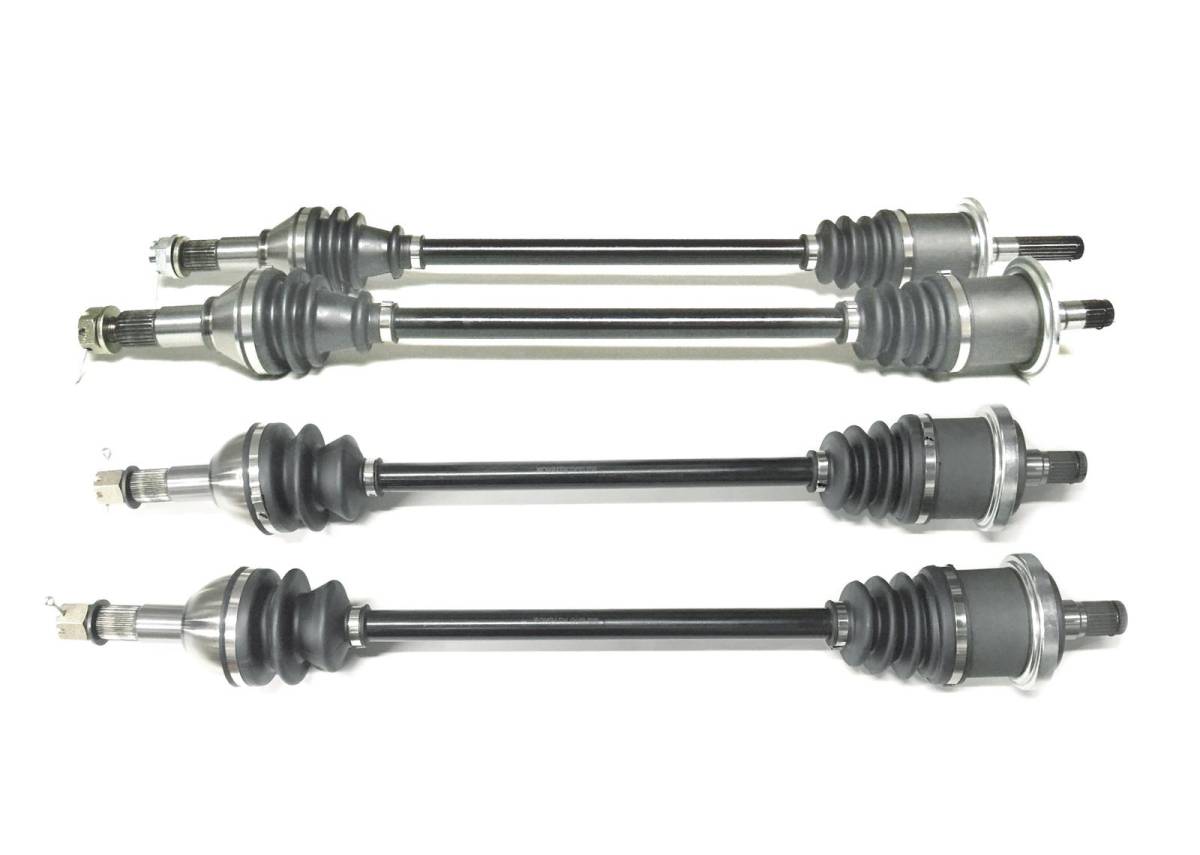

This is for a set of 4 new Front & Rear CV axles for a Can-Am UTV.

These axles will fit the following 4x4 applications:

2013-2015 ... Maverick 1000 STD/XRS

2014-2015 ... Maverick Max 1000

(please note these will not fit XXC / XMR / Turbo models)

Front & Rear, Left & Right

*Not intended for use in lifted / modified suspensions

Product features:

  • Contains 4 axles: Front Left (1), Front Right (1), Rear Left (1), Rear Right (1)
  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 21, Rears- 24
  • Outboard CV joint spline count: Fronts- 26, Rears- 26
  • Compressed overall axle length (mm): FL 725.5, FR 768, RL 758, RR 758
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $289.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Can-Am models: 2013-2015 Maverick 1000 STD/XRS & 2014-2015 Maverick Max 1000. Set includes 4 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # 705401235, 705401873, 705401236, 705401874, 705501948, 705502356.
  • Compressed Length: FL 725.5, FR 768, RL 758, RR 758. Inboard Spline Count: Fronts- 21, Rears- 24. Outboard Spline Count: Fronts- 26, Rears- 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000RXMR
    2013Can-AmMaverick 1000R4X4
    2015Can-AmMaverick Max 1000R4X4
    2015Can-AmMaverick Max 1000R4x4 XRS DPS
    2014Can-AmMaverick Max 1000R4X4
    2014Can-AmMaverick Max 1000R4x4 XRS DPS

    Details

    • CA-117/CA-217/CA-307/CA-307
    • CA-117/CA-217/CA-307/CA-307
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
