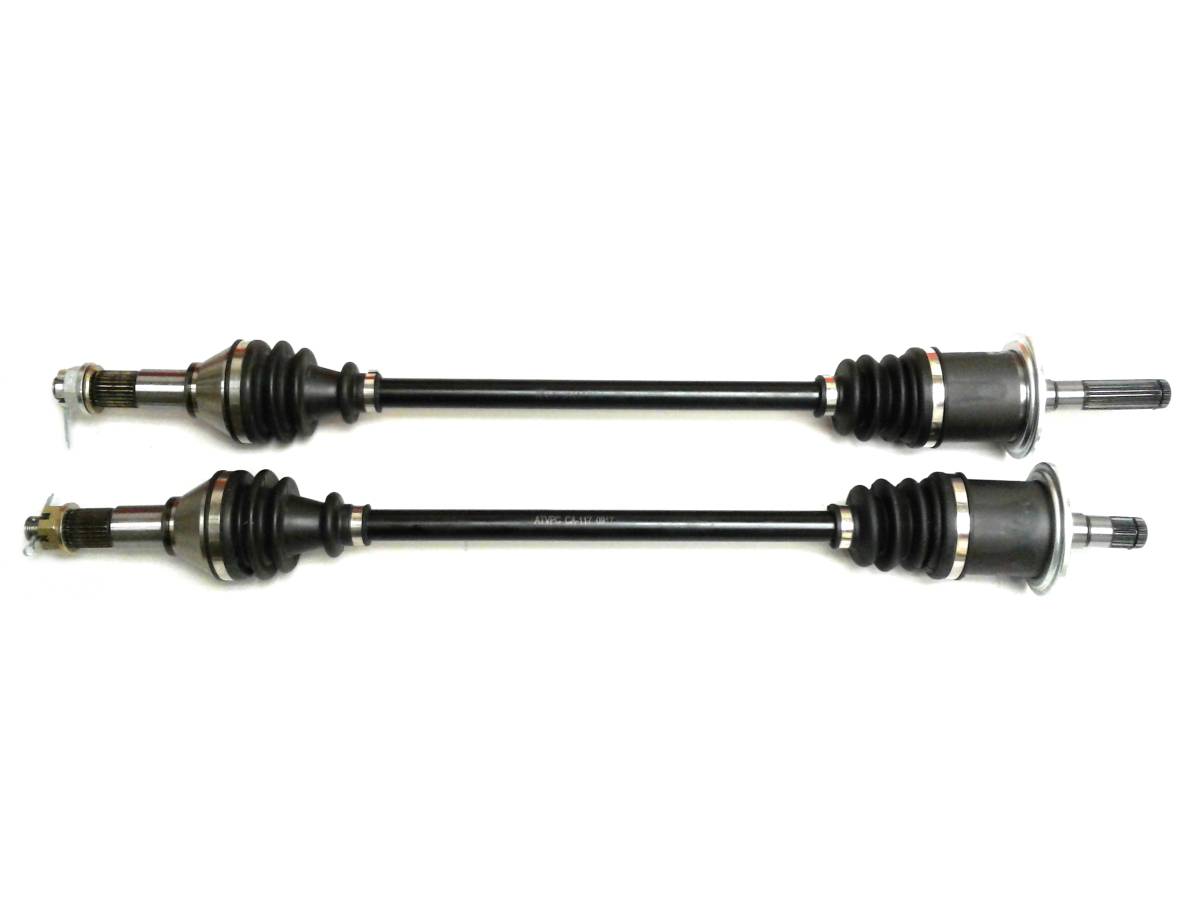

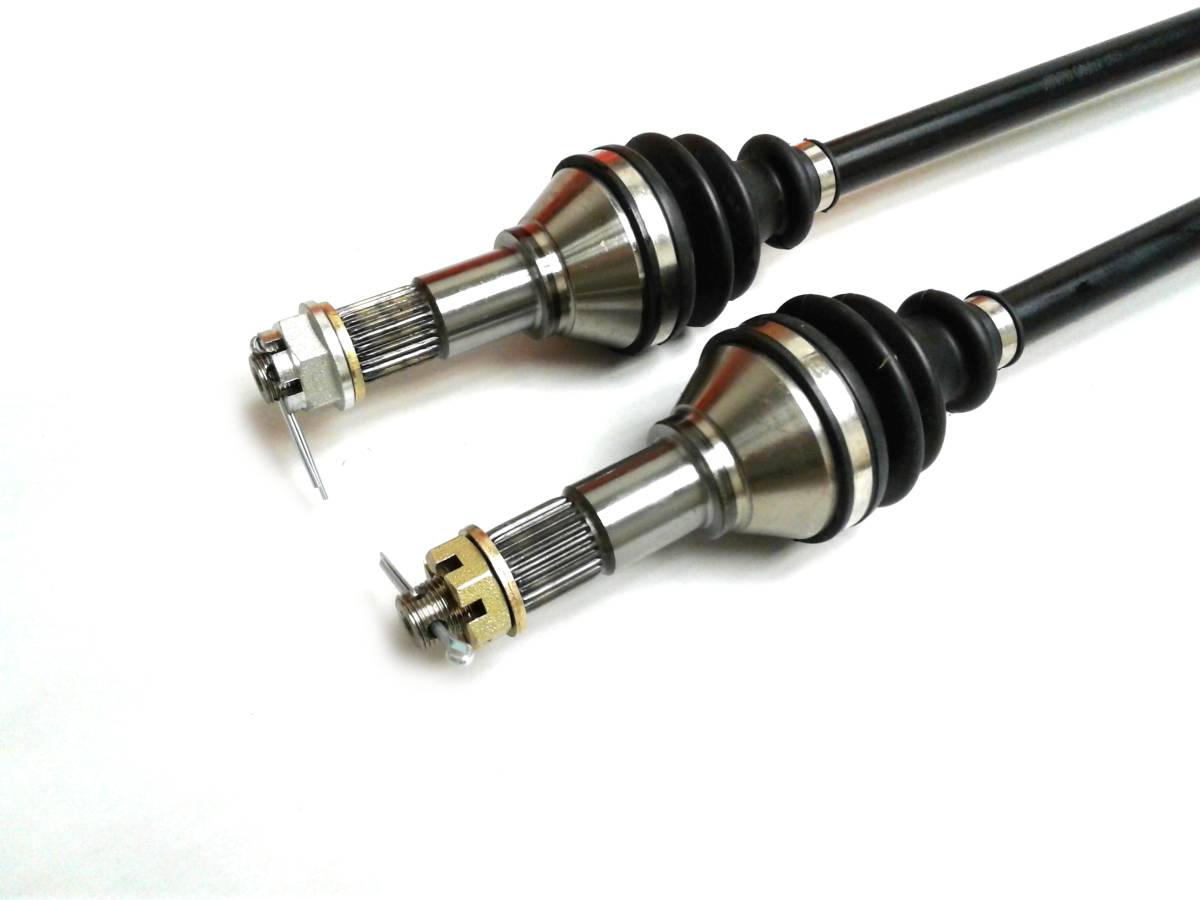

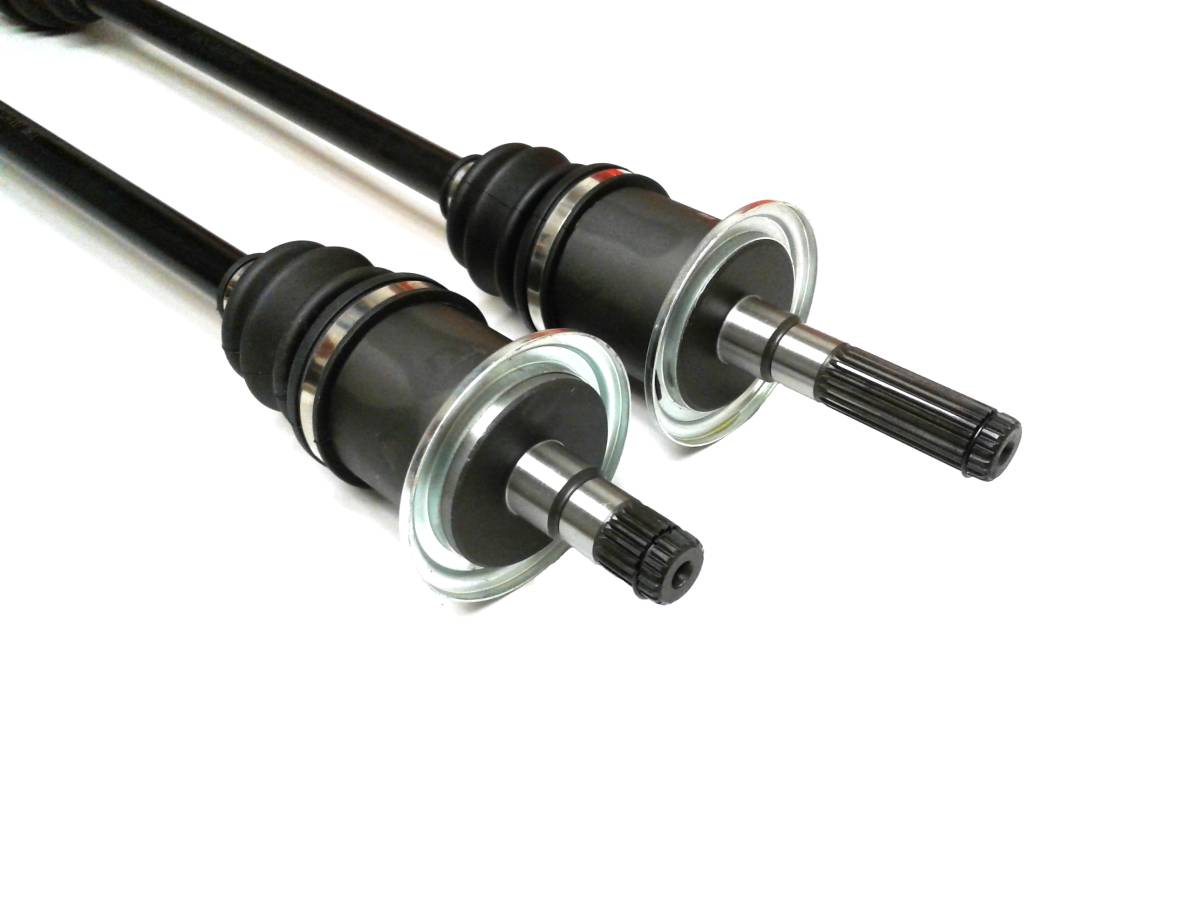

Precision Front CV Axles for Can-Am 705401235 705401236 Left & Right Quality Tested Heat-Treated 4140 Chromoly Steel Exact Fit ATVPC

Location on vehicle: Front

CA-117/CA-217
This is a pair of new OE type CV axles.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits front, left & right on the following Can-Am models: 2013-2018 Maverick 1000/MAX 1000 (please note this is for STD, DPS, XRS, XRS-DPS & Turbo - and will not fit any XC, XXC, or XMR models).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 705401235, 705401873, 705401236, 705401874. Compressed length: left- 725.5 mm, right- 768 mm, Inboard spline count: 21 (both), Outboard spline count: 26 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $134.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013Can-AmMaverick 10004x4 XRS
2018Can-AmMaverick 1000R4x4 DPS
2017Can-AmMaverick 1000R4x4 DPS
2017Can-AmMaverick 1000R4x4 Turbo DPS
2016Can-AmMaverick 1000R4X4
2016Can-AmMaverick 1000R4x4 DPS
2016Can-AmMaverick 1000R4x4 Turbo DPS
2016Can-AmMaverick 1000R4x4 XDS DPS
2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick 1000R4X4
2015Can-AmMaverick 1000R4x4 XDS
2015Can-AmMaverick 1000R4x4 XDS Turbo
2015Can-AmMaverick 1000R4x4 XRS DPS
2014Can-AmMaverick 1000R4X4
2014Can-AmMaverick 1000R4x4 XRS
2014Can-AmMaverick 1000R4x4 XRS DPS
2013Can-AmMaverick 1000R4X4
2018Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 DPS
2016Can-AmMaverick Max 1000R4x4 Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XDS DPS
2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick Max 1000R4X4
2015Can-AmMaverick Max 1000R4x4 XDS
2015Can-AmMaverick Max 1000R4x4 XDS Turbo
2015Can-AmMaverick Max 1000R4x4 XRS DPS
2014Can-AmMaverick Max 1000R4X4
2014Can-AmMaverick Max 1000R4x4 XRS DPS

Product Notes

  • Fits front, left & right on the following Can-Am models: 2013-2018 Maverick 1000/MAX 1000 (please note this is for STD, DPS, XRS, XRS-DPS & Turbo - and will not fit any XC, XXC, or XMR models).
  • Features 4140 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated.
  • Replaces OEM # 705401235, 705401873, 705401236, 705401874. Compressed length: left- 725.5 mm, right- 768 mm, Inboard spline count: 21 (both), Outboard spline count: 26 (both).
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 2 axles
  • Warranty

    Limited 2 year, one-time warranty

    Details

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
