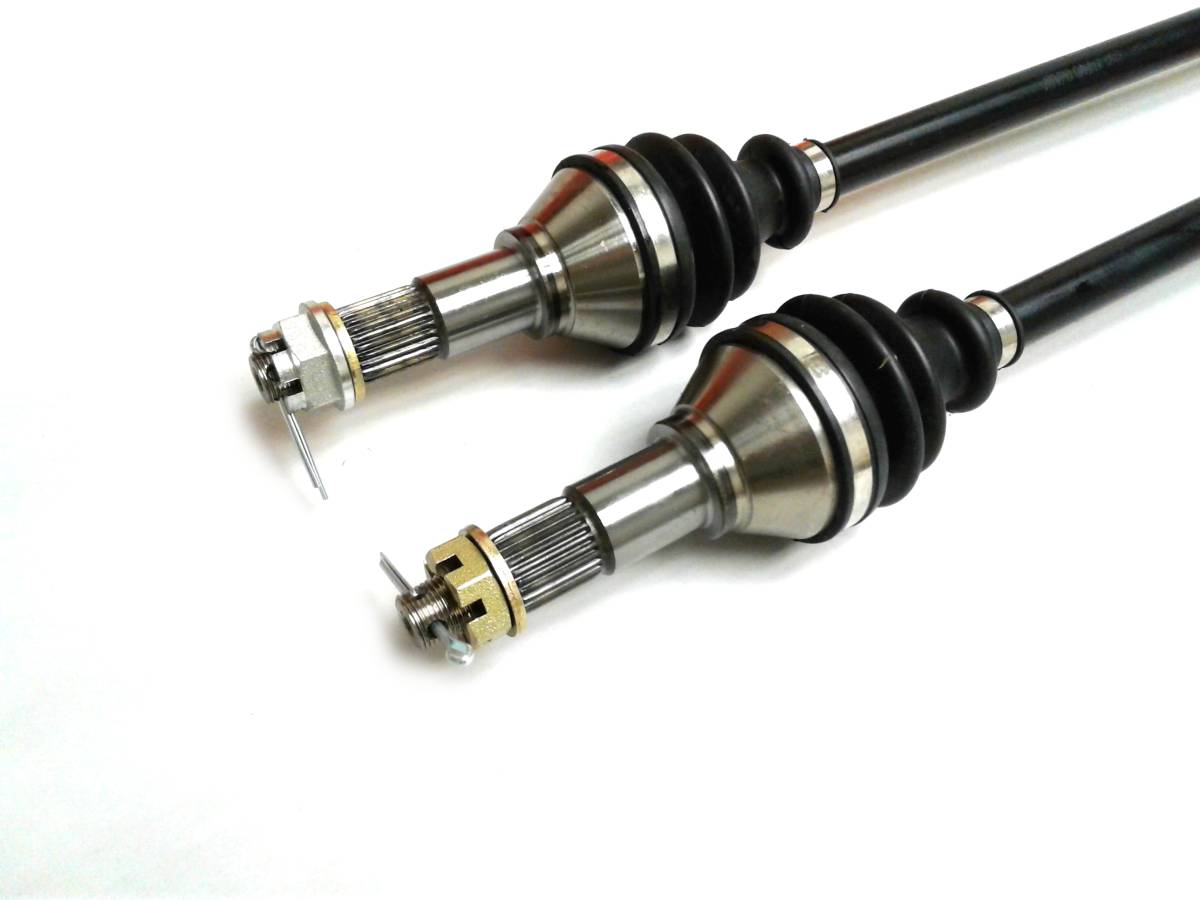

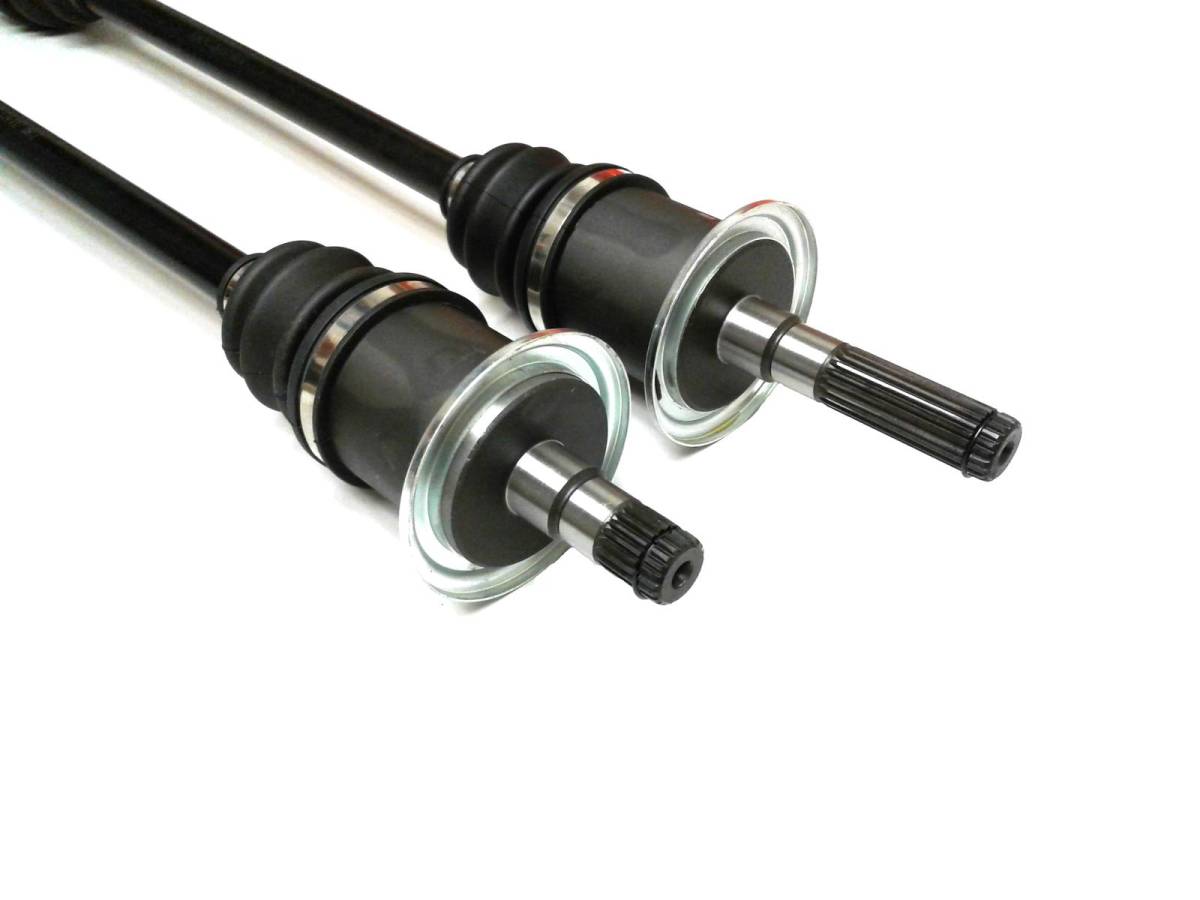

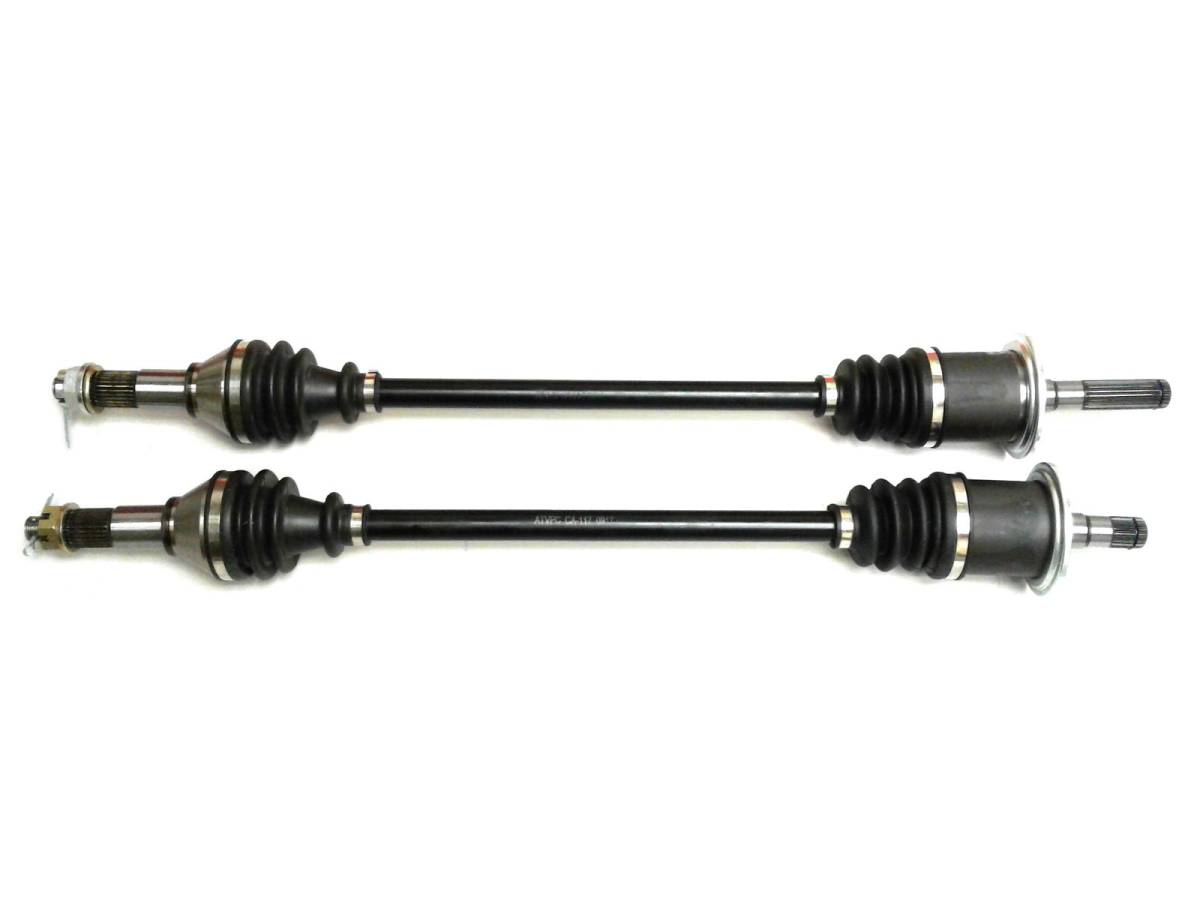

Front CV Axle Pair for Can-Am Maverick 1000 2013-2018, 705401235 705401236

Location on vehicle: Front,Left,Right

CA-117/CA-217
This is a pair of new Front CV axles for a Can-Am UTV.

They fit the following 4x4 applications:

2013-2018 ... Maverick 1000 EFI

2013-2016 ... Maverick 1000 XRS/Turbo XRS

2015-2017 ... Maverick 1000 XDS/Turbo XDS

2014-2018 ... Maverick Max 1000

(does not fit XMR models)

Front, Left & Right

*Not intended for use on lifted vehicles

Product features:

  • Designed and manufactured to meet or exceed OEM specifications
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed axle length: Left- 725.5 mm, Right- 768 mm
  • Replaces OE # 705401235, 705401873, 705401236, 705401874
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2013-2018 Maverick 1000 EFI, 2013-2016 Maverick 1000 XRS/Turbo XRS, 2015-2017 Maverick 1000 Turbo/XDS, 2014-2018 Maverick Max 1000 (all excluding XMR).
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - Left- 725.5 mm, Right- 768 mm, Inboard Spline Count - 21 (both), Outboard spline Count - 26 (both).
  • Replaces OE # 705401235, 705401873, 705401236, 705401874.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2013Can-AmMaverick 10004x4 XRS
    2016Can-AmMaverick 1000R4X4
    2016Can-AmMaverick 1000R4x4 DPS
    2016Can-AmMaverick 1000R4x4 Turbo DPS
    2016Can-AmMaverick 1000R4x4 XDS DPS
    2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
    2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XDS Turbo
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2013Can-AmMaverick 1000R4X4

    Details

    • CA-117/CA-217
    • CA-117/CA-217
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
