Front Left Axle & Wheel Bearing for Can-Am Outlander & Renegade 705401578

Location on vehicle: Front,Left

(0) Reviews: Write first review
CA-111/WB-1516

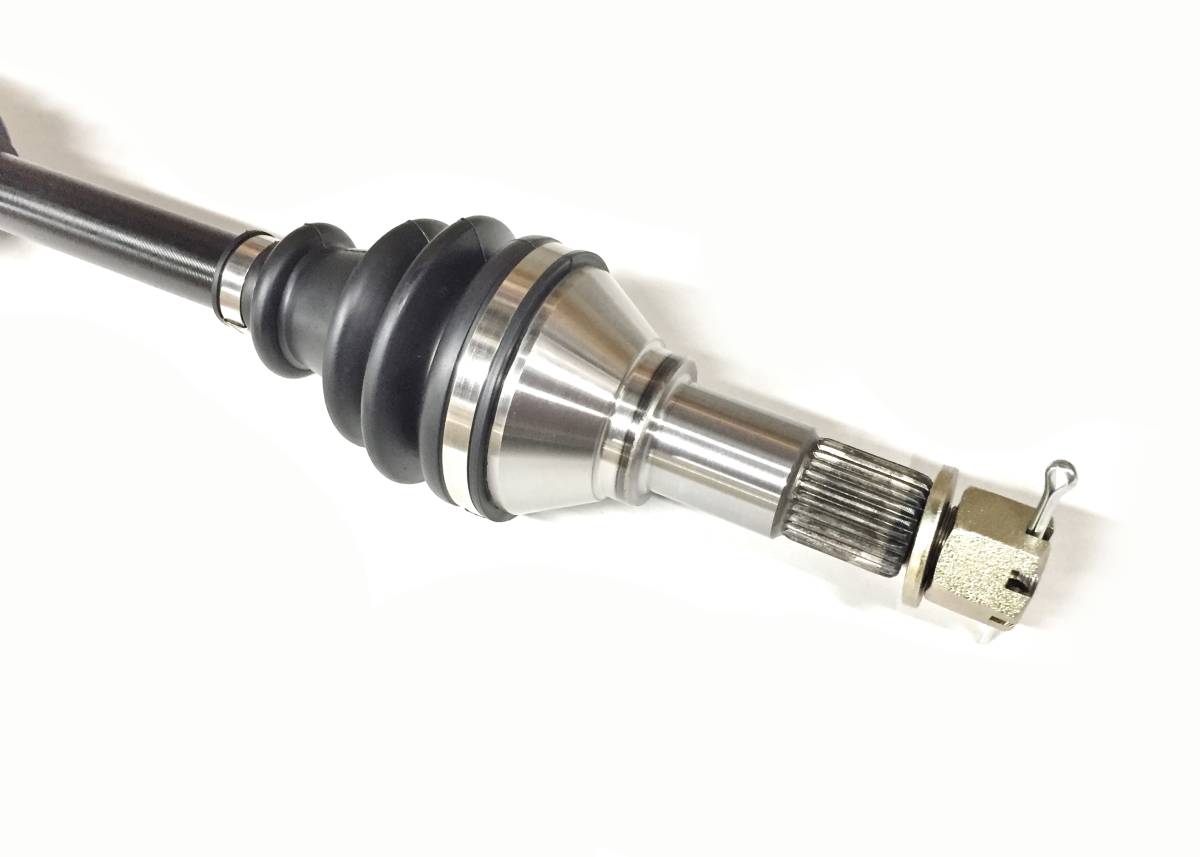

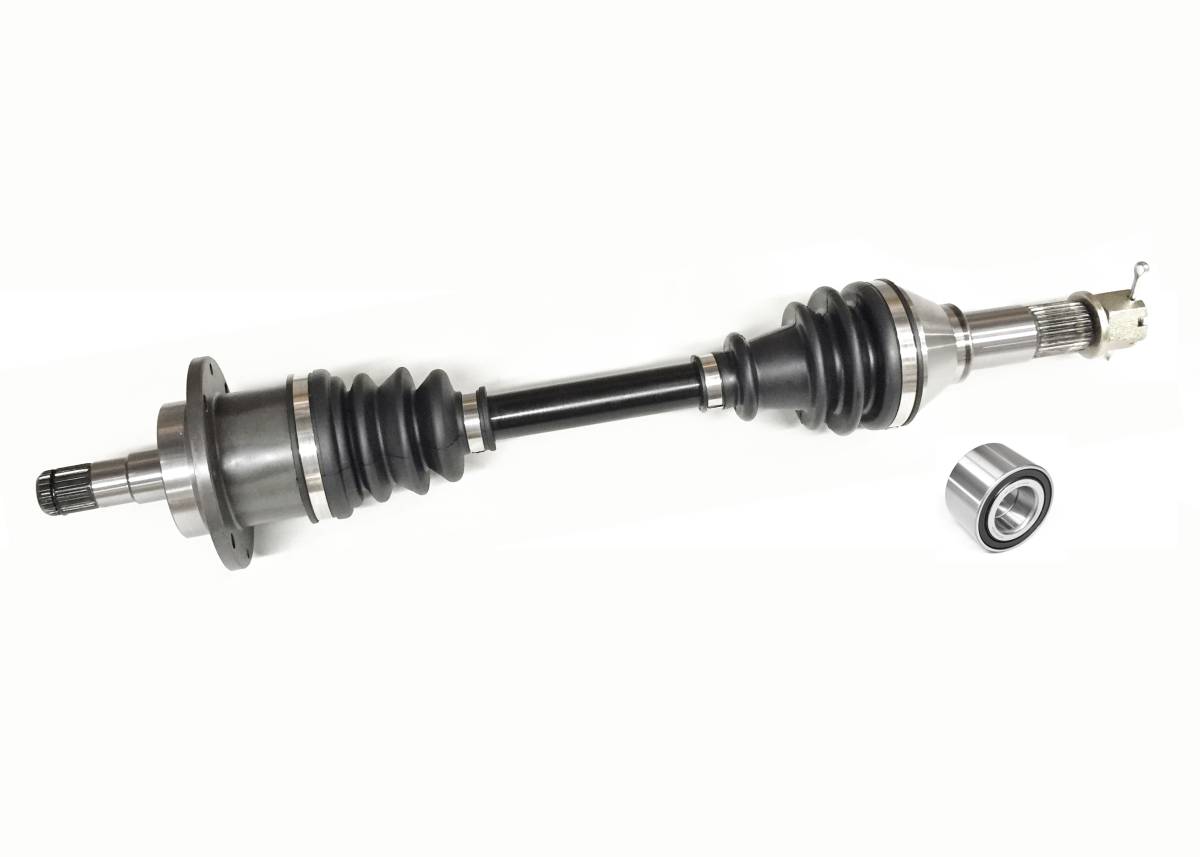

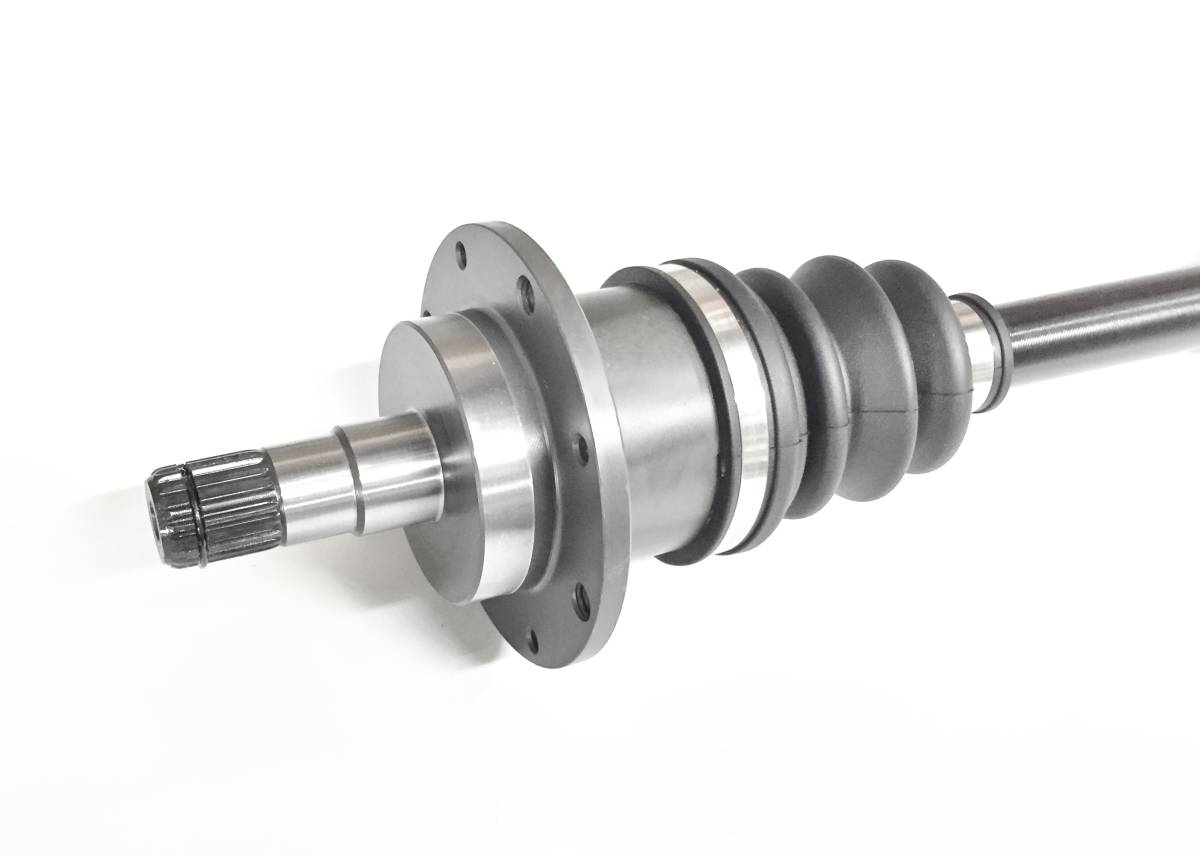

This is a new Front, Left CV axle & wheel bearing for a Can-Am ATV.

They fit the following 4x4 applications:

2006-2015 ... Outlander 400/Max 400

2007-2012 ... Outlander 500/Max 500

2006-2012 ... Outlander 650/Max 650

2006-2011 ... Outlander 800/Max 800

(excluding XMR models)

2008-2010 ... Renegade 500

2007-2011 ... Renegade 800

Front Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 515.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2006BombardierOutlander 4004x4 HO
2006BombardierOutlander 4004x4 XT HO
2006BombardierOutlander 6504x4 EFI HO
2006BombardierOutlander 6504x4 XT EFI HO
2006BombardierOutlander 8004x4 EFI HO
2006BombardierOutlander 8004x4 XT EFI HO
2006BombardierOutlander Max 4004x4 HO
2006BombardierOutlander Max 4004x4 XT HO
2006BombardierOutlander Max 6504x4 EFI HO
2006BombardierOutlander Max 6504x4 XT EFI HO
2006BombardierOutlander Max 8004x4 EFI HO
2006BombardierOutlander Max 8004x4 XT EFI HO
2014Can-AmOutlander 4004x4 EFI
2014Can-AmOutlander 4004x4 XT EFI
2014Can-AmOutlander 4004x4 XTP
2013Can-AmOutlander 4004x4 EFI
2013Can-AmOutlander 4004x4 XT EFI
2012Can-AmOutlander 4004x4 EFI
2012Can-AmOutlander 4004x4 XT EFI
2011Can-AmOutlander 4004x4 EFI
2011Can-AmOutlander 4004x4 XT EFI
2010Can-AmOutlander 4004x4 HO EFI
2010Can-AmOutlander 4004x4 XT HO EFI
2009Can-AmOutlander 4004x4 HO EFI
2009Can-AmOutlander 4004x4 XT HO EFI
2008Can-AmOutlander 4004x4 HO
2008Can-AmOutlander 4004x4 HO EFI
2008Can-AmOutlander 4004x4 XT HO
2008Can-AmOutlander 4004x4 XT HO EFI
2007Can-AmOutlander 4004x4 HO
2007Can-AmOutlander 4004x4 XT HO
2012Can-AmOutlander 5004x4 EFI
2012Can-AmOutlander 5004x4 XT EFI
2011Can-AmOutlander 5004x4 EFI
2011Can-AmOutlander 5004x4 XT EFI
2010Can-AmOutlander 5004x4 HO EFI
2010Can-AmOutlander 5004x4 XT HO EFI
2010Can-AmOutlander 5004x4 XTP HO EFI
2009Can-AmOutlander 5004x4 HO EFI
2009Can-AmOutlander 5004x4 XT HO EFI
2008Can-AmOutlander 5004x4 HO EFI
2008Can-AmOutlander 5004x4 XT HO EFI
2007Can-AmOutlander 5004x4 HO EFI
2007Can-AmOutlander 5004x4 XT HO EFI
2012Can-AmOutlander 6504x4 EFI
2012Can-AmOutlander 6504x4 XT EFI
2011Can-AmOutlander 6504x4 EFI
2011Can-AmOutlander 6504x4 XT EFI
2011Can-AmOutlander 6504x4 XTP EFI
2010Can-AmOutlander 6504x4 HO EFI
2010Can-AmOutlander 6504x4 XT HO EFI
2010Can-AmOutlander 6504x4 XTP EFI
2010Can-AmOutlander 6504x4 XTP HO EFI
2009Can-AmOutlander 6504x4 HO EFI
2009Can-AmOutlander 6504x4 XT HO EFI
2008Can-AmOutlander 6504x4 HO EFI
2008Can-AmOutlander 6504x4 XT HO EFI
2007Can-AmOutlander 6504x4 HO EFI
2007Can-AmOutlander 6504x4 XT HO EFI
2008Can-AmOutlander 8004x4 HO EFI
2008Can-AmOutlander 8004x4 XT HO EFI
2007Can-AmOutlander 8004x4 HO EFI
2007Can-AmOutlander 8004x4 XT HO EFI
2011Can-AmOutlander 800R4x4 EFI
2011Can-AmOutlander 800R4x4 XT EFI
2011Can-AmOutlander 800R4x4 XTP EFI
2010Can-AmOutlander 800R4x4 HO EFI
2010Can-AmOutlander 800R4x4 XT HO EFI
2010Can-AmOutlander 800R4x4 XTP EFI
2010Can-AmOutlander 800R4x4 XTP HO EFI
2009Can-AmOutlander 800R4x4 HO EFI
2009Can-AmOutlander 800R4x4 XT HO EFI
2014Can-AmOutlander Max 4004x4 EFI
2014Can-AmOutlander Max 4004x4 XT EFI
2013Can-AmOutlander Max 4004x4 EFI
2013Can-AmOutlander Max 4004x4 XT EFI
2012Can-AmOutlander Max 4004x4 EFI
2012Can-AmOutlander Max 4004x4 XT EFI
2011Can-AmOutlander Max 4004x4 EFI
2011Can-AmOutlander Max 4004x4 XT EFI
2010Can-AmOutlander Max 4004x4 HO EFI
2010Can-AmOutlander Max 4004x4 XT HO EFI
2009Can-AmOutlander Max 4004x4 HO EFI
2009Can-AmOutlander Max 4004x4 XT HO EFI
2008Can-AmOutlander Max 4004x4 HO
2008Can-AmOutlander Max 4004x4 HO EFI
2008Can-AmOutlander Max 4004x4 XT HO
2008Can-AmOutlander Max 4004x4 XT HO EFI
2007Can-AmOutlander Max 4004x4 HO
2007Can-AmOutlander Max 4004x4 XT HO
2012Can-AmOutlander Max 5004X4
2012Can-AmOutlander Max 5004x4 EFI
2012Can-AmOutlander Max 5004x4 XT EFI
2011Can-AmOutlander Max 5004x4 EFI
2011Can-AmOutlander Max 5004x4 XT EFI
2010Can-AmOutlander Max 5004x4 HO EFI
2010Can-AmOutlander Max 5004x4 LTD HO EFI
2010Can-AmOutlander Max 5004x4 XT HO EFI
2010Can-AmOutlander Max 5004x4 XTP HO EFI
2009Can-AmOutlander Max 5004x4 HO EFI
2009Can-AmOutlander Max 5004x4 XT HO EFI
2008Can-AmOutlander Max 5004x4 HO EFI
2008Can-AmOutlander Max 5004x4 XT HO EFI
2007Can-AmOutlander Max 5004x4 HO EFI
2007Can-AmOutlander Max 5004x4 XT HO EFI
2012Can-AmOutlander Max 6504x4 EFI
2012Can-AmOutlander Max 6504x4 XT EFI
2012Can-AmOutlander Max 6504x4 XTP EFI
2011Can-AmOutlander Max 6504x4 EFI
2011Can-AmOutlander Max 6504x4 XT EFI
2011Can-AmOutlander Max 6504x4 XTP EFI
2010Can-AmOutlander Max 6504x4 HO EFI
2010Can-AmOutlander Max 6504x4 XT HO EFI
2010Can-AmOutlander Max 6504x4 XTP EFI
2010Can-AmOutlander Max 6504x4 XTP HO EFI
2009Can-AmOutlander Max 6504x4 HO EFI
2009Can-AmOutlander Max 6504x4 XT HO EFI
2008Can-AmOutlander Max 6504x4 HO EFI
2008Can-AmOutlander Max 6504x4 XT HO EFI
2007Can-AmOutlander Max 6504x4 HO EFI
2007Can-AmOutlander Max 6504x4 XT HO EFI
2008Can-AmOutlander Max 8004x4 HO EFI
2008Can-AmOutlander Max 8004x4 LTD HO EFI
2008Can-AmOutlander Max 8004x4 XT HO EFI
2007Can-AmOutlander Max 8004x4 HO EFI
2007Can-AmOutlander Max 8004x4 LTD HO EFI
2007Can-AmOutlander Max 8004x4 XT HO EFI
2012Can-AmOutlander Max 800R4x4 EFI
2012Can-AmOutlander Max 800R4x4 LTD EFI
2012Can-AmOutlander Max 800R4x4 XT EFI
2012Can-AmOutlander Max 800R4x4 XTP EFI
2011Can-AmOutlander Max 800R4x4 EFI
2011Can-AmOutlander Max 800R4x4 LTD EFI
2011Can-AmOutlander Max 800R4x4 XT EFI
2011Can-AmOutlander Max 800R4x4 XTP EFI
2010Can-AmOutlander Max 800R4x4 HO EFI
2010Can-AmOutlander Max 800R4x4 LTD HO EFI
2010Can-AmOutlander Max 800R4x4 XT HO EFI
2010Can-AmOutlander Max 800R4x4 XTP EFI
2010Can-AmOutlander Max 800R4x4 XTP HO EFI
2009Can-AmOutlander Max 800R4x4 HO EFI
2009Can-AmOutlander Max 800R4x4 LTD HO EFI
2009Can-AmOutlander Max 800R4x4 XT HO EFI
2010Can-AmRenegade 5004x4 EFI
2009Can-AmRenegade 5004X4
2008Can-AmRenegade 5004x4 HO EFI
2008Can-AmRenegade 8004x4 HO EFI
2008Can-AmRenegade 8004x4 X HO EFI
2007Can-AmRenegade 8004x4 HO EFI
2011Can-AmRenegade 800R4x4 EFI
2011Can-AmRenegade 800R4x4 XXC EFI
2010Can-AmRenegade 800R4x4 EFI
2010Can-AmRenegade 800R4x4 XXC EFI
2009Can-AmRenegade 800R4x4 EFI
2009Can-AmRenegade 800RX 4x4 EFI

Product Notes

  • Fits: 2006-2015 Outlander 400/Max, 2007-2012 Outlander 500/Max, 2006-2012 Outlander 650/Max, 2006-2011 Outlander 800/Max (non XMR), 2008-2010 Renegade 500, 2007-2011 Renegade 800.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.

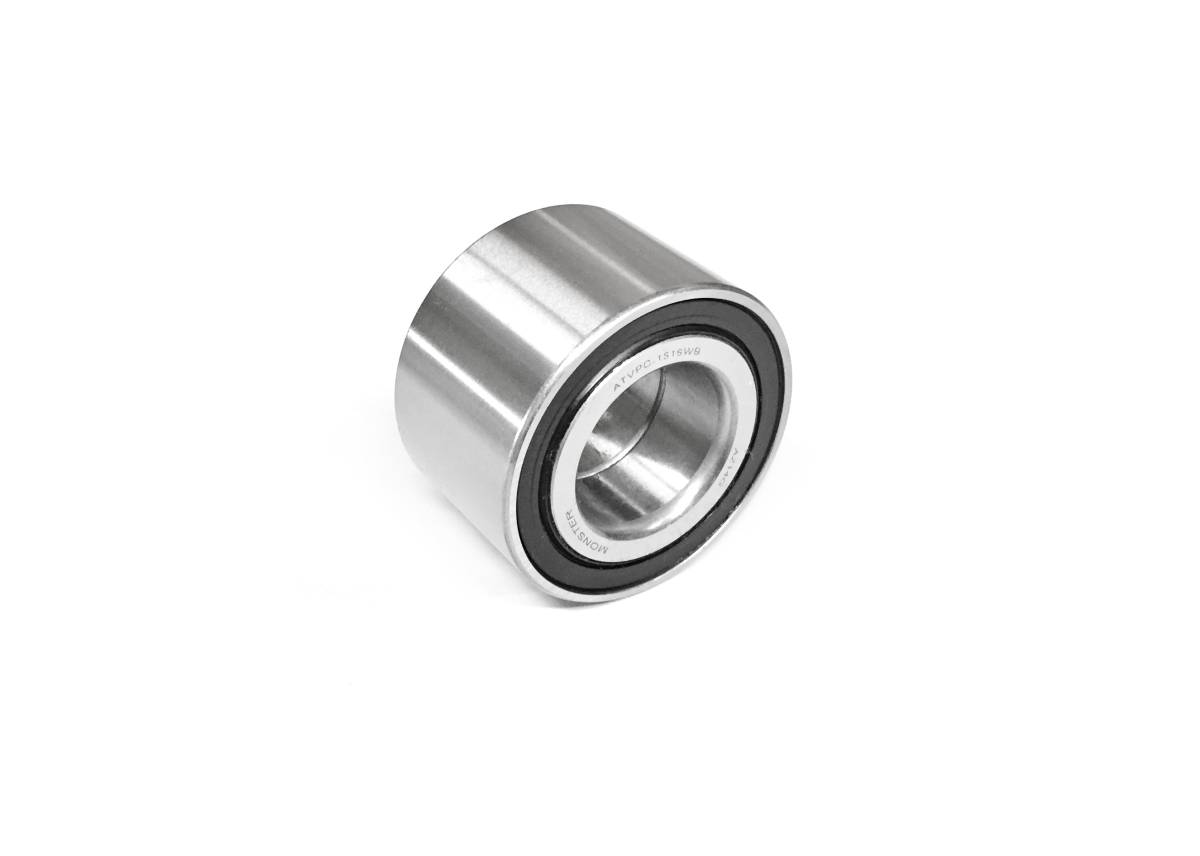

  • High speed bearings manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inboard CV joint spline count: 21, Outboard CV joint spline count: 26, Compressed overall axle length: 515.5 mm. Replaces OE # 705401578, 705400510, 705400659, 705400934, 705401109.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 CV Axle & 1 Wheel Bearing

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-111/WB-1516
    • CA-111/WB-1516
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.0 lbs.
    • W5.0000” x H5.0000” x L26.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
