CV Axle Set for Can-Am Commander 800 1000 Max 2011-2015

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-113/CA-213/CA-306/CA-306

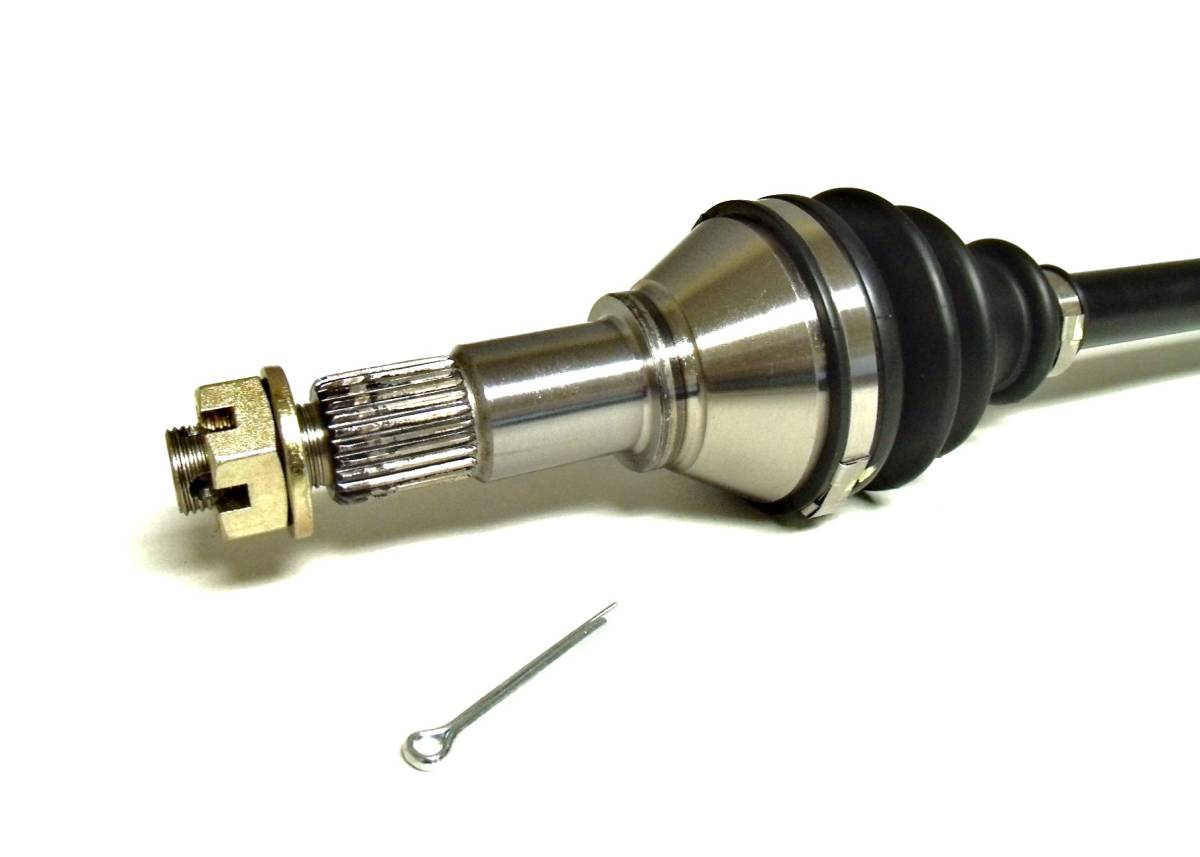

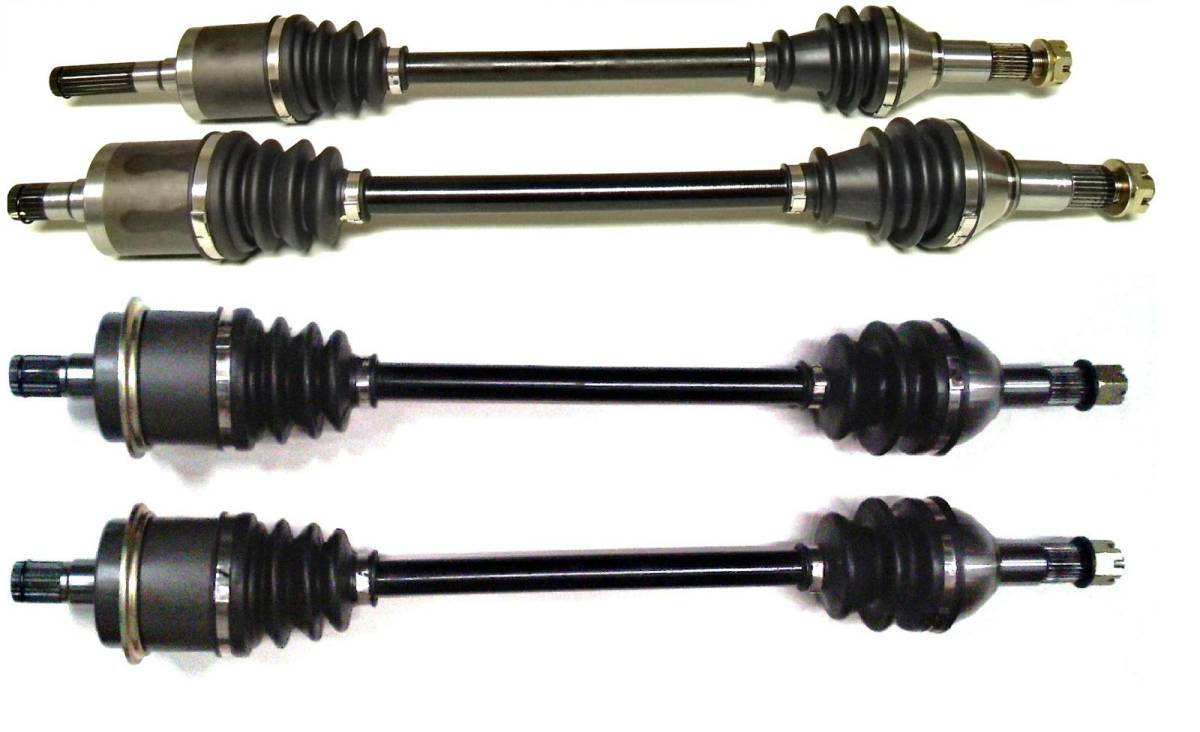

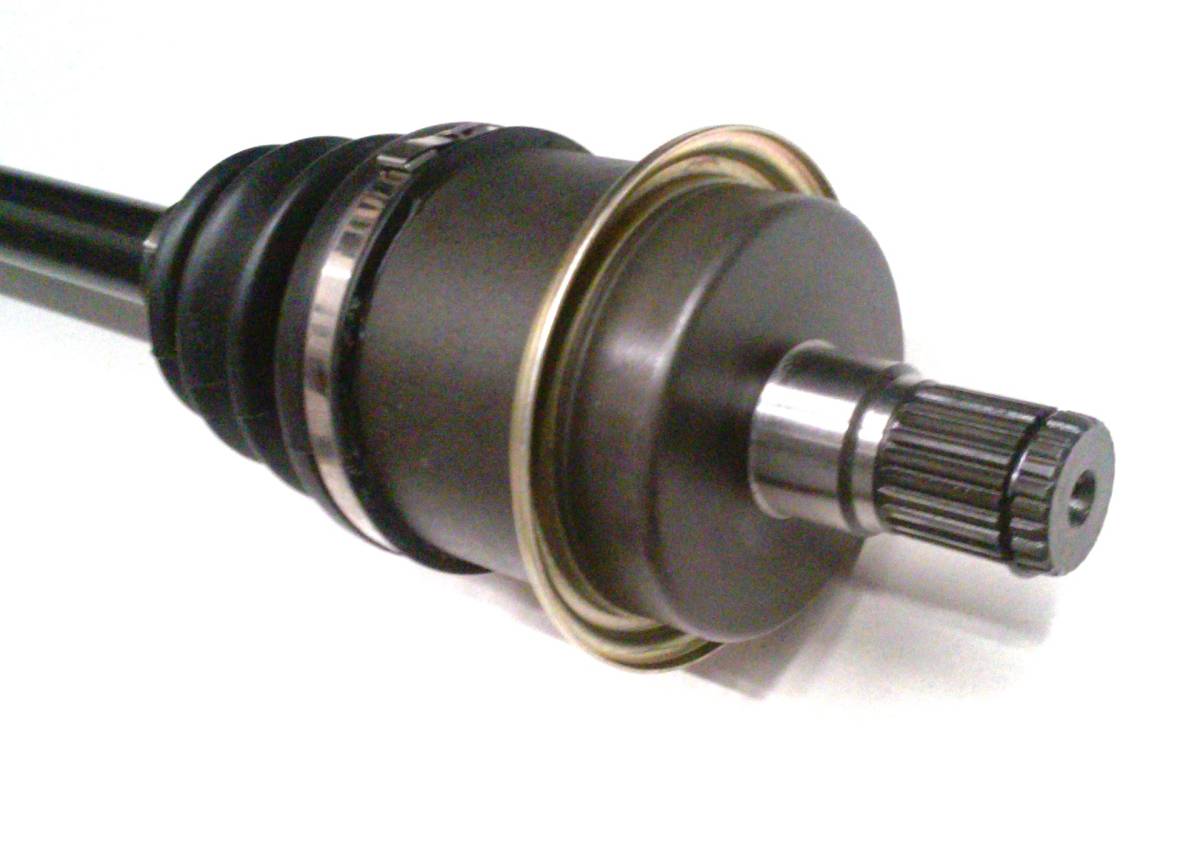

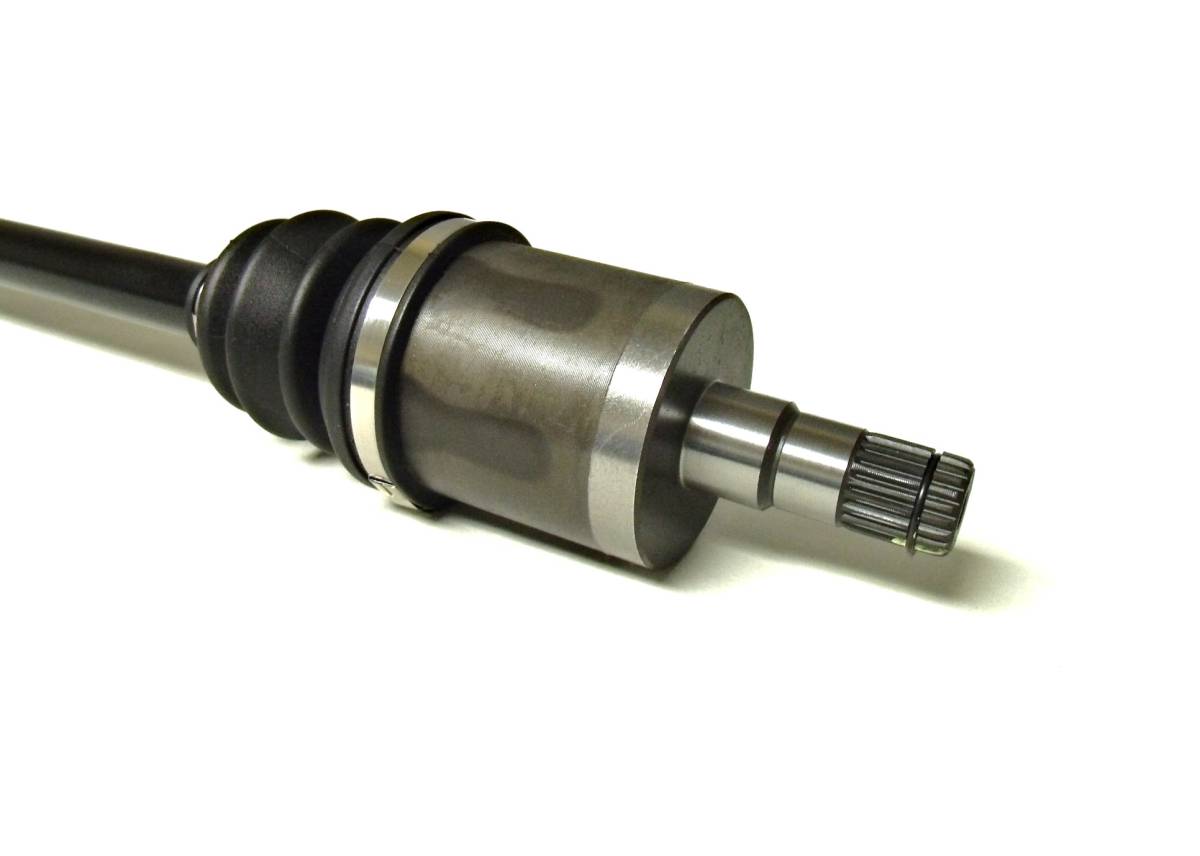

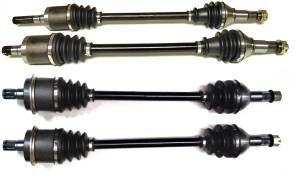

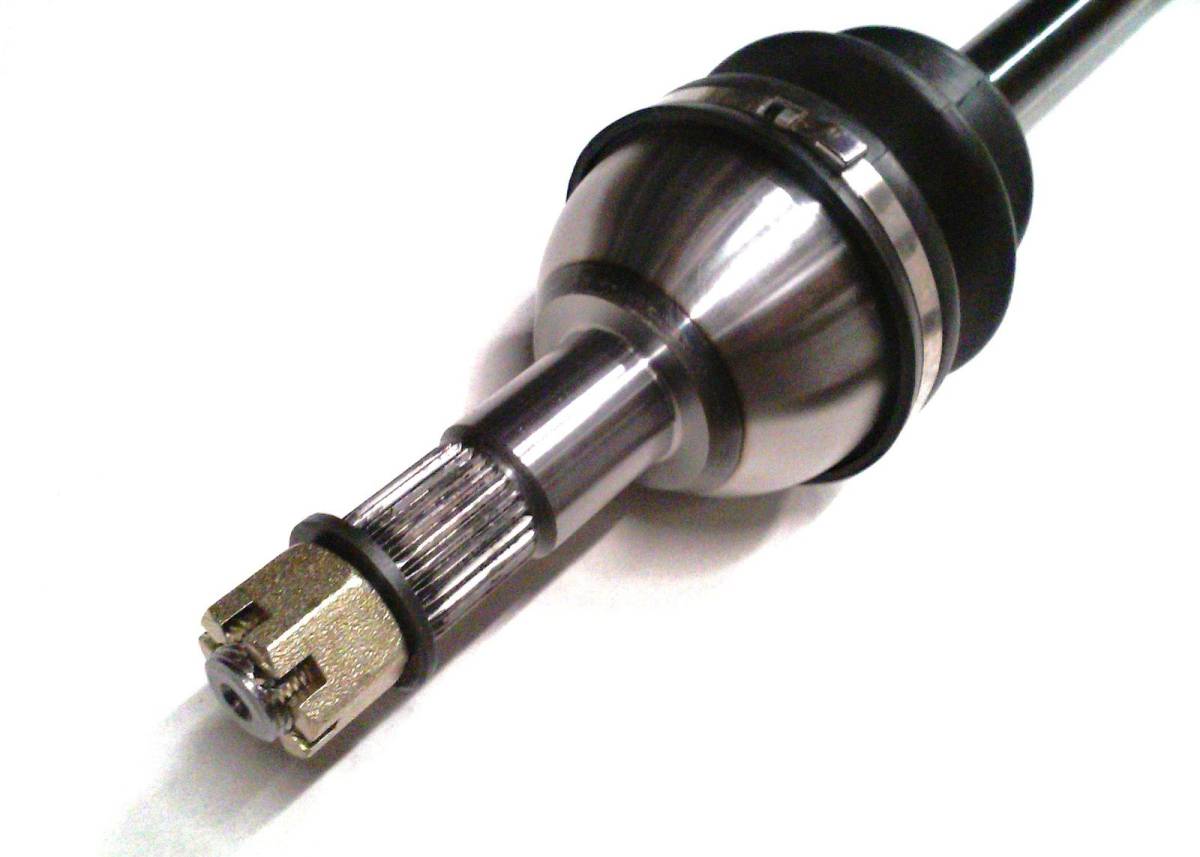

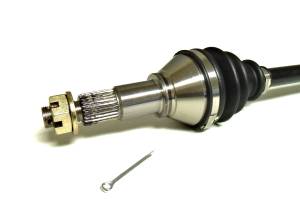

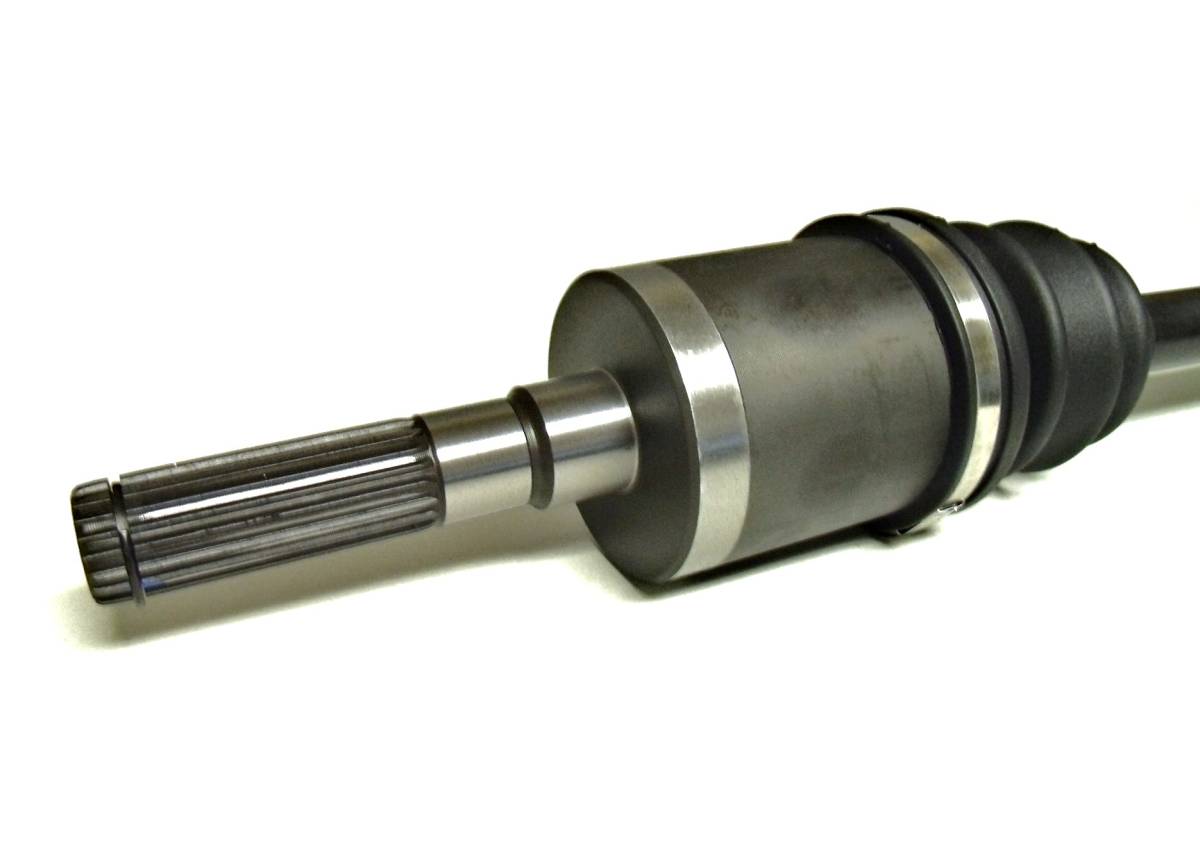

This is a set of new CV axles for a Can-Am UTV.

They fit the following 4x4 applications:

2011-2015 ... Commander 800

2011-2015 ... Commander 1000

2014-2015 ... Commander Max 1000

Front & Rear, Left & Right

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts- 21, Rears- 24
  • Outboard CV joint spline count: Fronts- 26, Rears- 26
  • Compressed overall axle length: FL 642.5 mm, FR 690.5 mm, RL 680 mm, RR 680
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $264.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmCommander 8004X4
2015Can-AmCommander 8004x4 DPS
2015Can-AmCommander 8004x4 XT
2015Can-AmCommander 8004x4 XT Rear Open Differential
2014Can-AmCommander 8004X4
2014Can-AmCommander 8004x4 DPS
2014Can-AmCommander 8004x4 XT
2014Can-AmCommander 8004x4 XT Rear Open Differential
2011Can-AmCommander 8004x4 XT
2015Can-AmCommander 800R4X4
2015Can-AmCommander 800R4x4 DPS
2015Can-AmCommander 800R4x4 XT
2013Can-AmCommander 800R4x4 DPS EFI
2013Can-AmCommander 800R4x4 EFI
2013Can-AmCommander 800R4x4 XT EFI
2012Can-AmCommander 800R4x4 EFI
2012Can-AmCommander 800R4x4 XT EFI
2011Can-AmCommander 800R4X4
2011Can-AmCommander 800R4x4 XT
2015Can-AmCommander 10004X4
2015Can-AmCommander 10004x4 DPS
2015Can-AmCommander 10004x4 LTD
2015Can-AmCommander 10004x4 XT
2015Can-AmCommander 10004x4 XTP
2014Can-AmCommander 10004X4
2014Can-AmCommander 10004x4 DPS
2014Can-AmCommander 10004x4 LTD
2014Can-AmCommander 10004x4 XT
2014Can-AmCommander 10004x4 XTP
2013Can-AmCommander 10004x4 DPS EFI
2013Can-AmCommander 10004x4 EFI
2013Can-AmCommander 10004x4 LTD
2013Can-AmCommander 10004x4 X EFI
2013Can-AmCommander 10004x4 XT EFI
2012Can-AmCommander 10004x4 EFI
2012Can-AmCommander 10004x4 LTD EFI
2012Can-AmCommander 10004x4 X EFI
2012Can-AmCommander 10004x4 XT EFI
2011Can-AmCommander 10004X4
2011Can-AmCommander 10004x4 X
2011Can-AmCommander 10004x4 XT
2015Can-AmCommander Max 10004x4 DPS
2015Can-AmCommander Max 10004x4 LTD
2015Can-AmCommander Max 10004x4 XT
2014Can-AmCommander Max 10004X4
2014Can-AmCommander Max 10004x4 DPS
2014Can-AmCommander Max 10004x4 XT

Product Notes

  • Fits the following Can-Am UTV models: 2011-2015 Commander 800 & 2011-2015 Commander 1000/MAX 1000.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Replaces OEM # 705400953, 705401105, 705400952, 705401872 & 705501481, 705502359, 705500960, 705501456.
  • Compressed Length - FL 642.5 mm, FR 690.5 mm, RL 680 mm, RR 680, Inboard Spline Count - Fronts- 21, Rears- 24, Outboard Spline Count - Fronts- 26, Rears- 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • CA-113/CA-213/CA-306/CA-306
    • CA-113/CA-213/CA-306/CA-306
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 52.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
