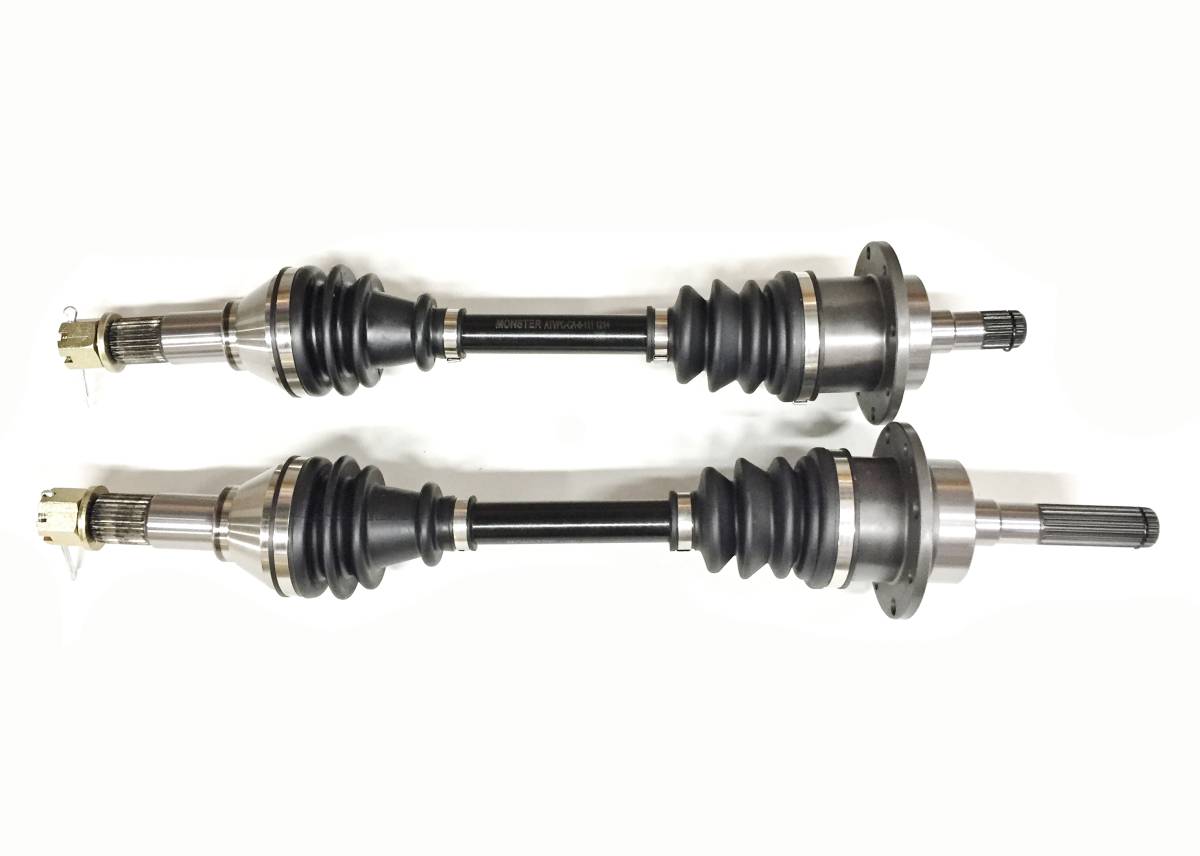

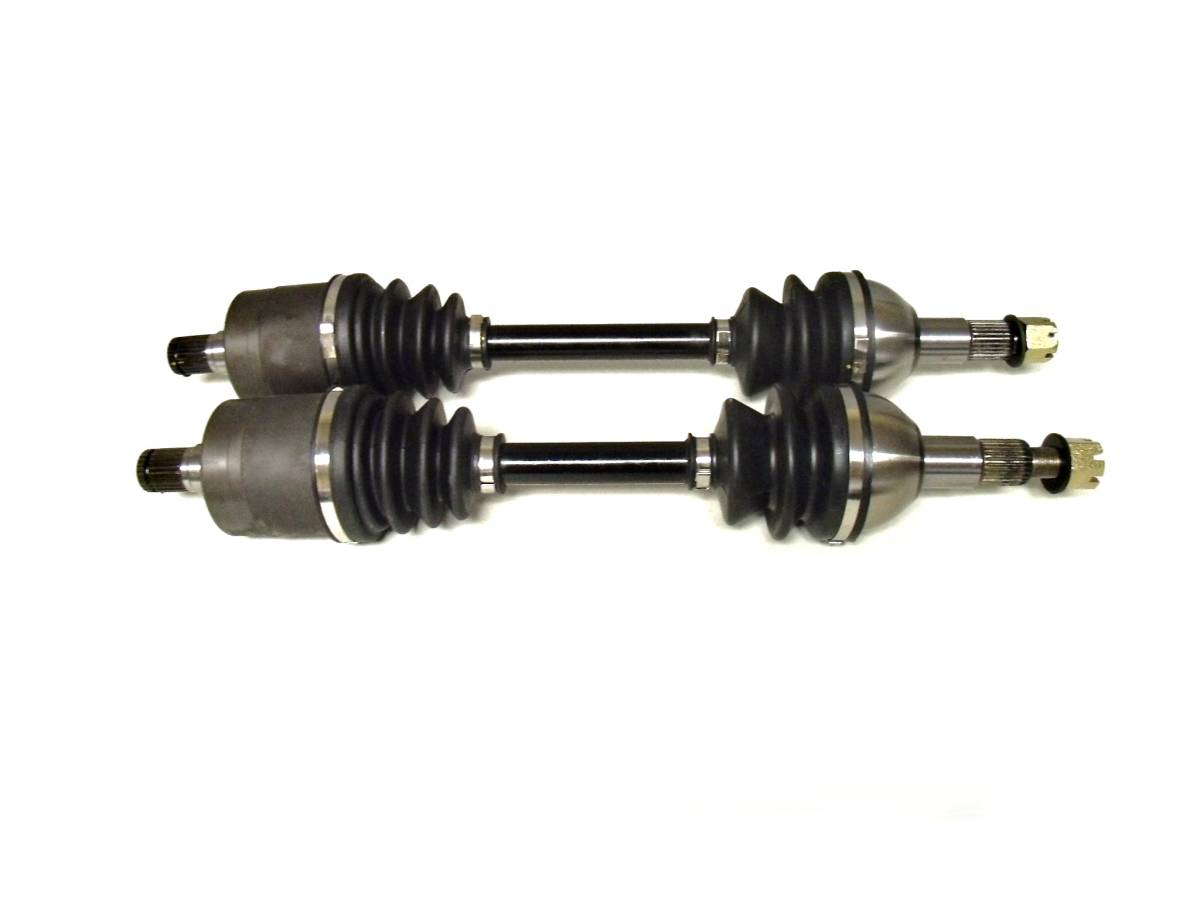

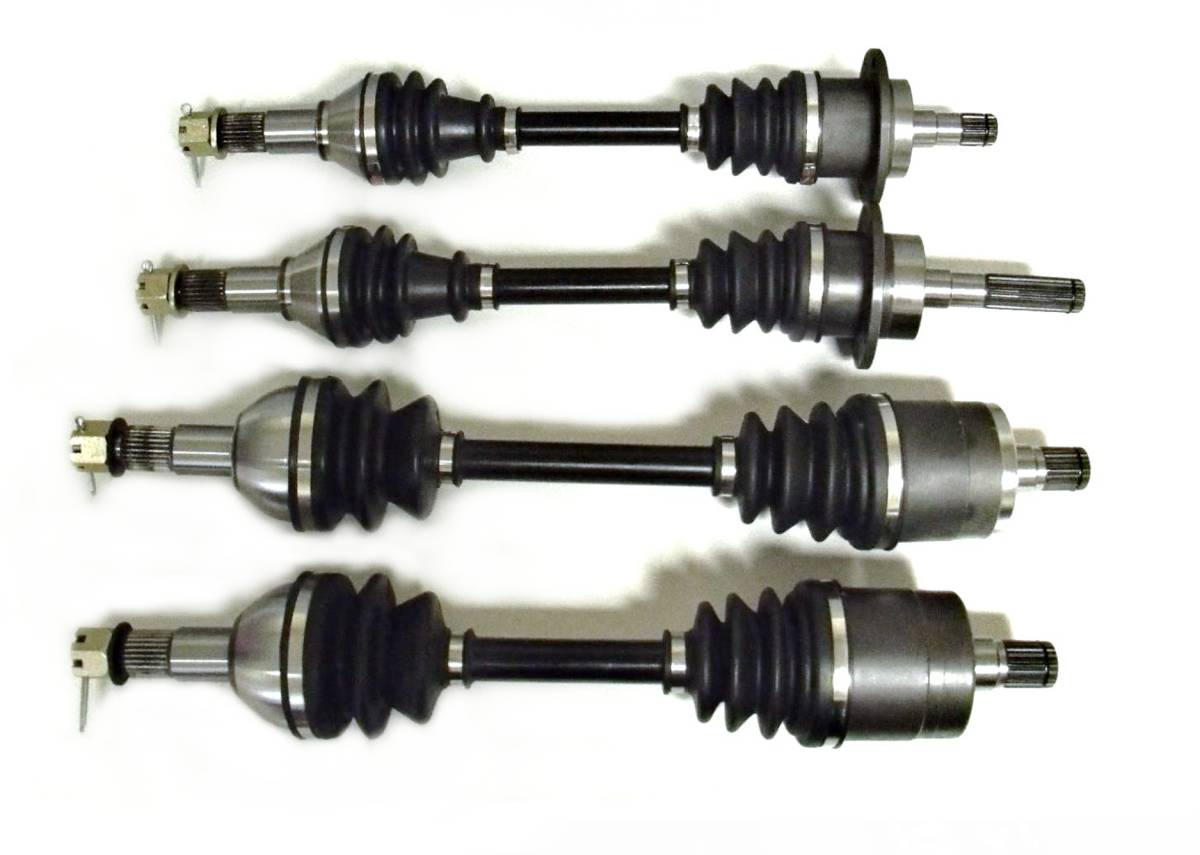

CV Axle Set for Can-Am Renegade 500 800 & Outlander 500 650 800 ATV

Location on vehicle: Rear,Front,Left,Right

CA-111/CA-211/CA-301/CA-302
This is a set of new CV axles for a Can-Am ATV.

They fit the following 4x4 applications:

2013-2015 ... Outlander Max 400

2007-2012 ... Outlander 500/Max 500

2006-2012 ... Outlander 650/Max 650

2006-2011 ... Outlander 800/Max 800

(excluding XMR models)

2008-2010 ... Renegade 500

2007-2011 ... Renegade 800

Front & Rear

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts: 21, Rears: 24
  • Outboard CV joint spline count: Fronts: 26, Rears: 26
  • Compressed overall axle length (mm): FL: 515.5, FR: 558, RL: 554, RR: 513
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2013-2015 Outlander Max 400, 2007-2012 Outlander 500/Max, 2006-2012 Outlander 650/Max, 2006-2011 Outlander 800/Max (non XMR), 2008-2010 Renegade 500, 2007-2011 Renegade 800.
  • Replaces OEM # 705401578 705400934, 705401109 705401579, 705400935 705400508, 705500867 705502472, 705500868 705502473.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Inner splines: Fronts: 21, Rears: 24, Outer splines: Fronts: 26, Rears: 26, Compressed axle length (mm): FL: 515.5, FR: 558, RL: 554, RR: 513.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2012Can-AmOutlander 5004x4 EFI
    2012Can-AmOutlander 5004x4 XT EFI
    2011Can-AmOutlander 5004x4 EFI
    2011Can-AmOutlander 5004x4 XT EFI
    2010Can-AmOutlander 5004x4 HO EFI
    2010Can-AmOutlander 5004x4 XT HO EFI
    2010Can-AmOutlander 5004x4 XTP HO EFI
    2009Can-AmOutlander 5004x4 HO EFI
    2009Can-AmOutlander 5004x4 XT HO EFI
    2008Can-AmOutlander 5004x4 HO EFI
    2008Can-AmOutlander 5004x4 XT HO EFI
    2007Can-AmOutlander 5004x4 HO EFI
    2007Can-AmOutlander 5004x4 XT HO EFI
    2012Can-AmOutlander 6504x4 EFI
    2012Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 EFI
    2011Can-AmOutlander 6504x4 XT EFI
    2011Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 HO EFI
    2010Can-AmOutlander 6504x4 XT HO EFI
    2010Can-AmOutlander 6504x4 XTP EFI
    2010Can-AmOutlander 6504x4 XTP HO EFI
    2009Can-AmOutlander 6504x4 HO EFI
    2009Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 6504x4 HO EFI
    2008Can-AmOutlander 6504x4 XT HO EFI
    2007Can-AmOutlander 6504x4 HO EFI
    2007Can-AmOutlander 6504x4 XT HO EFI
    2008Can-AmOutlander 8004x4 HO EFI
    2008Can-AmOutlander 8004x4 XT HO EFI
    2007Can-AmOutlander 8004x4 HO EFI
    2007Can-AmOutlander 8004x4 XT HO EFI
    2011Can-AmOutlander 800R4x4 EFI
    2011Can-AmOutlander 800R4x4 XT EFI
    2011Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 HO EFI
    2010Can-AmOutlander 800R4x4 XT HO EFI
    2010Can-AmOutlander 800R4x4 XTP EFI
    2010Can-AmOutlander 800R4x4 XTP HO EFI
    2009Can-AmOutlander 800R4x4 HO EFI
    2009Can-AmOutlander 800R4x4 XT HO EFI
    2012Can-AmOutlander Max 5004X4
    2012Can-AmOutlander Max 5004x4 EFI
    2012Can-AmOutlander Max 5004x4 XT EFI
    2011Can-AmOutlander Max 5004x4 EFI
    2011Can-AmOutlander Max 5004x4 XT EFI
    2010Can-AmOutlander Max 5004x4 HO EFI
    2010Can-AmOutlander Max 5004x4 LTD HO EFI
    2010Can-AmOutlander Max 5004x4 XT HO EFI
    2010Can-AmOutlander Max 5004x4 XTP HO EFI
    2009Can-AmOutlander Max 5004x4 HO EFI
    2009Can-AmOutlander Max 5004x4 XT HO EFI
    2008Can-AmOutlander Max 5004x4 HO EFI
    2008Can-AmOutlander Max 5004x4 XT HO EFI
    2007Can-AmOutlander Max 5004x4 HO EFI
    2007Can-AmOutlander Max 5004x4 XT HO EFI
    2012Can-AmOutlander Max 6504x4 EFI
    2012Can-AmOutlander Max 6504x4 XT EFI
    2012Can-AmOutlander Max 6504x4 XTP EFI
    2011Can-AmOutlander Max 6504x4 EFI
    2011Can-AmOutlander Max 6504x4 XT EFI
    2011Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 HO EFI
    2010Can-AmOutlander Max 6504x4 XT HO EFI
    2010Can-AmOutlander Max 6504x4 XTP EFI
    2010Can-AmOutlander Max 6504x4 XTP HO EFI
    2009Can-AmOutlander Max 6504x4 HO EFI
    2009Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 6504x4 HO EFI
    2008Can-AmOutlander Max 6504x4 XT HO EFI
    2007Can-AmOutlander Max 6504x4 HO EFI
    2007Can-AmOutlander Max 6504x4 XT HO EFI
    2008Can-AmOutlander Max 8004x4 HO EFI
    2008Can-AmOutlander Max 8004x4 LTD HO EFI
    2008Can-AmOutlander Max 8004x4 XT HO EFI
    2007Can-AmOutlander Max 8004x4 HO EFI
    2007Can-AmOutlander Max 8004x4 LTD HO EFI
    2007Can-AmOutlander Max 8004x4 XT HO EFI
    2012Can-AmOutlander Max 800R4x4 EFI
    2012Can-AmOutlander Max 800R4x4 LTD EFI
    2012Can-AmOutlander Max 800R4x4 XT EFI
    2012Can-AmOutlander Max 800R4x4 XTP EFI
    2011Can-AmOutlander Max 800R4x4 EFI
    2011Can-AmOutlander Max 800R4x4 LTD EFI
    2011Can-AmOutlander Max 800R4x4 XT EFI
    2011Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 HO EFI
    2010Can-AmOutlander Max 800R4x4 LTD HO EFI
    2010Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmOutlander Max 800R4x4 XTP EFI
    2010Can-AmOutlander Max 800R4x4 XTP HO EFI
    2009Can-AmOutlander Max 800R4x4 HO EFI
    2009Can-AmOutlander Max 800R4x4 LTD HO EFI
    2009Can-AmOutlander Max 800R4x4 XT HO EFI
    2010Can-AmRenegade 5004x4 EFI
    2009Can-AmRenegade 5004X4
    2008Can-AmRenegade 5004x4 HO EFI
    2008Can-AmRenegade 8004x4 HO EFI
    2008Can-AmRenegade 8004x4 X HO EFI
    2007Can-AmRenegade 8004x4 HO EFI
    2011Can-AmRenegade 800R4x4 EFI
    2011Can-AmRenegade 800R4x4 XXC EFI
    2010Can-AmRenegade 800R4x4 EFI
    2010Can-AmRenegade 800R4x4 XXC EFI
    2009Can-AmRenegade 800R4x4 EFI
    2009Can-AmRenegade 800RX 4x4 EFI

    Details

    • CA-111/CA-211/CA-301/CA-302
    • CA-111/CA-211/CA-301/CA-302
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 43.0 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
