Front CV Axle Pair for Polaris Ranger ETX 500 570 EV 4x4 1333238

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-331/PO-331

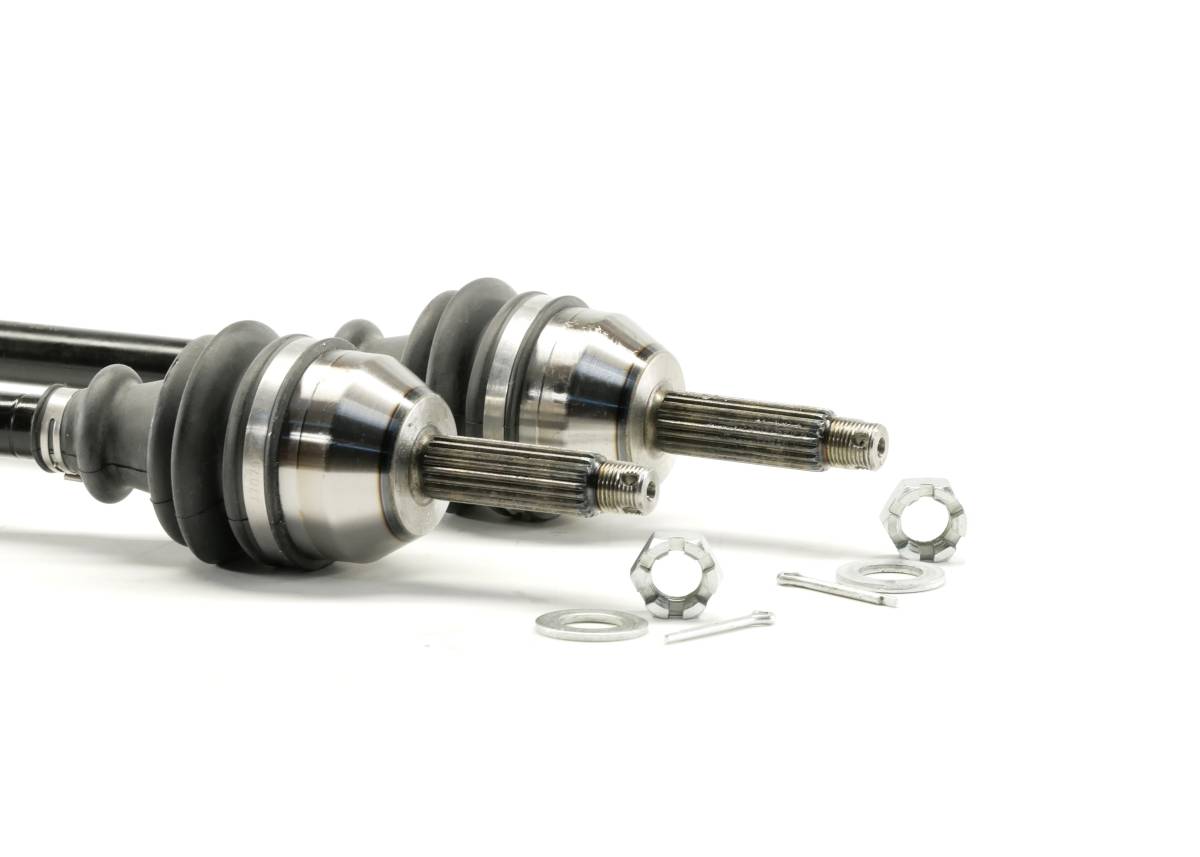

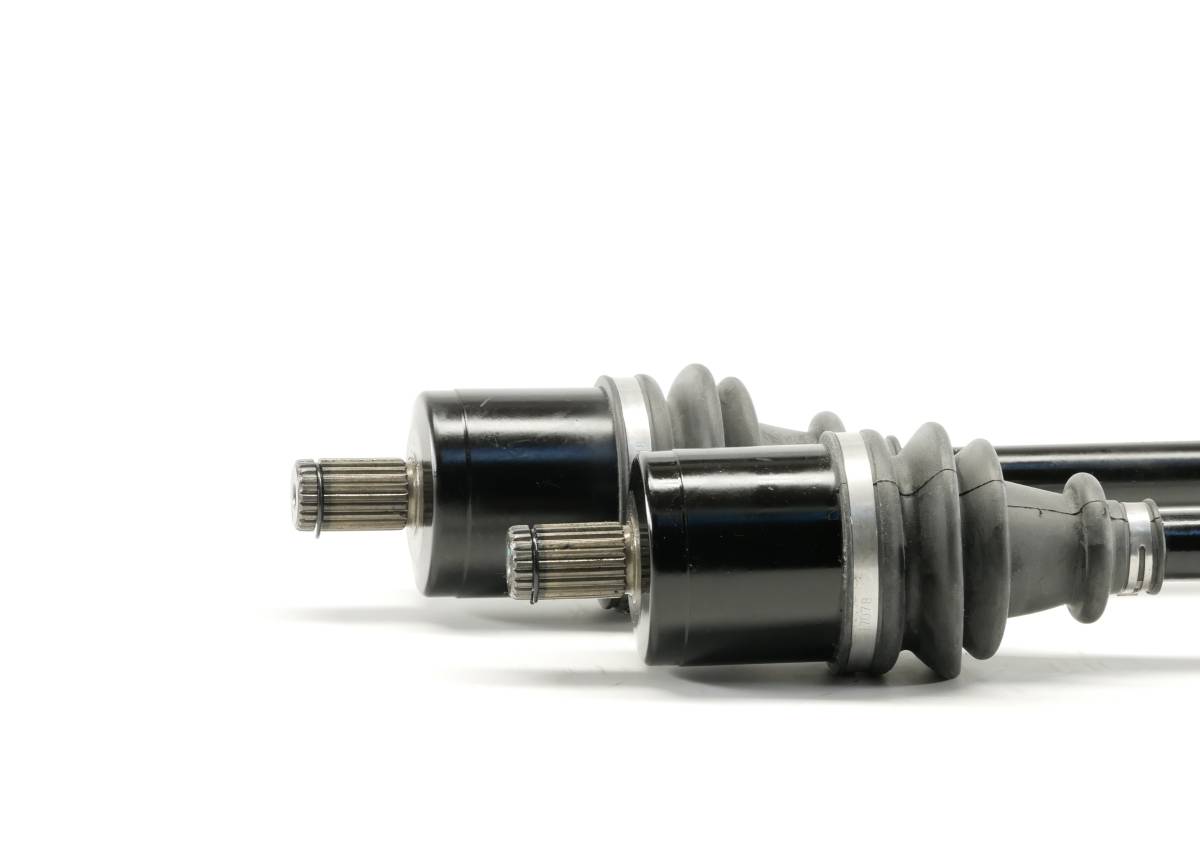

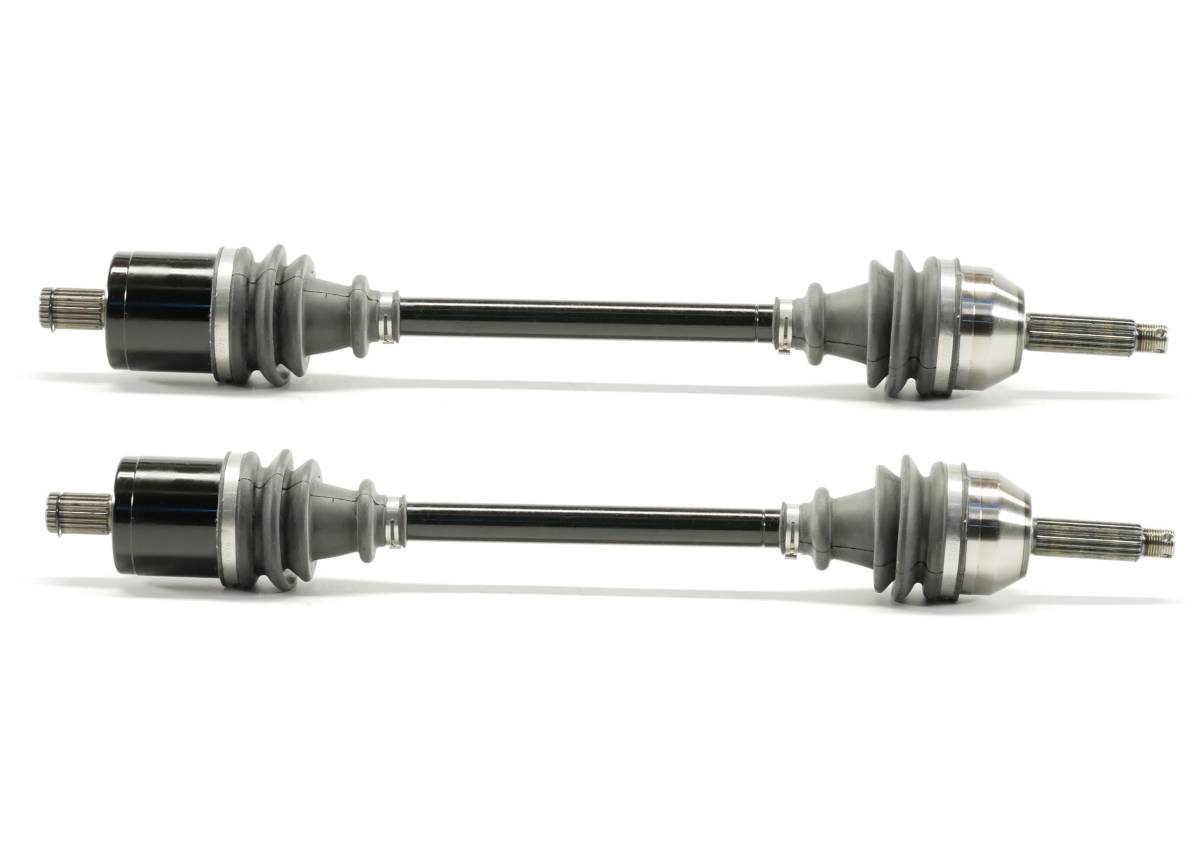

This is a pair of new front CV axles for a Polaris UTV.

They will fit the following 4x4 applications:

2015-2017 ... Ranger ETX

2018-2021 ... Ranger 500

2015-2021 ... Ranger 'Midsize' 570/Crew 570

(please note this does not fit 'Fullsize' or XP models)

2015-2021 ... Ranger EV

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 619 mm (both)
  • Replaces Polaris OEM # 1333238, 1333742
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $149.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2015-2017 Ranger ETX, 2018-2021 Ranger 500, 2015-2021 Midsize Ranger 570 / Crew 570 (excluding full size / XP models) & 2015-2021 Ranger EV Electric Vehicle.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner Splines: 22 (both), Outer Splines: 20 (both), Compressed length: 619 mm (both).
  • Replaces Polaris OE # 1333238, 1333742.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2021PolarisRanger 500--4x4 only
    2020PolarisRanger 500--4x4 only
    2019PolarisRanger 500--4x4 only
    2018PolarisRanger 500--4x4 only
    2021PolarisRanger 570--
    2021PolarisRanger 570Premium
    2020PolarisRanger 570--
    2020PolarisRanger 570EPS
    2019PolarisRanger 570--
    2019PolarisRanger 570EPS
    2018PolarisRanger 570--
    2018PolarisRanger 570EPS
    2017PolarisRanger 570--
    2017PolarisRanger 570EPS
    2017PolarisRanger 570Pursuit Camo
    2016PolarisRanger 570--
    2016PolarisRanger 570EPS
    2016PolarisRanger 570Hunter Edition EPS
    2016PolarisRanger 570Pursuit Camo
    2015PolarisRanger 570--Midsize only
    2015PolarisRanger 570EPSMidsize only
    2021PolarisRanger Crew 570-44X4
    2021PolarisRanger Crew 570-44x4 Premium
    2020PolarisRanger Crew 570-44X4
    2020PolarisRanger Crew 570-44x4 Premium
    2019PolarisRanger Crew 570-44X4
    2019PolarisRanger Crew 570-44x4 EPS
    2018PolarisRanger Crew 570-44X4
    2018PolarisRanger Crew 570-44x4 EPS
    2017PolarisRanger Crew 570-44X4
    2017PolarisRanger Crew 570-44x4 EPS
    2017PolarisRanger Crew 570-4Pursuit Camo
    2016PolarisRanger Crew 570-44X4
    2016PolarisRanger Crew 570-44x4 EPS
    2016PolarisRanger Crew 570-4Pursuit Camo
    2016PolarisRanger ETX--
    2015PolarisRanger ETX--
    2021PolarisRanger EV--
    2020PolarisRanger EV--
    2019PolarisRanger EV--
    2018PolarisRanger EV--
    2018PolarisRanger EVLi-Ion
    2017PolarisRanger EV--
    2017PolarisRanger EVLi-Ion Pursuit Camo
    2017PolarisRanger EVLimited Edition
    2017PolarisRanger EVPursuit Camo
    2016PolarisRanger EV--
    2016PolarisRanger EVLi-Ion
    2016PolarisRanger EVPursuit Camo
    2015PolarisRanger EV--

    Details

    • PO-331/PO-331
    • PO-331/PO-331
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 22.5 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
