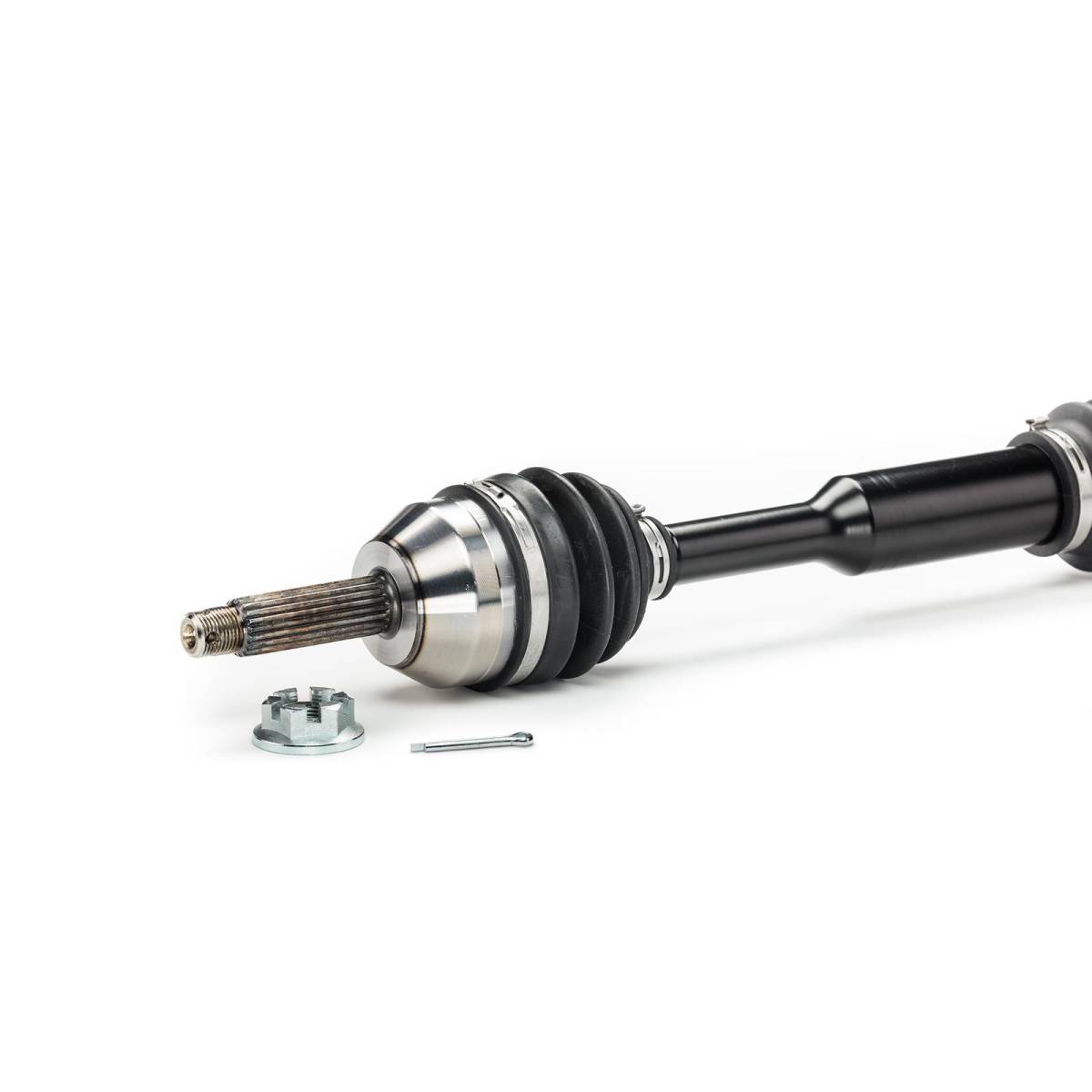

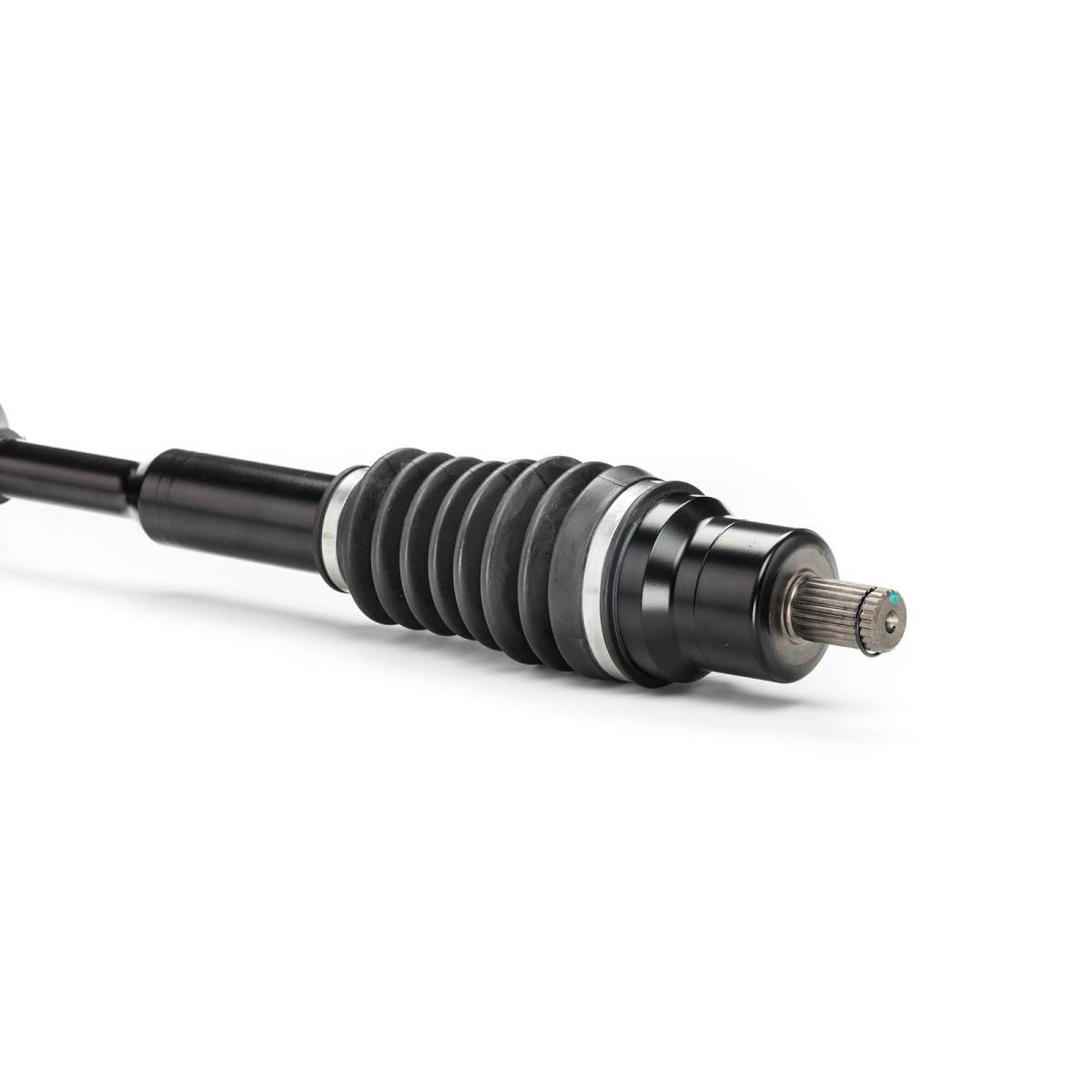

Monster Axles Front Pair with Bearings for Polaris Ranger UTV 1332690, XP Series

Location on vehicle: Front,Left,Right

PO-314XP/PO-314XP/WB-1424/WB-1424
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Works on stock setups, helps support larger tires, and accommodates lift kits up to 4" - Lifting or adjusting a vehicles setup changes the operating angles of the CV axles. Even standard axles can be stretched beyond their limits, leading to premature wear and failure. The XP Series axle increases both angle and travel, solving key issues for most riders. A true upgrade to the OEM.

Enhanced suspension travel and articulation - The dual articulating CV joints allow for a much greater range of motion throughout the suspension cycle. And the unique 60mm internal extension gives even more travel without overstressing the axle. This means your vehicle can flex more effectively over uneven terrain.

Reduces stress and prevents binding - The increased articulation and internal extension work together to minimize the forces that are typically placed on CV joints and axle shafts during operation. This significantly reduces the risk of binding, clicking, popping, and ultimately, axle failure. This means fewer replacements, less downtime, and lower overall maintenance costs over time.

More ground contact, better traction - No matter what setup you run, the wheels gain extra articulation and make more consistent contact with the ground. This reduces wheel spin and gives the vehicle more stability and control.

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joints are designed to be easily removed for service without specialized tools. And you can always contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $239.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisRanger 4004X4
2013PolarisRanger 400Midsize
2012PolarisRanger 4004X4
2012PolarisRanger 4004x4 Pursuit
2011PolarisRanger 4004X4
2011PolarisRanger 400Pursuit HO
2010PolarisRanger 4004X4
2013PolarisRanger 500LE Midsize EFI
2013PolarisRanger 500Midsize EFI
2012PolarisRanger 5004x4 EFI
2012PolarisRanger 5004x4 LE EFI
2011PolarisRanger 5004x4 EFI
2014PolarisRanger 570EFI
2014PolarisRanger 570LE EFI EPS
2014PolarisRanger 570Pursuit EFI
2014PolarisRanger 800Midsize EFI
2014PolarisRanger 800Midsize LE EFI EPS
2014PolarisRanger 800Midsize Pursuit EFI
2013PolarisRanger 800LE Midsize EFI
2013PolarisRanger 800Midsize EFI
2013PolarisRanger Crew 500LE Midsize
2013PolarisRanger Crew 500Midsize
2013PolarisRanger Crew 500Pursuit
2012PolarisRanger Crew 5004X4
2012PolarisRanger Crew 5004x4 LE
2011PolarisRanger Crew 5004X4
2011PolarisRanger Crew 5004x4 Pursuit
2014PolarisRanger Crew 570EFI
2014PolarisRanger Crew 570LE EFI EPS
2014PolarisRanger Crew 570Pursuit EFI

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Polaris UTV models: 2010-2014 Ranger 400, 2011-2013 Ranger 500/Crew 500, 2014 Ranger 570/Crew 570, 2013-2014 'Mid-Size' Ranger 800. Set includes 2 axles & 2 wheel bearings.
  • Works with stock setups, helps support larger tires, and can accommodate lift kits up to 4". The dual articulating joints allow for a greater range of motion, keeping the tires in contact with the ground. The 60mm internal extension gives even more range without overstressing the axle.
  • The increased articulation and internal extension work together to minimize the forces that are typically placed on axles. This significantly reduces the risk of binding, clicking, popping, and ultimately, axle failure. Plus the joints can easily be serviced without specialized tools.
  • Improved durability and a longer lifespan compared to a standard axle, especially on vehicles that are frequently subjected to demanding off-road use. This means fewer replacements, less downtime, and lower overall maintenance costs over time.
  • Replaces OEM # (axles) 1332690, 1333134, (bearings) 3514342, 3514634. Compressed length - 584 mm (both), Inner spline count: 22 (both), Outer spline count: 20 (both). Warranty: 1 Year (excluding torn boots).

  • What's In The Box

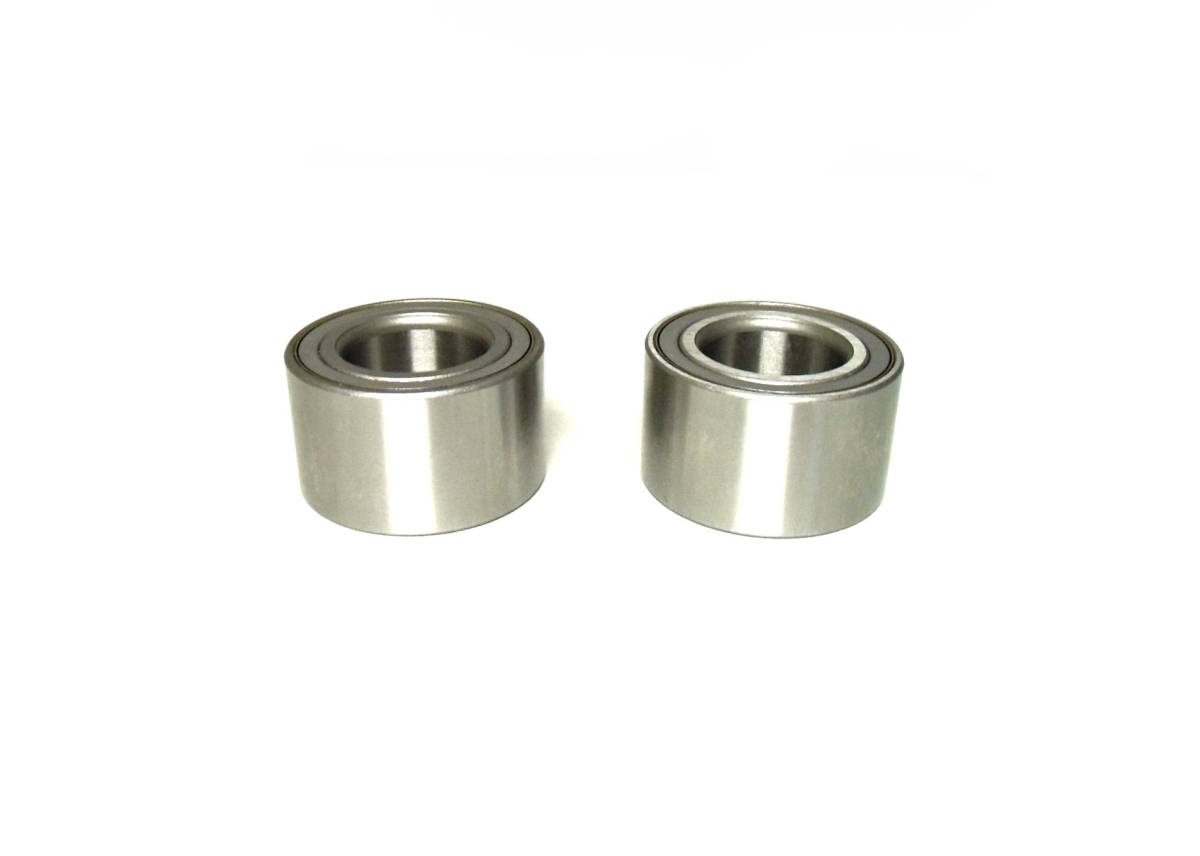

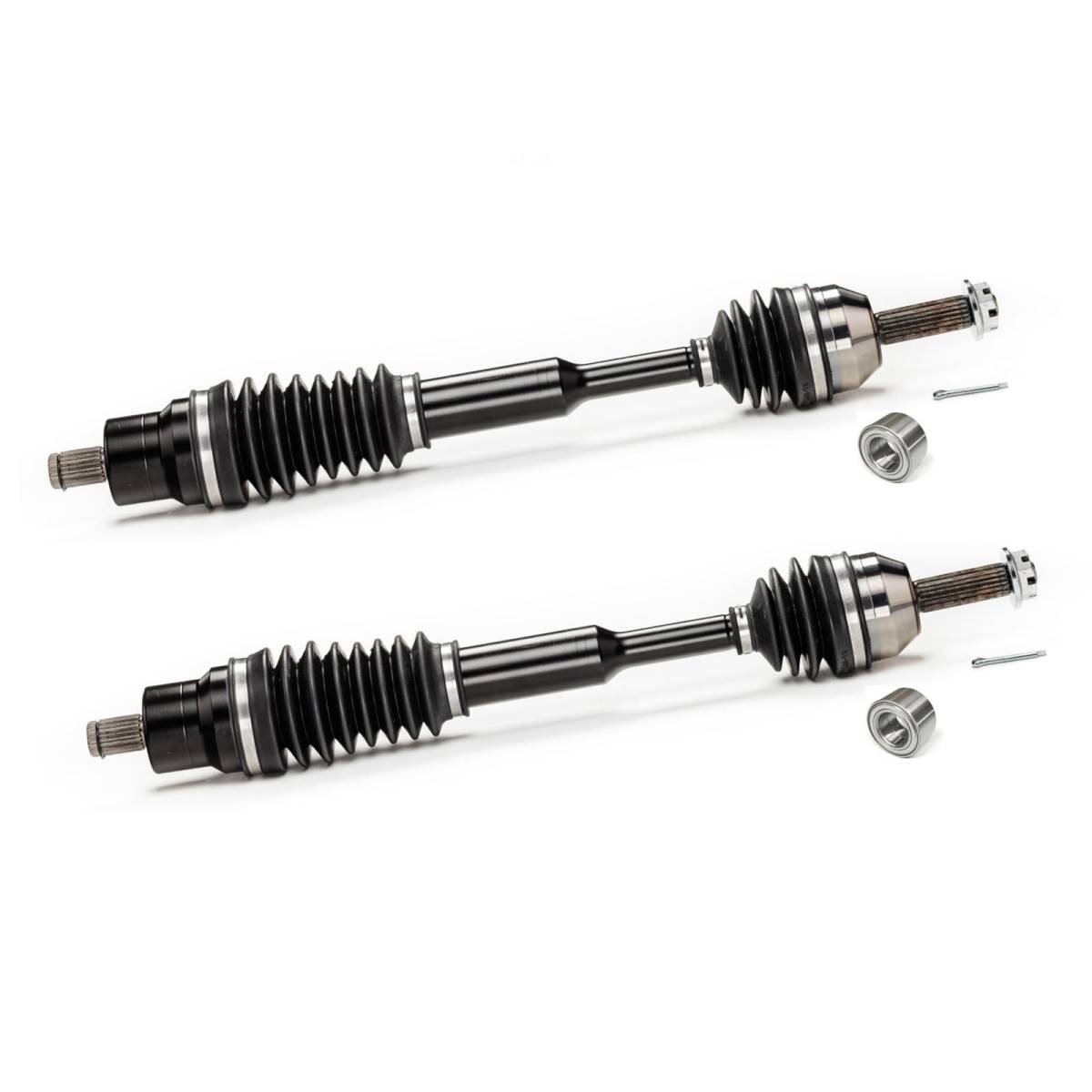

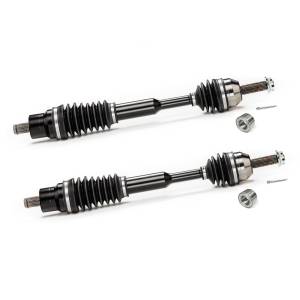

  • 2 axles & 2 wheel bearings
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-314XP/PO-314XP/WB-1424/WB-1424
    • PO-314XP/PO-314XP/WB-1424/WB-1424
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 26.0 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
