Rear CV Axle Pair for Suzuki King Quad 700 4x4 2005-2006

Location on vehicle: Rear,Left,Right

SK-321/SK-321

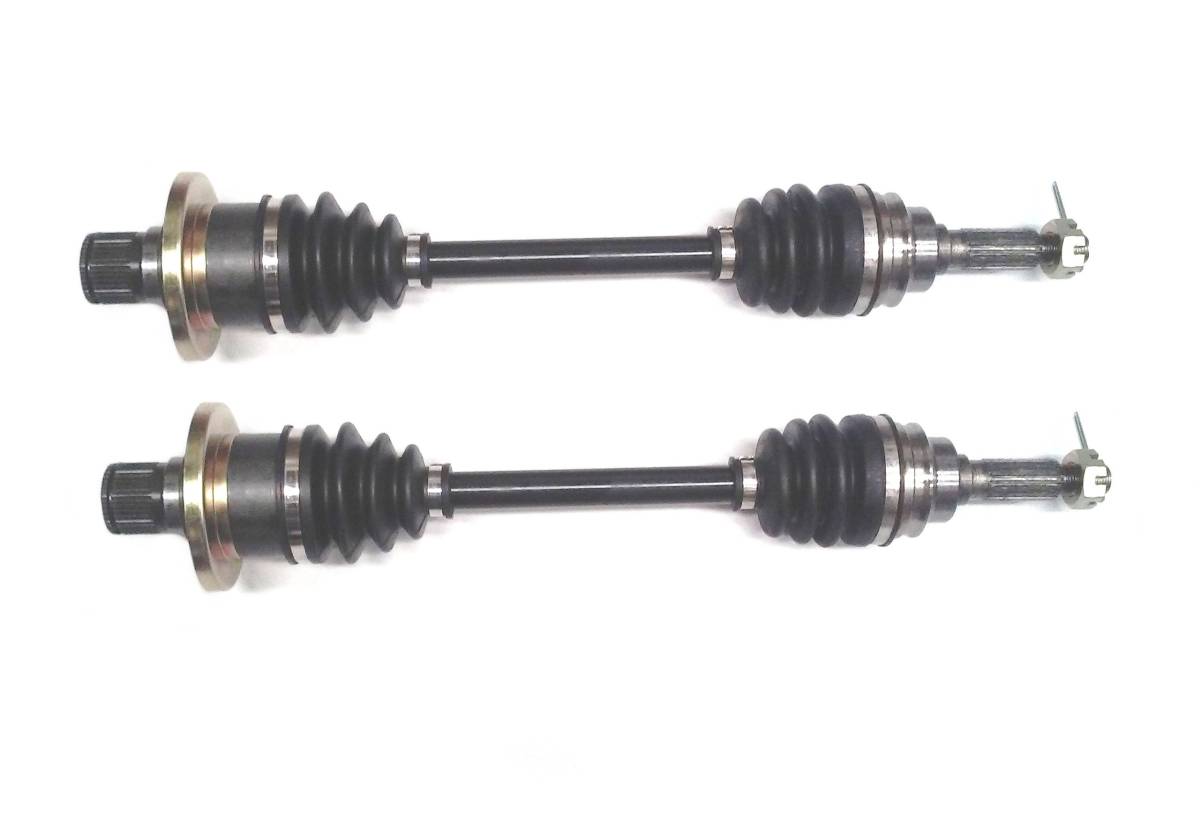

This is a pair of new Rear CV axles for a Suzuki ATV.

They fit the following 4x4 models:

2005-2006 ..... King Quad 700

***Includes the differential seal pre installed***

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

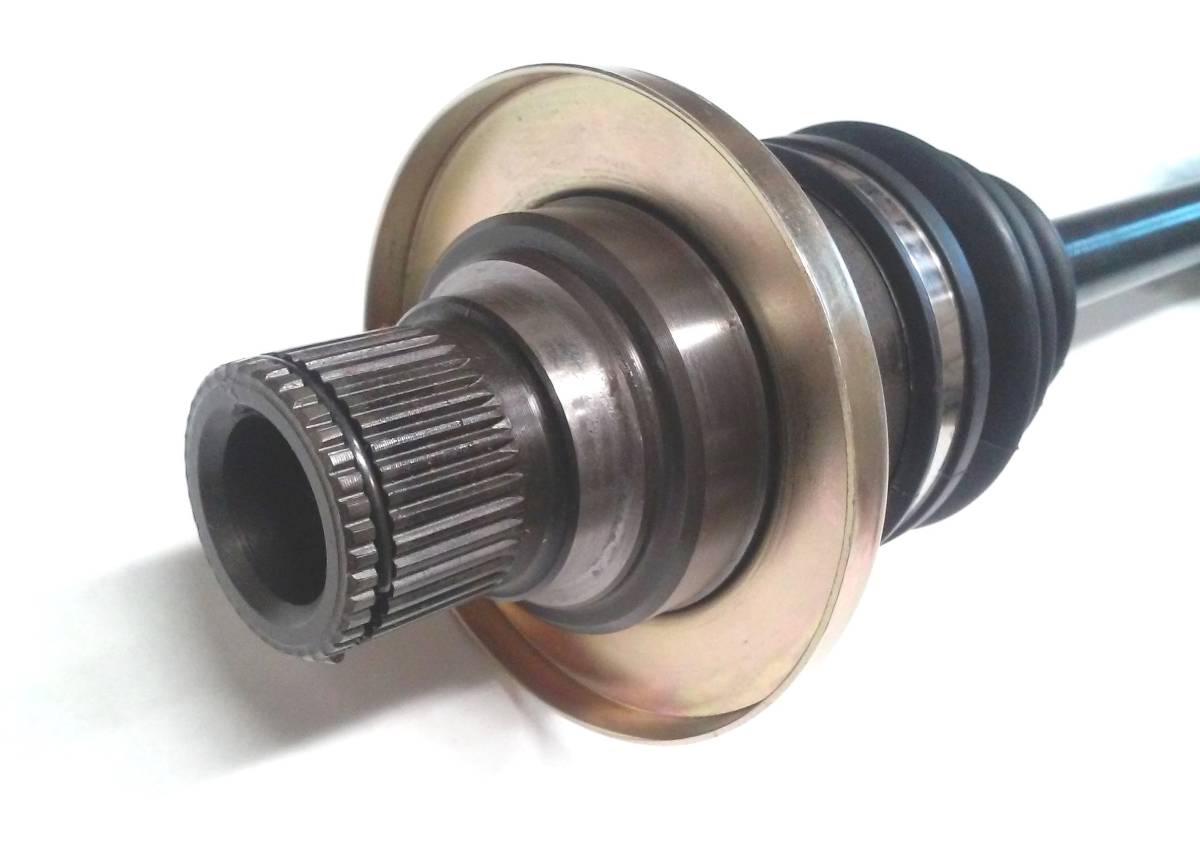

  • Inboard CV joint spline count: 39 (both)

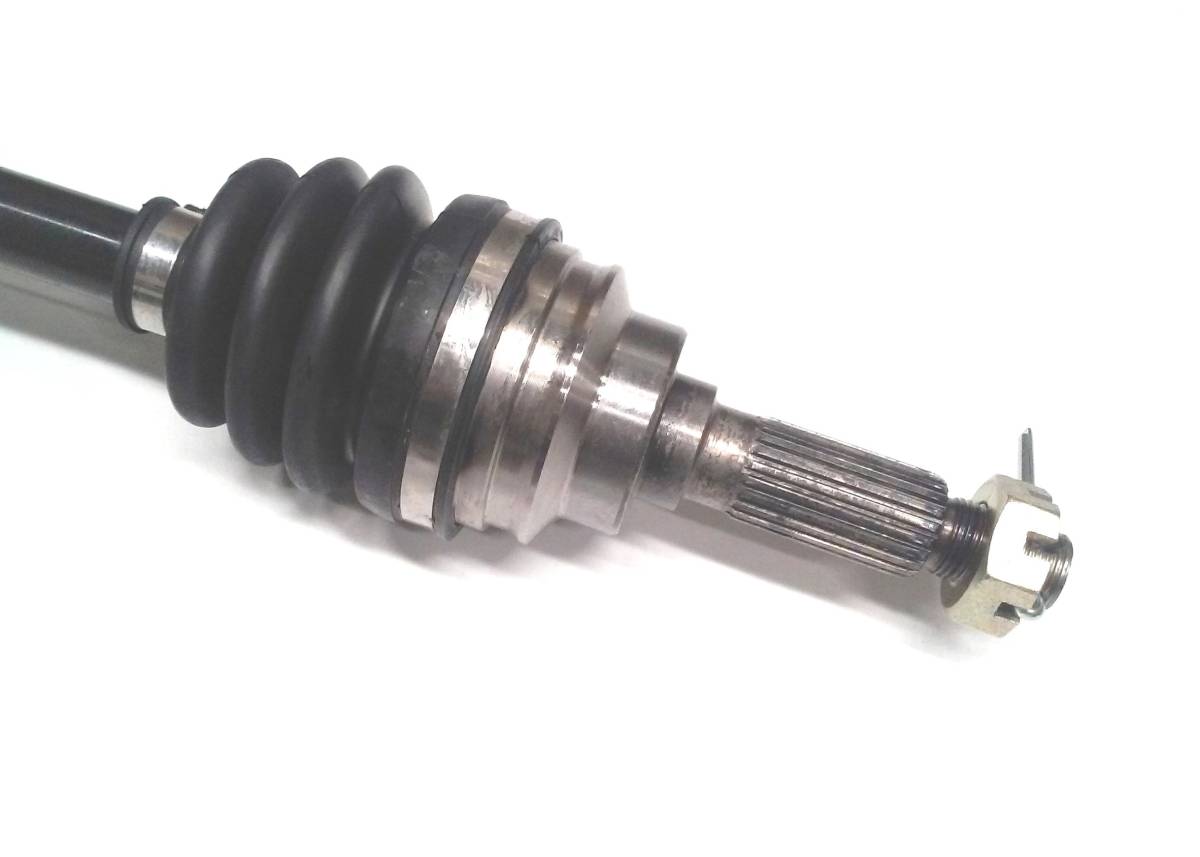

  • Outboard CV joint spline count: 22 (both)
  • Compressed overall axle length: 532 mm (both)
  • Replaces Suzuki OE # 64901-31G03, 64901-31G00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $164.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear left & right on the Suzuki King Quad 700 4x4 2005-2006 & comes with the differential seals pre-assembled, so you don't have to purchase those separately.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 532 mm (both), Inner Spline Count - 39 (both), Outer Spline Count - 22 (both).
  • Replaces Suzuki OE # 64901-31G03, 64901-31G00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2006SuzukiKing Quad 700LTA700X 4x4
    2005SuzukiKing Quad 700LTA700X 4x4

    Details

    • SK-321/SK-321
    • SK-321/SK-321
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 21.0 lbs.
    • W12.0000” x H6.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
