Front Axle & Wheel Bearing for Polaris Ranger 500 & Series 10/11 2002-2005

Location on vehicle: Front,Left,Right

PO-241/WB-1424

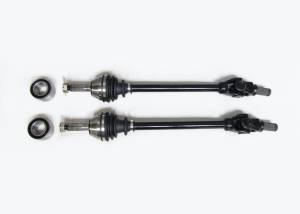

This is a new front U-joint / CV joint axle & wheel bearing for a Polaris UTV.

They fit the following models:

2002 ..... Ranger Series 10 4x4/6x6

2002 ... Series 10 PPS Utility Task Vehicle

2003-2004 ..... Ranger Series 11 4x4/6x6

2003-2004 ... Series 11 PPS Utility Task Vehicle

2004-2005 ... Ranger 500 4x4/6x6

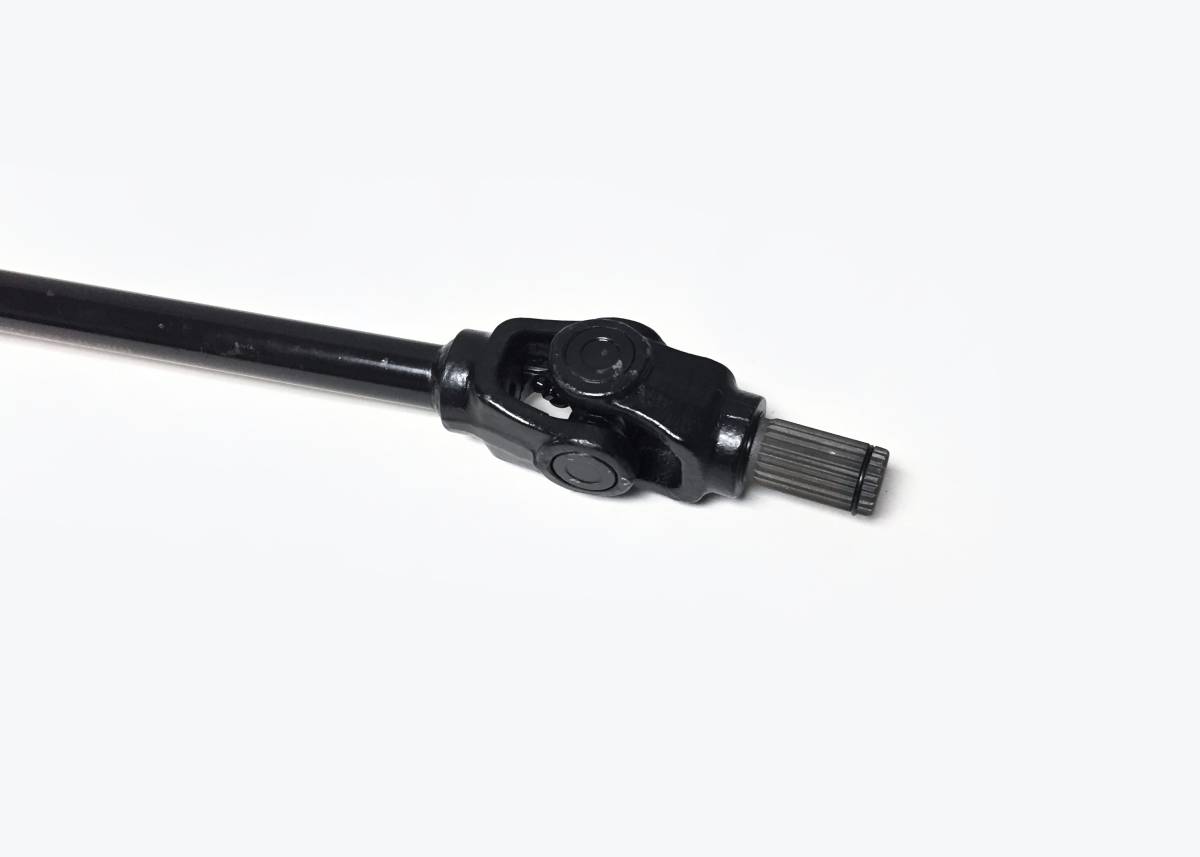

(this is for models with a U-joint on the inner side of the axle shaft)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication

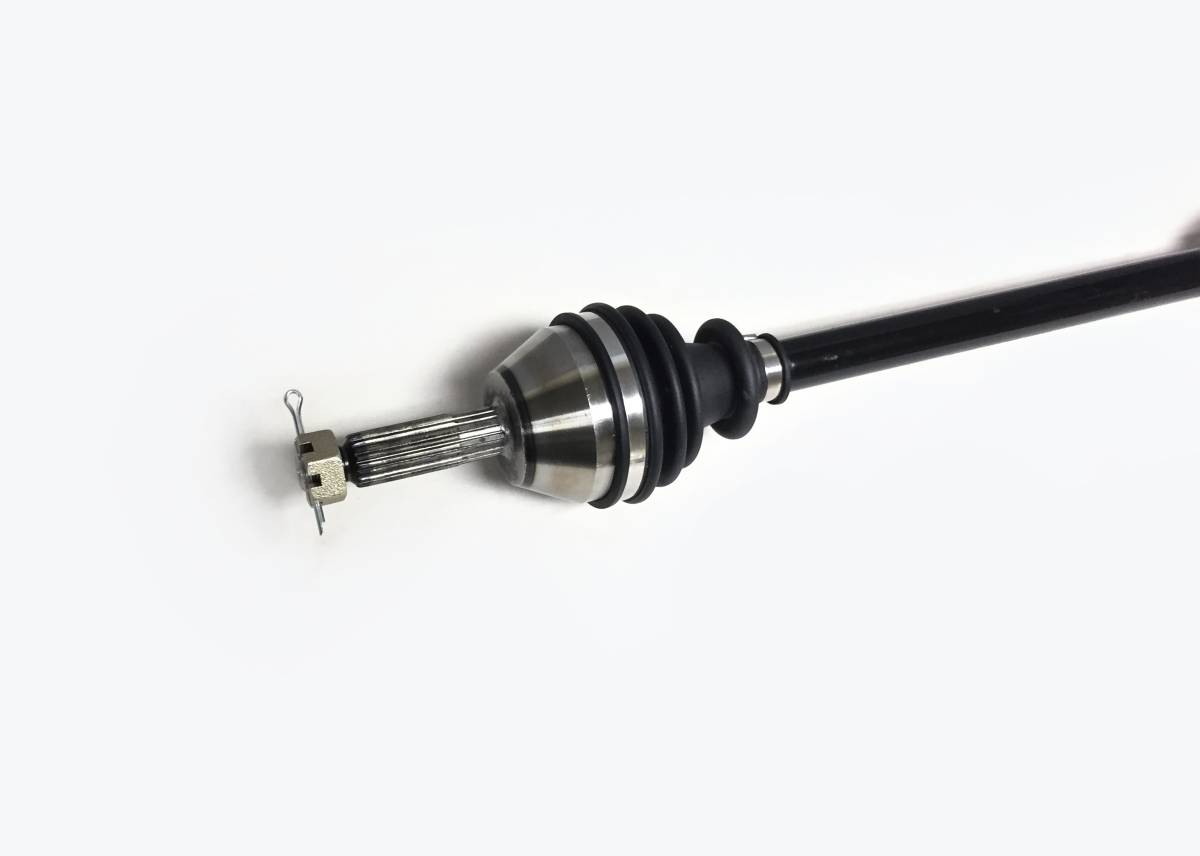

  • Fitted with neoprene CV boots for added wear and puncture resistance

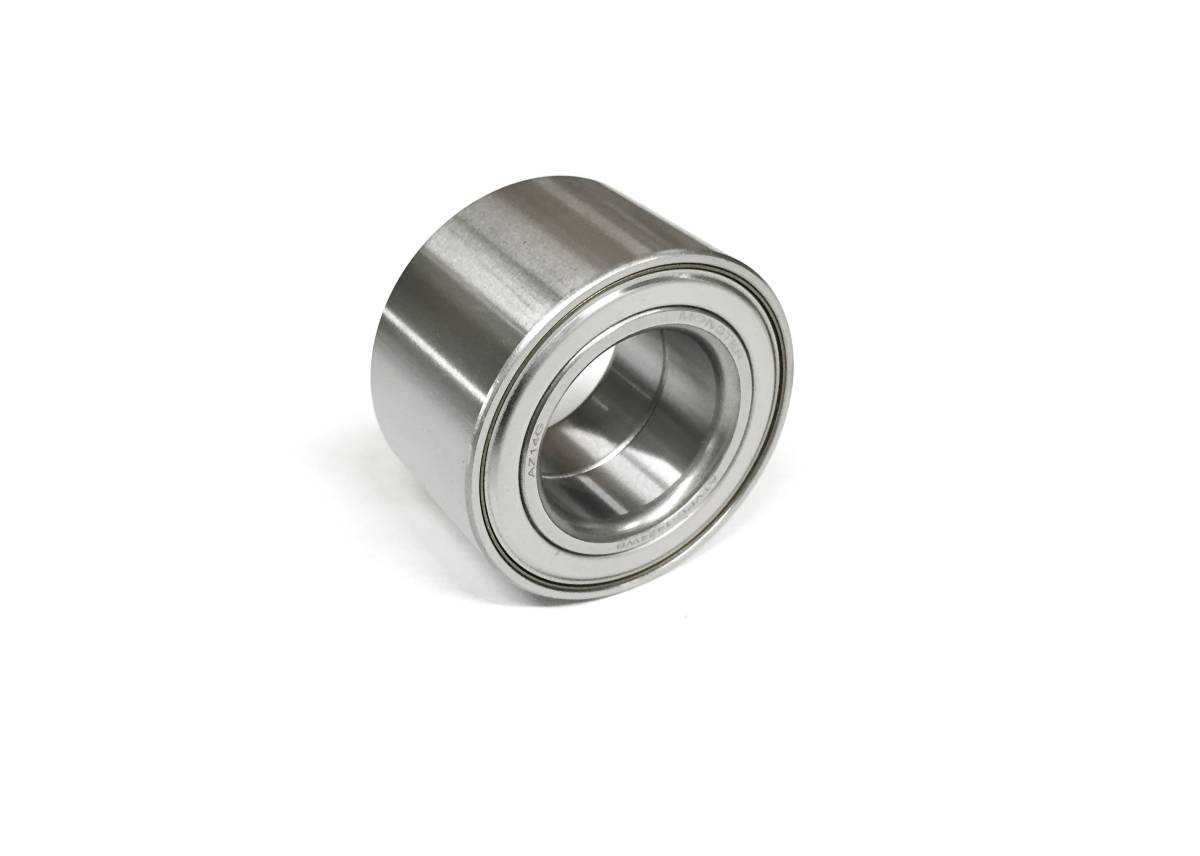

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 620.5 mm
  • Replaces Polaris OEM # (axle) 1380178, 1380230, (bearing) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $105.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2002 Ranger Series 10 4x4/6x6, 2002 Series 10 PPS UTV, 2003-2004 Ranger Series 11 4x4/6x6, 2003-2004 Series 11 PPS UTV, & 2004-2005 Ranger 500 4x4/6x6 (with inner U-Joint shaft).
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Polaris OEM # (axle) 1380178, 1380230, (bearing) 3514342, 3514634. Compressed Length - 620.5 mm, Inboard Spline Count - 22, Outboard Spline Count - 20.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

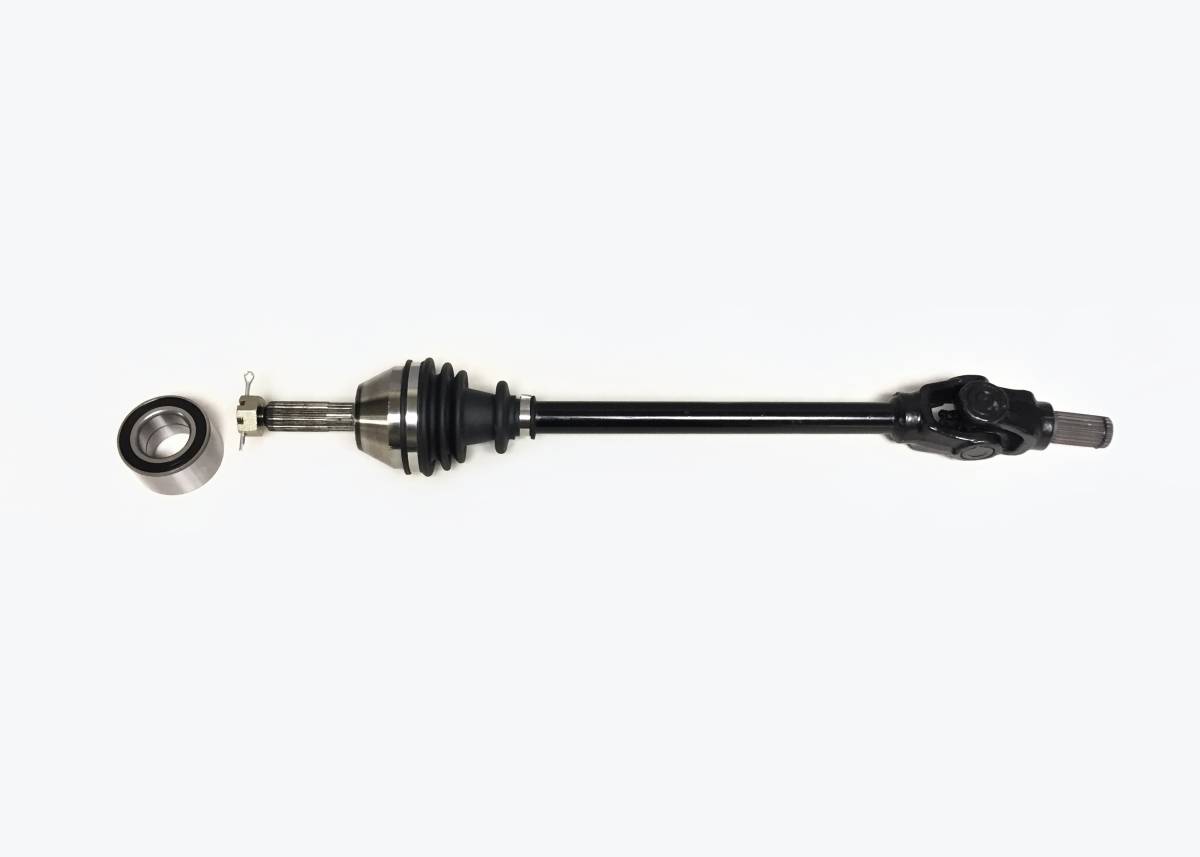

  • 1 CV/U-joint axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2002PolarisRanger 5006x6Series 10
    2002PolarisRanger 5004X4Series 10
    2003PolarisRanger 5006x6Series 11
    2003PolarisRanger 5004X4Series 11
    2004PolarisRanger 5006x6models with inner U-joint
    2004PolarisRanger 5006x6Series 11
    2004PolarisRanger 5004X4models with inner U-joint
    2004PolarisRanger 5004X4Series 11
    2005PolarisRanger 5006x6models with inner U-joint
    2005PolarisRanger 5004x4 Limited Editionmodels with inner U-joint
    2005PolarisRanger 5004X4models with inner U-joint

    Details

    • PO-241/WB-1424
    • PO-241/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
