Rear Right CV Axle & Wheel Bearing Kit for Yamaha Rhino 450 & 660 4x4 2004-2009

Location on vehicle: Rear,Right

YA-323/WB-1542
This is a new Rear, Right CV axle & wheel bearing/seal kit for a Yamaha ATV.

They fit the following 4x4 applications:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life

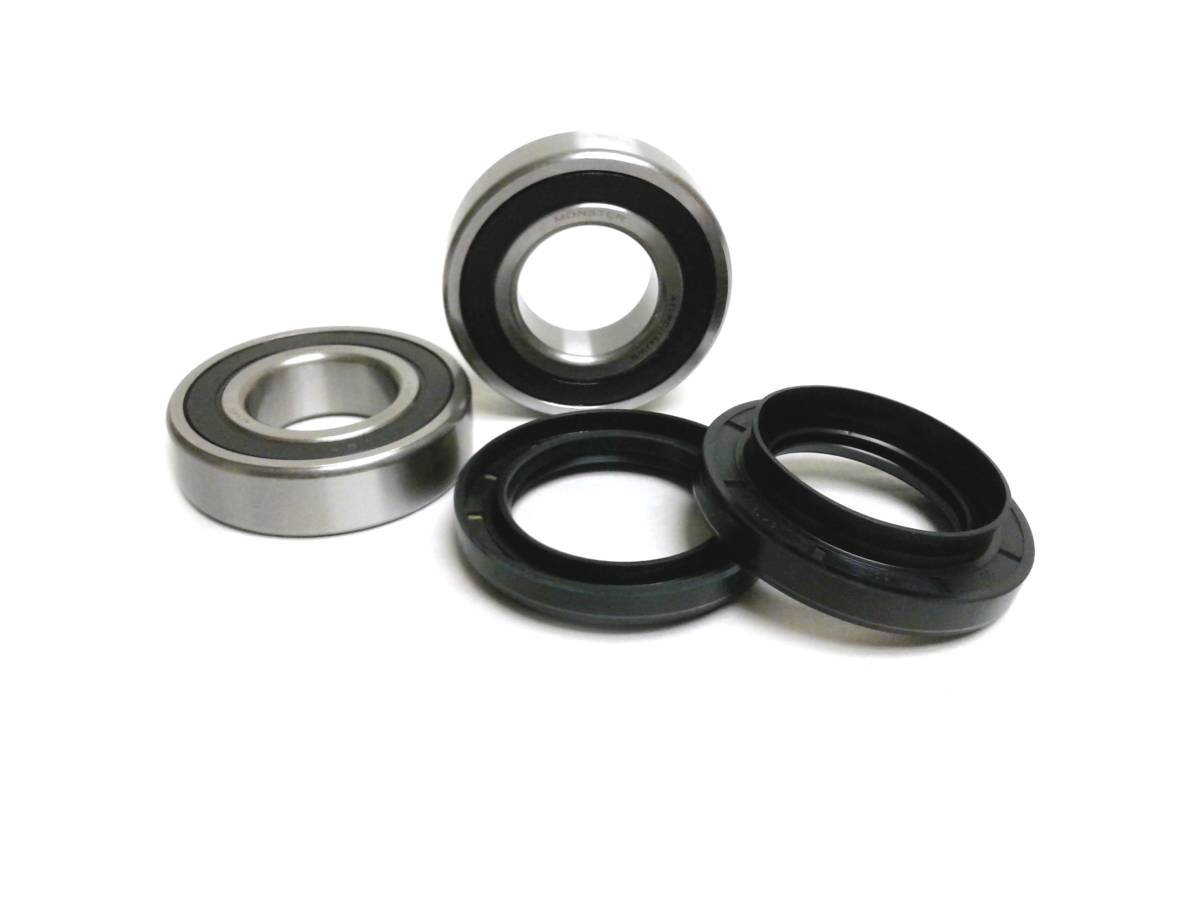

  • Double lip seals made to keep grease in and dirt out

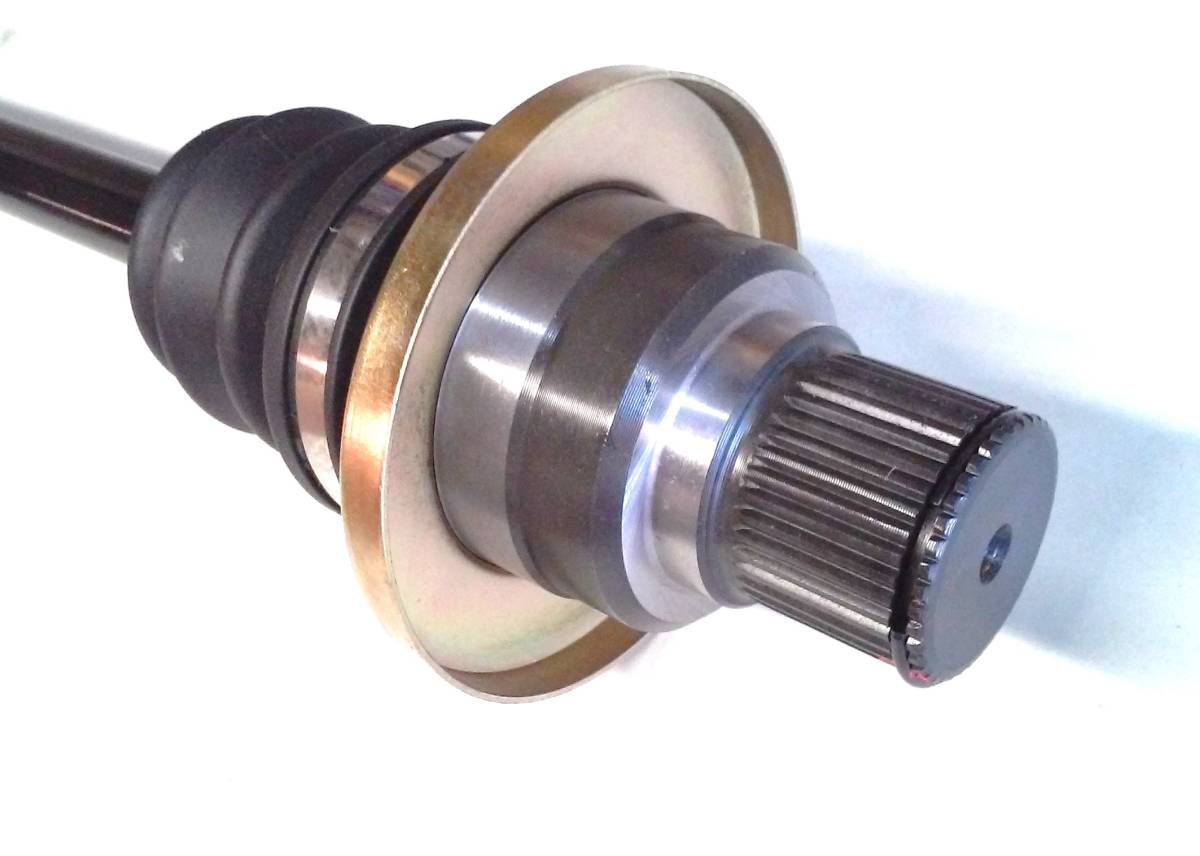

  • Inboard CV joint spline count: 39

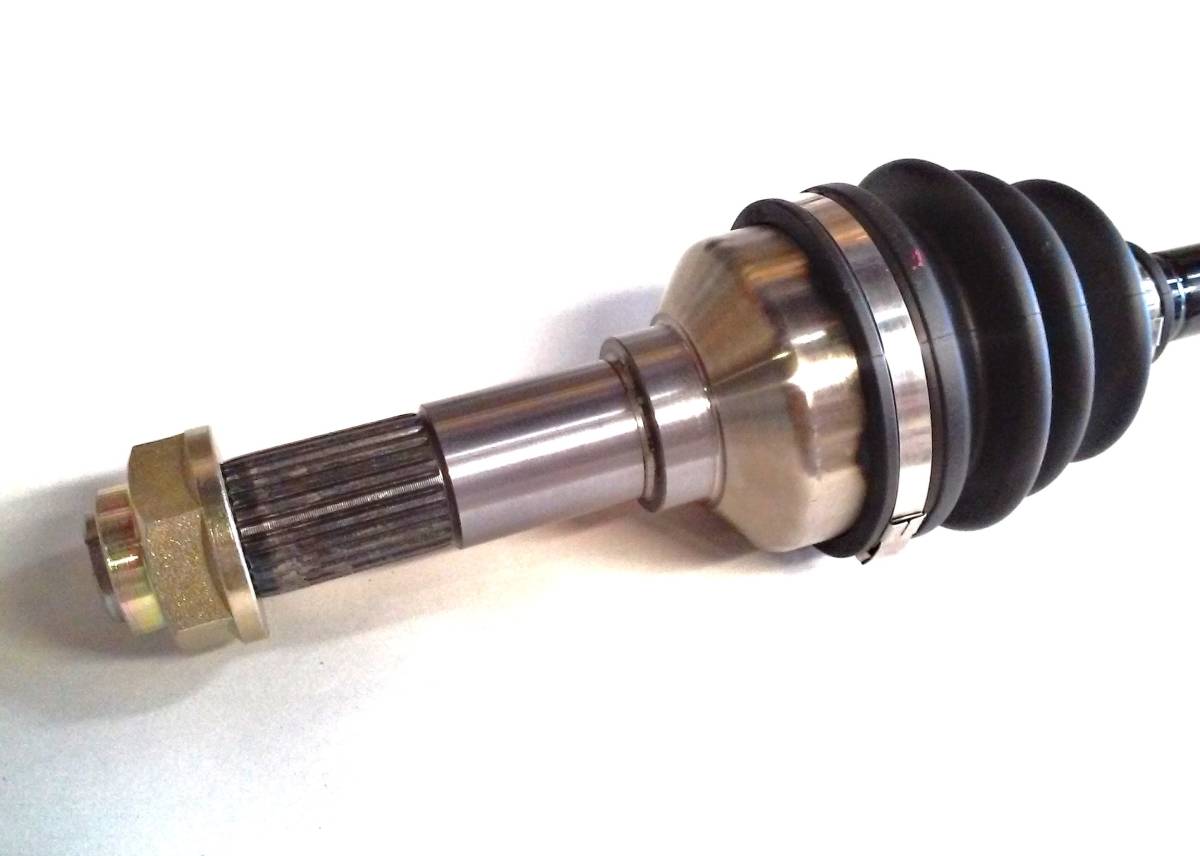

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 630 mm
  • Replaces Yamaha OEM # (axle) 5UG-F53B0-20-00, 5UG-F53B0-21-00, (bearings & seals) 93306-206Y2-00, 93106-42800-00, 93106-38800-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear right (passenger side): 2006-2009 Rhino 450 & 2004-2007 Rhino 660 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Yamaha OEM # (axle) 5UG-F53B0-20-00, 5UG-F53B0-21-00, (bearings & seals) 93306-206Y2-00, 93106-42800-00, 93106-38800-00. Compressed Length - 630 mm, Inboard Spline Count - 39, Outboard Spline Count - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

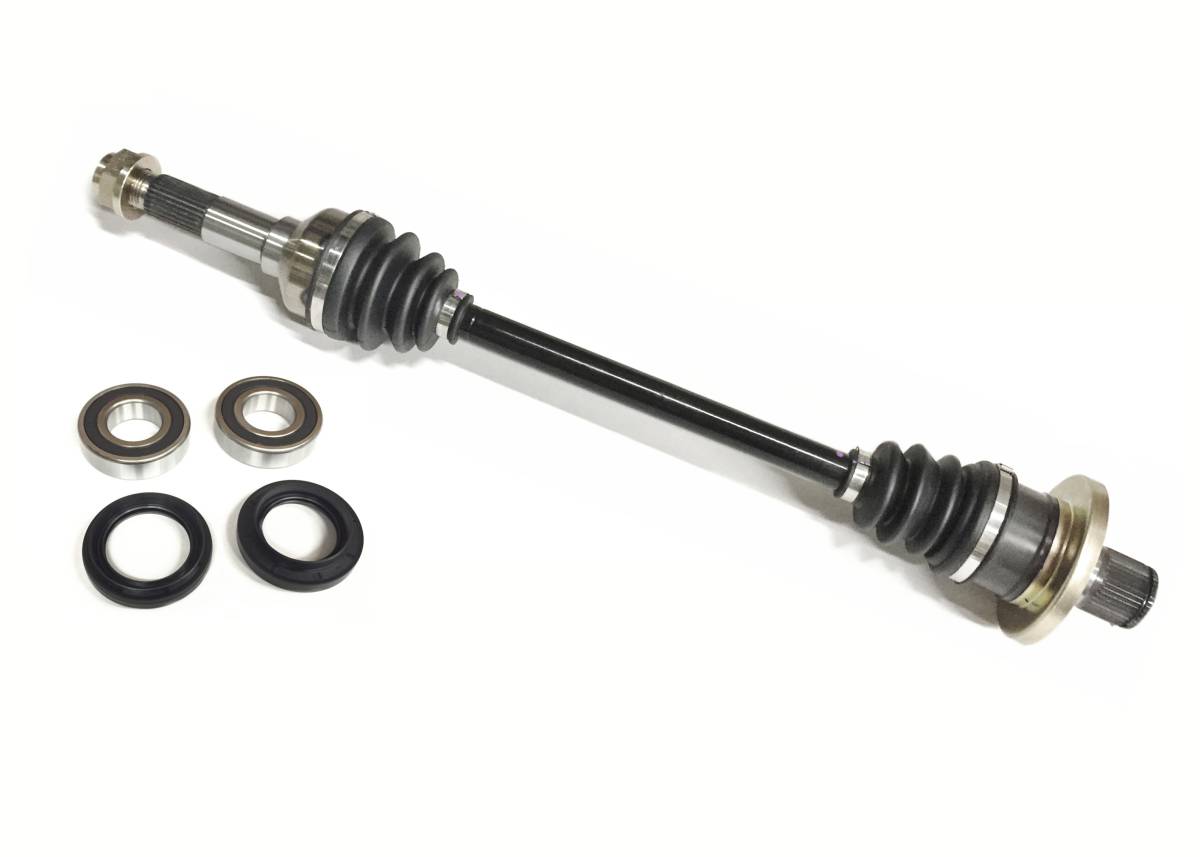

  • 1 CV axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2009YamahaRhino 450YXR450FA 4x4
    2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FA 4x4
    2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FSE 4x4 Special Edition
    2007YamahaRhino 450YXR450FA 4x4
    2007YamahaRhino 450YXR450FASE 4x4 Special Edition
    2007YamahaRhino 450YXR450FSE 4x4 Special Edition
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FA 4x4
    2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
    2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FSE 4x4 Special Edition
    2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2004YamahaRhino 660YXR660FA 4x4
    2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition

    Details

    • YA-323/WB-1542
    • YA-323/WB-1542
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W5.0000” x H28.0000” x L5.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
