Complete Axle Set for Kawasaki Mule 2510, 3000, 3010, 4000 & 4010, KAF620 KAF950

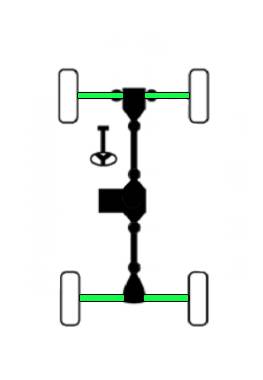

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
KW-305/KW-305/KW-391/KW-391
This set of fully assembled O.E. type axles fit the following Kawasaki Mule UTVs.

2000-2002 Mule 2510, 2001-2008 Mule 3010 4x4, 2009-2023 Mule 4010/4010 Trans 4x4

*Not intended for use in lifted vehicles

Product features:

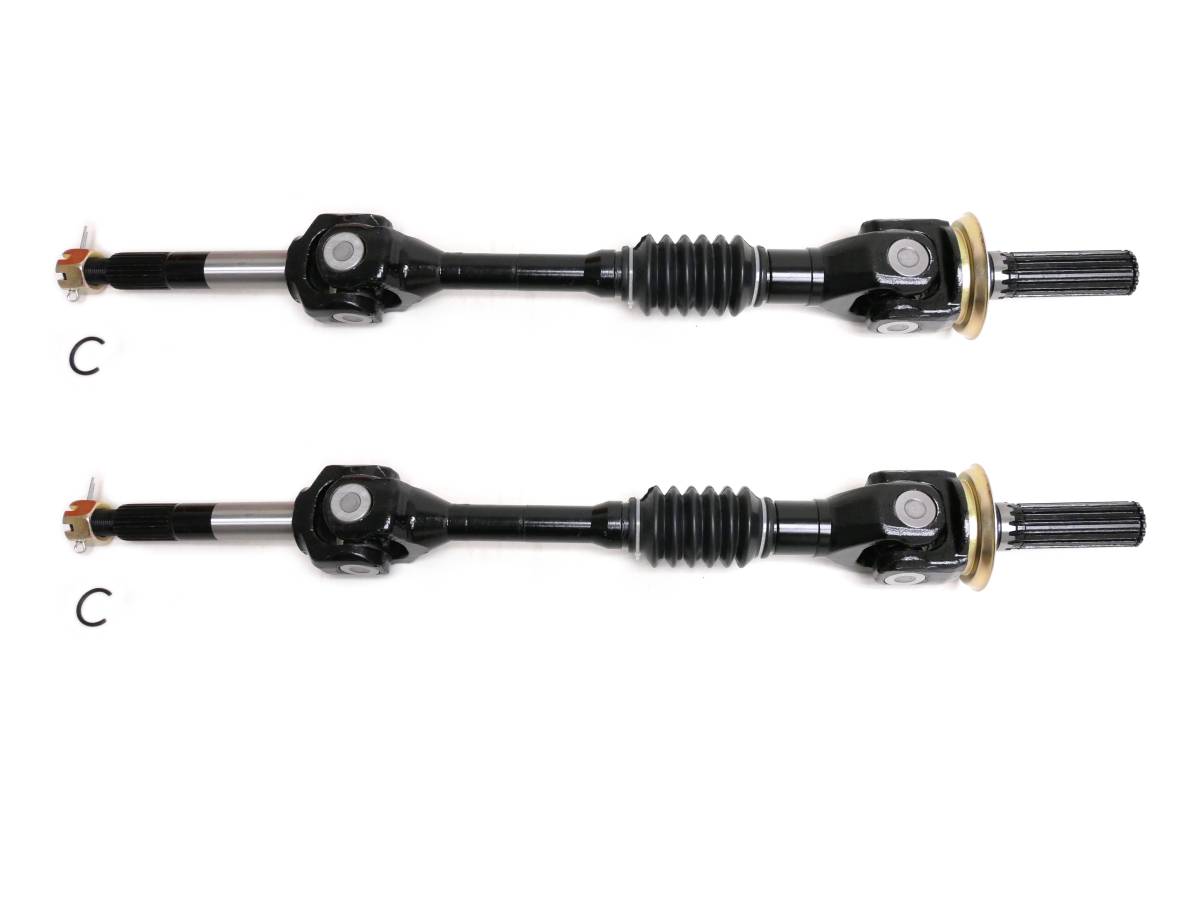

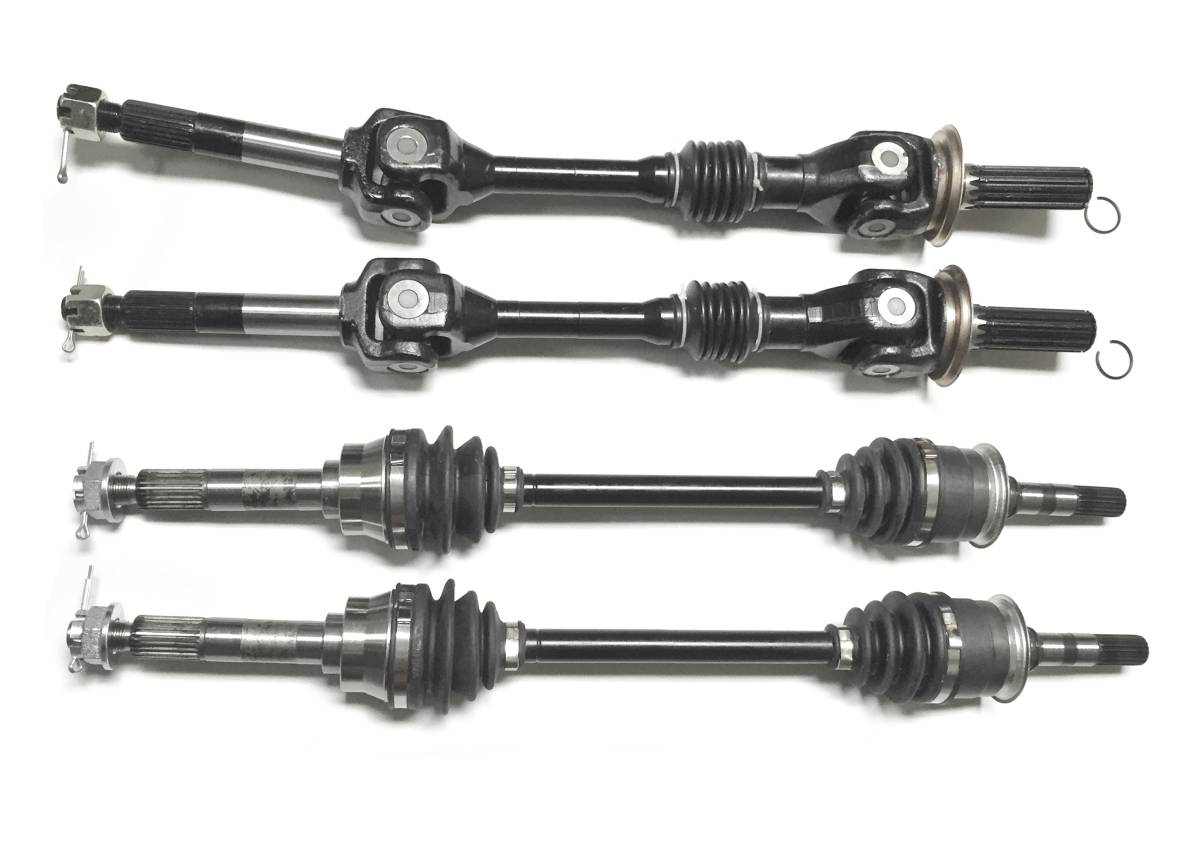

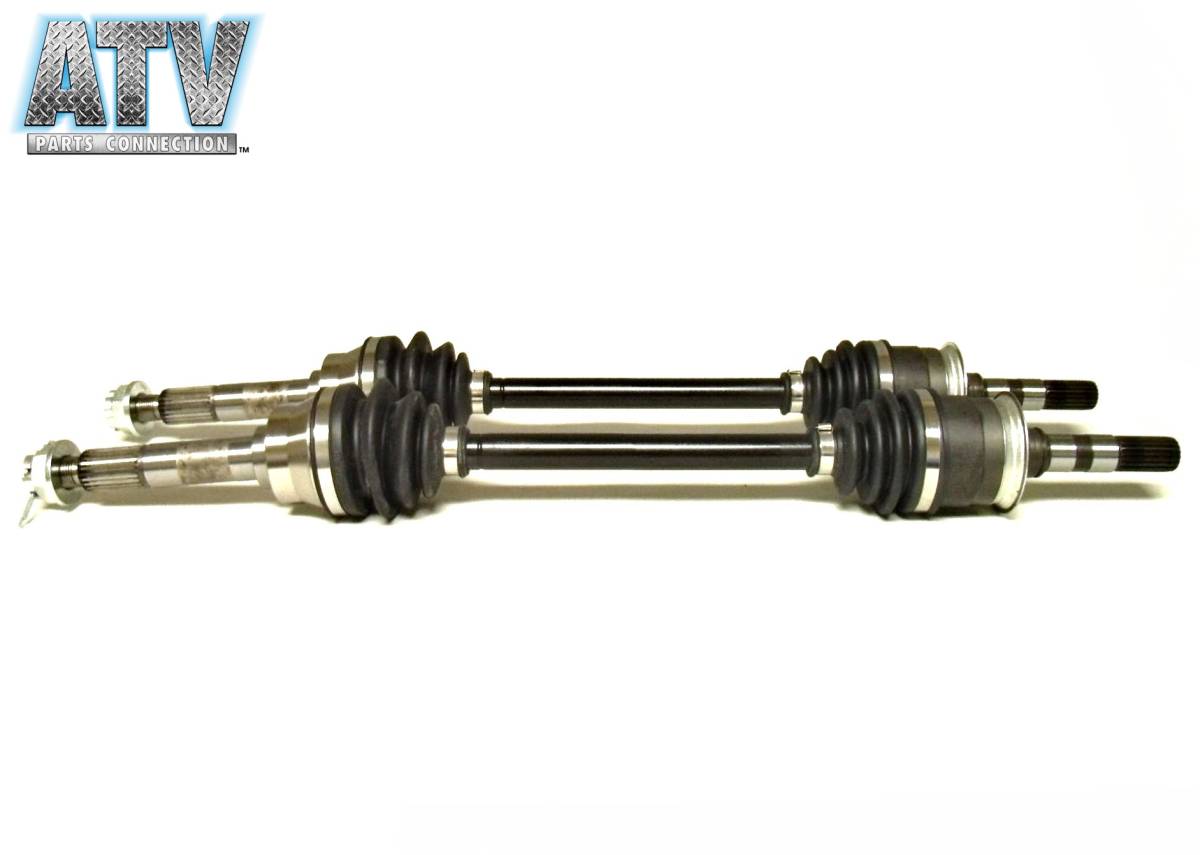

  • Includes: 2 front & 2 rear axles
  • Features stronger than OEM chromoly-forged steel axle bars
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Front Inboard spline count: 19 (both)
  • Front Outboard spline count: 24 (both)
  • Rear Inboard U joint spline count: 15 (both)
  • Rear Outboard U joint spline count: 24 (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $399.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect warranty

Product Notes

  • Fits: 2000-2002 Mule 2510 4x4, 2001-2008 Mule 3010 4x4, 2009-2023 Mule 4010/4010 Trans 4x4
  • Features stronger than OEM chromoly-forged steel axle shafts. This set comes fully assembled and ready to install out of the box.
  • Inboard Splines: Fronts 19, Rears - 15 Outboard Splines: Fronts 24, Rears - 24.
  • Replaces OEM # (fronts) 39158-1102, 59266-0034, (rears) 39158-1104, 39158-1105, 39158-1109, 39158-1119, 39158-1120.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2002KawasakiMule 2510KAF950A 4x4 Diesel
    2001KawasakiMule 2510KAF950A 4x4 Diesel
    2000KawasakiMule 2510KAF620A 4x4
    2000KawasakiMule 2510KAF950A 4x4 Diesel
    2008KawasakiMule 3010KAF620E 4x4
    2008KawasakiMule 3010KAF620H 4x4
    2008KawasakiMule 3010KAF620J 4x4 Trans
    2008KawasakiMule 3010KAF620K 4x4 Trans
    2008KawasakiMule 3010KAF950D 4x4 Diesel
    2008KawasakiMule 3010KAF950E 4x4 Trans Diesel
    2007KawasakiMule 3010KAF620E 4x4
    2007KawasakiMule 3010KAF620H 4x4
    2007KawasakiMule 3010KAF620J 4x4 Trans
    2007KawasakiMule 3010KAF620K 4x4 Trans
    2007KawasakiMule 3010KAF950B 4x4 Diesel
    2007KawasakiMule 3010KAF950C 4x4 Trans Diesel
    2006KawasakiMule 3010KAF620E 4x4
    2006KawasakiMule 3010KAF620H 4x4
    2006KawasakiMule 3010KAF620J 4x4 Trans
    2006KawasakiMule 3010KAF620K 4x4 Trans
    2006KawasakiMule 3010KAF950B 4x4 Diesel
    2005KawasakiMule 3010KAF620E 4x4
    2005KawasakiMule 3010KAF620H 4x4
    2005KawasakiMule 3010KAF620J 4x4 Trans
    2005KawasakiMule 3010KAF620K 4x4 Trans
    2005KawasakiMule 3010KAF950B 4x4 Diesel
    2004KawasakiMule 3010KAF620E 4x4
    2004KawasakiMule 3010KAF950B 4x4 Diesel
    2003KawasakiMule 3010KAF620E 4x4
    2003KawasakiMule 3010KAF620H 4x4
    2003KawasakiMule 3010KAF950B 4x4 Diesel
    2002KawasakiMule 3010KAF620E 4x4
    2001KawasakiMule 3010KAF620E 4x4
    2022KawasakiMule 4010KAF620 4x4
    2022KawasakiMule 4010KAF620 4x4 FE
    2021KawasakiMule 4010KAF620 4x4
    2021KawasakiMule 4010KAF620 4x4 FE
    2020KawasakiMule 4010KAF620 4x4
    2019KawasakiMule 4010KAF620 4x4
    2018KawasakiMule 4010KAF620 4x4
    2018KawasakiMule 4010KAF620 4x4 Camo
    2018KawasakiMule 4010KAF620 4x4 SE
    2017KawasakiMule 4010KAF620MHF 4X4
    2017KawasakiMule 4010KAF620THF 4x4 SE
    2016KawasakiMule 4010KAF620 4x4
    2016KawasakiMule 4010KAF620 4x4 SE
    2015KawasakiMule 4010KAF620A 4x4
    2014KawasakiMule 4010KAF620M 4x4
    2014KawasakiMule 4010KAF620R 4x4 Trans
    2014KawasakiMule 4010KAF620S 4x4 Trans
    2014KawasakiMule 4010KAF620SEF 4x4 Trans Camo
    2013KawasakiMule 4010KAF620M 4x4
    2013KawasakiMule 4010KAF620R 4x4 Trans
    2013KawasakiMule 4010KAF620S 4x4 Trans
    2013KawasakiMule 4010KAF950F 4x4 Diesel
    2013KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2012KawasakiMule 4010KAF620M 4x4
    2012KawasakiMule 4010KAF620R 4x4 Trans
    2012KawasakiMule 4010KAF620S 4x4 Trans
    2012KawasakiMule 4010KAF950F 4x4 Diesel
    2012KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2011KawasakiMule 4010KAF620M 4x4
    2011KawasakiMule 4010KAF620R 4x4 Trans
    2011KawasakiMule 4010KAF620S 4x4 Trans
    2011KawasakiMule 4010KAF950F 4x4 Diesel
    2011KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF620M 4x4
    2010KawasakiMule 4010KAF620R 4x4 Trans
    2010KawasakiMule 4010KAF620S 4x4 Trans
    2010KawasakiMule 4010KAF950F 4x4 Diesel
    2010KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2010KawasakiMule 4010KAF950H 4x4 Trans Diesel
    2009KawasakiMule 4010KAF620M 4x4
    2009KawasakiMule 4010KAF620N 4x4
    2009KawasakiMule 4010KAF620R 4x4 Trans
    2009KawasakiMule 4010KAF620S 4x4 Trans
    2009KawasakiMule 4010KAF950F 4x4 Diesel
    2009KawasakiMule 4010KAF950G 4x4 Trans Diesel
    2023KawasakiMule 4010 TransKAF620 4x4
    2023KawasakiMule 4010 TransKAF620 4x4 FE
    2022KawasakiMule 4010 TransKAF620 4x4
    2022KawasakiMule 4010 TransKAF620 4x4 Camo
    2022KawasakiMule 4010 TransKAF620 4x4 FE
    2021KawasakiMule 4010 TransKAF620 4x4
    2021KawasakiMule 4010 TransKAF620 4x4 Camo
    2021KawasakiMule 4010 TransKAF620 4x4 FE
    2020KawasakiMule 4010 TransKAF620 4x4
    2020KawasakiMule 4010 TransKAF620 4x4 Camo
    2019KawasakiMule 4010 TransKAF620 4x4
    2019KawasakiMule 4010 TransKAF620 4x4 Camo
    2019KawasakiMule 4010 TransKAF620 4x4 SE
    2018KawasakiMule 4010 TransKAF620 4x4
    2018KawasakiMule 4010 TransKAF620 4x4 Camo
    2018KawasakiMule 4010 TransKAF620 4x4 SE
    2017KawasakiMule 4010 TransKAF620RHF 4x4
    2017KawasakiMule 4010 TransKAF620SHF 4X4 Camo
    2017KawasakiMule 4010 TransKAF620VHF 4x4 SE
    2016KawasakiMule 4010 TransKAF620 4x4
    2016KawasakiMule 4010 TransKAF620 4x4 Camo
    2016KawasakiMule 4010 TransKAF620 4x4 SE
    2015KawasakiMule 4010 TransKAF620RFF 4x4
    2015KawasakiMule 4010 TransKAF620RFFA 4x4
    2015KawasakiMule 4010 TransKAF620SFF 4x4 Camo
