Front Axle & Wheel Bearing Kit for Yamaha Big Bear 350 Kodiak 400 Timberwolf 250

Location on vehicle: Front,Left,Right

WB-1108/YA-303

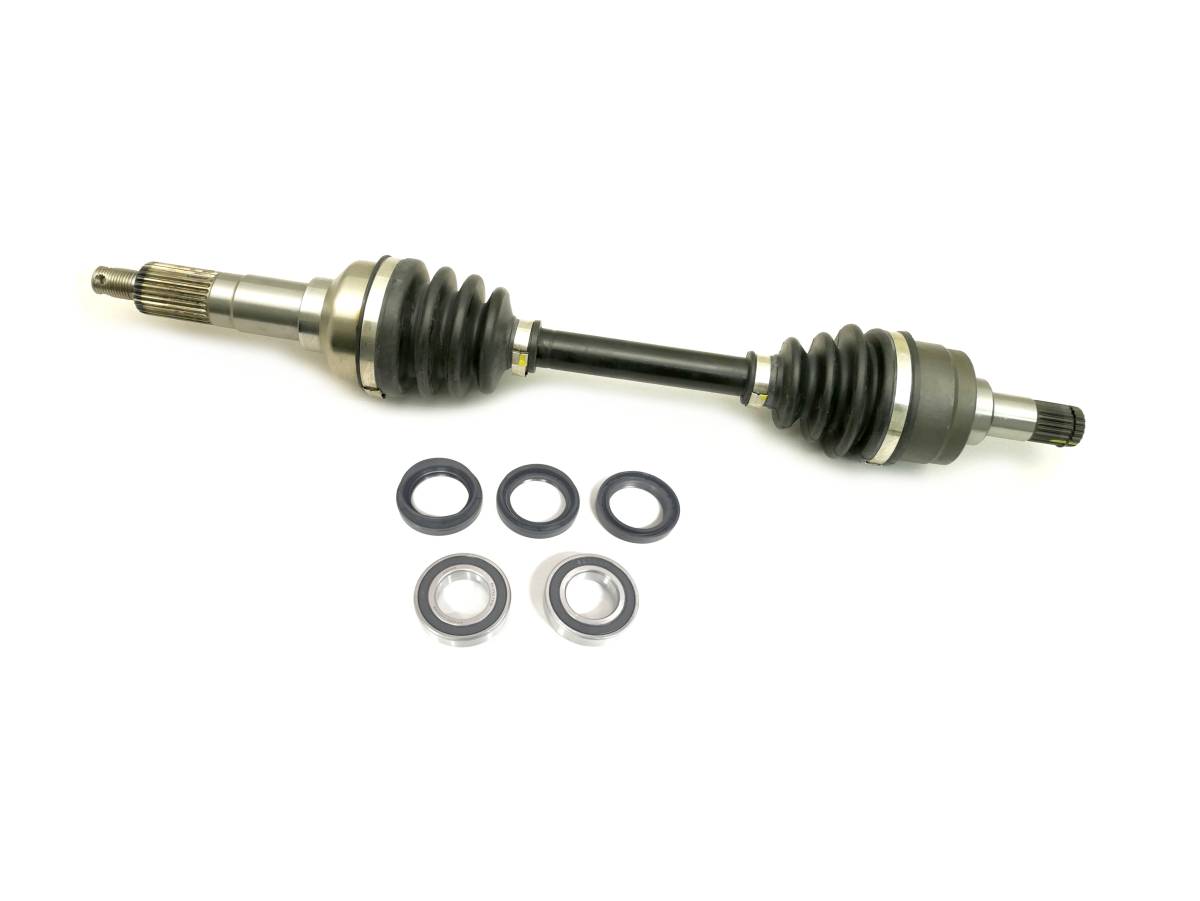

This is a new Front CV axle & wheel bearing/seal kit for a Yamaha ATV.

They fit the following 4x4 models:

1993-1998 ... Kodiak 400

1989-1996 ... Big Bear 350

1994-2000 ... Timberwolf 250

1997 ... Big Bear 350

(for models with '68AC' on Inner housing)

Front Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

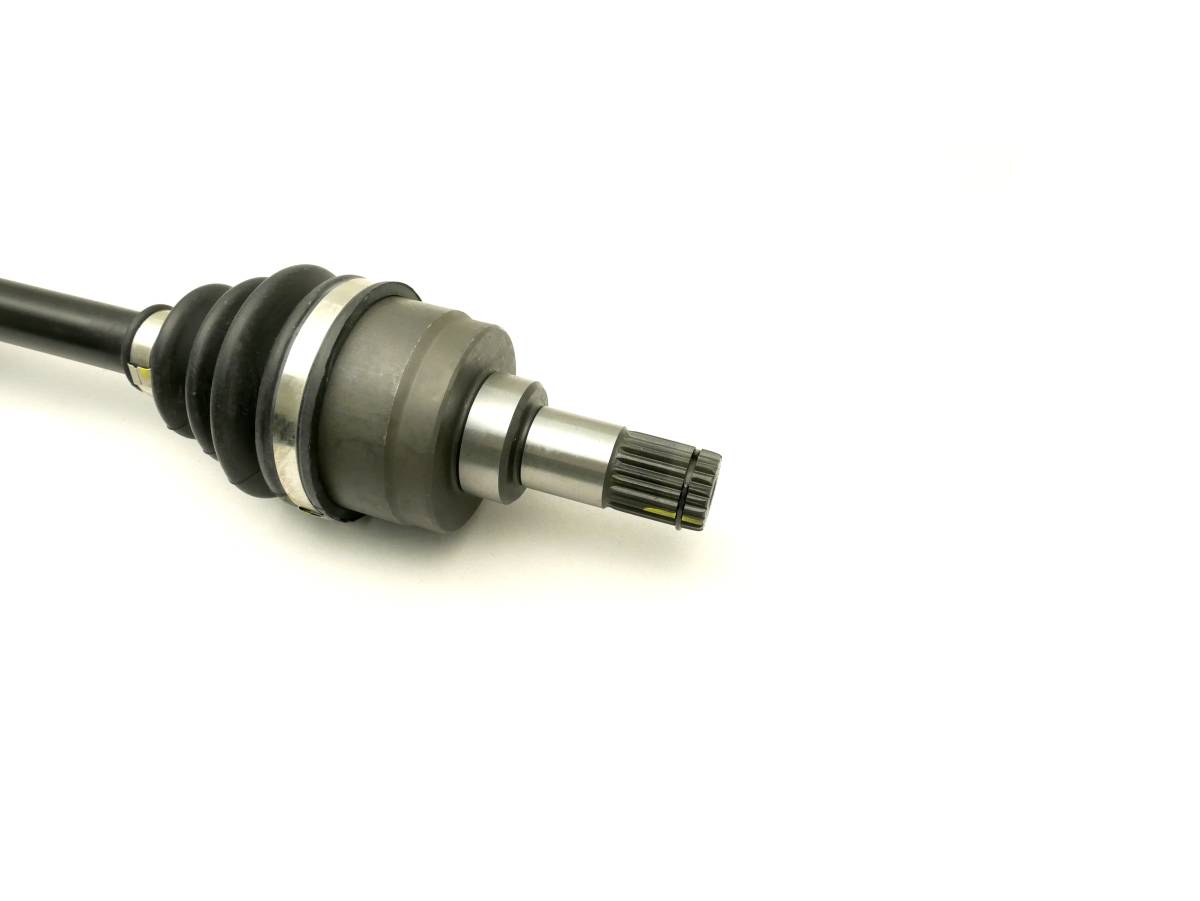

  • Inboard CV joint spline count: 21

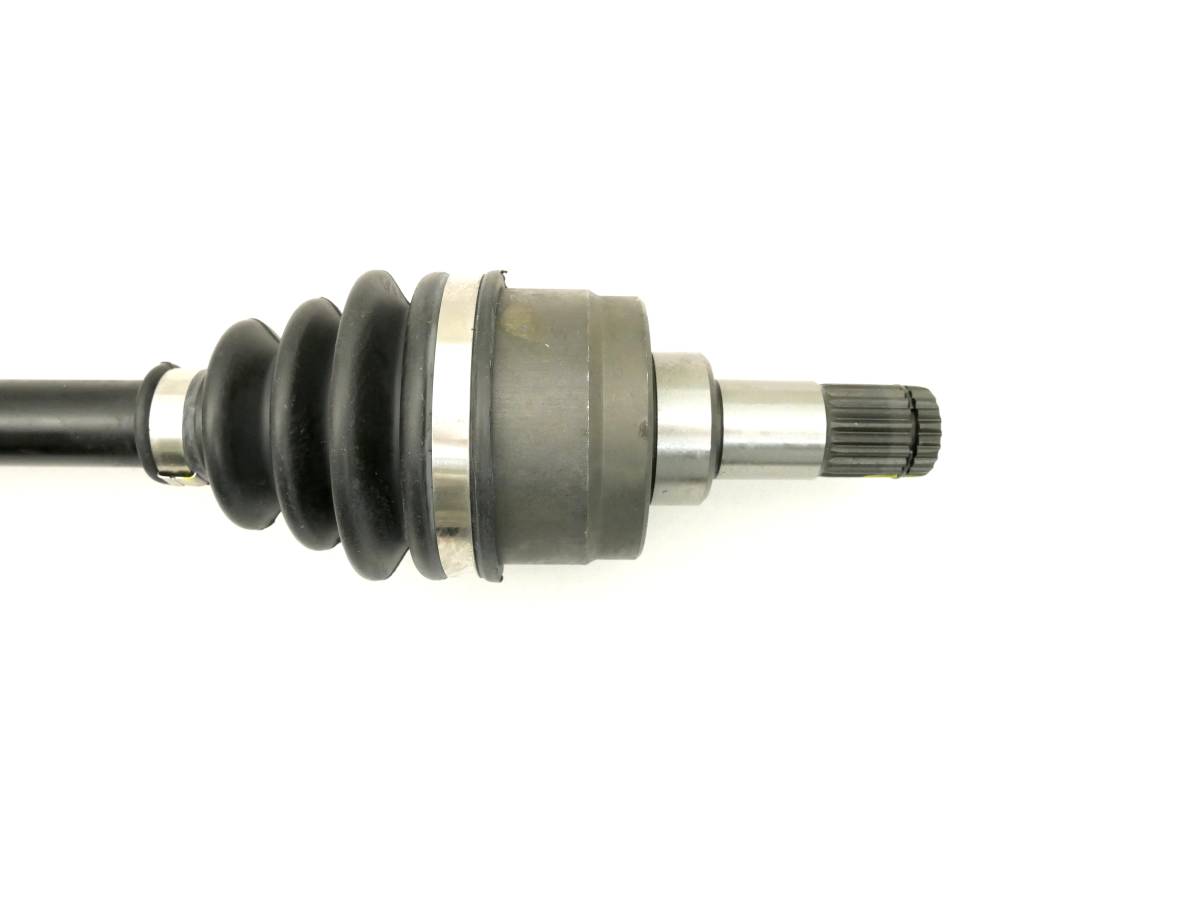

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 495.5 mm
  • Replaces Yamana OEM # (axle) 3HN-2510F-01-00, 3HN-2510H-00-00, 3HN-2510H-00-15, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00
Limited Supply: only 1 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 1989-1996 Big Bear 350, 1993-1998 Kodiak 400, 1994-2000 Timberwolf 250 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Yamana OEM # (axles) 3HN-2510F-01-00, 3HN-2510H-00-00, 3HN-2510H-00-15, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00. Inboard CV joint spline count: 21, Outboard CV joint spline count: 27, Compressed overall axle length: 495.5 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

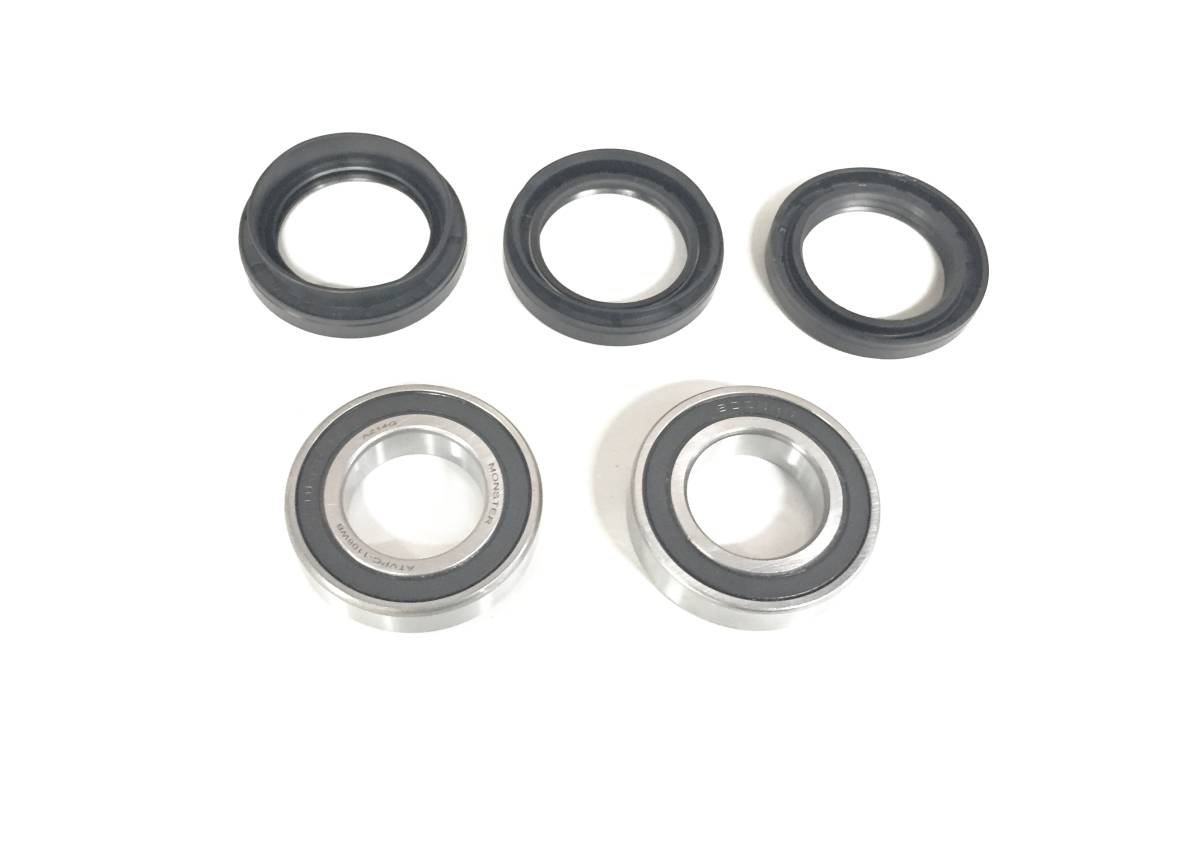

  • 1 CV axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    1997YamahaBig Bear 350YFM350FW 4x4
    1997YamahaBig Bear 350YFM350U
    1996YamahaBig Bear 350YFM350FW 4x4
    1995YamahaBig Bear 350YFM350FW 4x4
    1994YamahaBig Bear 350YFM350FW 4x4
    1993YamahaBig Bear 350YFM350FW 4x4
    1992YamahaBig Bear 350YFM350FW 4x4
    1991YamahaBig Bear 350YFM350FW 4x4
    1990YamahaBig Bear 350YFM350FW 4x4
    1989YamahaBig Bear 350YFM350FW 4x4
    1998YamahaKodiak 400YFM400FW 4x4
    1997YamahaKodiak 400YFM400FW 4x4
    1996YamahaKodiak 400YFM400FW 4x4
    1995YamahaKodiak 400YFM400FW 4x4
    1994YamahaKodiak 400YFM400FW 4x4
    1993YamahaKodiak 400YFM400FW 4x4
    2000YamahaTimberwolf 250YFB250FW 4x4
    1999YamahaTimberwolf 250YFB250FW 4x4
    1998YamahaTimberwolf 250YFB250FW 4x4
    1997YamahaTimberwolf 250YFB250FW 4x4
    1996YamahaTimberwolf 250YFB250FW 4x4
    1995YamahaTimberwolf 250YFB250FW 4x4
    1994YamahaTimberwolf 250YFB250FW 4x4

    Details

    • WB-1108/YA-303
    • WB-1108/YA-303
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 9.0 lbs.
    • W5.0000” x H5.0000” x L26.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
