Front CV Axle Pair for Yamaha Big Bear 350, Kodiak 400, & Timberwolf 250 4x4

Location on vehicle: Front,Left,Right

YA-303/YA-303

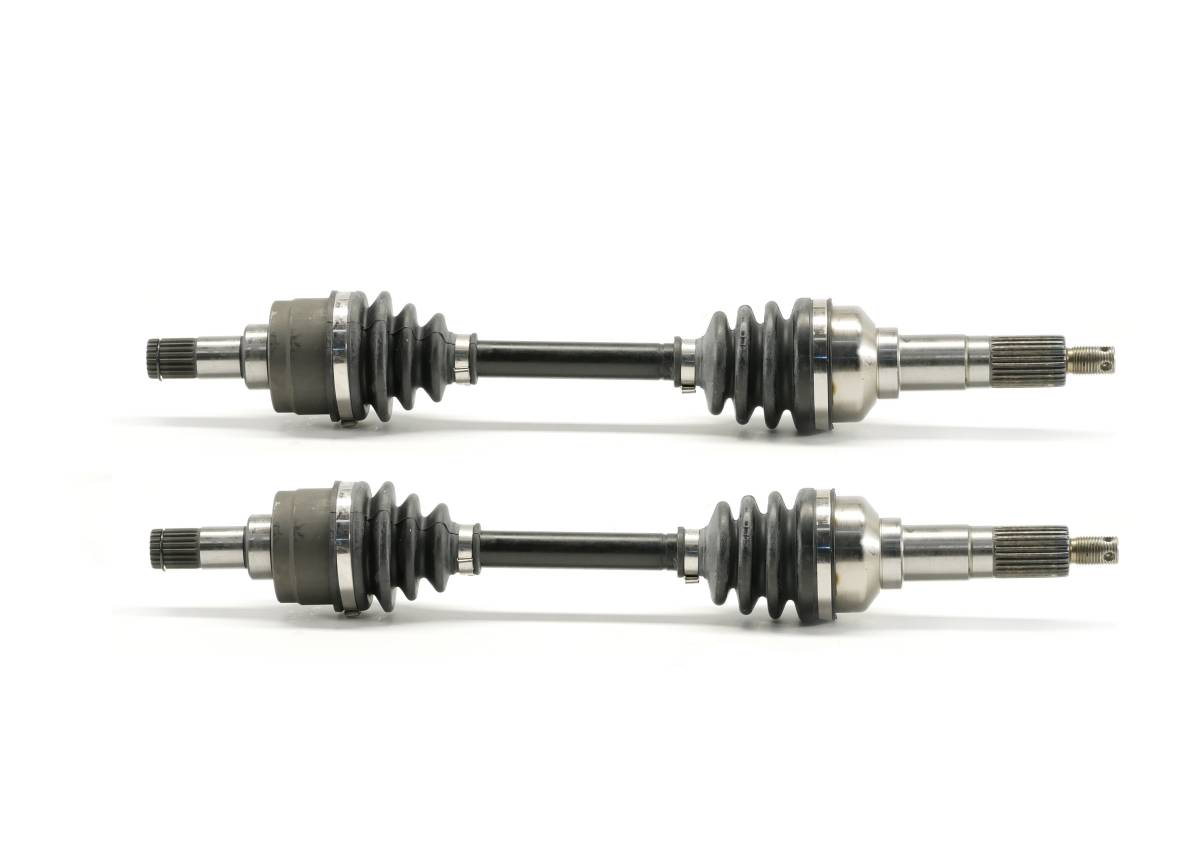

This is a pair of new Front CV axles for a Yamaha ATV.

They fit the following 4x4 models:

1993-1998 ... Kodiak 400

1989-1996 ... Big Bear 350

1994-2000 ... Timberwolf 250

1997 ... Big Bear 350

(for models with '68AC' on Inner housing)

Front Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 495.5 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $154.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left & right: 1989-1996 Big Bear 350, 1993-1998 Kodiak 400, 1994-2000 Timberwolf 250 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard CV joint spline count: 21 (both), Outboard CV joint spline count: 27 (both), Compressed overall axle length: 495.5 mm (both).
  • Replaces Yamana OEM # 3HN-2510F-01-00, 3HN-2510H-00-00, 3HN-2510H-00-15.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    1997YamahaBig Bear 350YFM350FW 4x4
    1997YamahaBig Bear 350YFM350U
    1996YamahaBig Bear 350YFM350FW 4x4
    1995YamahaBig Bear 350YFM350FW 4x4
    1994YamahaBig Bear 350YFM350FW 4x4
    1993YamahaBig Bear 350YFM350FW 4x4
    1992YamahaBig Bear 350YFM350FW 4x4
    1991YamahaBig Bear 350YFM350FW 4x4
    1990YamahaBig Bear 350YFM350FW 4x4
    1989YamahaBig Bear 350YFM350FW 4x4
    1998YamahaKodiak 400YFM400FW 4x4
    1997YamahaKodiak 400YFM400FW 4x4
    1996YamahaKodiak 400YFM400FW 4x4
    1995YamahaKodiak 400YFM400FW 4x4
    1994YamahaKodiak 400YFM400FW 4x4
    1993YamahaKodiak 400YFM400FW 4x4
    2000YamahaTimberwolf 250YFB250FW 4x4
    1999YamahaTimberwolf 250YFB250FW 4x4
    1998YamahaTimberwolf 250YFB250FW 4x4
    1997YamahaTimberwolf 250YFB250FW 4x4
    1996YamahaTimberwolf 250YFB250FW 4x4
    1995YamahaTimberwolf 250YFB250FW 4x4
    1994YamahaTimberwolf 250YFB250FW 4x4

    Details

    • YA-303/YA-303
    • YA-303/YA-303
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 18.0 lbs.
    • W10.0000” x H5.0000” x L26.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
