Rear CV Axle Pair with Wheel Bearings for Kawasaki Teryx 750 4x4 2012-2013

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
KW-316/KW-316/WB-1536/WB-1536

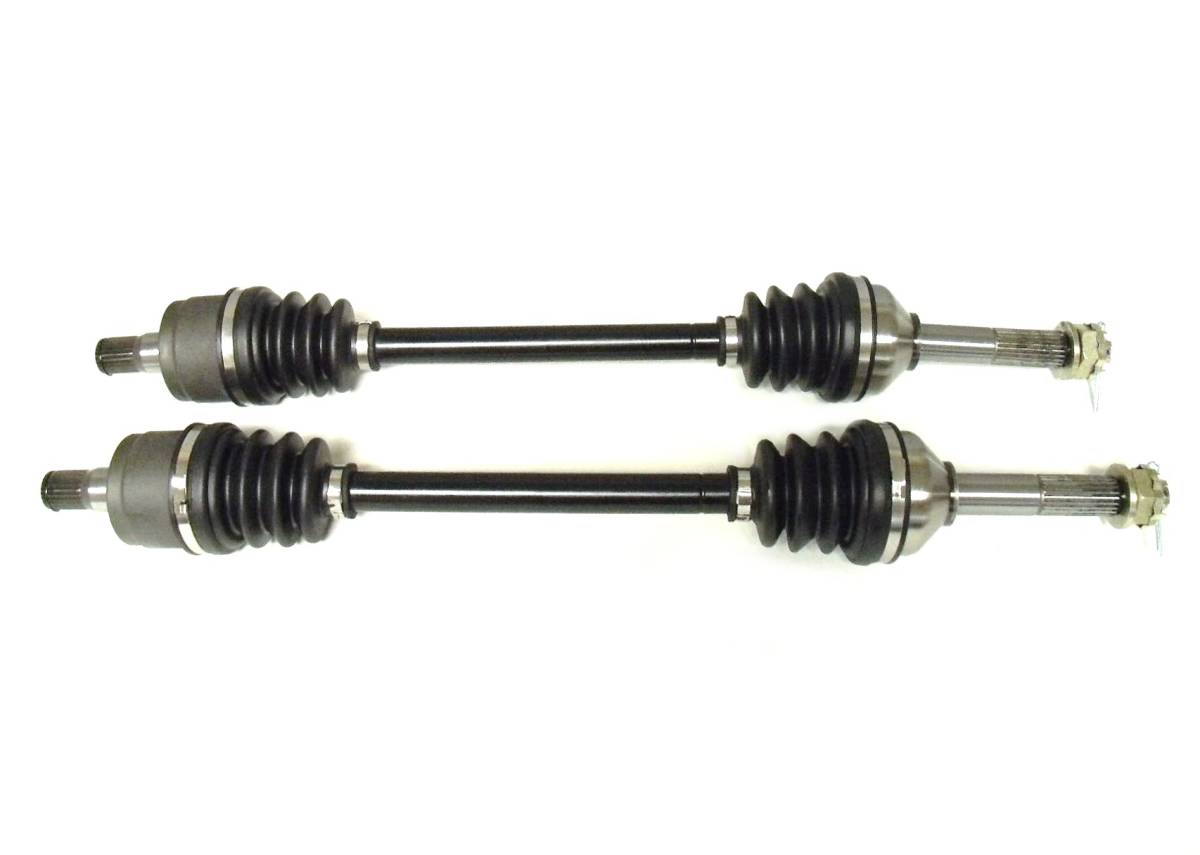

This is a set of new Rear CV axles & wheel bearings for a Kawasaki UTV.

They fit the following 4x4 applications:

2012-2013 ... Teryx 750

(please note these will not fit 4-seater models)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 24 (both)
  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: 651 mm (both)
  • Replaces Kawasaki OEM # 59266-0702, 92045-0102
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $157.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiTeryx 750KRF750N 4x4 FI
2013KawasakiTeryx 750KRF750P 4x4 LE FI
2013KawasakiTeryx 750KRF750R 4x4 LE FI
2013KawasakiTeryx 750KRF750S 4x4 Sport FI
2012KawasakiTeryx 750KRF750N 4x4 FI
2012KawasakiTeryx 750KRF750P 4x4 LE FI
2012KawasakiTeryx 750KRF750R 4x4 LE FI
2012KawasakiTeryx 750KRF750S 4x4 Sport FI
2012KawasakiTeryx 750KRF750V 4x4 Special Graphics Edition FI

Product Notes

  • Fits rear left & right on the 2012-2013 Kawasaki Teryx 750 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Kawasaki OEM # 59266-0702, 92045-0102. Compressed Length - 651 mm (both), Inner Spline Count - 24 (both), Outer Spline Count - 24 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

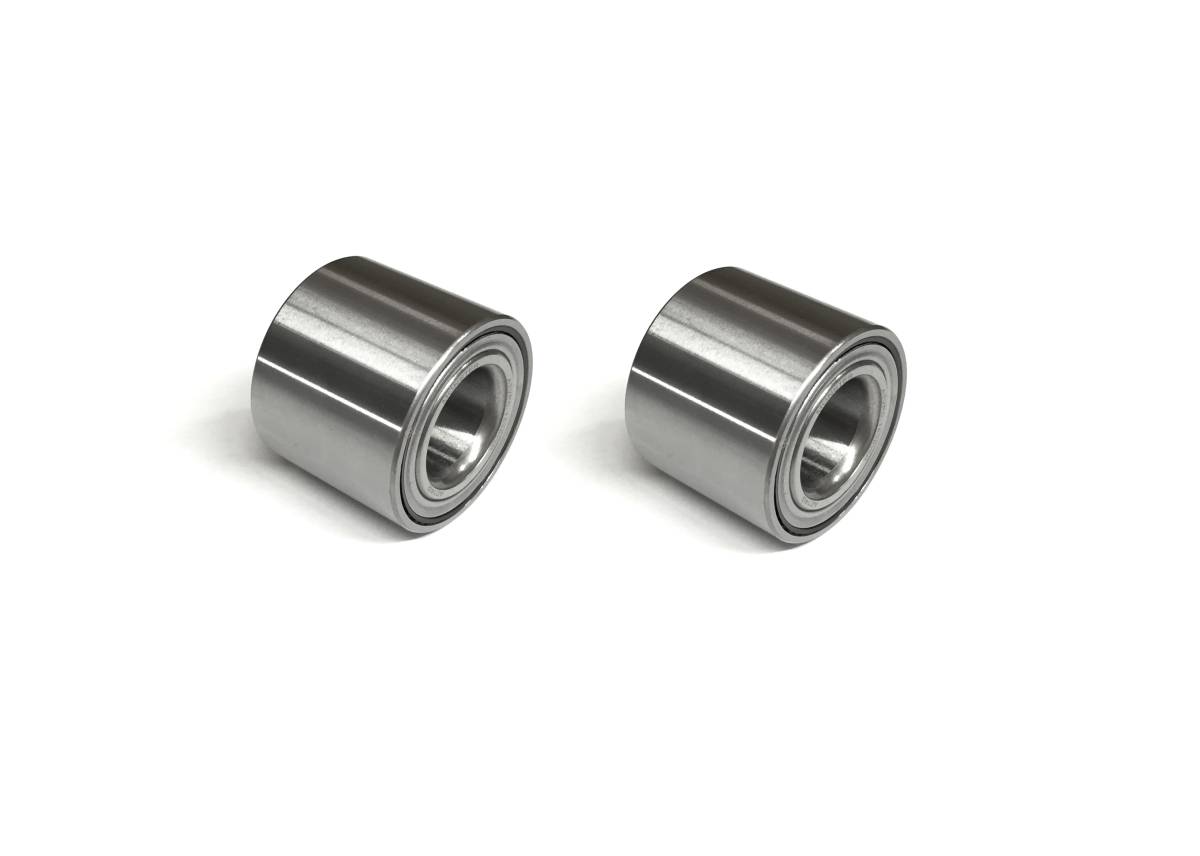

  • 2 CV axles & 2 wheel bearings

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-316/KW-316/WB-1536/WB-1536
    • KW-316/KW-316/WB-1536/WB-1536
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 23.9 lbs.
    • W5.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
