Rear Axles & Bearings for Polaris General 1000 & RZR S 900/1000 14-22, 1333081

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-381/PO-381/WB-1628/WB-1628

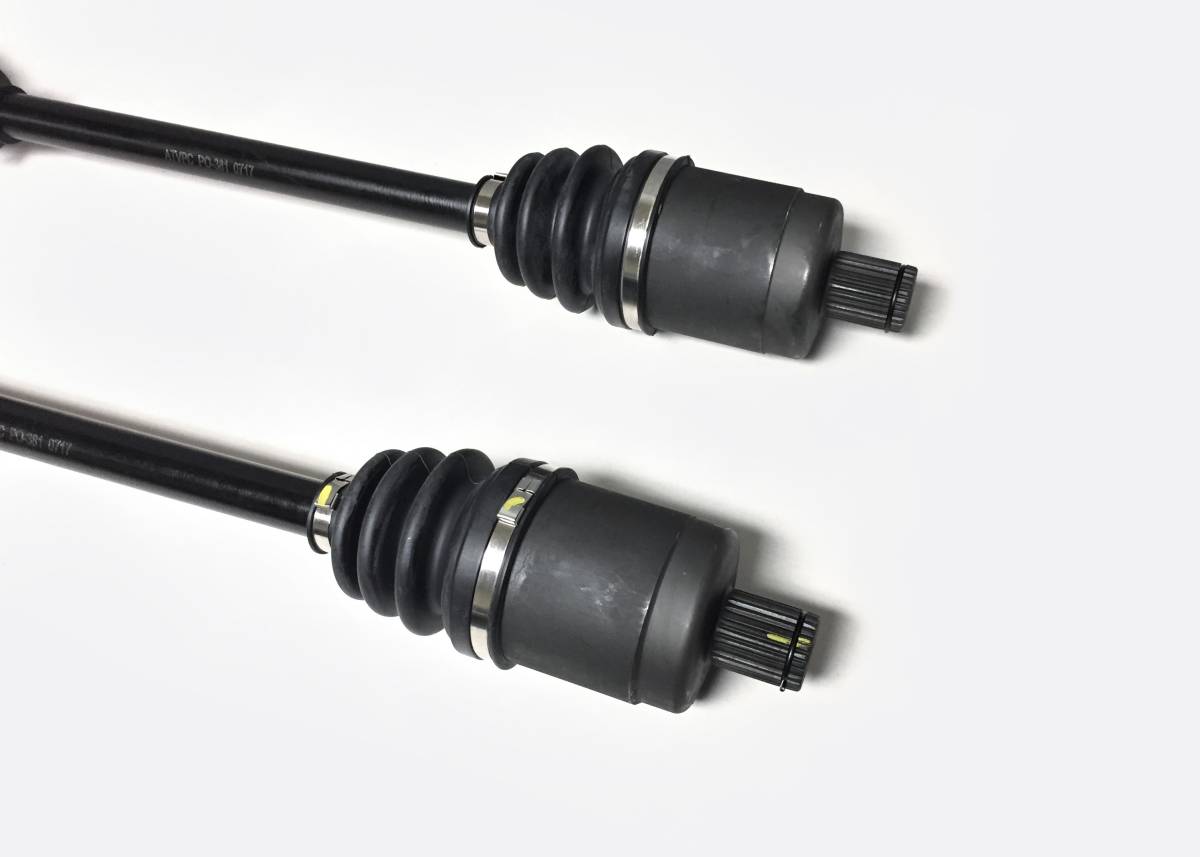

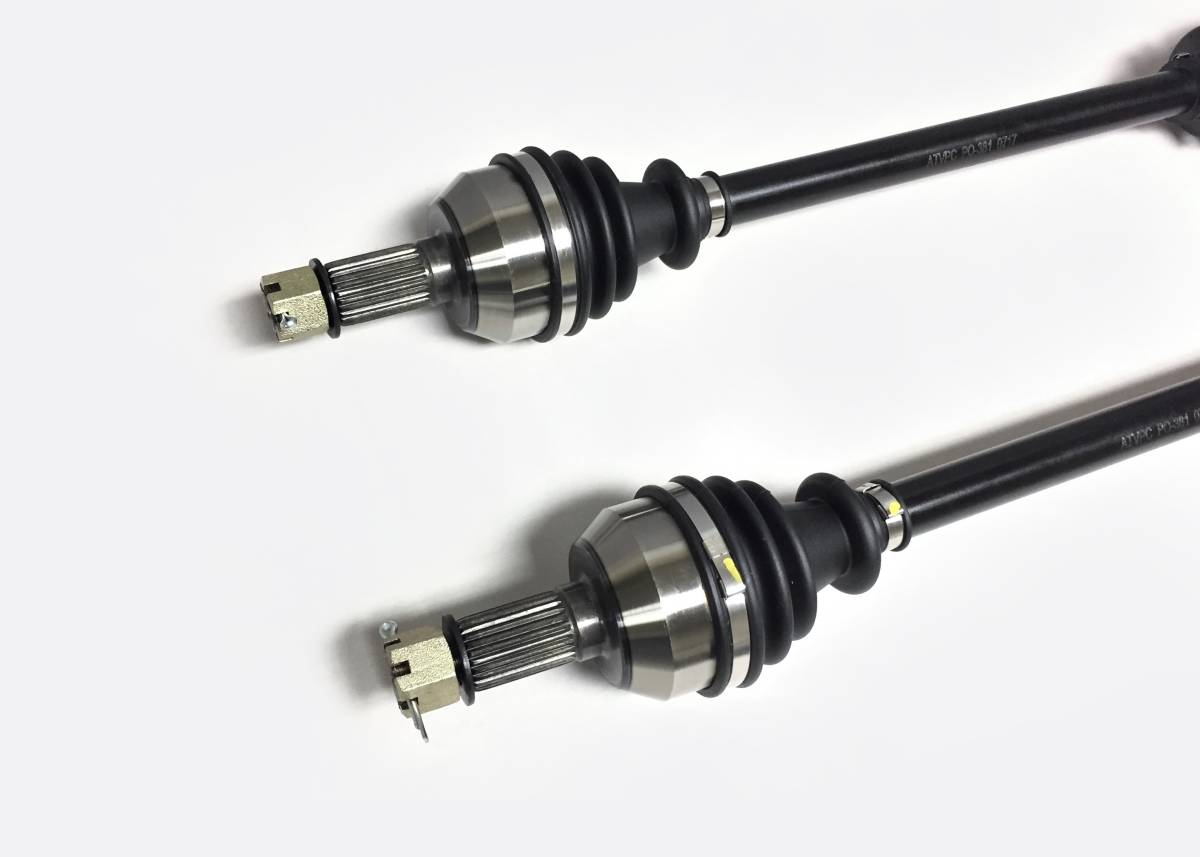

This is a set of new CV axles & wheel bearings for a Polaris UTV/SXS.

They fit REAR, LEFT & RIGHT on the following models:

2016-2020 General 1000/1000-4 (excluding XP models), 2015-2022 RZR S 900/Trail S 900, 2015-2018 RZR 4 900, 2016-2022 RZR S 1000/Trail S 1000

a

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

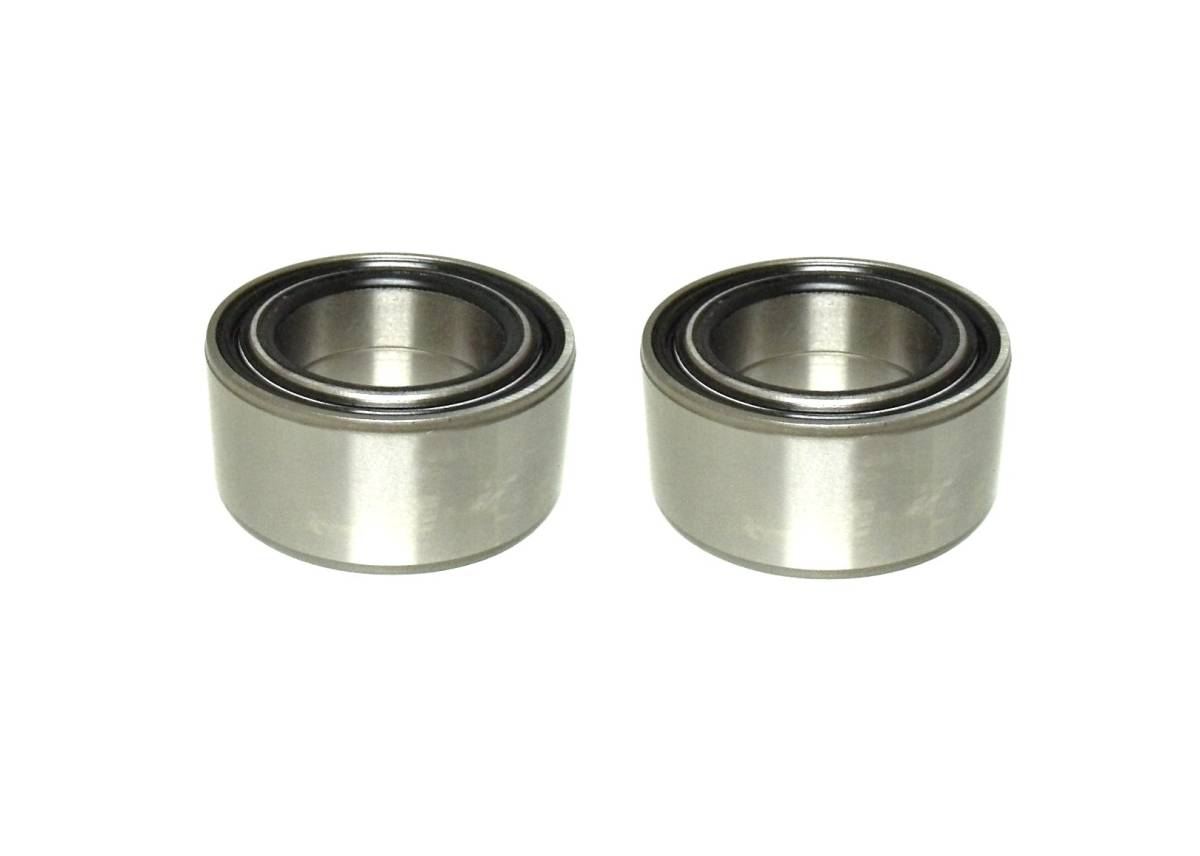

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 28 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 686 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $194.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Polaris 60" models: 2016-2020 General 1000/1000-4 (excluding XP models), 2015-2022 RZR S 900/Trail S 900, 2015-2018 RZR 4 900, 2016-2022 RZR S 1000/Trail S 1000. Set includes 2 axles & 2 wheel bearings.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 1333081, 1333947, 3514627, 3514699. Inner splines: 28 (both), Outer splines: 26 (both), Compressed axle length: 686 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

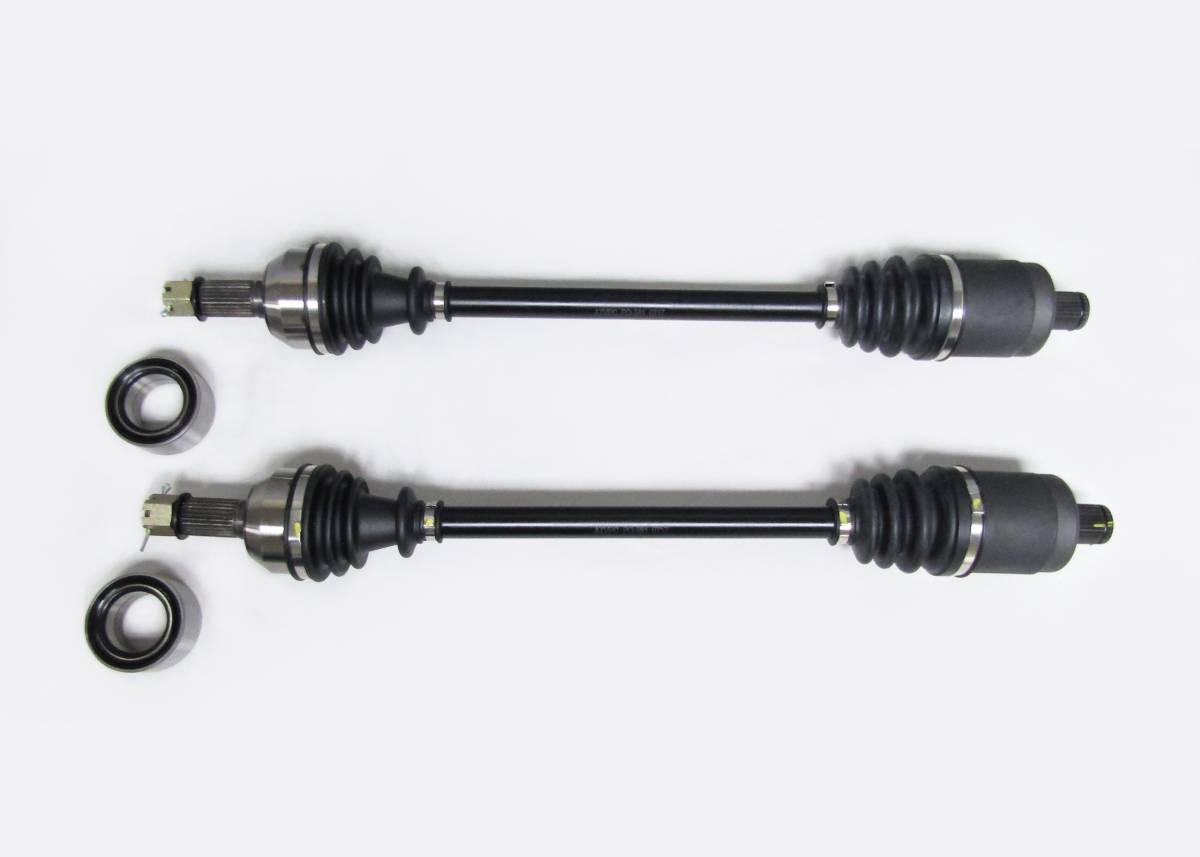

  • 2 CV Axles & 2 Wheel Bearings

    • Application List

    YearMakeModelSubmodelNotes
    2020PolarisGeneral 4 1000Deluxe EPS
    2020PolarisGeneral 4 1000EPS
    2019PolarisGeneral 4 1000EPS
    2019PolarisGeneral 4 1000EPS Ride Command Edition
    2018PolarisGeneral 4 1000EPS
    2018PolarisGeneral 4 1000EPS Ride Command Edition
    2017PolarisGeneral 4 1000EPS
    2020PolarisGeneral 1000Deluxe EPS
    2020PolarisGeneral 1000EPS
    2020PolarisGeneral 1000Premium EPS
    2020PolarisGeneral 1000Sport
    2019PolarisGeneral 1000Deluxe EPS
    2019PolarisGeneral 1000EPS
    2019PolarisGeneral 1000EPS Hunter Edition
    2019PolarisGeneral 1000EPS Limited Edition
    2019PolarisGeneral 1000Premium EPS
    2019PolarisGeneral 1000Ride Command Edition EPS
    2018PolarisGeneral 1000Deluxe EPS
    2018PolarisGeneral 1000EPS
    2018PolarisGeneral 1000EPS Hunter Edition
    2018PolarisGeneral 1000EPS Limited Edition
    2018PolarisGeneral 1000Premium EPS
    2018PolarisGeneral 1000Ride Command Edition EPS
    2017PolarisGeneral 1000Deluxe EPS
    2017PolarisGeneral 1000EPS
    2017PolarisGeneral 1000Hunter Edition EPS
    2017PolarisGeneral 1000Ride Command Edition EPS
    2017PolarisGeneral 1000White Lightning Edition EPS
    2016PolarisGeneral 1000Deluxe EPS
    2016PolarisGeneral 1000EPS
    2016PolarisGeneral 1000Premium EPS
    2018PolarisRZR 4 900EPS
    2017PolarisRZR 4 900EPS
    2016PolarisRZR 4 900EPS
    2015PolarisRZR 4 900EPS
    2020PolarisRZR S4 1000EPS
    2019PolarisRZR S4 1000EPS
    2021PolarisRZR S 900--60 inch models
    2021PolarisRZR S 900Premium60 inch models
    2020PolarisRZR S 900--60 inch models
    2020PolarisRZR S 900EPS60 inch models
    2020PolarisRZR S 900Premium60 inch models
    2019PolarisRZR S 900--60 inch models
    2019PolarisRZR S 900EPS60 inch models
    2018PolarisRZR S 900--60 inch models
    2018PolarisRZR S 900EPS60 inch models
    2017PolarisRZR S 900--60 inch models
    2017PolarisRZR S 900EPS60 inch models
    2016PolarisRZR S 900--60 inch models
    2016PolarisRZR S 900EPS60 inch models
    2015PolarisRZR S 900--60 inch models
    2015PolarisRZR S 900EPS60 inch models
    2021PolarisRZR S 1000EPS
    2020PolarisRZR S 1000EPS
    2019PolarisRZR S 1000EPS
    2018PolarisRZR S 1000EPS
    2017PolarisRZR S 1000EPS
    2016PolarisRZR S 1000EPS
    2023PolarisRZR Trail S 900Sport60 inch models
    2022PolarisRZR Trail S 900Sport60 inch models
    2021PolarisRZR Trail S 900--60 inch models
    2021PolarisRZR Trail S 900Premium60 inch models
    2021PolarisRZR Trail S 900Sport60 inch models
    2023PolarisRZR Trail S 1000Premium
    2023PolarisRZR Trail S 1000Ultimate
    2022PolarisRZR Trail S 1000Premium
    2022PolarisRZR Trail S 1000Ultimate
    2021PolarisRZR Trail S 1000Premium
    2021PolarisRZR Trail S 1000Ultimate

    Details

    • PO-381/PO-381/WB-1628/WB-1628
    • PO-381/PO-381/WB-1628/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 30.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
