Monster Axles Rear Pair for Polaris Ranger 500 2010 & Ranger 800 10-14 XP Series

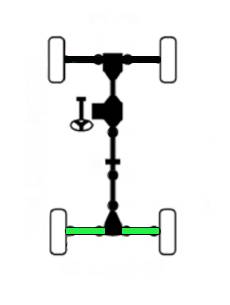

Location on vehicle: Rear,Left,Right

PO-334XP/PO-334XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $339.95

Application List

YearMakeModelSubmodelNotes
2010PolarisRanger 5004x4 HO EFI
2014PolarisRanger 800EFI
2014PolarisRanger 800LE EFI EPS
2014PolarisRanger 800Pursuit EFI
2013PolarisRanger 800EFI
2013PolarisRanger 800EFI EPS
2013PolarisRanger 800LE EFI
2013PolarisRanger 800LE EFI EPS
2010PolarisRanger 8006x6 EFI
2014PolarisRanger Crew 800--
2013PolarisRanger Crew 800--
2013PolarisRanger Crew 800LE EPS
2012PolarisRanger Crew 8004x4 EFI
2012PolarisRanger Crew 8004x4 EFI EPS
2012PolarisRanger Crew 8004x4 LE EFI EPS
2012PolarisRanger Crew 8004x4 Pursuit EFI
2011PolarisRanger Crew 8004x4 EFI
2011PolarisRanger Crew 8004x4 EFI EPS
2011PolarisRanger Crew 8004x4 LE EFI
2011PolarisRanger Crew 8004x4 Pursuit EFI
2010PolarisRanger Crew 8004x4 EFI
2010PolarisRanger Crew 8004x4 EFI EPS
2012PolarisRanger XP 8004X4
2012PolarisRanger XP 8004x4 Browning EPS
2012PolarisRanger XP 8004x4 EFI
2012PolarisRanger XP 8004x4 EPS
2012PolarisRanger XP 8004x4 LE
2012PolarisRanger XP 8004x4 LE EPS
2011PolarisRanger XP 8004x4 Browning EFI
2011PolarisRanger XP 8004x4 EFI
2011PolarisRanger XP 8004x4 EFI EPS
2011PolarisRanger XP 8004x4 Pursuit EFI

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Polaris UTV models: 2010 4x4 Ranger 500, 2010-2014 4x4 Ranger 800/Crew 800 (all excluding 2013-2014 'Mid-Size' 800 models). Set includes 2 axles.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 1332814, 1332878, 1333008, 1333233. Compressed length: 673 mm (both), Inner spline count: 28 (both), Outer spline count: 26 (both). Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

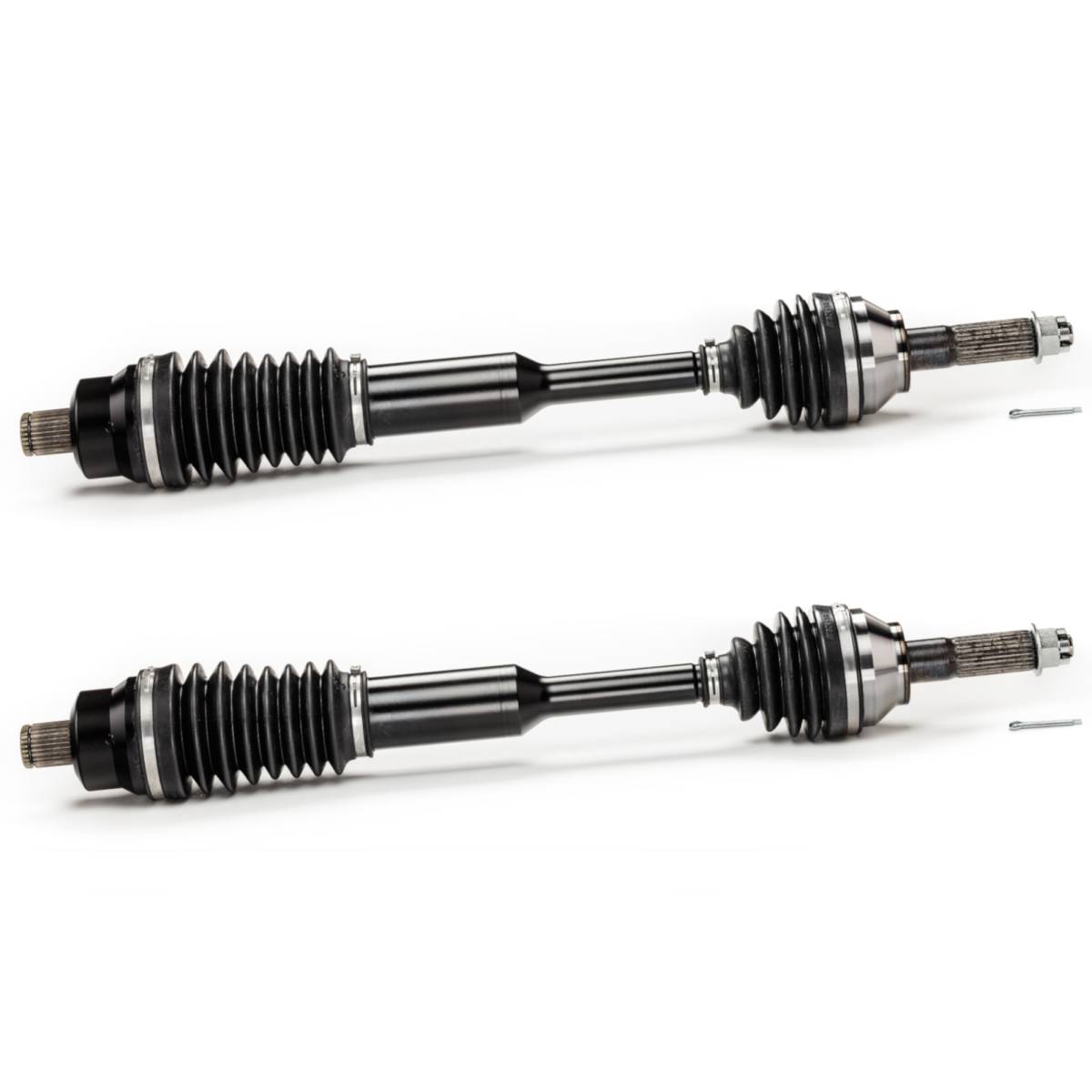

  • 2 axles
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • PO-334XP/PO-334XP
    • PO-334XP/PO-334XP
    • CUSTOM
    • MONSTER AXLES
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 34.9 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
