Rear CV Axle & Bearing for Polaris RZR XP 1000, XP Turbo, & RS1 1333944, 1333858

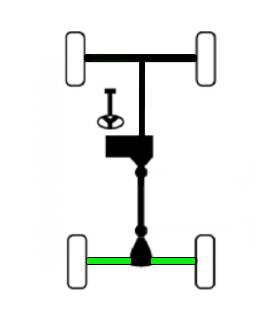

Location on vehicle: Rear,Left,Right

PO-339/WB-1628
This is a new Rear CV axle & wheel bearing for a Polaris RZR.

They fit the following 4x4 models:

2016-2019 ... RZR XP/XP4 1000 (exclusing S models)

2016-2019 ... RZR XP/XP4 Turbo (exclusing S models)

2018-2021 ... RZR RS1

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

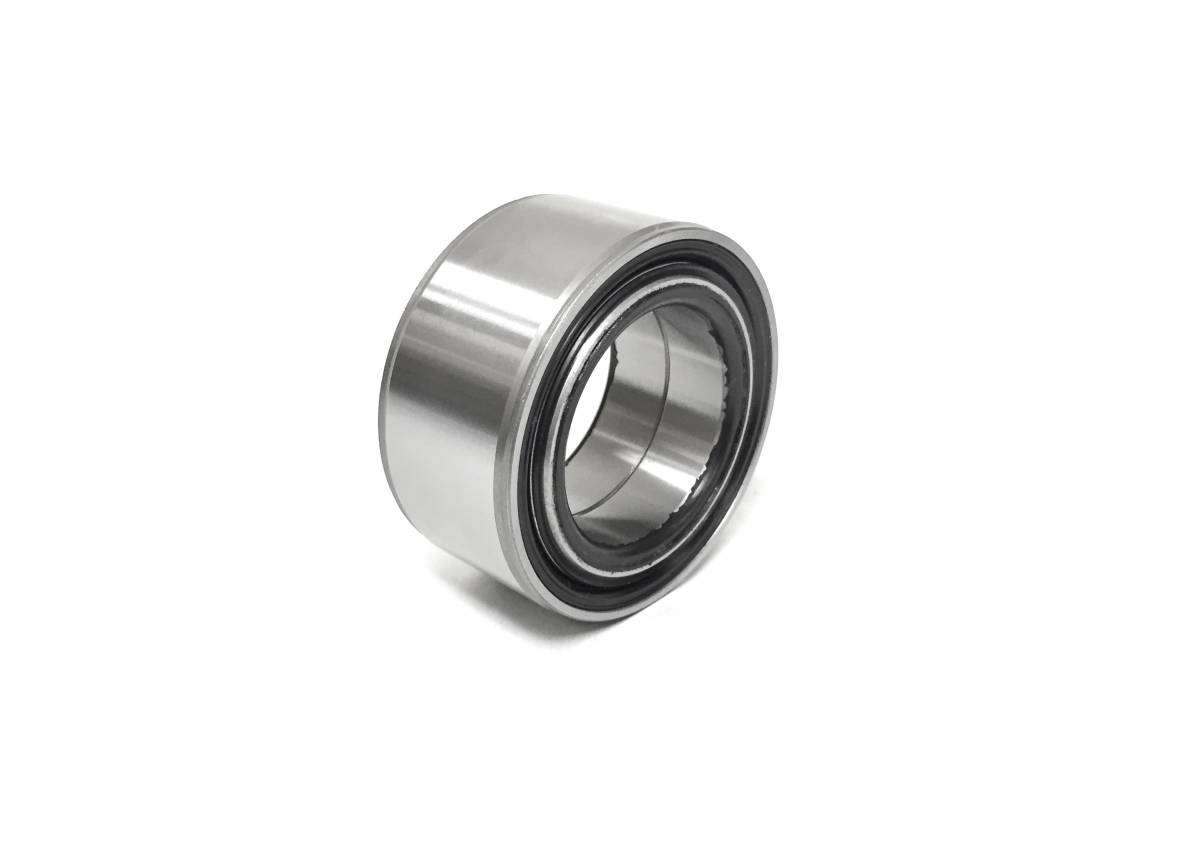

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 28
  • Outboard CV joint spline count: 26
  • Compressed axle length: 737 mm
  • Replaces OEM # 1333439, 1333944, 1333858, 3514627, 3514699
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $104.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Polaris models: 2016-2019 RZR XP/XP4 1000, 2016-2019 RZR XP/XP4 Turbo (excluding Turbo S models) & 2018-2021 RZR RS1 4x4. Set includes 1 axle & 1 wheel bearing.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Compressed Length - 737 mm, Inboard Spline Count - 28, Outboard Spline Count - 26. Replaces OE # 1333439, 1333944, 1333858, 3514627, 3514699.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

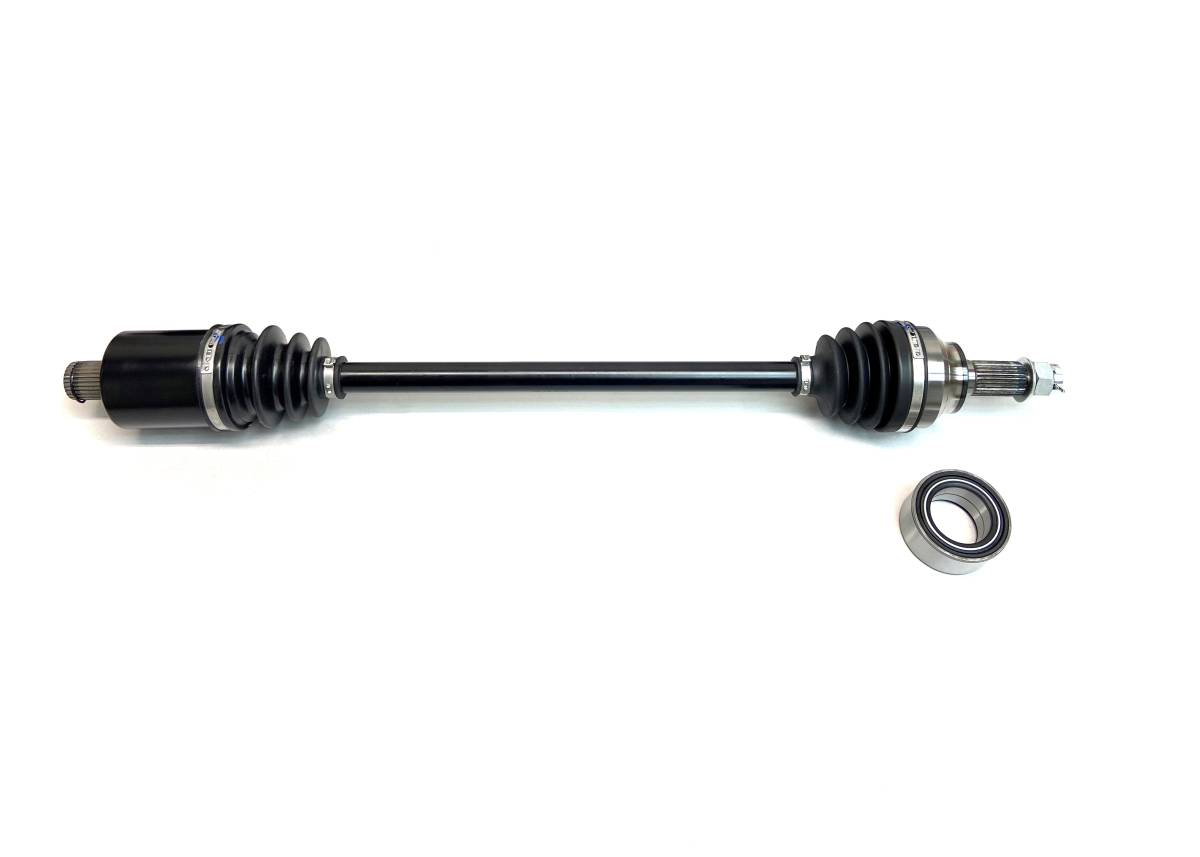

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2021PolarisRZR RS1EPS
    2020PolarisRZR RS1EPS
    2019PolarisRZR RS1EPS
    2018PolarisRZR RS1EPS
    2019PolarisRZR XPTurbo EPS
    2019PolarisRZR XPTurbo EPS DYNAMIX Edition
    2019PolarisRZR XPTurbo EPS LE
    2018PolarisRZR XPTurbo EPS
    2018PolarisRZR XPTurbo EPS DYNAMIX Edition
    2018PolarisRZR XPTurbo EPS Fox Edition
    2017PolarisRZR XPTurbo EPS
    2016PolarisRZR XPTurbo EPS
    2019PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2019PolarisRZR XP 4Turbo EPS LE
    2018PolarisRZR XP 4Turbo EPS
    2018PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2018PolarisRZR XP 4Turbo EPS Fox Edition
    2017PolarisRZR XP 4Turbo EPS
    2016PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4 1000DYNAMIX Edition EPS
    2019PolarisRZR XP 4 1000EPS
    2019PolarisRZR XP 4 1000High Lifter Edition EPS
    2019PolarisRZR XP 4 1000Ride Command Edition EPS
    2018PolarisRZR XP 4 1000EPS
    2018PolarisRZR XP 4 1000High Lifter Edition EPS
    2018PolarisRZR XP 4 1000Ride Command Edition EPS
    2017PolarisRZR XP 4 1000EPS
    2017PolarisRZR XP 4 1000High Lifter Edition EPS
    2016PolarisRZR XP 4 1000EPS
    2016PolarisRZR XP 4 1000High Lifter Edition EPS
    2019PolarisRZR XP 1000DYNAMIX Edition EPS
    2019PolarisRZR XP 1000EPS
    2019PolarisRZR XP 1000High Lifter Edition EPS
    2019PolarisRZR XP 1000Ride Command Edition EPS
    2019PolarisRZR XP 1000Trails and Rock Edition EPS
    2018PolarisRZR XP 1000EPS
    2018PolarisRZR XP 1000High Lifter Edition EPS
    2018PolarisRZR XP 1000Ride Command Edition EPS
    2018PolarisRZR XP 1000Trails and Rock Edition EPS
    2017PolarisRZR XP 1000EPS
    2017PolarisRZR XP 1000Gold Matte Metallic LE EPS
    2017PolarisRZR XP 1000High Lifter Edition EPS
    2017PolarisRZR XP 1000Veliocity Blue LE EPS
    2016PolarisRZR XP 1000EPS
    2016PolarisRZR XP 1000High Lifter Edition EPS

    Details

    • PO-339/WB-1628
    • PO-339/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 15.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
