Monster Axles Rear Axle Pair with Bearings for Kawasaki Brute Force 650i & 750i

Location on vehicle: Rear,Left,Right

KW-312XP/KW-312XP/WB-1536/WB-1536
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

Works on stock setups, helps support larger tires, and accommodates lift kits up to 4" - Lifting or adjusting a vehicles setup changes the operating angles of the CV axles. Even standard axles can be stretched beyond their limits, leading to premature wear and failure. The XP Series axle increases both angle and travel, solving key issues for most riders. A true upgrade to the OEM.

Enhanced suspension travel and articulation - The dual articulating CV joints allow for a much greater range of motion throughout the suspension cycle. And the unique 60mm internal extension gives even more travel without overstressing the axle. This means your vehicle can flex more effectively over uneven terrain.

Reduces stress and prevents binding - The increased articulation and internal extension work together to minimize the forces that are typically placed on CV joints and axle shafts during operation. This significantly reduces the risk of binding, clicking, popping, and ultimately, axle failure. This means fewer replacements, less downtime, and lower overall maintenance costs over time.

More ground contact, better traction - No matter what setup you run, the wheels gain extra articulation and make more consistent contact with the ground. This reduces wheel spin and gives the vehicle more stability and control.

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joints are designed to be easily removed for service without specialized tools. And you can always contact us to inquire about replacement parts.

Limited Supply: only 6 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $359.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiBrute Force 650KVF650F 4x4i
2012KawasakiBrute Force 650KVF650F 4x4i
2011KawasakiBrute Force 650KVF650F 4x4i
2009KawasakiBrute Force 650KVF650F 4x4i
2009KawasakiBrute Force 650KVF650G 4x4i
2008KawasakiBrute Force 650KVF650F 4x4i
2008KawasakiBrute Force 650KVF650G 4x4i
2008KawasakiBrute Force 650KVF650H 4x4i
2007KawasakiBrute Force 650KVF650F 4x4i
2007KawasakiBrute Force 650KVF650G 4x4i
2007KawasakiBrute Force 650KVF650H 4x4i
2006KawasakiBrute Force 650KVF650F 4x4i
2006KawasakiBrute Force 650KVF650G 4x4i
2023KawasakiBrute Force 750KVF750 4x4i EPS
2023KawasakiBrute Force 750KVF750 4x4i EPS Camo
2022KawasakiBrute Force 750KVF750 4x4i EPS
2022KawasakiBrute Force 750KVF750 4x4i EPS Camo
2021KawasakiBrute Force 750KVF750 4x4i
2021KawasakiBrute Force 750KVF750 4x4i EPS
2021KawasakiBrute Force 750KVF750 4x4i EPS Camo
2020KawasakiBrute Force 750KVF750 4x4i
2020KawasakiBrute Force 750KVF750 4x4i EPS
2020KawasakiBrute Force 750KVF750 4x4i EPS Camo
2019KawasakiBrute Force 750KVF750 4x4i
2019KawasakiBrute Force 750KVF750 4x4i EPS
2019KawasakiBrute Force 750KVF750 4x4i EPS Camo
2018KawasakiBrute Force 750KVF750 4x4i
2018KawasakiBrute Force 750KVF750 4x4i EPS
2018KawasakiBrute Force 750KVF750 4x4i EPS Camo
2017KawasakiBrute Force 750KVF750GHF 4x4i EPS
2017KawasakiBrute Force 750KVF750HHF 4x4i EPS Camo
2017KawasakiBrute Force 750KVF750JHF 4x4i EPS Graystone
2017KawasakiBrute Force 750KVF750LHF 4x4i
2016KawasakiBrute Force 750KVF750 4x4i
2016KawasakiBrute Force 750KVF750 4x4i EPS
2016KawasakiBrute Force 750KVF750 4x4i EPS Camo
2015KawasakiBrute Force 750KVF750 4x4i
2015KawasakiBrute Force 750KVF750 4x4i EPS
2015KawasakiBrute Force 750KVF750 4x4i EPS Camo
2014KawasakiBrute Force 750KVF750G 4x4i EPS
2014KawasakiBrute Force 750KVF750H 4x4i EPS
2014KawasakiBrute Force 750KVF750L 4x4i
2013KawasakiBrute Force 750KVF750G 4x4i EPS
2013KawasakiBrute Force 750KVF750H 4x4i EPS
2013KawasakiBrute Force 750KVF750J 4x4i
2013KawasakiBrute Force 750KVF750L 4x4i
2012KawasakiBrute Force 750KVF750G 4x4i EPS
2012KawasakiBrute Force 750KVF750H 4x4i EPS
2012KawasakiBrute Force 750KVF750L 4x4i
2011KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750D 4x4i
2010KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750A 4x4i
2009KawasakiBrute Force 750KVF750D 4x4i
2009KawasakiBrute Force 750KVF750E 4x4i
2009KawasakiBrute Force 750KVF750EA 4x4i NRA
2008KawasakiBrute Force 750KVF750A 4x4i
2008KawasakiBrute Force 750KVF750D 4x4i
2008KawasakiBrute Force 750KVF750E 4x4i
2008KawasakiBrute Force 750KVF750EA 4x4i NRA
2007KawasakiBrute Force 750KVF750A 4x4i
2007KawasakiBrute Force 750KVF750B 4x4i
2007KawasakiBrute Force 750KVF750C 4x4i
2007KawasakiBrute Force 750KVF750D 4x4i NRA
2006KawasakiBrute Force 750KVF750A 4x4i
2006KawasakiBrute Force 750KVF750B 4x4i
2006KawasakiBrute Force 750KVF750C 4x4i
2005KawasakiBrute Force 750KVF750A 4x4i
2005KawasakiBrute Force 750KVF750B 4x4i

Product Notes

  • Fits REAR, LEFT & RIGHT on the following Kawasaki ATV models: 2006-2013 Brute Force 650i, 2005-2023 Brute Force 750i. Set includes 2 axles & 2 wheel bearings.
  • Works with stock setups, helps support larger tires, and can accommodate lift kits up to 4". The dual articulating joints allow for a greater range of motion, keeping the tires in contact with the ground. The 60mm internal extension gives even more range without overstressing the axle.
  • The increased articulation and internal extension work together to minimize the forces that are typically placed on axles. This significantly reduces the risk of binding, clicking, popping, and ultimately, axle failure. Plus the joints can easily be serviced without specialized tools.
  • Improved durability and a longer lifespan compared to a standard axle, especially on vehicles that are frequently subjected to demanding off-road use. This means fewer replacements, less downtime, and lower overall maintenance costs over time.
  • Replaces OEM # (axles) 59266-0023, 59266-0002, (bearings) 92045-0102, 92045-0094, 92045-0107. Compressed length: 549 mm (both). Outer splines: 24 (both), Inner splines: 24 (both). Warranty: 1 Year (excluding torn boots).

  • What's In The Box

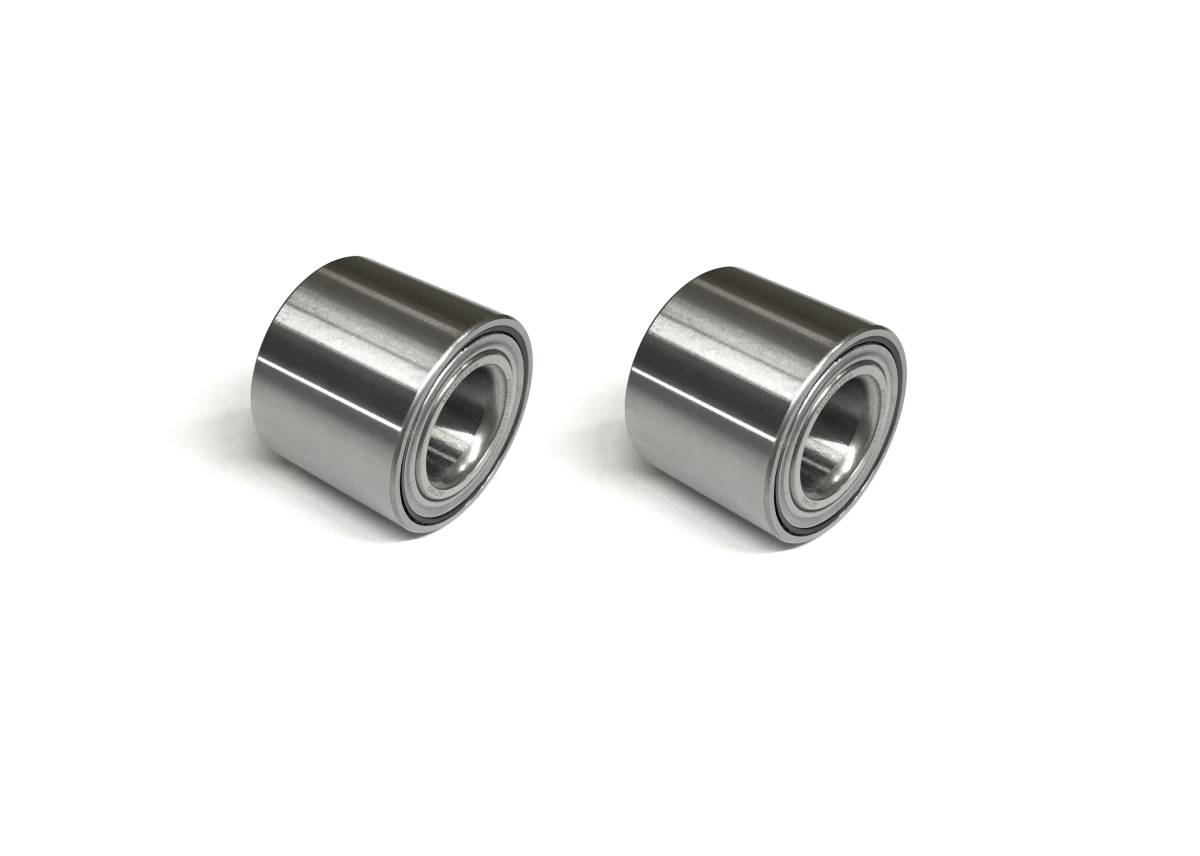

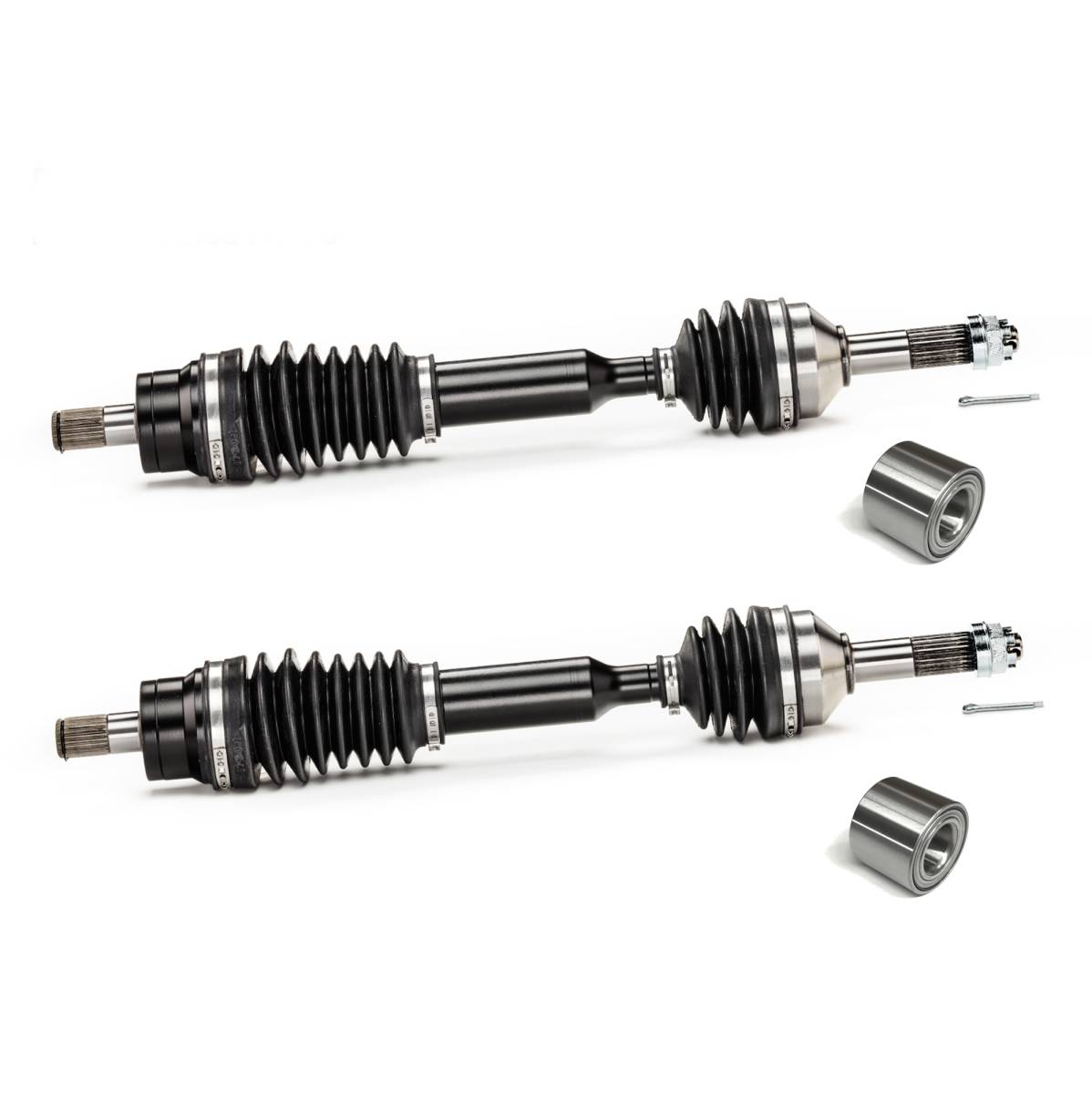

  • 2 axles & 2 wheel bearings
  • Product Videos

    Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Details

    • KW-312XP/KW-312XP/WB-1536/WB-1536
    • KW-312XP/KW-312XP/WB-1536/WB-1536
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 25.0 lbs.
    • W10.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
