Monster Axles Rear Axle & Bearing for Kawasaki Brute Force 650i & 750 2005-2023

Location on vehicle: Rear,Left,Right

SKU: KW-312XP/WB-1536

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Fits REAR, LEFT or RIGHT: 2006-2013 Brute Force 650i, 2005-2023 Brute Force 750i.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $189.95

Application List
Product Notes
Product Videos
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2013	Kawasaki	Brute Force 650	KVF650F 4x4i
2012	Kawasaki	Brute Force 650	KVF650F 4x4i
2011	Kawasaki	Brute Force 650	KVF650F 4x4i
2009	Kawasaki	Brute Force 650	KVF650F 4x4i
2009	Kawasaki	Brute Force 650	KVF650G 4x4i
2008	Kawasaki	Brute Force 650	KVF650F 4x4i
2008	Kawasaki	Brute Force 650	KVF650G 4x4i
2008	Kawasaki	Brute Force 650	KVF650H 4x4i
2007	Kawasaki	Brute Force 650	KVF650F 4x4i
2007	Kawasaki	Brute Force 650	KVF650G 4x4i
2007	Kawasaki	Brute Force 650	KVF650H 4x4i
2006	Kawasaki	Brute Force 650	KVF650F 4x4i
2006	Kawasaki	Brute Force 650	KVF650G 4x4i
2023	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2023	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2022	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2022	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2021	Kawasaki	Brute Force 750	KVF750 4x4i
2021	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2021	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2020	Kawasaki	Brute Force 750	KVF750 4x4i
2020	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2020	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2019	Kawasaki	Brute Force 750	KVF750 4x4i
2019	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2019	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2018	Kawasaki	Brute Force 750	KVF750 4x4i
2018	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2018	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2017	Kawasaki	Brute Force 750	KVF750GHF 4x4i EPS
2017	Kawasaki	Brute Force 750	KVF750HHF 4x4i EPS Camo
2017	Kawasaki	Brute Force 750	KVF750JHF 4x4i EPS Graystone
2017	Kawasaki	Brute Force 750	KVF750LHF 4x4i
2016	Kawasaki	Brute Force 750	KVF750 4x4i
2016	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2016	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2015	Kawasaki	Brute Force 750	KVF750 4x4i
2015	Kawasaki	Brute Force 750	KVF750 4x4i EPS
2015	Kawasaki	Brute Force 750	KVF750 4x4i EPS Camo
2014	Kawasaki	Brute Force 750	KVF750G 4x4i EPS
2014	Kawasaki	Brute Force 750	KVF750H 4x4i EPS
2014	Kawasaki	Brute Force 750	KVF750L 4x4i
2013	Kawasaki	Brute Force 750	KVF750G 4x4i EPS
2013	Kawasaki	Brute Force 750	KVF750H 4x4i EPS
2013	Kawasaki	Brute Force 750	KVF750J 4x4i
2013	Kawasaki	Brute Force 750	KVF750L 4x4i
2012	Kawasaki	Brute Force 750	KVF750G 4x4i EPS
2012	Kawasaki	Brute Force 750	KVF750H 4x4i EPS
2012	Kawasaki	Brute Force 750	KVF750L 4x4i
2011	Kawasaki	Brute Force 750	KVF750D 4x4i
2010	Kawasaki	Brute Force 750	KVF750D 4x4i
2010	Kawasaki	Brute Force 750	KVF750E 4x4i
2009	Kawasaki	Brute Force 750	KVF750A 4x4i
2009	Kawasaki	Brute Force 750	KVF750D 4x4i
2009	Kawasaki	Brute Force 750	KVF750E 4x4i
2009	Kawasaki	Brute Force 750	KVF750EA 4x4i NRA
2008	Kawasaki	Brute Force 750	KVF750A 4x4i
2008	Kawasaki	Brute Force 750	KVF750D 4x4i
2008	Kawasaki	Brute Force 750	KVF750E 4x4i
2008	Kawasaki	Brute Force 750	KVF750EA 4x4i NRA
2007	Kawasaki	Brute Force 750	KVF750A 4x4i
2007	Kawasaki	Brute Force 750	KVF750B 4x4i
2007	Kawasaki	Brute Force 750	KVF750C 4x4i
2007	Kawasaki	Brute Force 750	KVF750D 4x4i NRA
2006	Kawasaki	Brute Force 750	KVF750A 4x4i
2006	Kawasaki	Brute Force 750	KVF750B 4x4i
2006	Kawasaki	Brute Force 750	KVF750C 4x4i
2005	Kawasaki	Brute Force 750	KVF750A 4x4i
2005	Kawasaki	Brute Force 750	KVF750B 4x4i

Product Notes

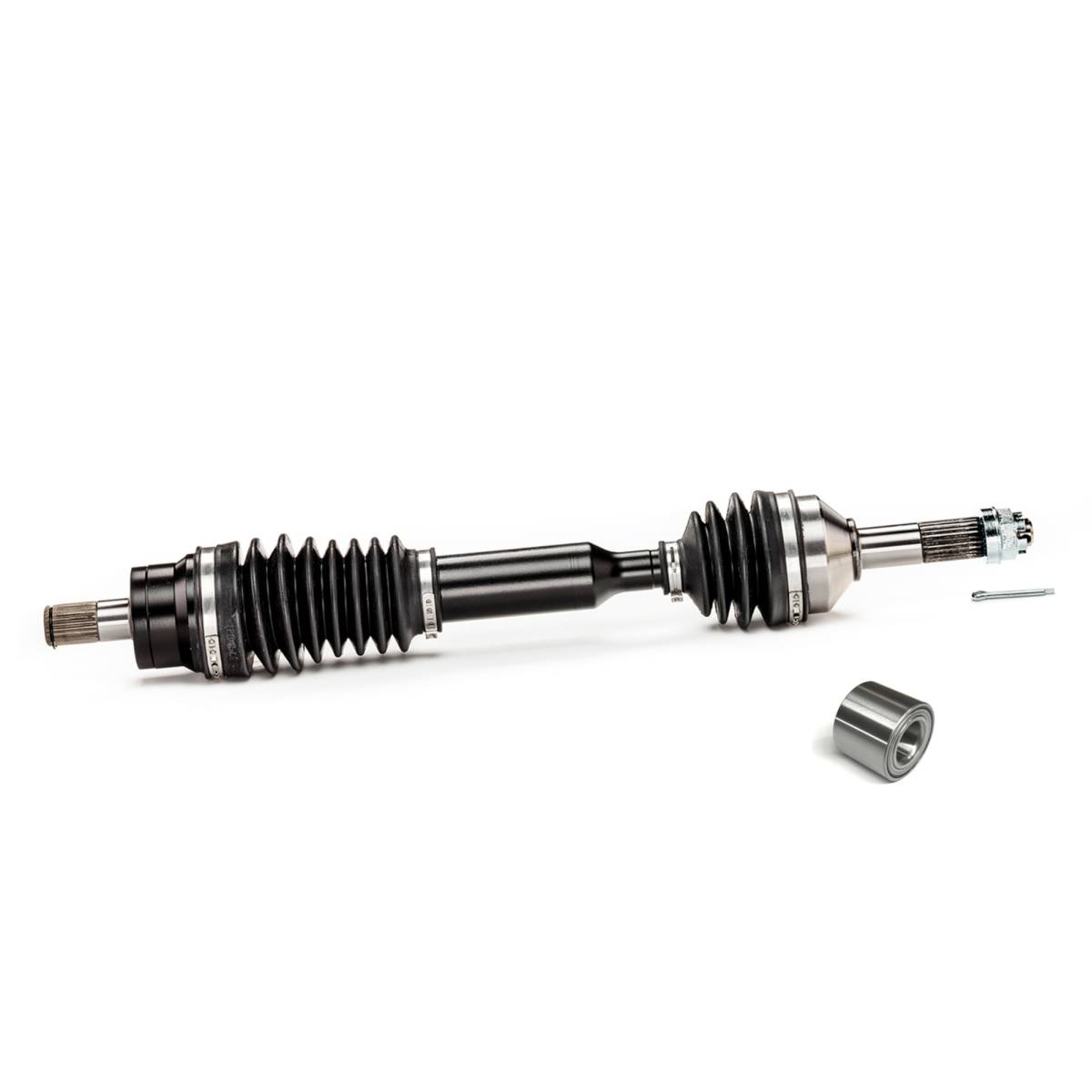

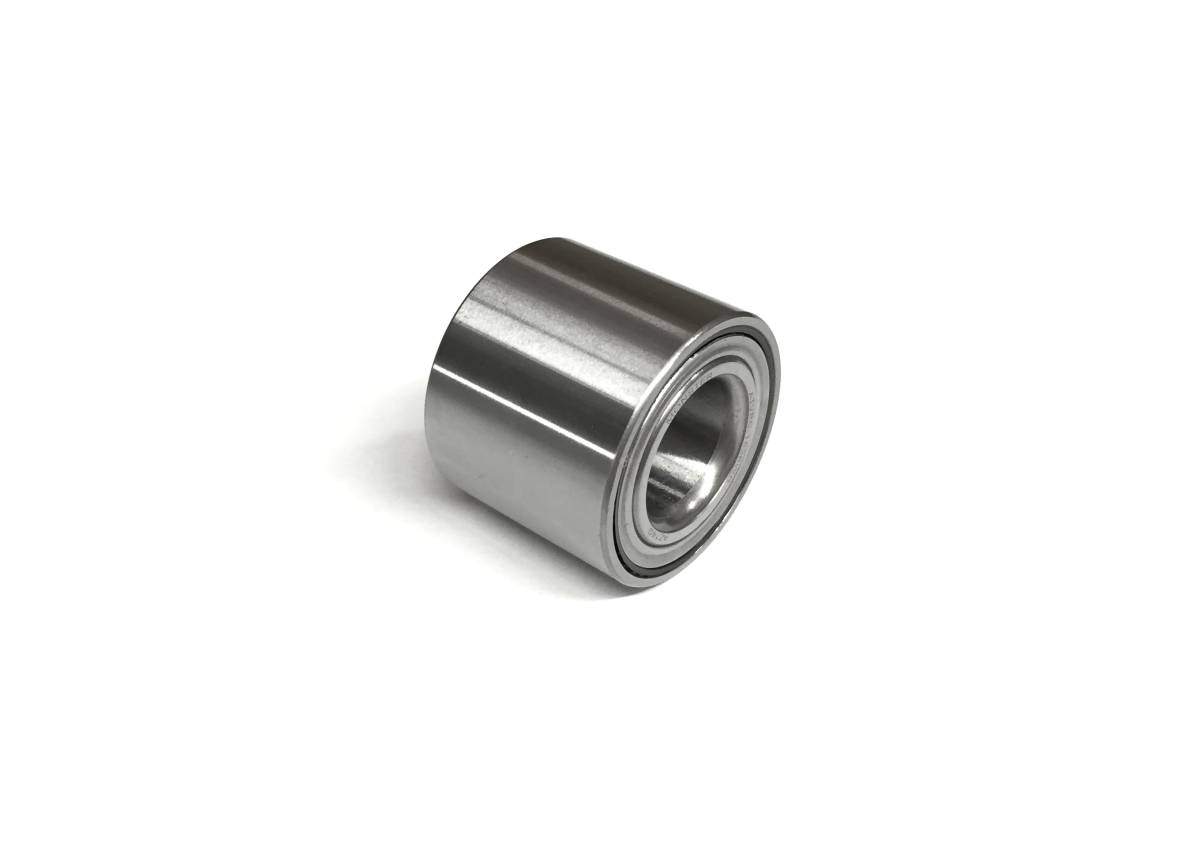

Fits REAR, LEFT or RIGHT on the following Kawasaki ATV models: 2006-2013 Brute Force 650i, 2005-2023 Brute Force 750i. Set includes 1 axle & 1 wheel bearing.

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.

Replaces OEM # (axle) 59266-0023, 59266-0002, (bearing) 92045-0102, 92045-0094, 92045-0107. Compressed length: 549 mm. Outer splines: 24, Inner splines: 24. Comes with a 1 year limited warranty (excluding torn boots).
