Rear Axle Pair with Wheel Bearings for Polaris Ranger 500 & 700 2x4 4x4 05-07

Location on vehicle: Rear,Left,Right

PO-384/PO-385/WB-1150

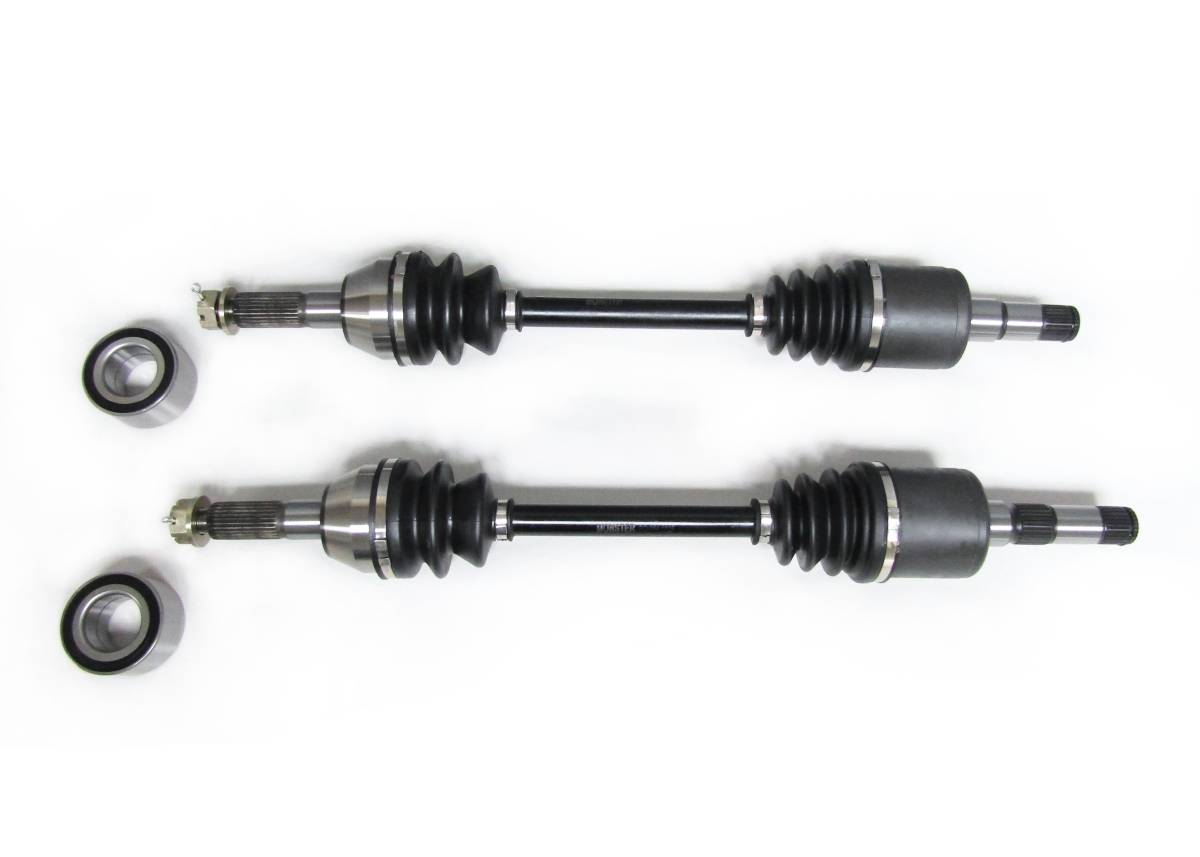

This is a set of new Rear CV axles & wheel bearings for a Polaris UTV.

They fit the following models:

2005-2007 ... Ranger 500 2x4 4x4

2005-2007 ... Ranger 700 / XP 700 4x4

(please note for 2007 these will only fit models built before August 28, 2006)

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

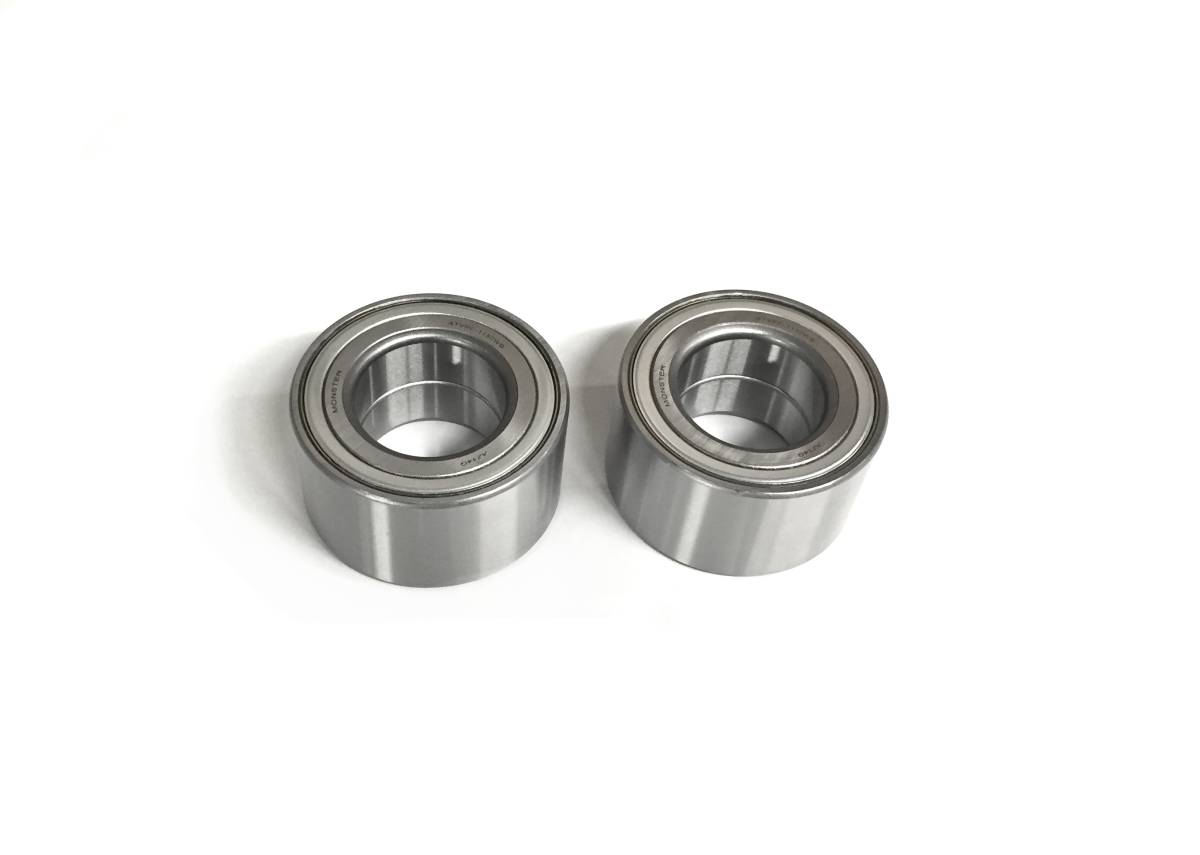

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out

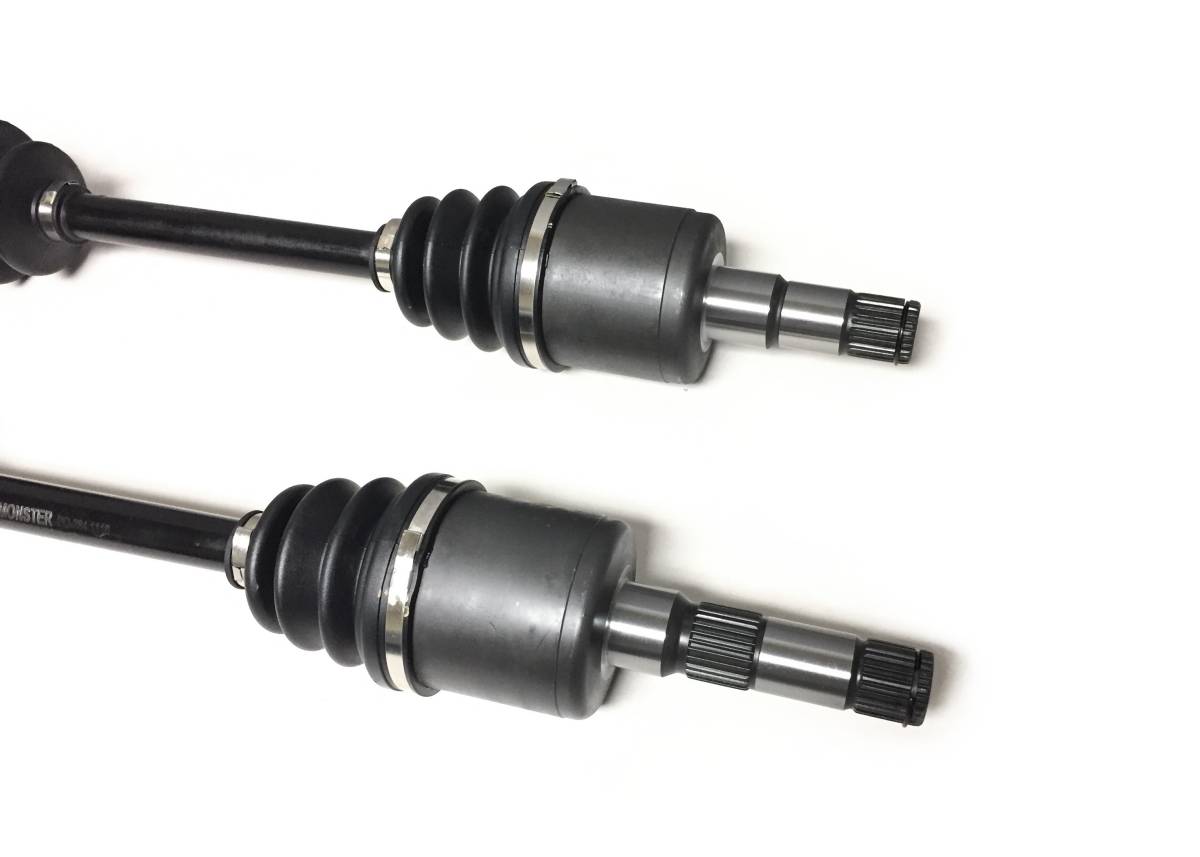

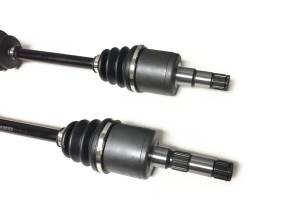

  • Inboard CV joint spline count: Left - 29, Right - 27

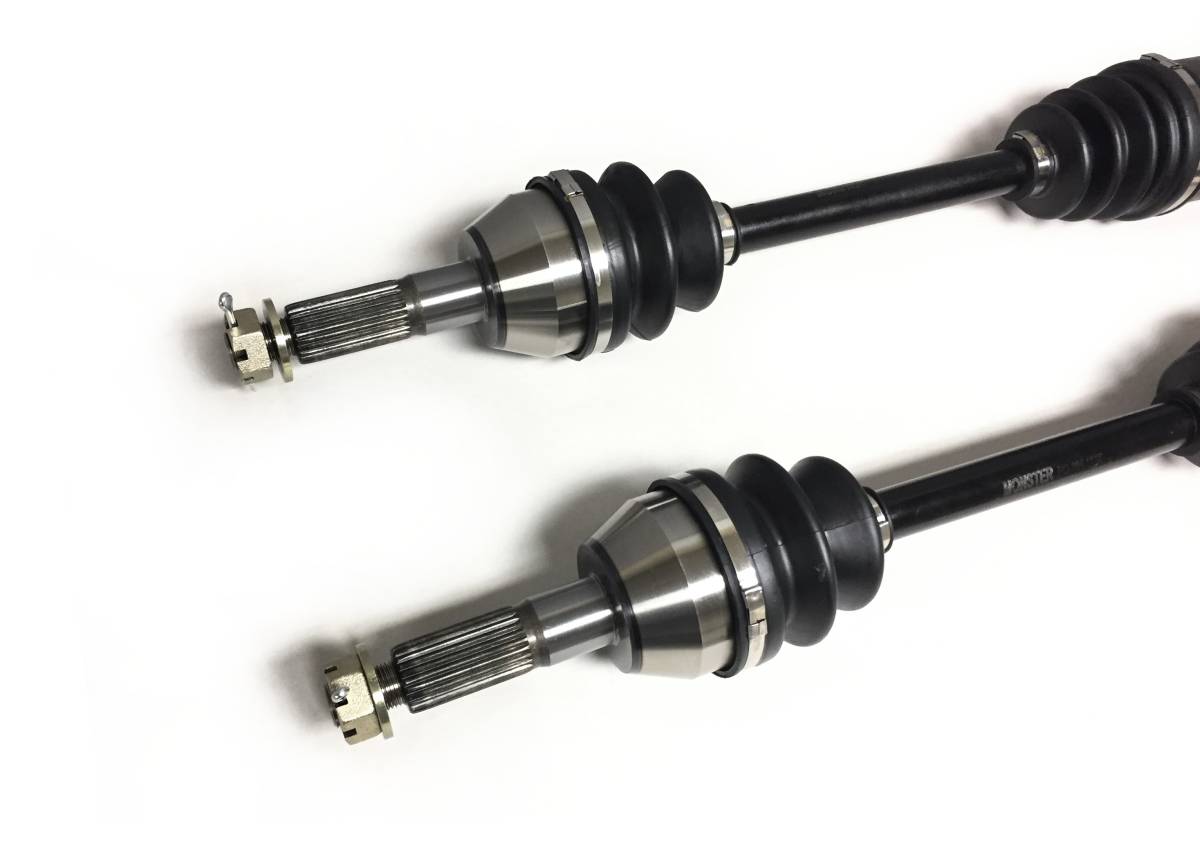

  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: Left - 691.5 mm, Right - 662.5 mm
  • Replaces Polaris OE # 1332284, 1332285, 3514635, 3585502
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $194.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear left & right on the 2005-2007 Ranger 500 2x4/4x4 (built before August 28, 2006) & 2005-2007 Ranger 700 / XP 700 4x4 (built before August 28, 2006).
  • Features stronger than OEM chromoly forged steel axle bars * Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Polaris OE # 1332284, 1332285, 3514635, 3585502. Compressed Length: Left - 691.5 mm, Right - 662.5 mm, Inboard Spline Count: Left - 29, Right - 27, Outboard Spline Count: 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2005PolarisRanger XP 7004x4 EFI
    2006PolarisRanger XP 7004x4 EFI
    2007PolarisRanger XP 7004x4 EFI
    2007PolarisRanger XP 7004x4 Browning EFI
    2007PolarisRanger 7004x4 EFImade before 08/28/2006
    2005PolarisRanger 5004x4 Limited Edition
    2005PolarisRanger 5004X4
    2005PolarisRanger 5002x4
    2006PolarisRanger 5004x4 EFI
    2006PolarisRanger 5004X4
    2006PolarisRanger 5002x4
    2007PolarisRanger 5004x4 EFIbuilt before 08/28/2006
    2007PolarisRanger 5004X4built before 08/28/2006

    Details

    • PO-384/PO-385/WB-1150
    • PO-384/PO-385/WB-1150
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 35.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
