CV Axle Set for Polaris Ranger 500 & 700 2005-2007, 1332423 1332284 1332285

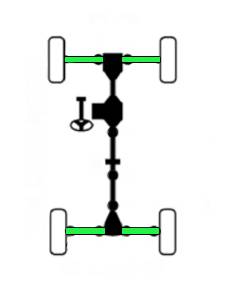

Location on vehicle: Rear,Front,Left,Right

PO-309/PO-309/PO-384/PO-385

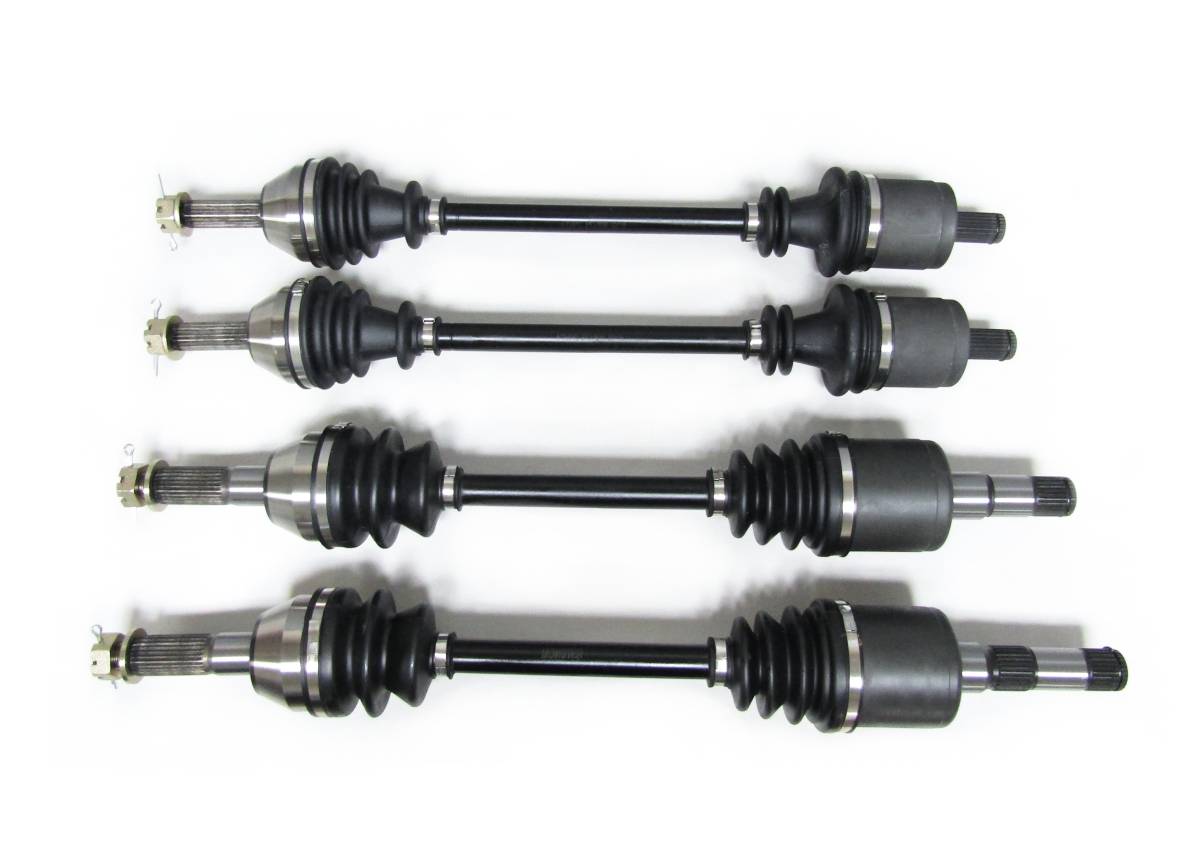

This is a set of new Front & Rear CV axles for a Polaris UTV.

They fit the following models:

2005-2007 ... Ranger 500 2x4 4x4

(for 2005: models that use an inner CV joint)

2005-2007 ... Ranger 700 / XP 700 4x4

Front & Rear, Left & Right

***please note for 2007 this will only fit models built before August 28, 2006***

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: FL- 22, FR- 22, RL- 29, RR- 27
  • Outboard CV joint spline count: FL- 20, FR- 20, RL- 26, RR- 26
  • Compressed overall axle length (mm): FL- 630, FR- 630, RL- 691.5, RR- 662.5
  • RReplaces Polaris OE # 1332423, 1332284, 1332285
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $354.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2005-2007 Ranger 500 2x4/4x4 (built before August 28, 2006) & 2005-2007 Ranger 700 / XP 700 4x4 (built before August 28, 2006). Please note this will not fit 2005 Ranger 500 models that require a U-jointed inner front shaft.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length (mm): FL- 630, FR- 630, RL- 691.5, RR- 662.5, Inboard Spline Count: FL- 22, FR- 22, RL- 29, RR- 27 , Outboard Spline Count: FL- 20, FR- 20, RL- 26, RR- 26.
  • Replaces Polaris OE # (fronts) 1332423, (rear left) 1332284, (rear right) 1332285.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2007PolarisRanger 5004X4built before 08/28/2006
    2007PolarisRanger 5004x4 EFIbuilt before 08/28/2006
    2006PolarisRanger 5002x4
    2006PolarisRanger 5004X4
    2006PolarisRanger 5004x4 EFI
    2005PolarisRanger 5002x4
    2005PolarisRanger 5004X4
    2005PolarisRanger 5004x4 Limited Edition
    2007PolarisRanger 7004x4 EFImade before 08/28/2006
    2007PolarisRanger XP 7004x4 Browning EFI
    2007PolarisRanger XP 7004x4 EFI
    2006PolarisRanger XP 7004x4 EFI
    2005PolarisRanger XP 7004x4 EFI

    Details

    • PO-309/PO-309/PO-384/PO-385
    • PO-309/PO-309/PO-384/PO-385
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 54.0 lbs.
    • W10.0000” x H10.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
