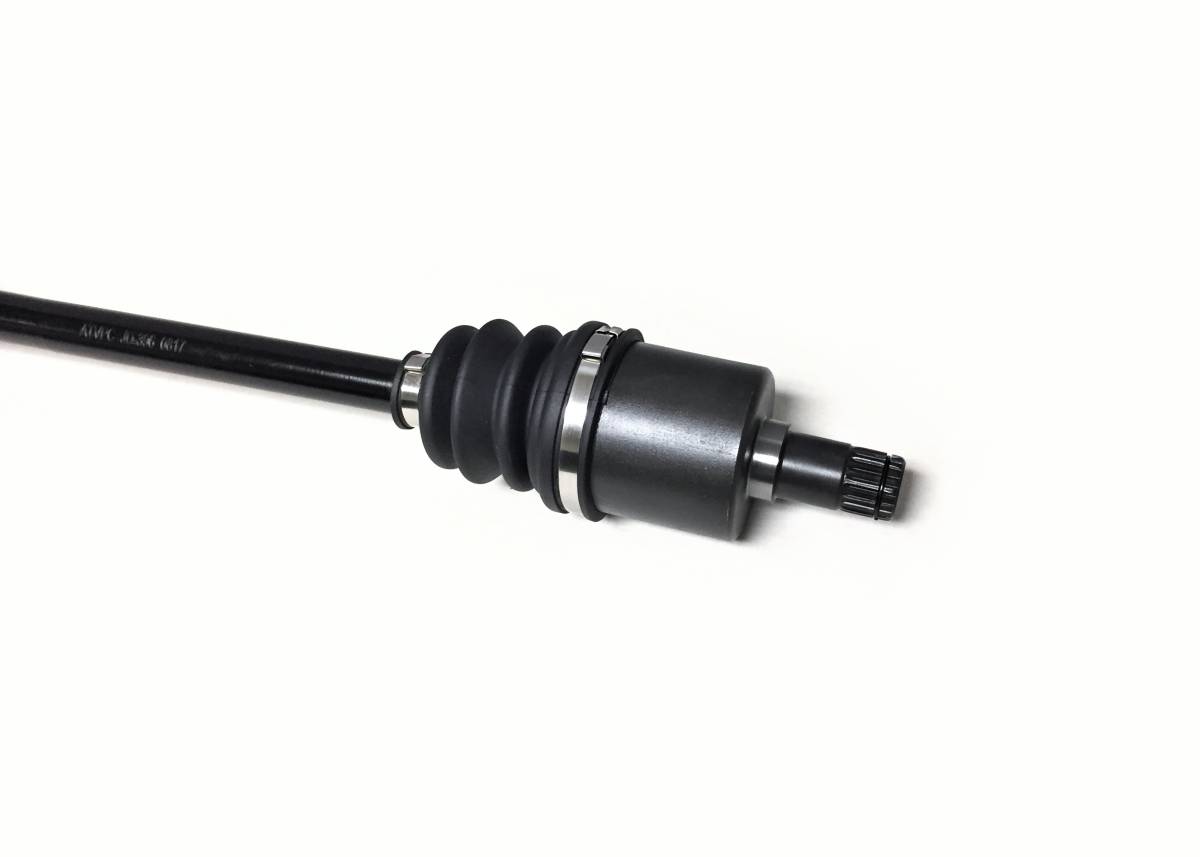

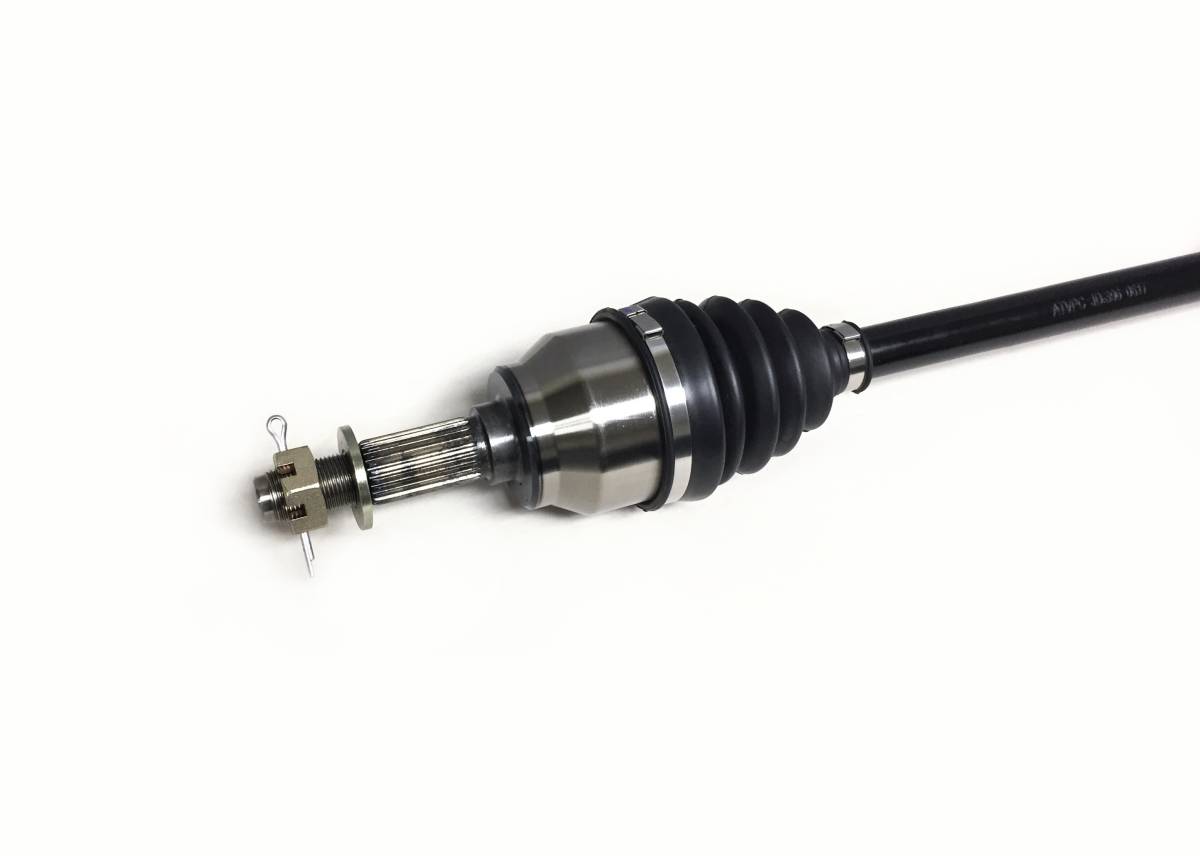

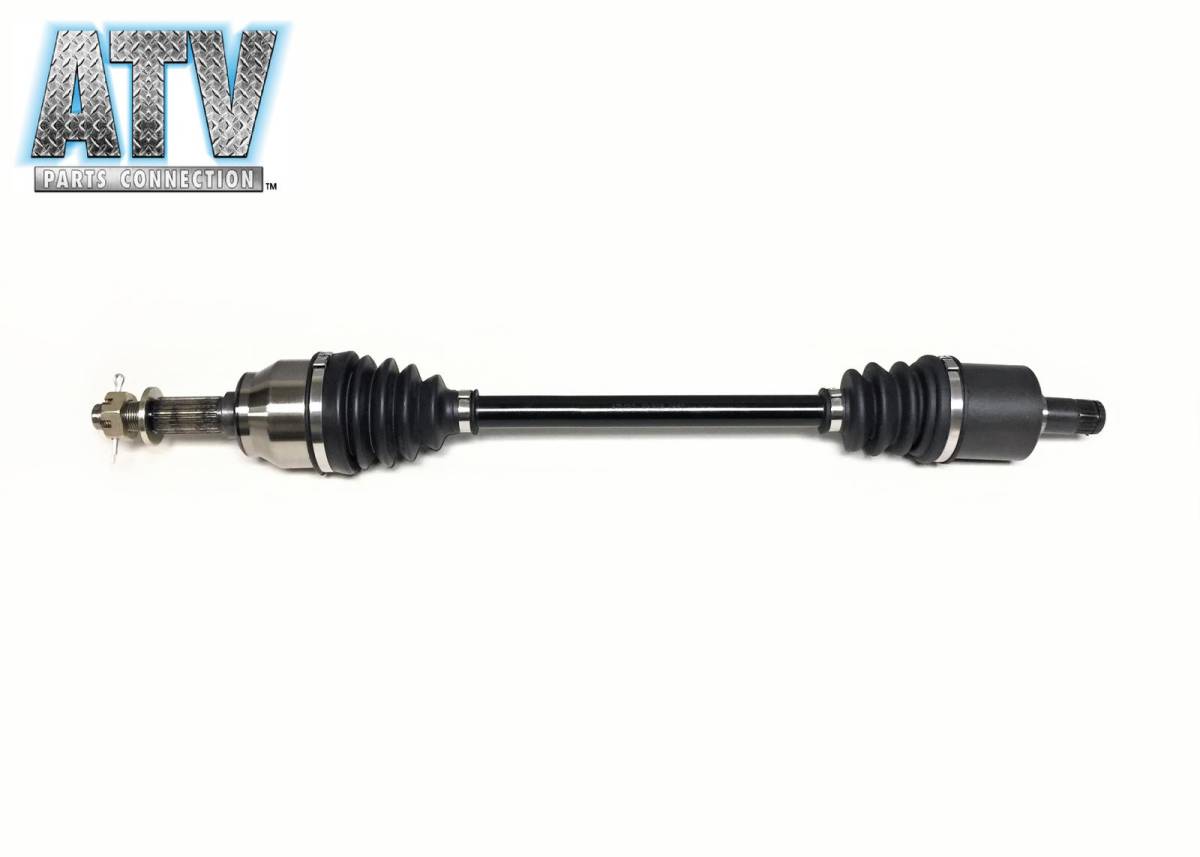

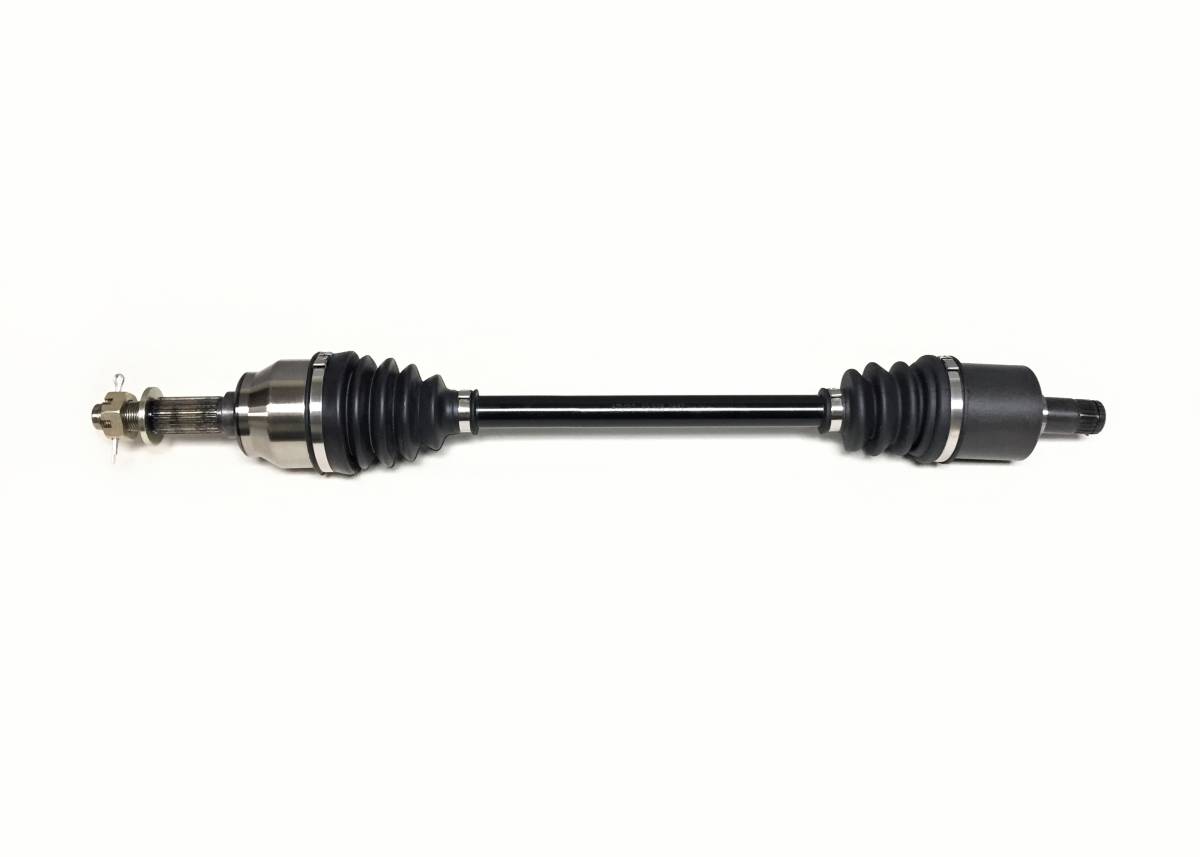

Front CV Axle for John Deere Gator XUV 550 560 590 & RSX 850 860 2012-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
JD-396
This is a new Front CV axle for a John Deere XUV.

It will fit the following 4x4 applications:

2012-2016 ... Gator 550 / 550 S4

2016-2020 ... Gator 560 / 560 S4

2016-2020 ... Gator 590 / 590 S4

2013-2018 ... Gator RSX 850i (Base, Sport, Trail)

2016-2019 ... Gator RSX 860

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 24
  • Compressed overall axle length: 648 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015John DeereGator RSX 850i4X4
2015John DeereGator RSX 850i4x4 Sport
2015John DeereGator RSX 850i4x4 Trail
2014John DeereGator RSX 850i4X4
2014John DeereGator RSX 850i4x4 Midnight Black Special Edition
2014John DeereGator RSX 850i4x4 Sport
2014John DeereGator RSX 850i4x4 Trail
2013John DeereGator RSX 850i--
2013John DeereGator RSX 850iSport
2013John DeereGator RSX 850iTrail

Product Notes

  • Fits 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4, 2013-2018 Gator RSX 850i (including Sport & Trail), & 2016-2019 Gator RSX 860.
  • Fitted with neoprene CV boots for added wear & puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • Inner splines: 22, outer Splines: 24, compressed length: 648 mm / 25.51".
  • Comes ready to install out of the box.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • JD-396
    • JD-396
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
