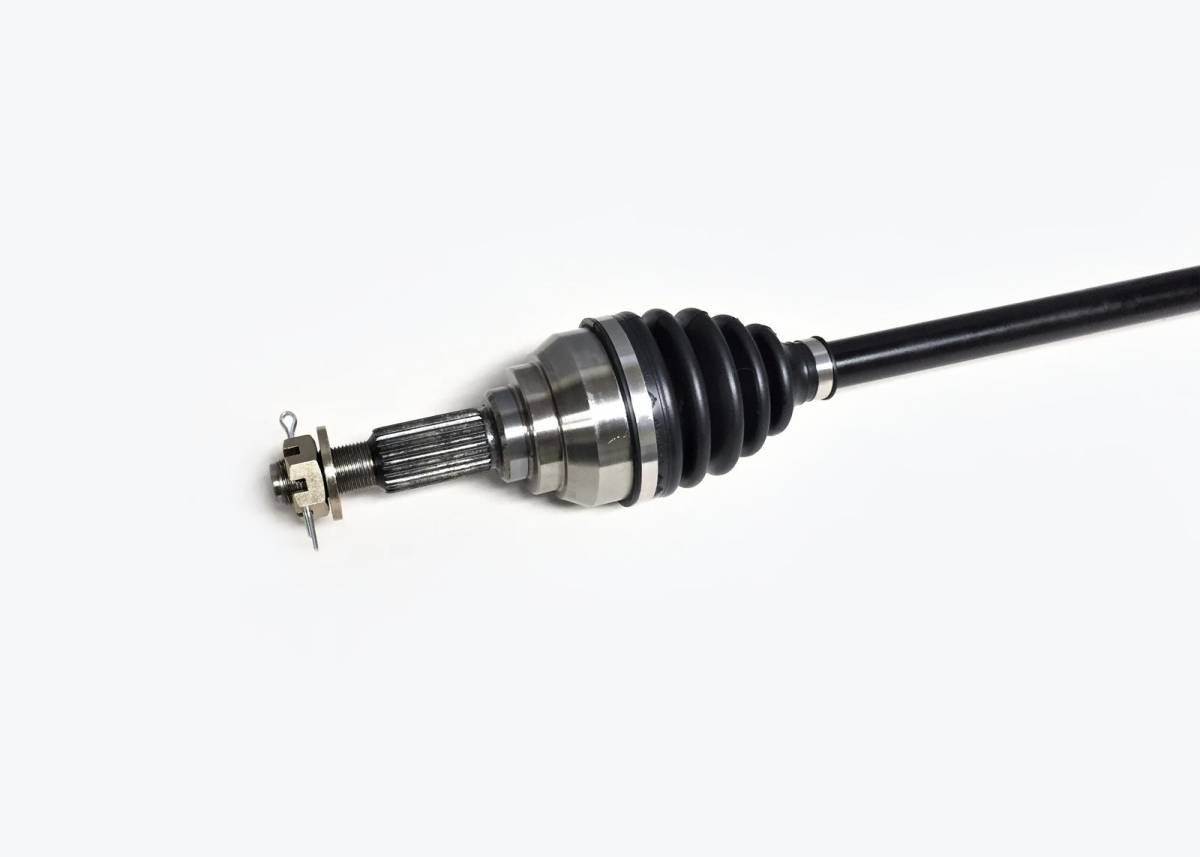

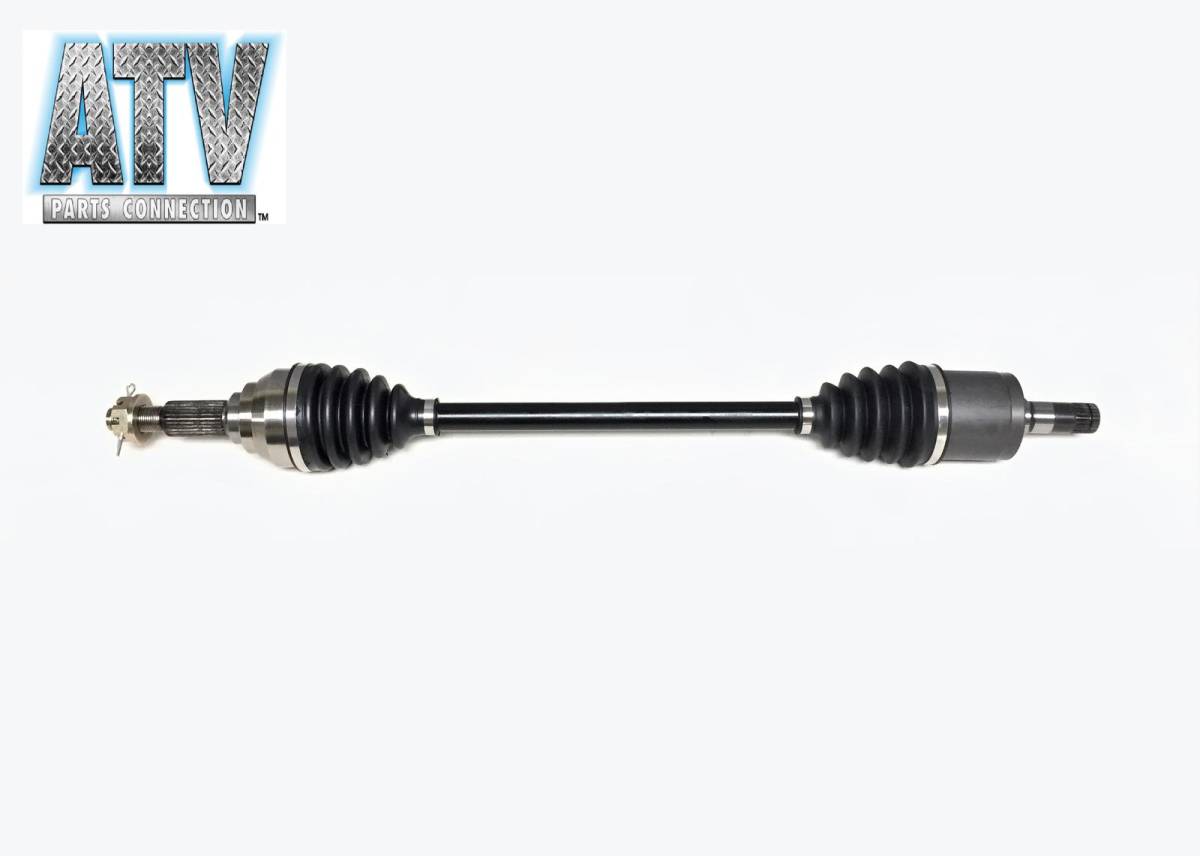

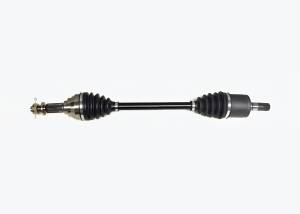

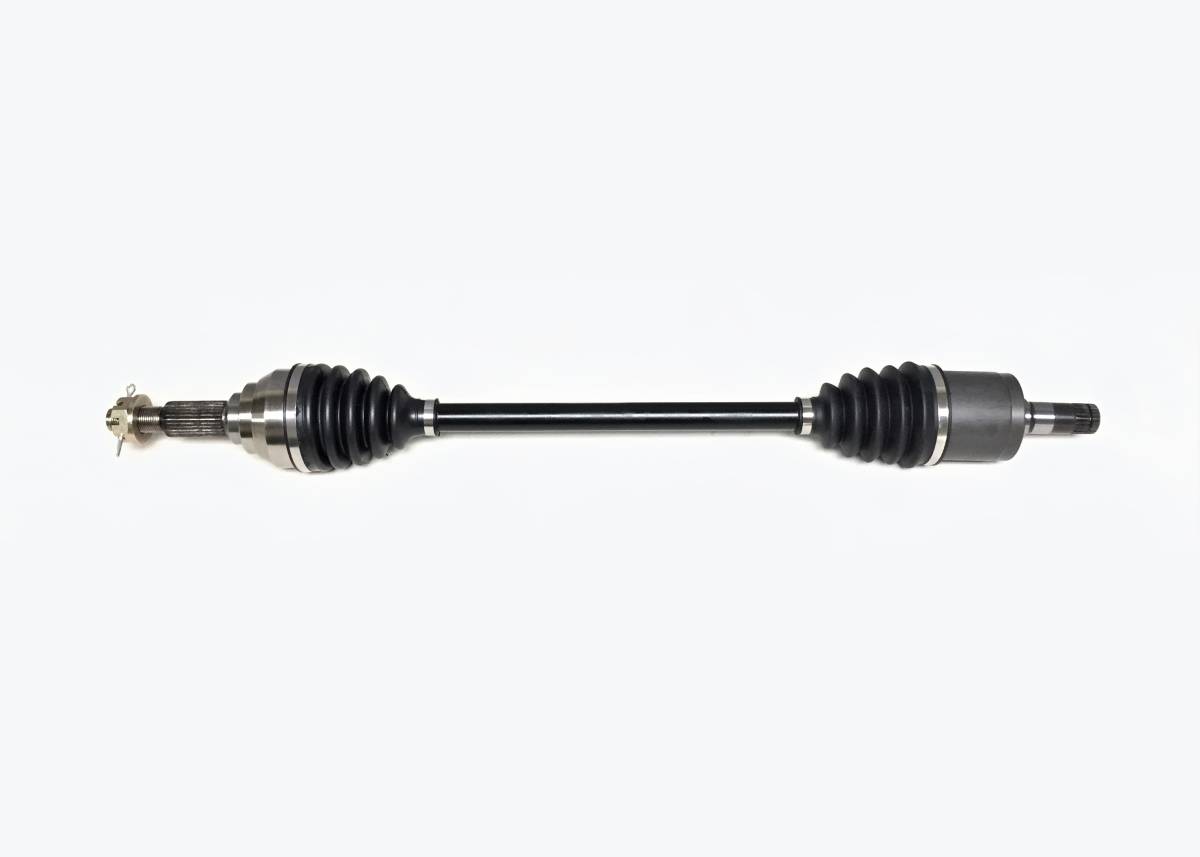

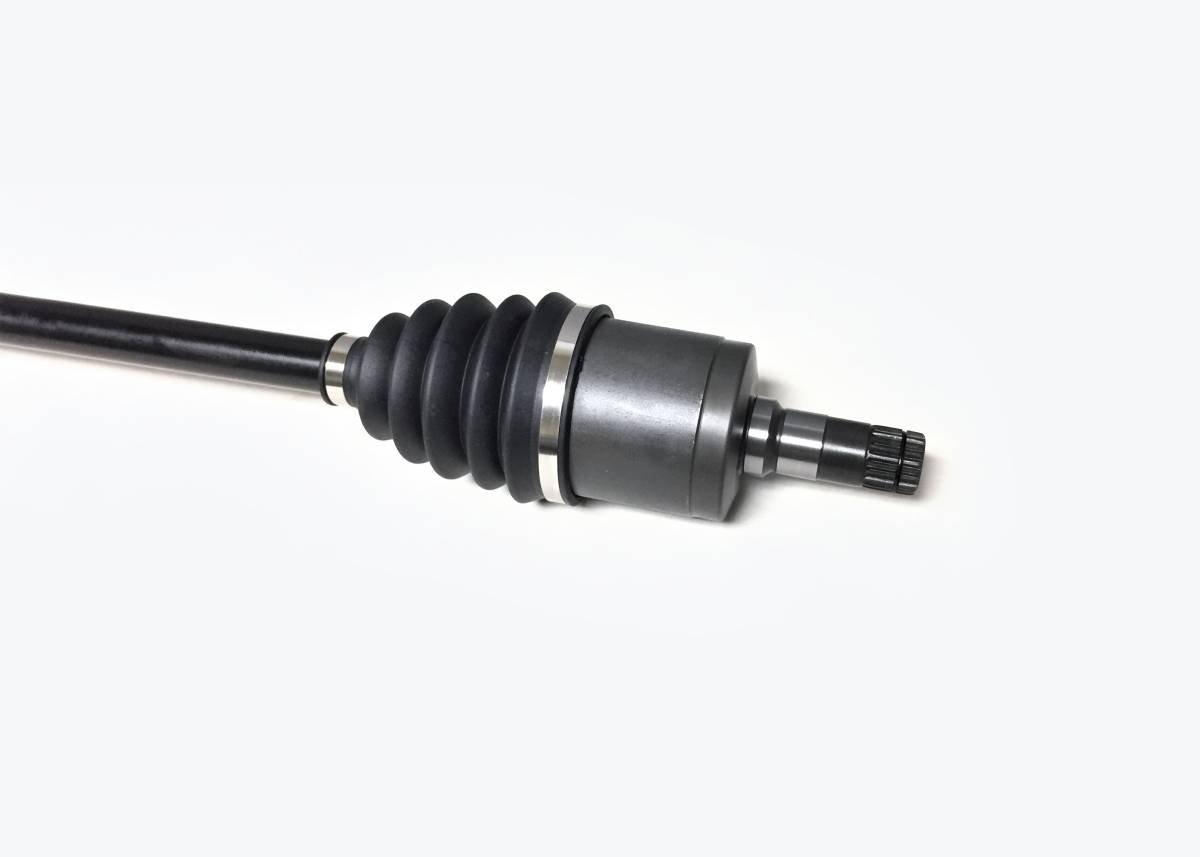

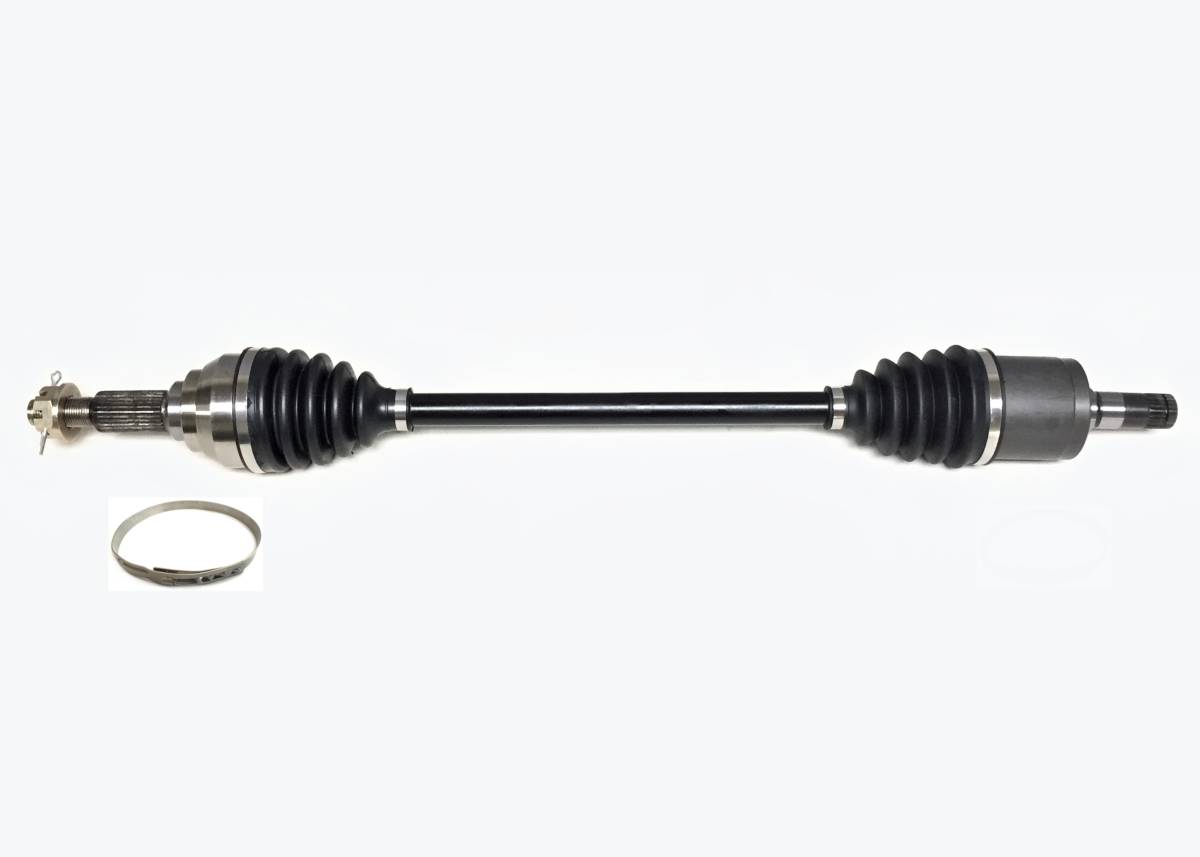

Front Left CV Axle for John Deere Gator XUV 625 825 855 2011-2020

Location on vehicle: Front,Left

(0) Reviews: Write first review
JD-393
This is a new Front, Left CV axle for a John Deere XUV.

This axle will fit the following 4x4 applications:

2011-2017 ... Gator 625i

2011-2019 ... Gator 825 / 825 S4

2011-2020 ... Gator 855 / 855 S4

2011-2013 ... A3 Military Gator

2011-2013 ... A2 GUV

Front, Left (Driver's Side)

*Not intended for use in lifted vehicles

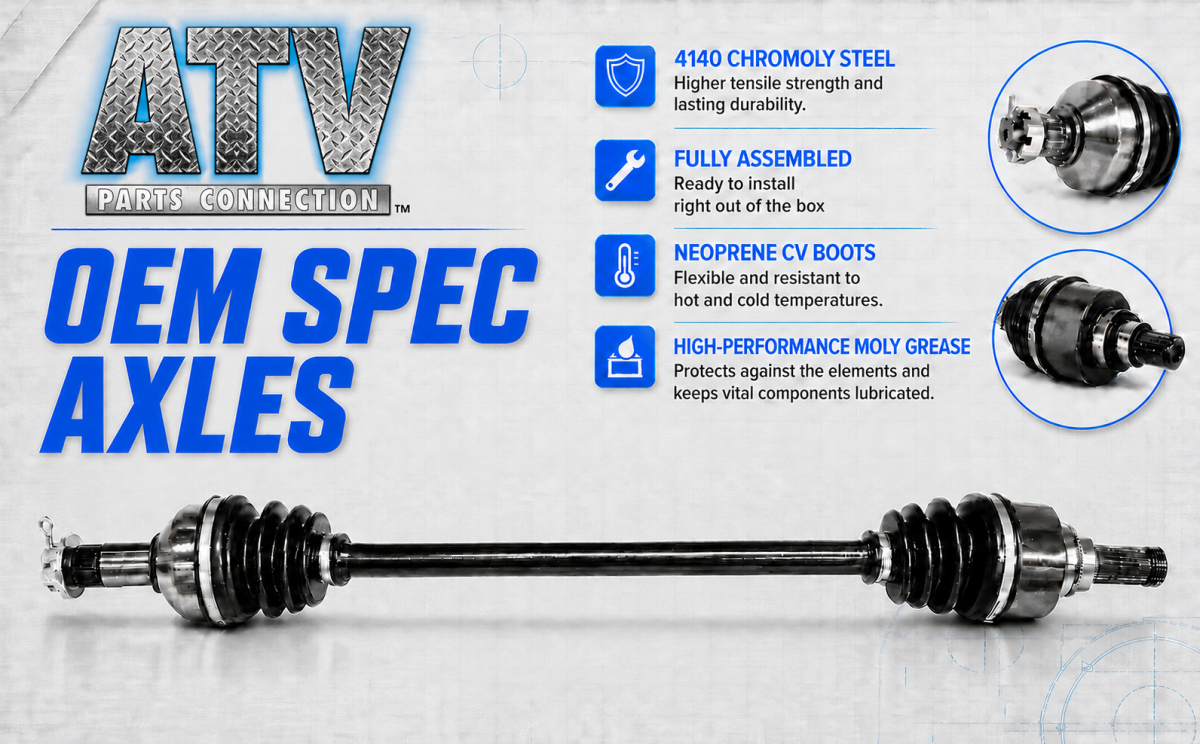

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 730 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $84.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017John DeereGator XUV 625i4X4
2016John DeereGator XUV 625i4X4
2015John DeereGator XUV 625i4X4
2014John DeereGator XUV 625i4X4
2013John DeereGator XUV 625i4X4
2012John DeereGator XUV 625i4X4
2011John DeereGator XUV 625i4X4
2019John DeereGator XUV 825E4X4
2018John DeereGator XUV 825E4X4
2019John DeereGator XUV 825M4x4 EPS
2019John DeereGator XUV 825M4x4 EPS S4 4 Passenger
2018John DeereGator XUV 825M4x4 EPS
2018John DeereGator XUV 825M4x4 EPS S4 4 Passenger
2017John DeereGator XUV 825i4X4
2017John DeereGator XUV 825i4x4 EPS
2017John DeereGator XUV 825i4x4 S4 4 Passenger
2016John DeereGator XUV 825i4X4
2016John DeereGator XUV 825i4x4 EPS
2016John DeereGator XUV 825i4x4 S4 4 Passenger
2016John DeereGator XUV 825i4x4 Special Edition
2015John DeereGator XUV 825i4X4
2015John DeereGator XUV 825i4x4 EPS
2015John DeereGator XUV 825i4x4 S4 4 Passenger
2014John DeereGator XUV 825i4X4
2014John DeereGator XUV 825i4x4 EPS
2014John DeereGator XUV 825i4x4 S4 4 Passenger
2013John DeereGator XUV 825i4X4
2013John DeereGator XUV 825i4x4 4 Passenger
2013John DeereGator XUV 825i4x4 EPS
2012John DeereGator XUV 825i4X4
2012John DeereGator XUV 825i4x4 EPS
2011John DeereGator XUV 825i4X4
2017John DeereGator XUV 855D4x4 Diesel
2017John DeereGator XUV 855D4x4 EPS Diesel
2017John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2016John DeereGator XUV 855D4x4 Diesel
2016John DeereGator XUV 855D4x4 EPS Diesel
2016John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2015John DeereGator XUV 855D4x4 Diesel
2015John DeereGator XUV 855D4x4 EPS Diesel
2015John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2014John DeereGator XUV 855D4x4 Diesel
2014John DeereGator XUV 855D4x4 EPS Diesel
2014John DeereGator XUV 855D4x4 S4 4 Passenger Diesel
2013John DeereGator XUV 855D4x4 Diesel
2013John DeereGator XUV 855D4x4 Diesel 4 Passenger
2013John DeereGator XUV 855D4x4 Diesel EPS
2012John DeereGator XUV 855D4x4 Diesel
2012John DeereGator XUV 855D4x4 EPS
2011John DeereGator XUV 855D4x4 Diesel
2020John DeereGator XUV 855E4x4 Diesel
2019John DeereGator XUV 855E4x4 Diesel
2018John DeereGator XUV 855E4x4 Diesel
2020John DeereGator XUV 855M4x4 EPS Diesel
2020John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
2019John DeereGator XUV 855M4x4 EPS Diesel
2019John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel
2018John DeereGator XUV 855M4x4 EPS Diesel
2018John DeereGator XUV 855M4x4 EPS S4 4 Passenger Diesel

Product Notes

  • Fits 2011-2017 Gator 625i, 2011-2019 Gator 825i/M & S4, 2011-2020 Gator 855D/E/M & S4, 2011-2013 A3 Military Gator, 2011-2013 A2 GUV.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 730 mm, Inboard Spline Count - 22, Outboard Spline Count - 27.
  • Replaces OE # AM141847, AM138105, AM141940, AM140492, AM142937.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • JD-393
    • JD-393
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 13.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
