Front Left CV Axle for John Deere HPX Gator Gas & Diesel 2010-2013

Location on vehicle: Front,Left

JD-395

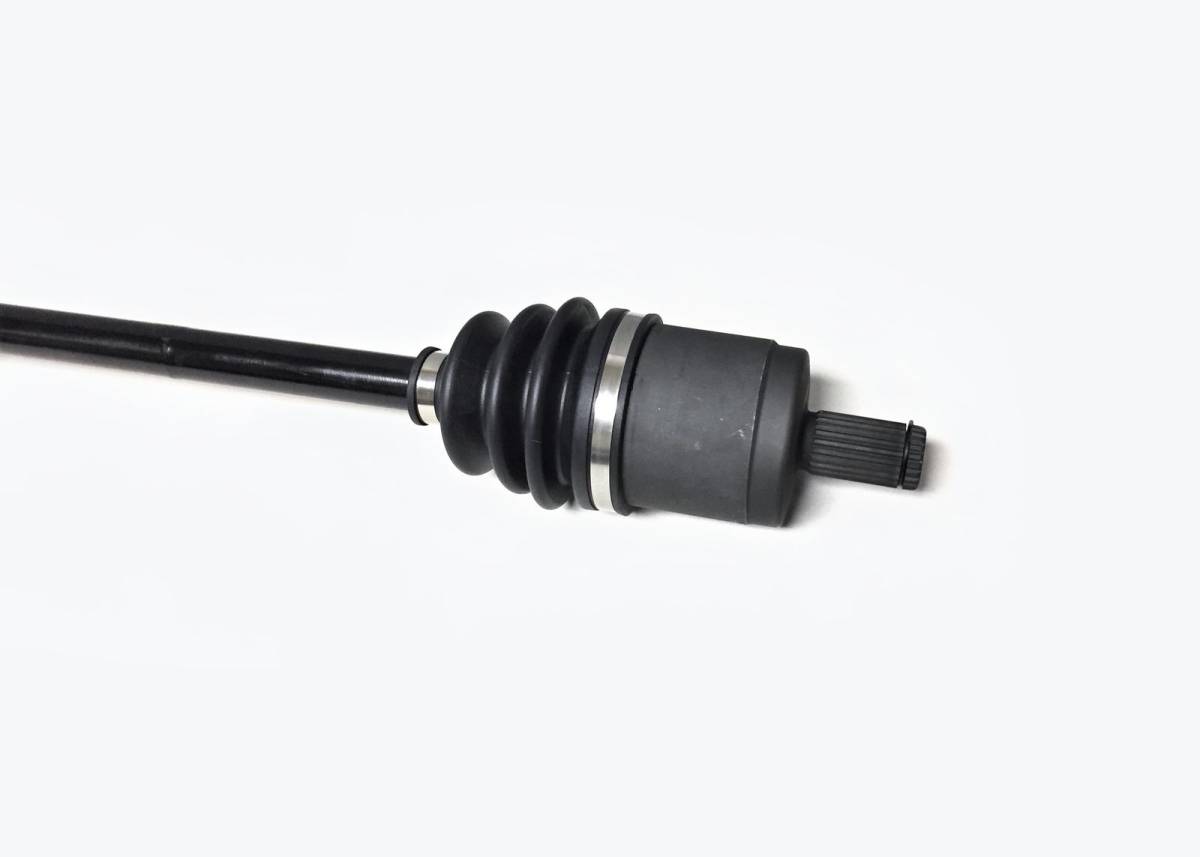

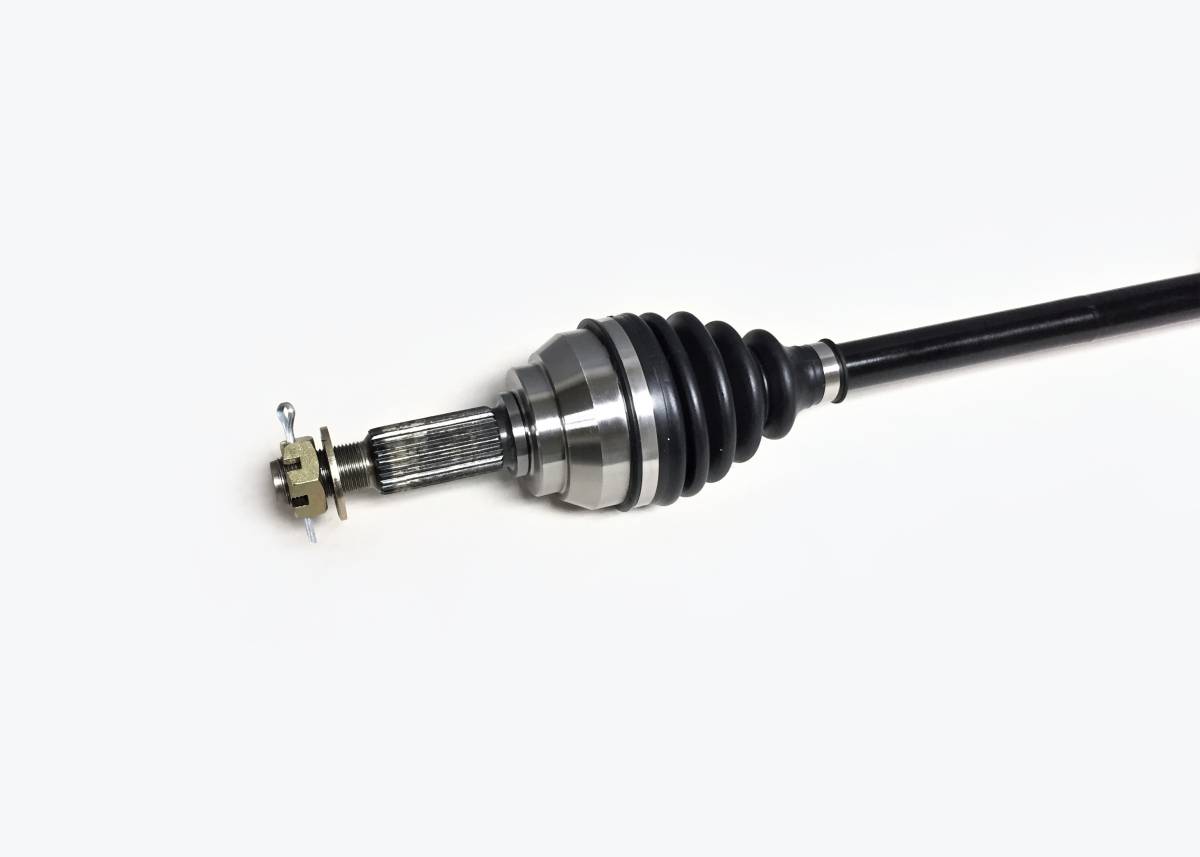

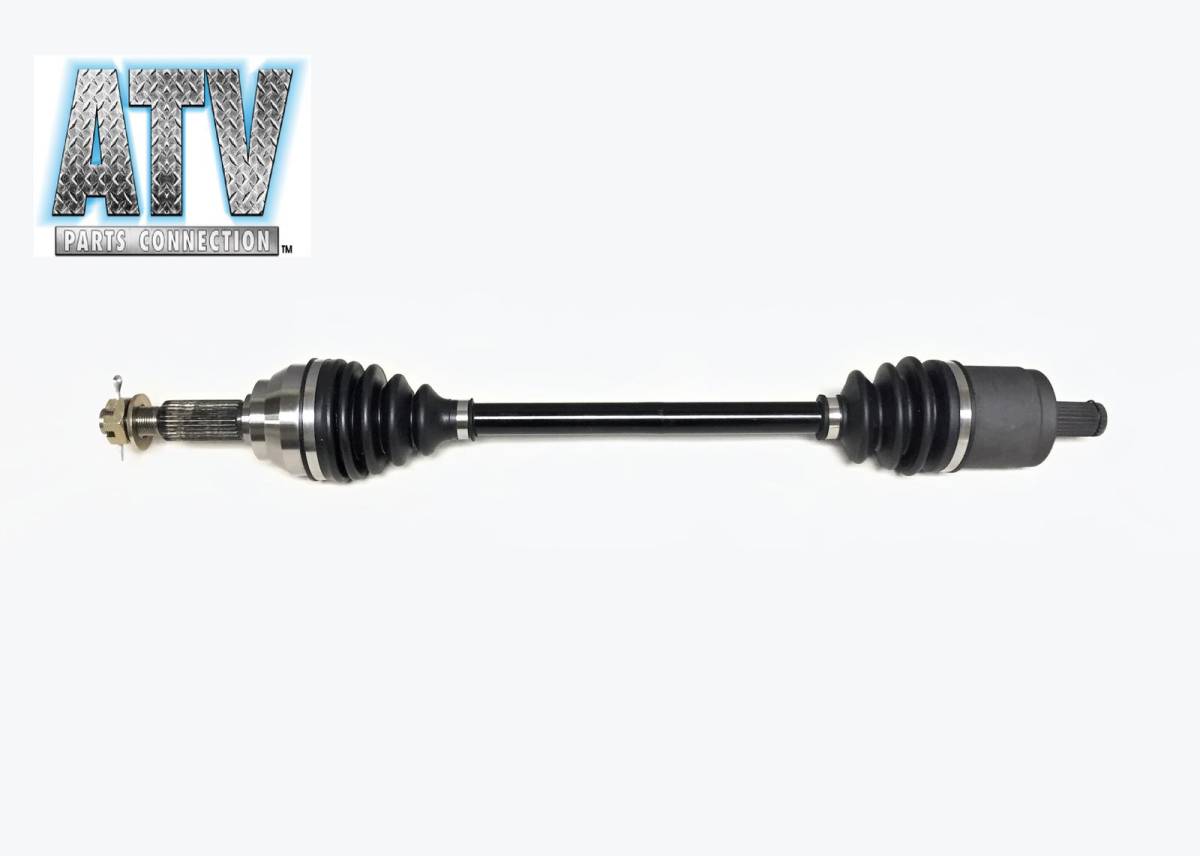

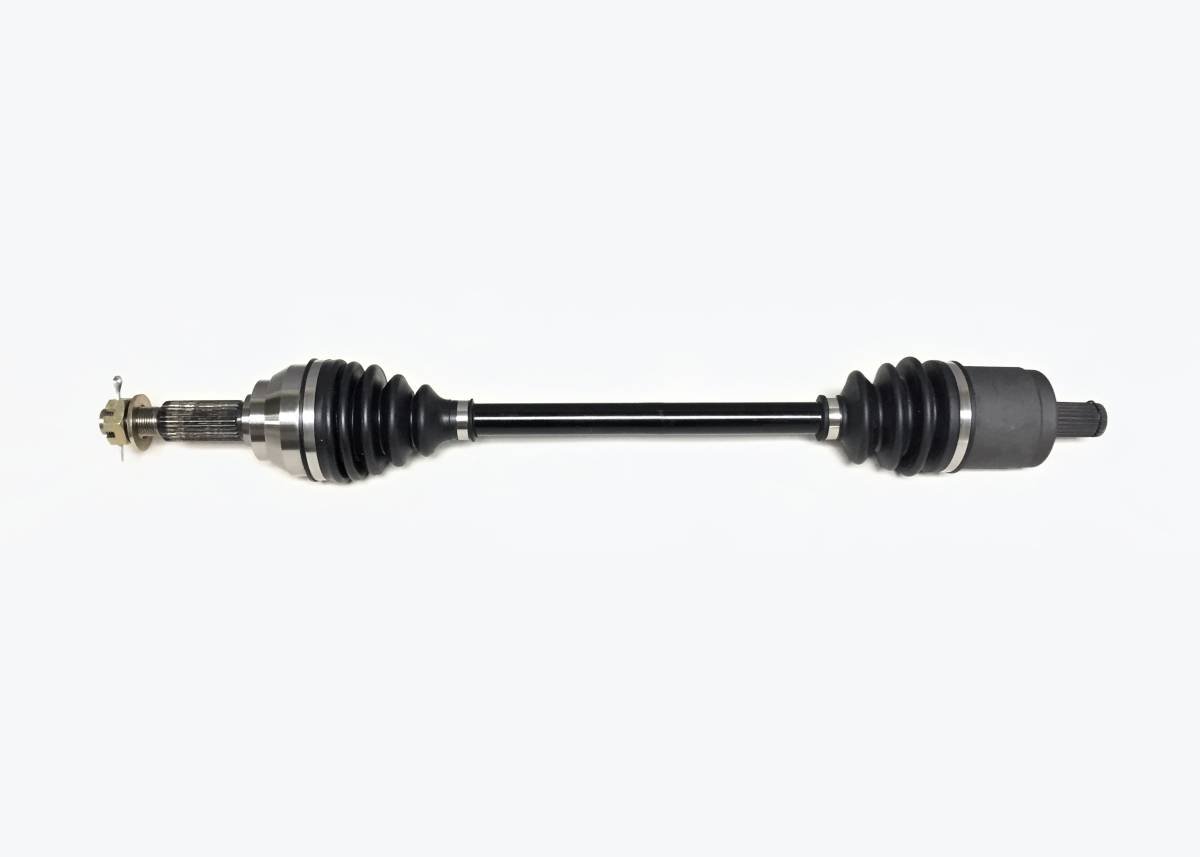

This is a new Front, Left CV axle for a John Deere UTV.

It will fit the following models:

2010-2013 ... Gator HPX (Gas/Diesel) 2x4 & 4x4

2010-2012 ... Gator Trail HPX 4x4

Front, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 651 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $66.38
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2010John DeereGator HPX4x4 Diesel
2011John DeereGator HPX4X4
2011John DeereGator HPX4x4 Diesel
2012John DeereGator HPX4X4
2012John DeereGator HPX4x4 Diesel

Product Notes

  • Fits front left (driver side) on the following John Deere models: 2010-2013 Gator HPX (Gas/Diesel) 2x4 & 4x4, 2010-2012 Gator Trail HPX 4x4.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Compressed length - 651 mm, Inboard spline count - 22, Outboard spline count - 27.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • JD-395
    • JD-395
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.6 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
