Rear Right CV Axle for John Deere Gator XUV 550 560 590 S4 2012-2020

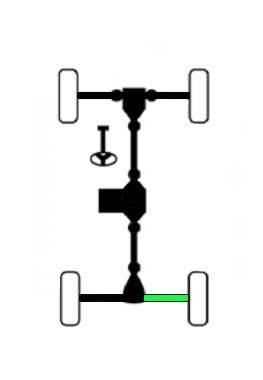

Location on vehicle: Rear,Right

(0) Reviews: Write first review
JD-301

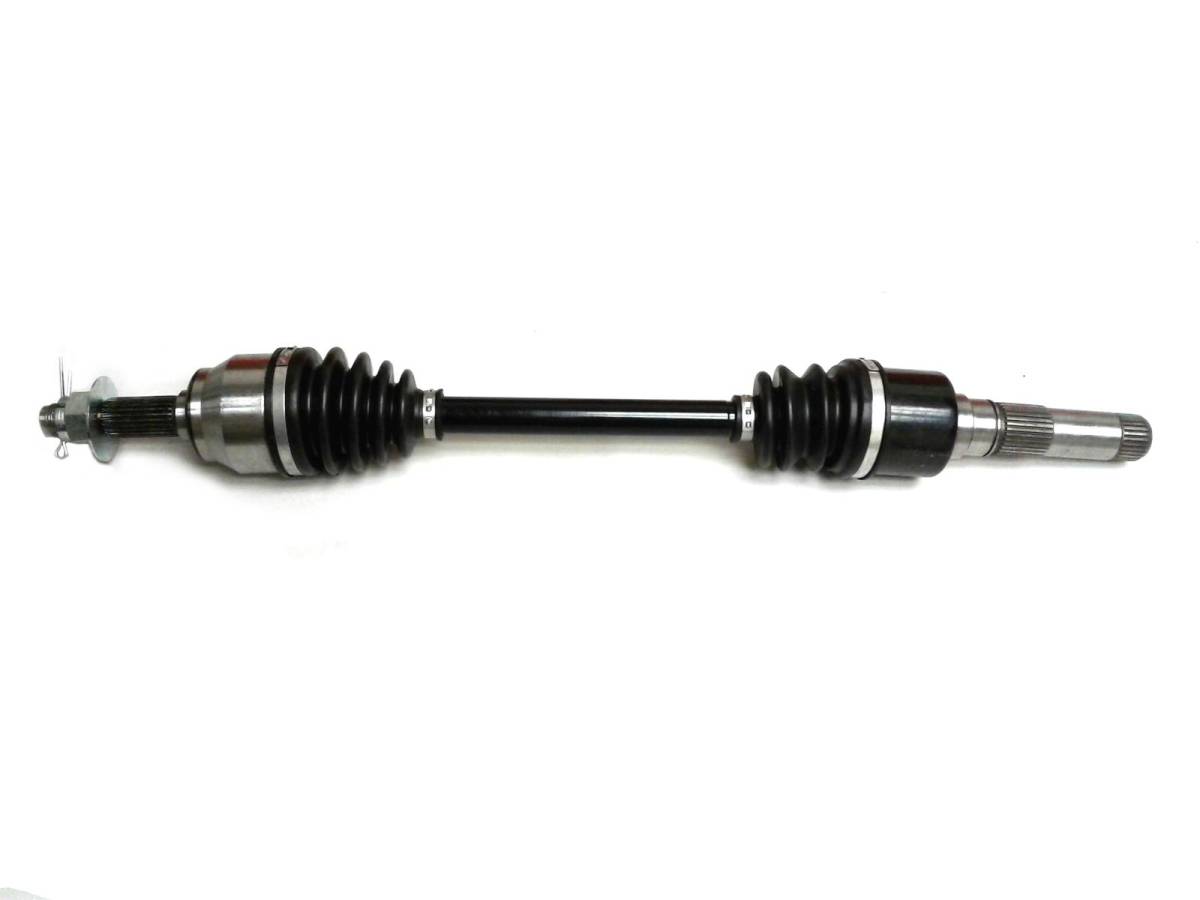

This is a new rear, right CV axle for a John Deere XUV.

It will fit the following 4x4 applications:

2012-2016 ... Gator 550 / 550 S4

2016-2020 ... Gator 560 / 560 S4

2016-2019 ... Gator 590 / 590 S4

rear, right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

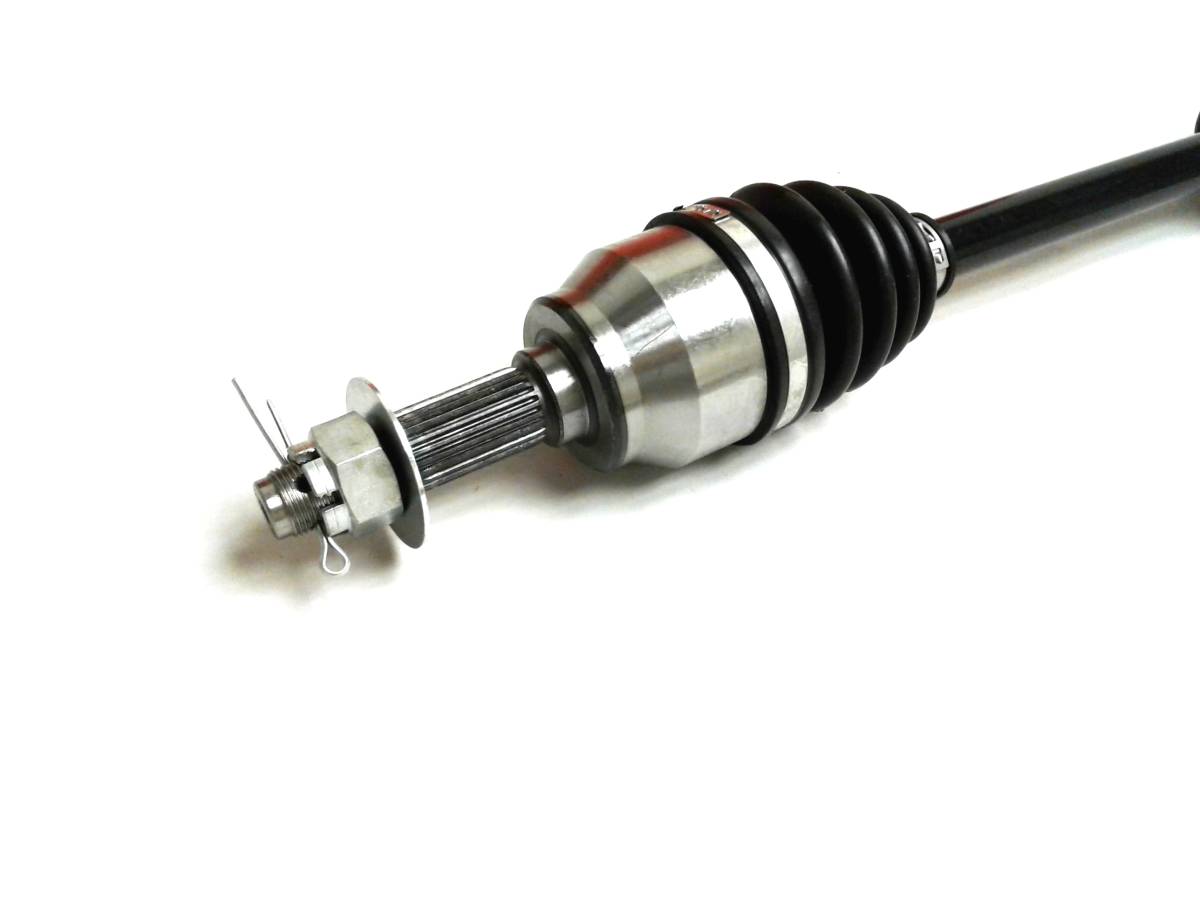

  • inobard CV joint spline count: 28

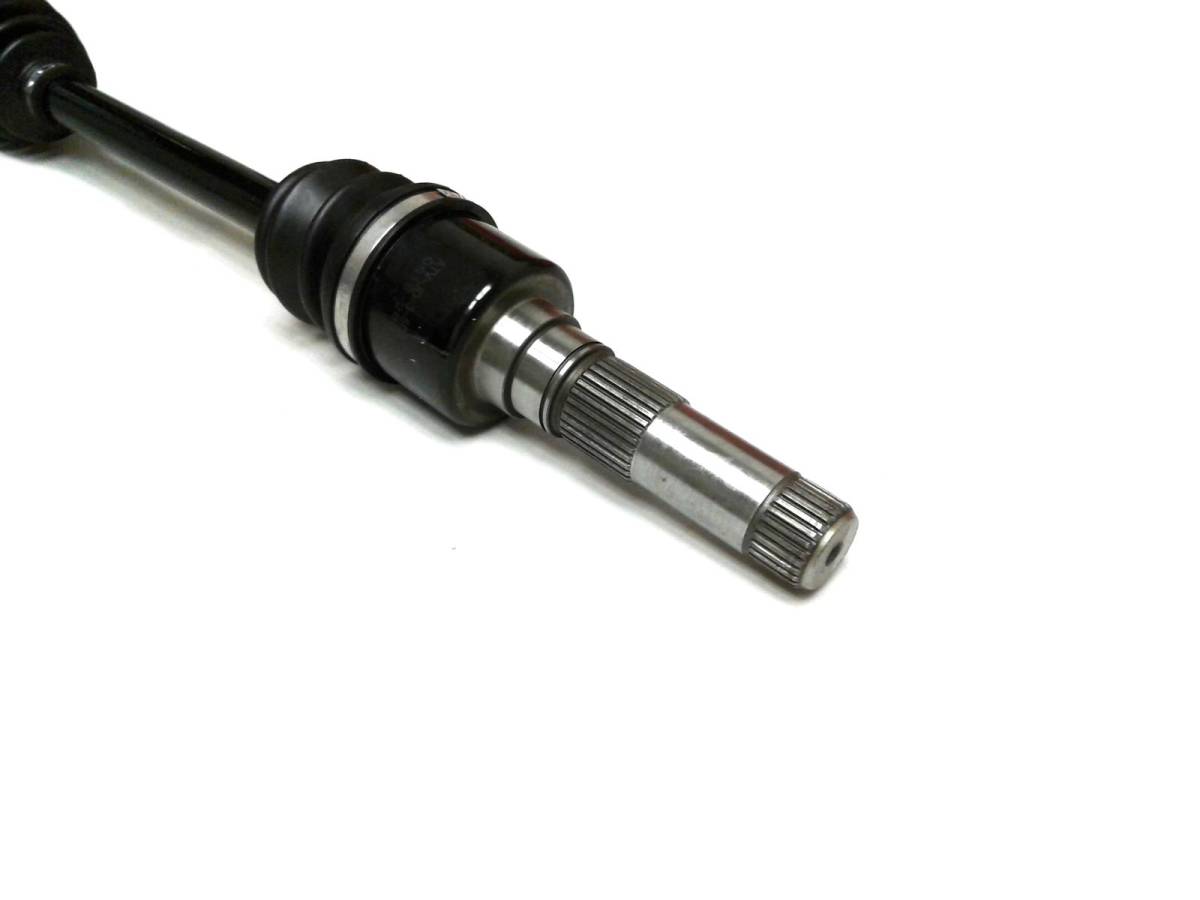

  • outboard CV joint spline count: 24
  • Compressed overall axle length: 646.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $99.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2016John DeereGator XUV 5504X4
2016John DeereGator XUV 5504x4 S4 4 Passenger
2015John DeereGator XUV 5504X4
2015John DeereGator XUV 5504x4 S4 4 Passenger
2014John DeereGator XUV 5504X4
2014John DeereGator XUV 5504x4 S4 4 Passenger
2013John DeereGator XUV 5504X4
2013John DeereGator XUV 5504x4 S4 4 Passenger
2012John DeereGator XUV 5504X4
2012John DeereGator XUV 5504x4 4 Passenger

Product Notes

  • Fits rear right (passenger side) on the following John Deere XUV models: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2019 Gator 590/590 S4.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Inboard spline count: 28, Outboard spline count: 24, Compressed axle length: 646.5 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • JD-301
    • JD-301
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.7 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
