Front CV Axle Pair for John Deere Gator XUV 550 560 590 & RSX 850 860 2012-2020

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
JD-396/JD-396

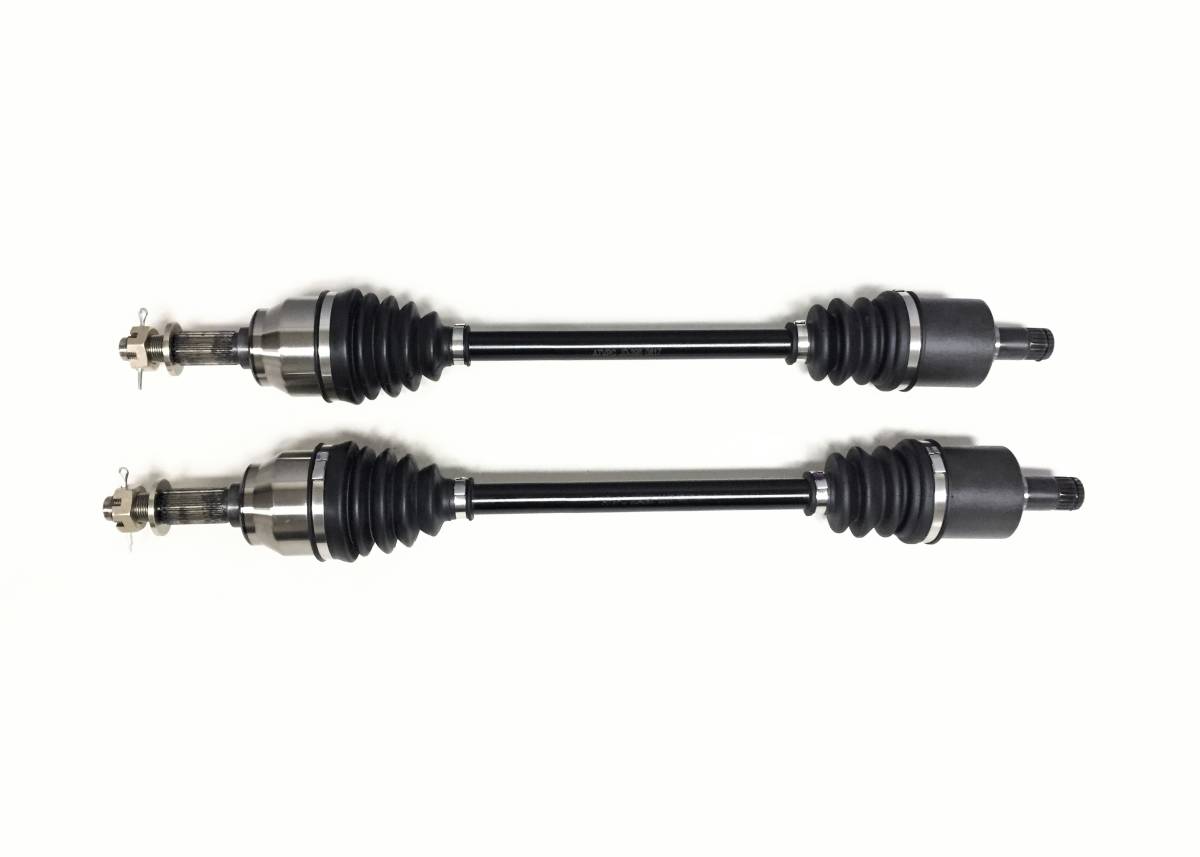

This is a pair of new Front CV axles for a John Deere XUV.

They will fit the following 4x4 applications:

2012-2016 ... Gator 550 / 550 S4

2016-2020 ... Gator 560 / 560 S4

2016-2020 ... Gator 590 / 590 S4

2013-2018 ... Gator RSX 850i (Base, Sport, Trail)

2016-2019 ... Gator RSX 860

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

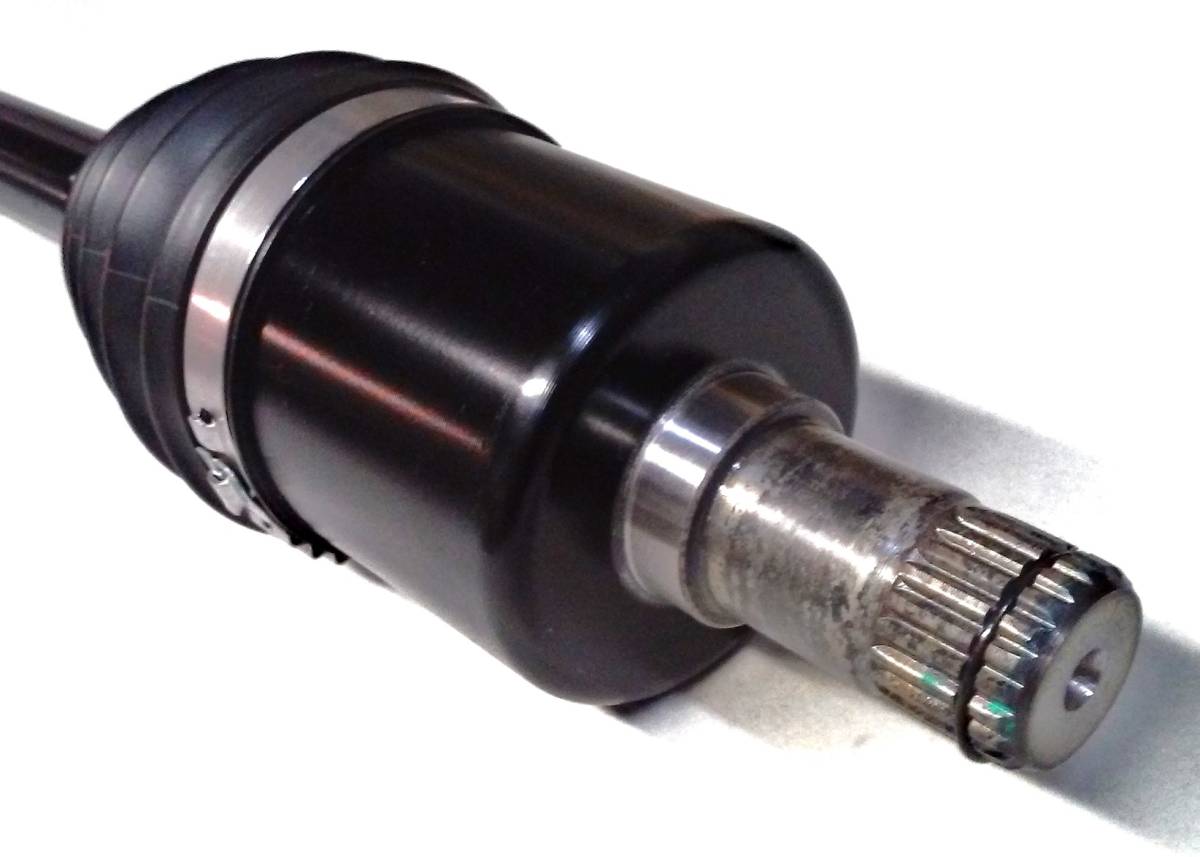

  • Inboard CV joint spline count: 22 (both)

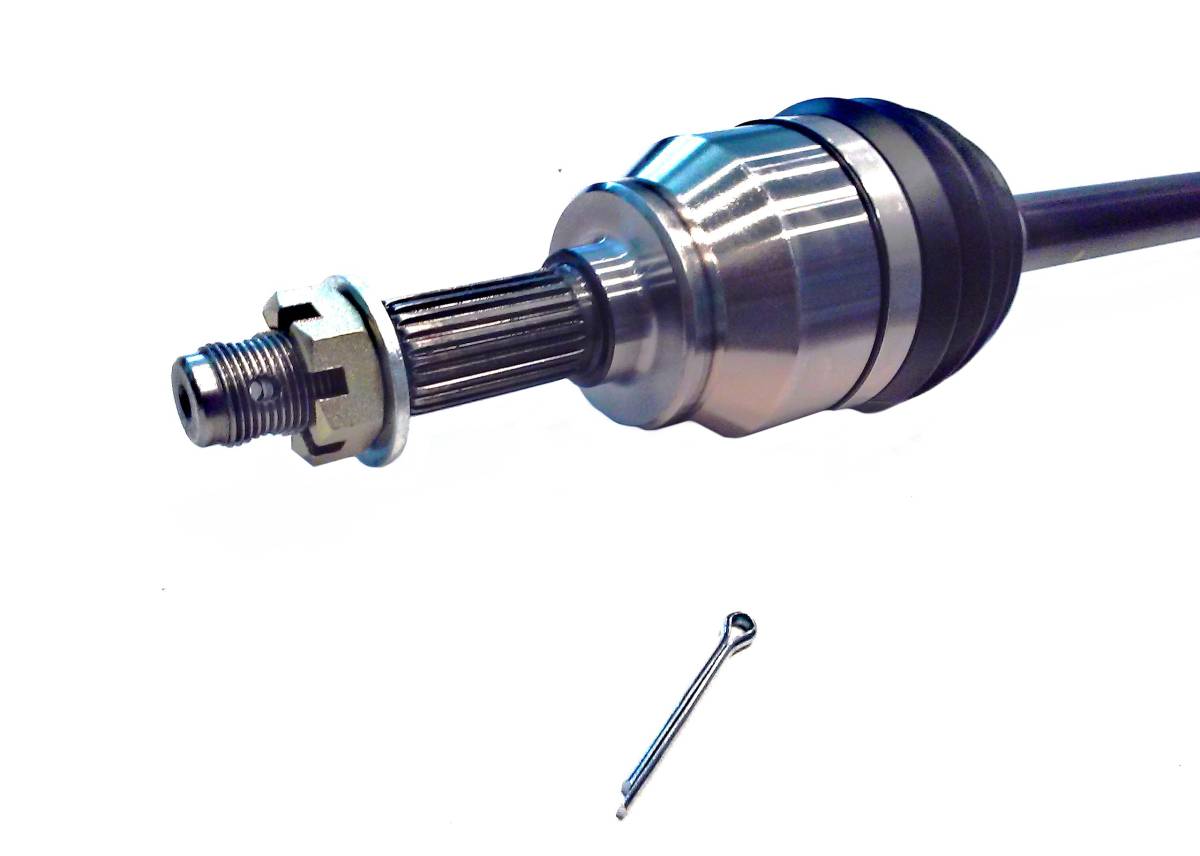

  • Outboard CV joint spline count: 24 (both)
  • Compressed overall axle length: 648 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following John Deere XUV models: 2012-2016 Gator 550/550 S4, 2016-2020 Gator 560/560 S4, 2016-2020 Gator 590/590 S4, 2013-2018 Gator RSX 850i (including Sport & Trail), 2016-2019 Gator RSX 860.
  • Features a stronger than OEM, 4340 Chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures. Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # AM140129, AM145326, AM145189, AM148393. Compressed Length - 648mm (both), Inboard Spline Count - 22 (both), Outboard Spline Count - 24 (both).
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2015John DeereGator RSX 850i4X4
    2015John DeereGator RSX 850i4x4 Sport
    2015John DeereGator RSX 850i4x4 Trail
    2014John DeereGator RSX 850i4X4
    2014John DeereGator RSX 850i4x4 Midnight Black Special Edition
    2014John DeereGator RSX 850i4x4 Sport
    2014John DeereGator RSX 850i4x4 Trail
    2013John DeereGator RSX 850i--
    2013John DeereGator RSX 850iSport
    2013John DeereGator RSX 850iTrail

    Details

    • JD-396/JD-396
    • JD-396/JD-396
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
