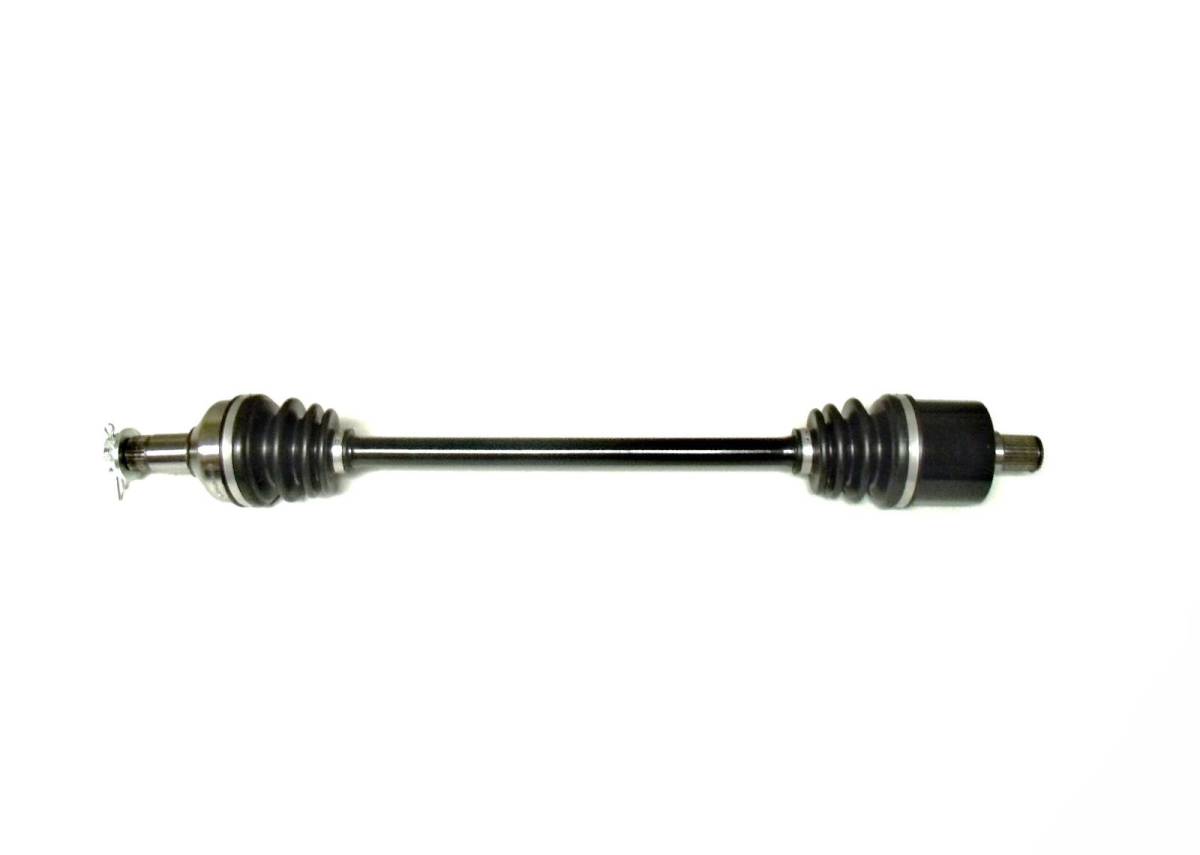

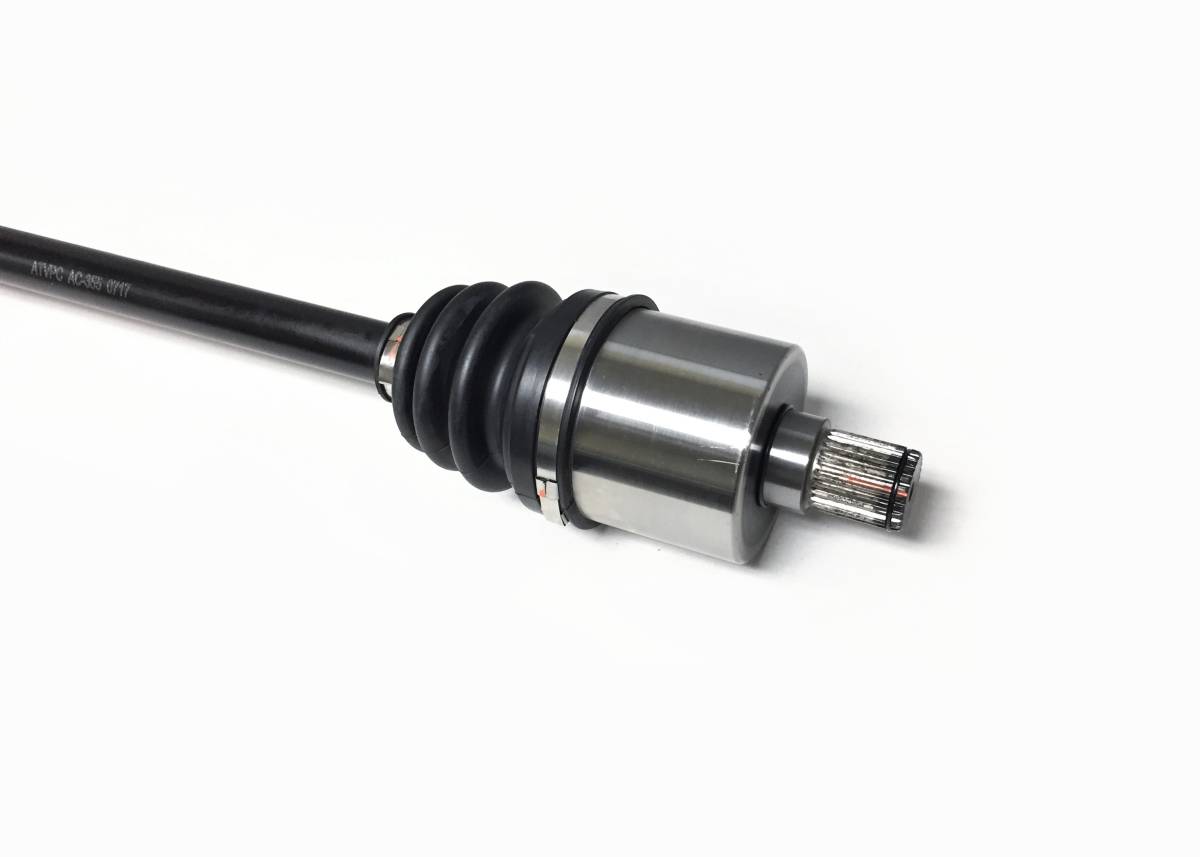

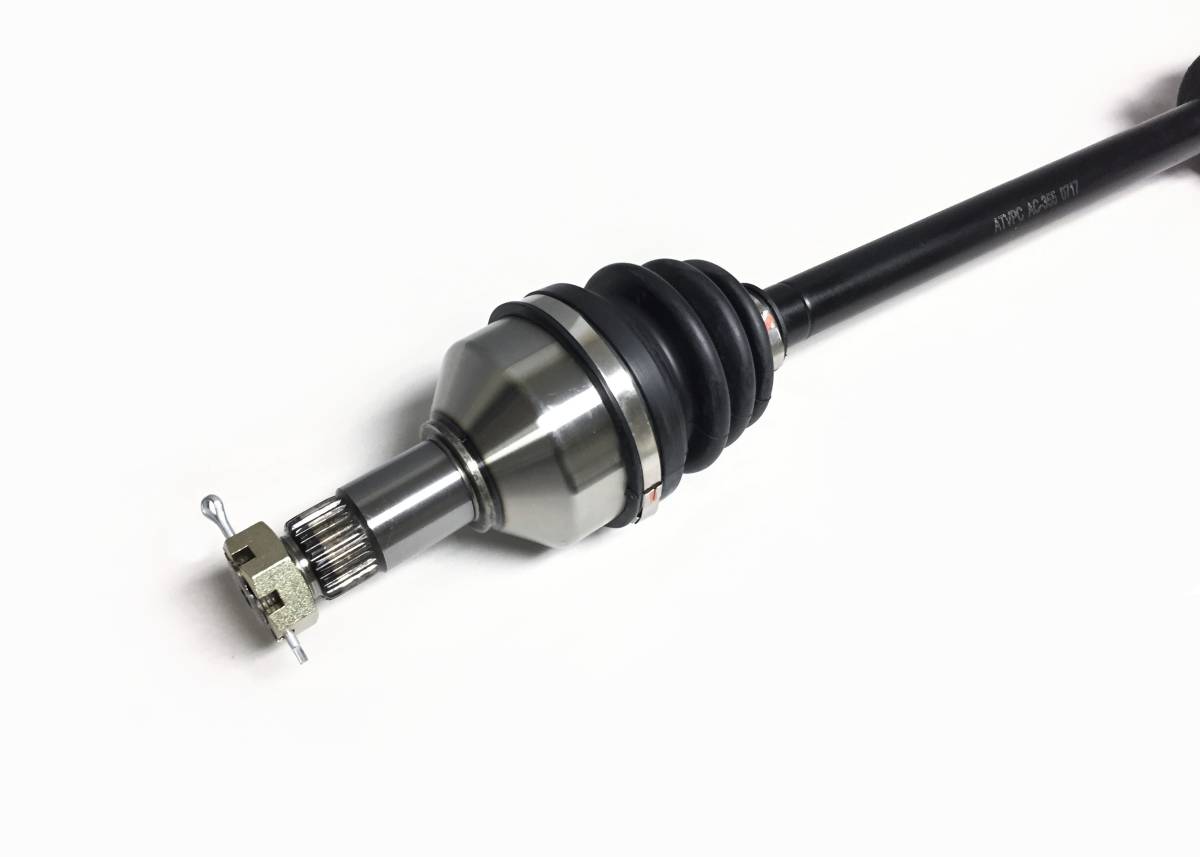

Rear CV Axle for Arctic Cat Wildcat Sport 700 4x4 2015-2019

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-355
This is a new Rear CV axle for an Arctic Cat UTV.

It will fit the following 4x4 models:

2015-2019 ... Wildcat Sport 700

(all models including EPS, LTD, & XT)

Rear Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 677.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2017Arctic CatWildcat Sport 7004x4 Limited EPS
2017Arctic CatWildcat Sport 7004x4 SE EPS
2017Arctic CatWildcat Sport 7004x4 XT EPS
2016Arctic CatWildcat Sport 7004X4
2016Arctic CatWildcat Sport 7004x4 Limited EPS
2016Arctic CatWildcat Sport 7004x4 XT EPS
2015Arctic CatWildcat Sport 7004X4
2015Arctic CatWildcat Sport 7004x4 Limited EPS
2015Arctic CatWildcat Sport 7004x4 XT
2019Textron Off RoadWildcat Sport4x4 LTD EPS
2019Textron Off RoadWildcat Sport4x4 XT EPS
2018Textron Off RoadWildcat Sport 7004x4 Limited EPS
2018Textron Off RoadWildcat Sport 7004x4 XT EPS

Product Notes

  • Fits all Arctic Cat Wildcat Sport 700 4x4 models from 2015-2019.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: 677.5 mm, Inboard Spline Count: 27, Outboard Spline Count: 27.
  • Replaces OEM # 2502-355, 2502-152.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-355
    • AC-355
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 15.0 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
