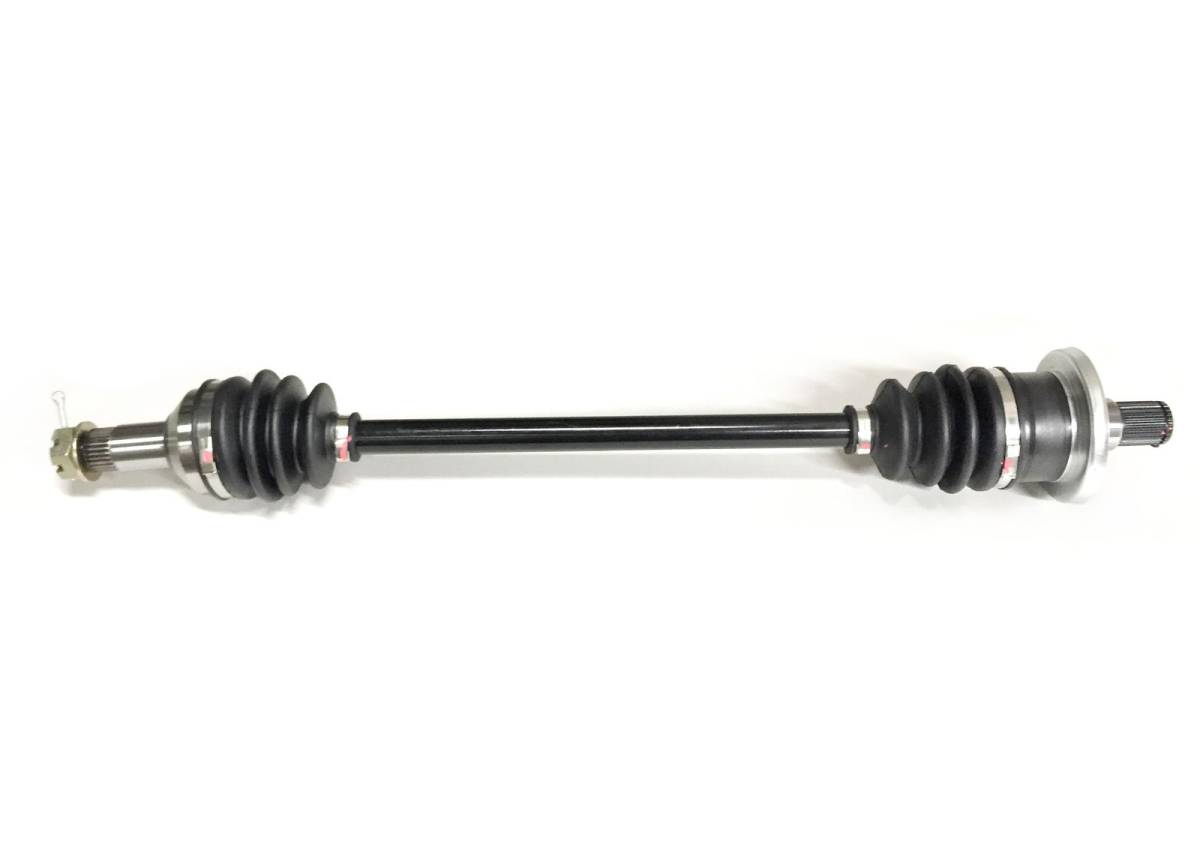

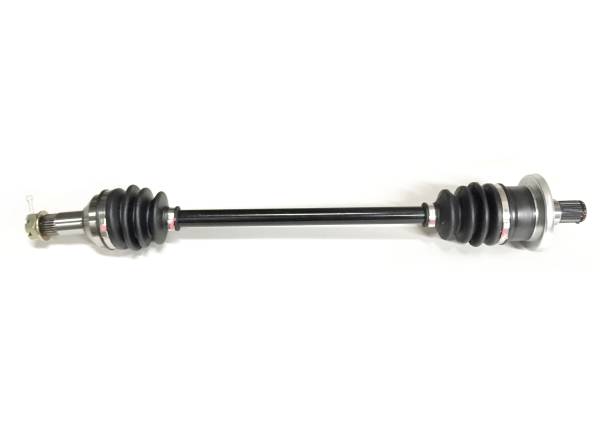

Rear CV Axle for Arctic Cat Prowler 550 650 700 & 1000, 1436-411

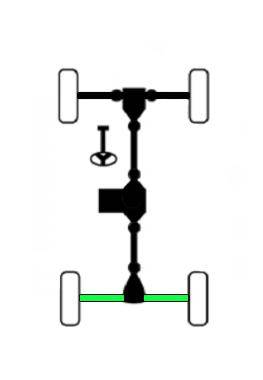

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
AC-316
This is a new, complete CV axle for an Arctic Cat UTV.

It will fit REAR, LEFT or RIGHT on the following models:

2014-2015 ... Prowler HDX 500

2009-2014 ... Prowler 550/XT 550

2006-2009 ... Prowler 650/XT 650

2011-2015 ... Prowler XTX 700/HDX 700

2009-2014 ... Prowler XTZ 1000

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

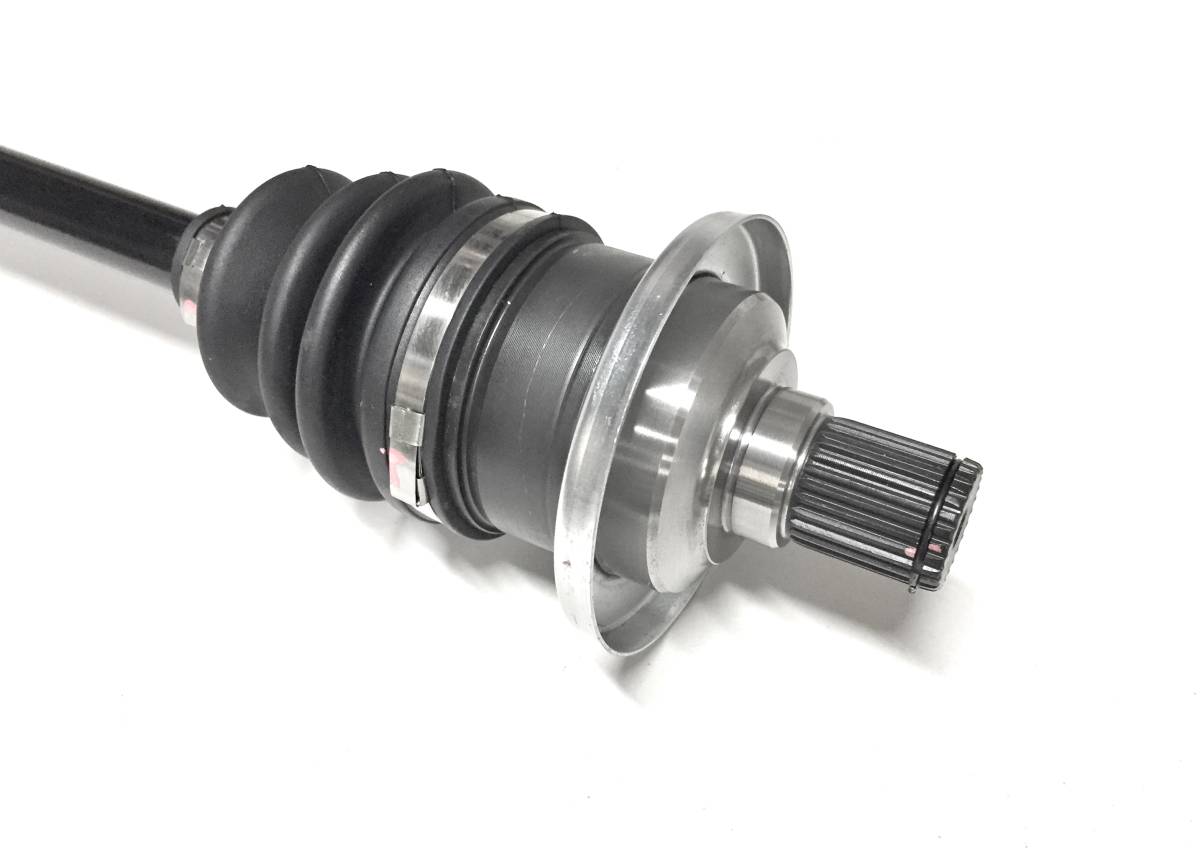

  • Inboard CV joint spline count: 27

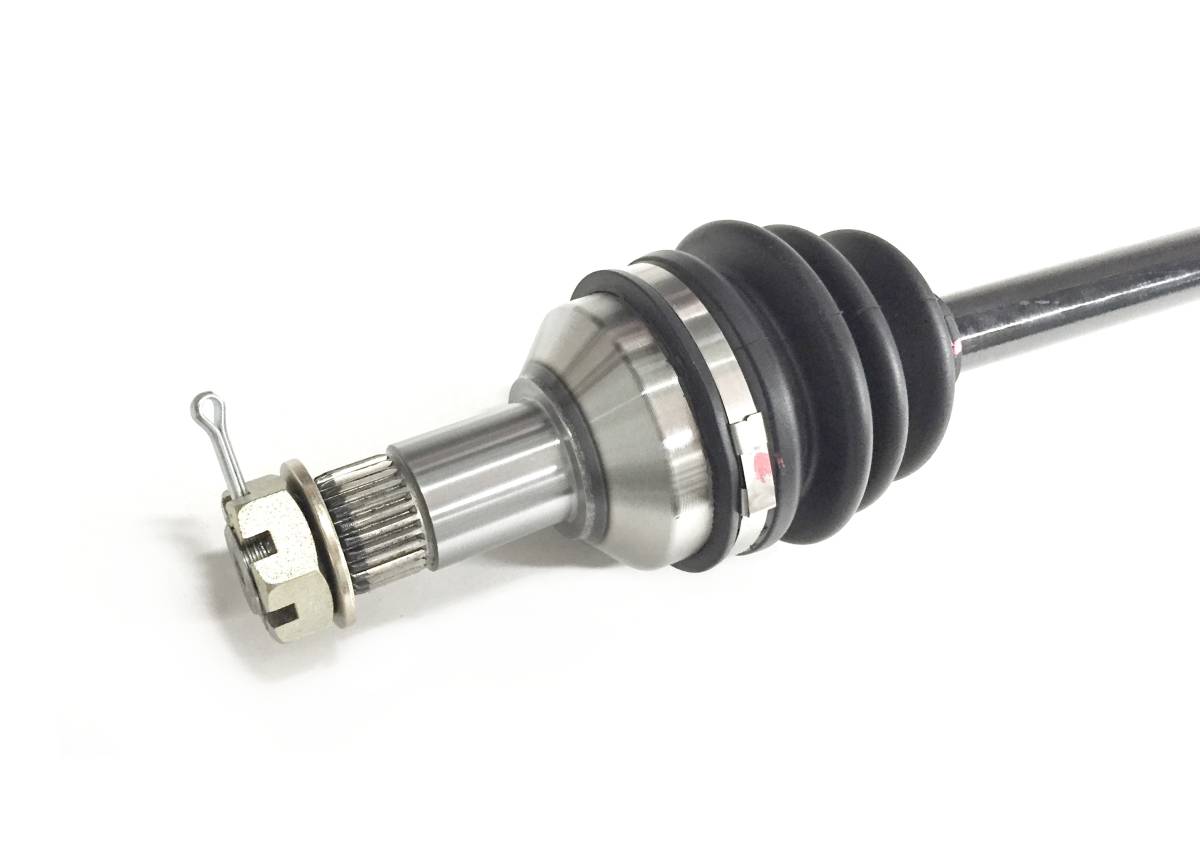

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 662 mm
  • Replaces OEM # 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2009Arctic CatProwler 5504x4 Flatbed
2008Arctic CatProwler 6504x4 H1 Automatic
2007Arctic CatProwler 6504x4 H1 Automatic
2006Arctic CatProwler 6504x4 H1 Automatic
2015Arctic CatProwler HDX 5004X4
2014Arctic CatProwler HDX 5004X4
2014Arctic CatProwler HDX 5004x4 Limited
2014Arctic CatProwler HDX 5004x4 XT
2014Arctic CatProwler HDX 7004X4
2014Arctic CatProwler HDX 7004x4 Limited
2013Arctic CatProwler HDX 7004X4
2012Arctic CatProwler HDX 7004x4 EFI
2012Arctic CatProwler HDX 7004x4 EPS
2011Arctic CatProwler HDX 7004x4 EPS
2011Arctic CatProwler HDX 7004x4 H1 EFI
2010Arctic CatProwler XT 5504X4
2009Arctic CatProwler XT 6504x4 H1 Automatic
2008Arctic CatProwler XT 6504x4 H1 Automatic
2008Arctic CatProwler XT 6504x4 H1 M4 Automatic
2007Arctic CatProwler XT 6504x4 H1 Automatic
2006Arctic CatProwler XT 6504x4 H1 Automatic
2009Arctic CatProwler XT 7004X4
2014Arctic CatProwler XTX 7004X4
2013Arctic CatProwler XTX 7004X4
2012Arctic CatProwler XTX 7004x4 EFI
2011Arctic CatProwler XTX 7004x4 EPS
2011Arctic CatProwler XTX 7004x4 H1 EFI
2014Arctic CatProwler XTZ 10004X4
2013Arctic CatProwler XTZ 10004X4
2012Arctic CatProwler XTZ 10004x4 EFI
2011Arctic CatProwler XTZ 10004x4 H2 EFI
2010Arctic CatProwler XTZ 10004X4
2010Arctic CatProwler XTZ 10004x4 H2 EFI
2009Arctic CatProwler XTZ 10004x4 Baja
2009Arctic CatProwler XTZ 10004x4 H2 EFI

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Arctic Cat UTVs: 2014-2015 Prowler HDX 500, 2009-2014 Prowler 550/XT 550, 2006-2009 Prowler 650/XT 650, 2011-2015 Prowler XTX 700 / HDX 700, 2009-2014 Prowler XTZ 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 662 mm, Inboard Spline Count - 27, Outboard Spline Count - 27.
  • Replaces Arctic Cat OEM # 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-316
    • AC-316
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.2 lbs.
    • W6.0000” x H6.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
