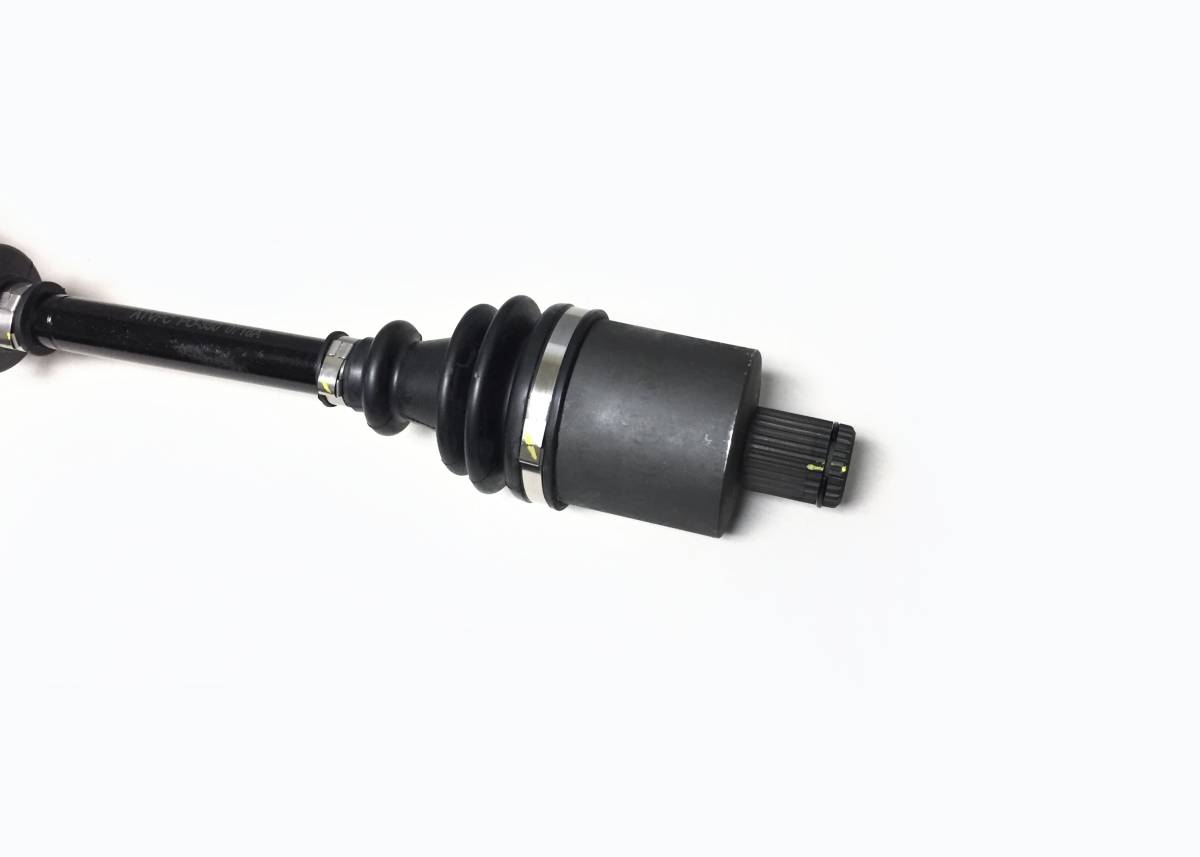

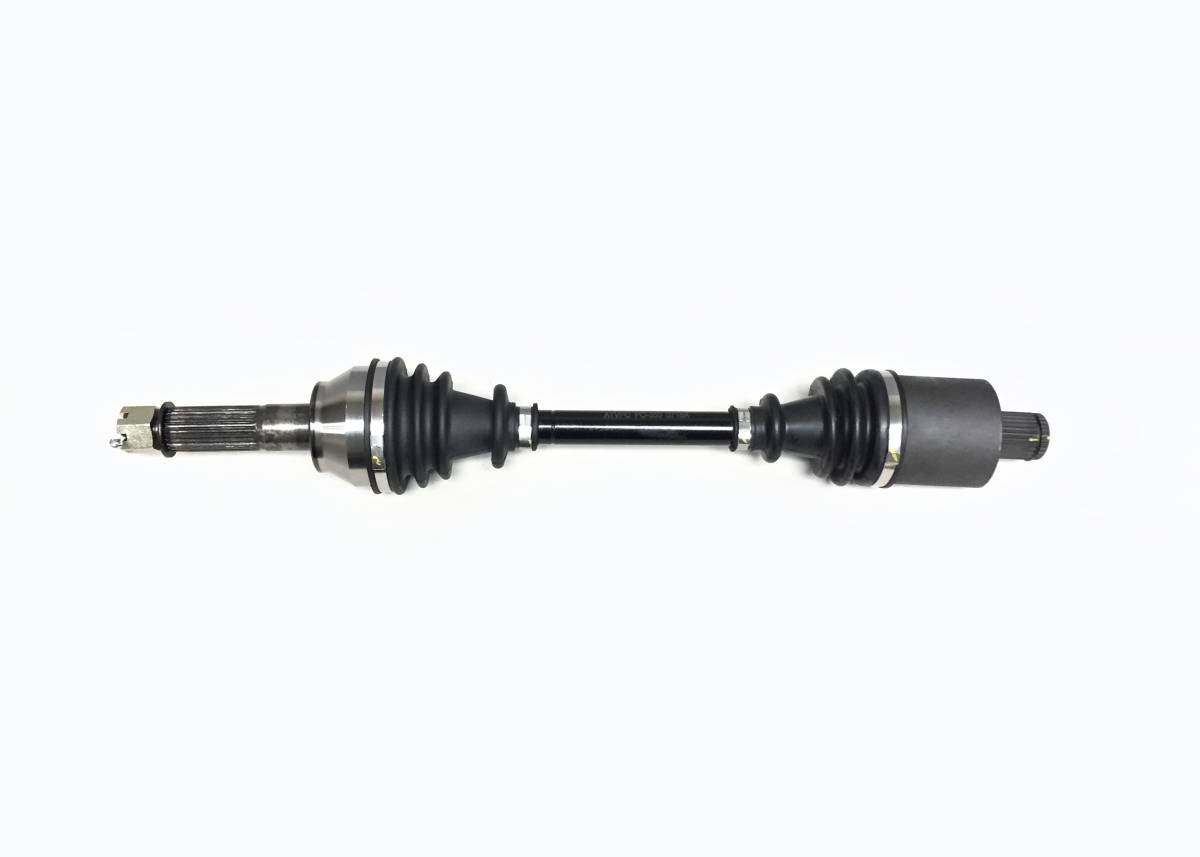

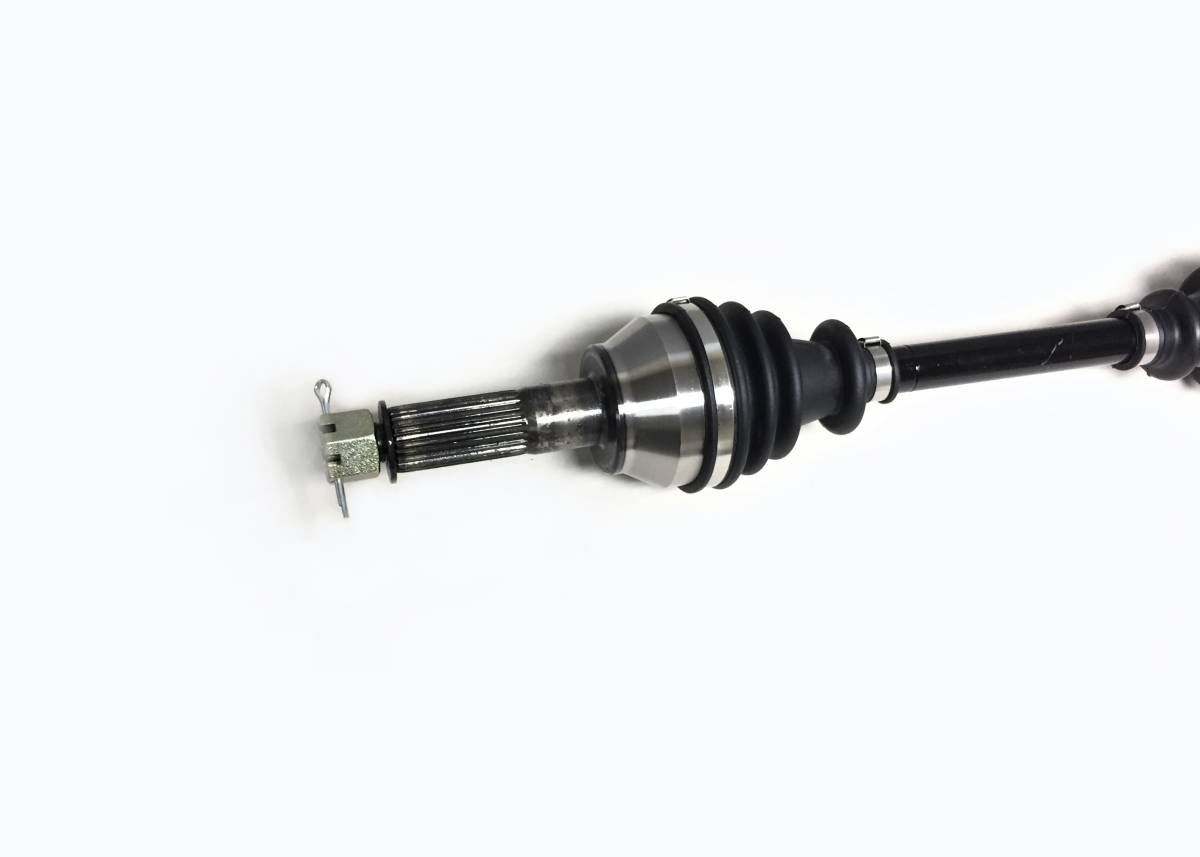

Rear CV Axle for Polaris Sportsman, Hawkeye & Farmhand ATV 1333275

Location on vehicle: Rear,Left,Right

PO-350
This is a rear CV axle for a Polaris ATV.

It will fit the following 4x4 applications:

2015 ..... Hawkeye 325

2015 ..... Sportsman ETX

2014 ..... Sportsman 450

2017 ..... Farmhand 450

2015-2016 ..... Sportsman 570/X2 570

rear, left or right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • inobard CV joint spline count: 28
  • outboard CV joint spline count: 26
  • Compressed overall axle length: 552 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $57.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015PolarisHawkeye 3252x4 2016PolarisSportsman 570EPS
2016PolarisSportsman 570Pursuit Camo
2016PolarisSportsman 570Pursuit Camo EPS
2016PolarisSportsman 570Touring
2016PolarisSportsman 570Touring EPS
2015PolarisSportsman 570--
2015PolarisSportsman 570EFI
2015PolarisSportsman 570EPS
2015PolarisSportsman 570Pursuit
2015PolarisSportsman 570Pursuit EPS
2015PolarisSportsman 570Touring
2015PolarisSportsman 570Touring EPS
2017PolarisSportsman SP 570--only for models made after Aug 29th 2016
2017PolarisSportsman SP 570Hunter Editiononly for models made after Aug 29th 2016
2017PolarisSportsman SP 570Touringonly for models made after Aug 29th 2016
2016PolarisSportsman SP 570--
2016PolarisSportsman SP 5704x4 Hunter Edition
2016PolarisSportsman SP 570Limited Edition
2016PolarisSportsman SP 570Touring
2015PolarisSportsman SP 570--
2015PolarisSportsman SP 5704x4 Hunter Edition
2015PolarisSportsman SP 570Black Pearl LE
2015PolarisSportsman SP 570Touring
2015PolarisSportsman SP 570Touring EFI
2015PolarisSportsman SP 570Touring EPS
2017PolarisSportsman X2 570EPSonly for models made after Aug 29, 2016
2016PolarisSportsman X2 570EPS
2015PolarisSportsman X2 570EPS
2015PolarisSportsman ETX--

Product Notes

  • Fits rear, left or right on the following Polaris ATV models: 2015 Hawkeye 325, 2015 Sportsman ETX, 2017 Farmhand 450, 2016 Sportsman 450, 2015-2016 Sportsman 570/X2 570.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 1333275, 1333677. Overall axle length: 552 mm. Inboard splines 28. Outboard splines: 23.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • PO-350
    • PO-350
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 11.0 lbs.
    • W5.0000” x H5.0000” x L25.0000”
