Rear Left CV Axle for Polaris Ranger 500 700 & 800, 2204857

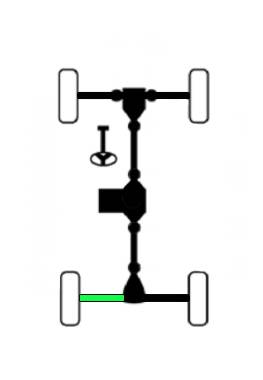

Location on vehicle: Rear,Left

(0) Reviews: Write first review
PO-347

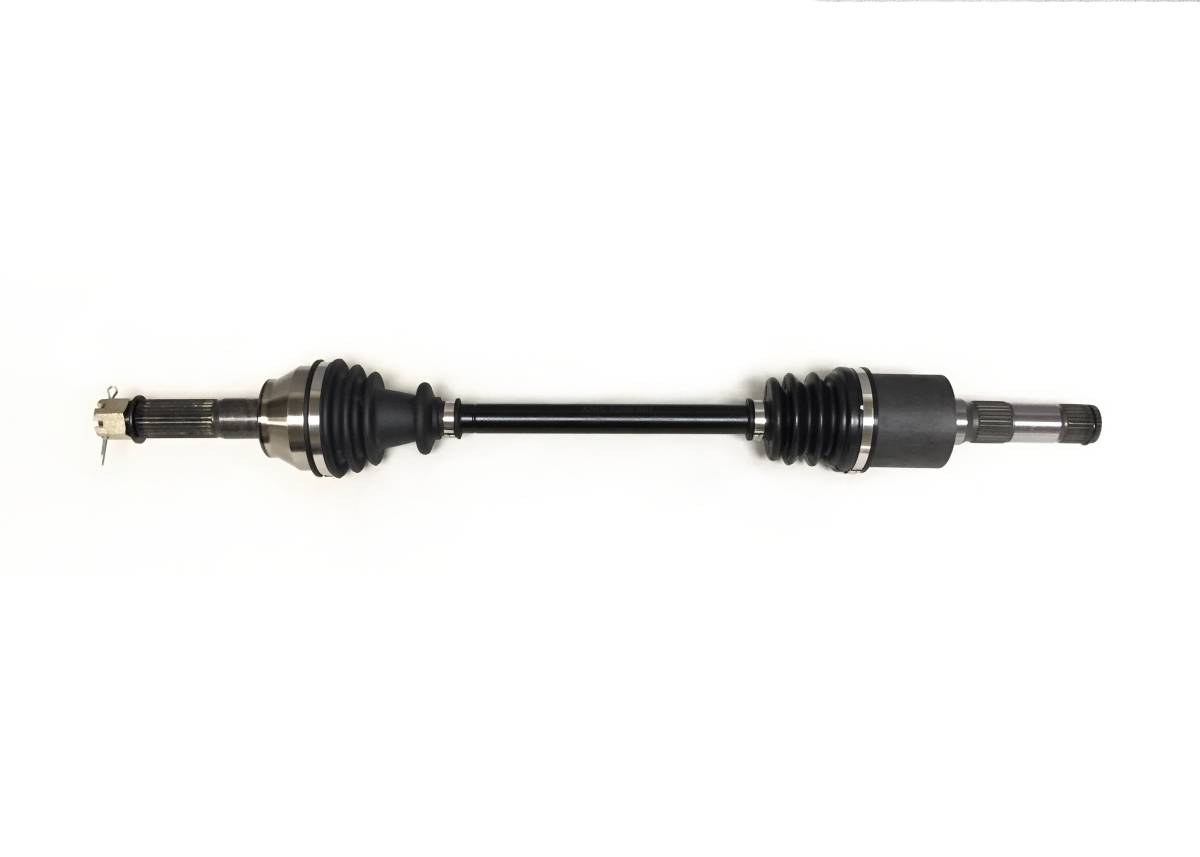

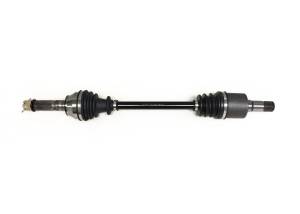

This is a new, fully-assembled CV axle for a Polaris UTV.

It fits rear, left (driver side) on the following models:

2007-2009 Ranger 500 2x4/4x4 (built after Aug 28 2006)

2007-2009 4x4 Ranger 700, Crew 700 (built after Aug 28 2006)

2007-2009 4x4 Ranger XP 700/XP 700 LE (built after Aug 28 2006)

2010-2017 6x6 Ranger 800

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

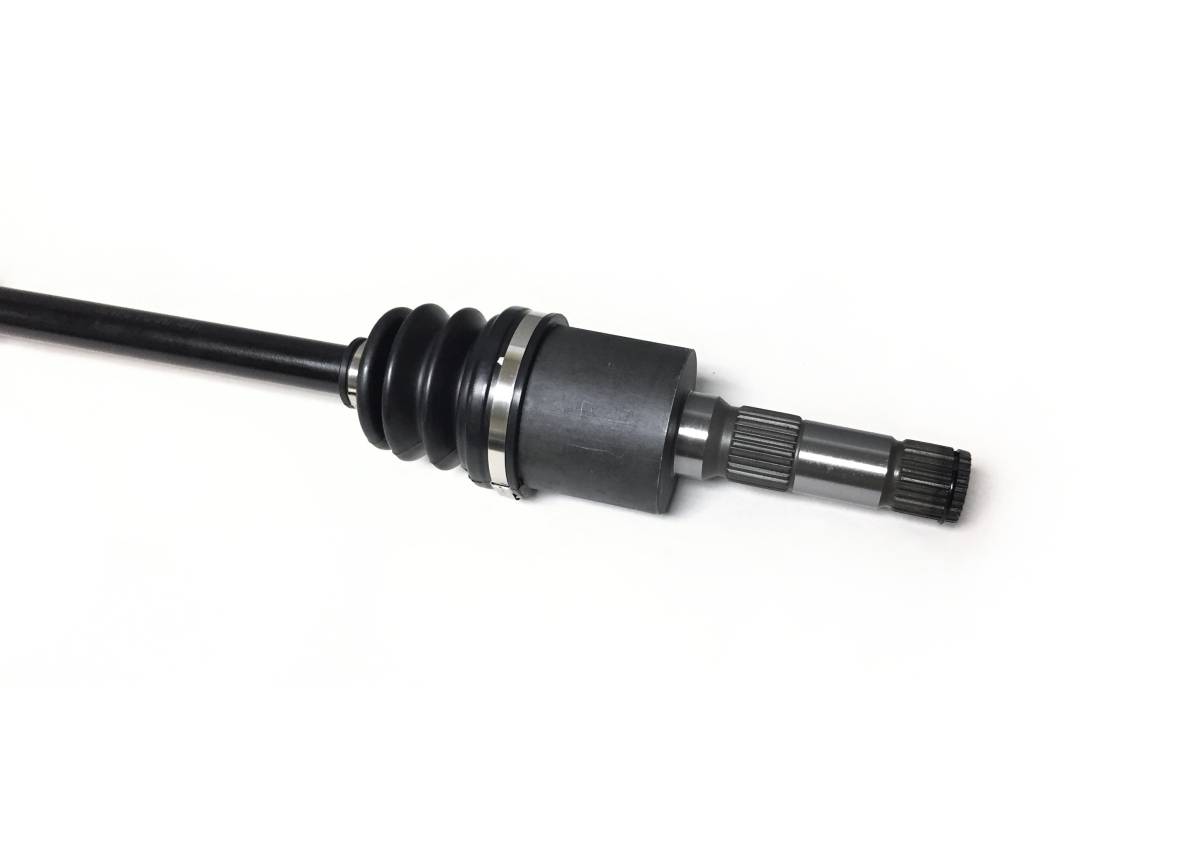

  • inobard CV joint spline count: 27/29

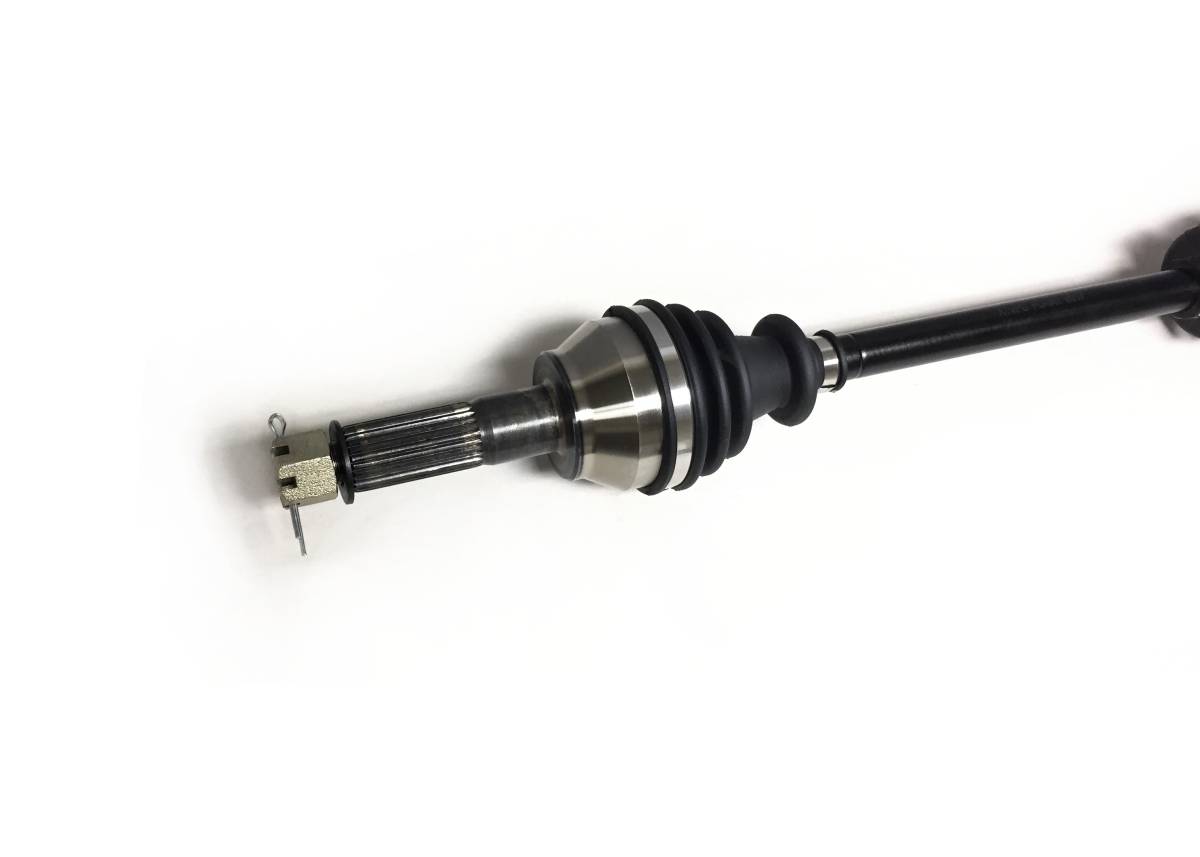

  • outboard CV joint spline count: 26
  • Compressed overall axle length: 705 mm
  • Replaces OEM # 2204857, 1332502, 1332575, 1332647, 1332721, 1332876, 2203741
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2009PolarisRanger 5002x4
2009PolarisRanger 5004x4 EFI
2008PolarisRanger 5002x4
2008PolarisRanger 5004x4 EFI
2007PolarisRanger 5002x4built after August 28, 2006
2007PolarisRanger 5004X4built after August 28, 2006
2007PolarisRanger 5004x4 EFIbuilt after August 28, 2006
2007PolarisRanger 7004x4 EFIbuilt after August 28, 2006
2007PolarisRanger 7004x4 MVRSbuilt after August 28, 2006
2017PolarisRanger 8006x6
2016PolarisRanger 8006x6
2015PolarisRanger 8006x6
2014PolarisRanger 8006x6 EFI
2013PolarisRanger 8006x6
2012PolarisRanger 8006x6
2011PolarisRanger 8006x6 EFI
2010PolarisRanger 8006x6 EFI
2009PolarisRanger Crew 700--
2009PolarisRanger Crew 700Browning
2008PolarisRanger Crew 700--
2009PolarisRanger XP 7004x4 Browning EFI
2009PolarisRanger XP 7004x4 EFI
2009PolarisRanger XP 7004x4 LE EFI
2008PolarisRanger XP 7004x4 Browning EFI
2008PolarisRanger XP 7004x4 EFI
2007PolarisRanger XP 7004x4 Browning EFIbuilt after August 28, 2006
2007PolarisRanger XP 7004x4 EFIbuilt after August 28, 2006

Product Notes

  • Fits rear, left (driver side) on the following Polaris models: 2007-2009 Ranger 500 2x4/4x4 (built after Aug 28 2006), 2007-2009 4x4 Ranger 700/Crew 700 (built after Aug 28 2006), 2007-2009 4x4 Ranger XP 700/XP 700 LE (built after Aug 28 2006), 2010-2017 6x6 Ranger 800.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 2204857, 1332502, 1332575, 1332647, 1332721, 1332876, 2203741. Compressed length - 705 mm, Inboard spline count - 27/29, Outboard Spine count - 26.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-347
    • PO-347
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.6 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
