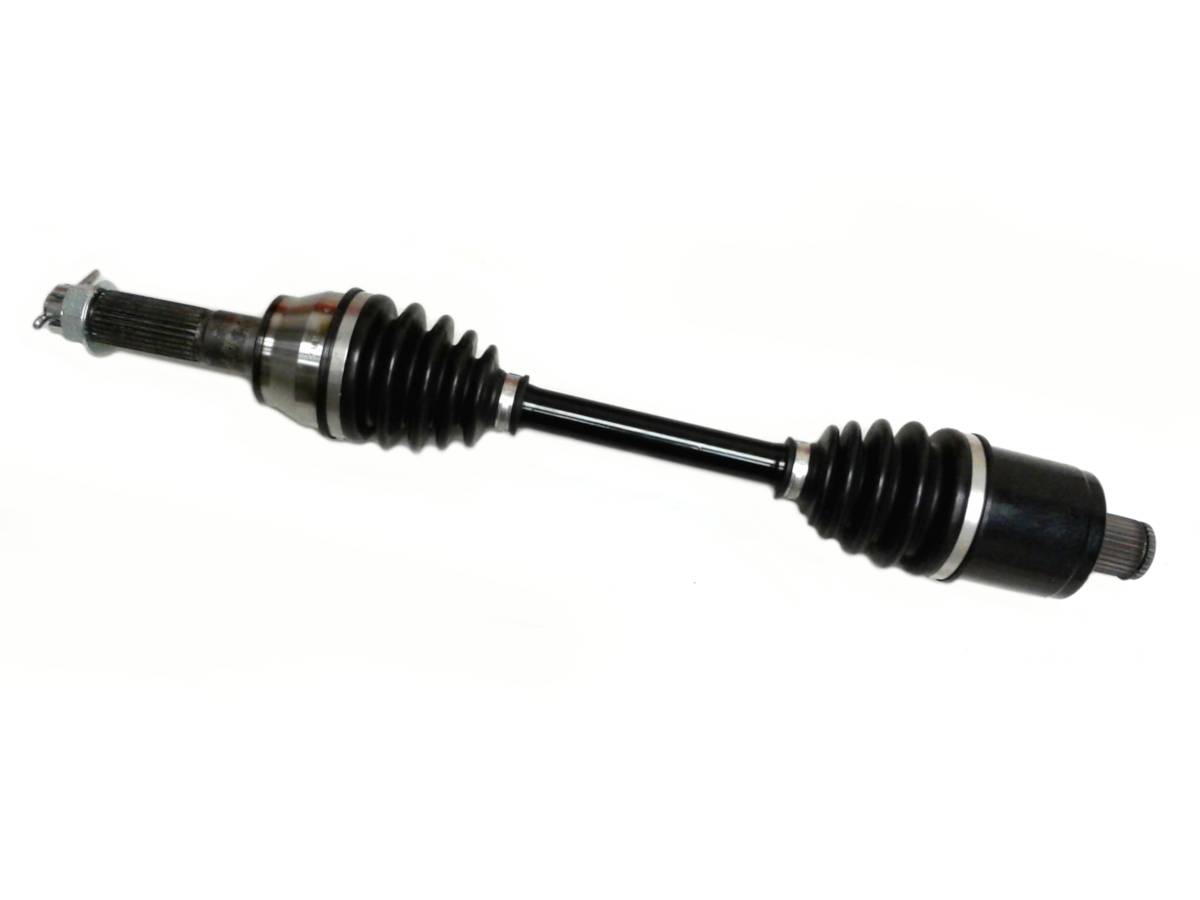

Rear CV Axle for Polaris Sportsman 450 570 4x4 ATV 1333677

Location on vehicle: Rear,Left,Right

PO-377
This is a new Rear CV axle for a Polaris ATV.

It will fit the following applications:

2018-2021 ... Sportsman 450

2018-2020 ... Sportsman 570

2017 ... Farmhand 450

(built before 08/29/2016)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

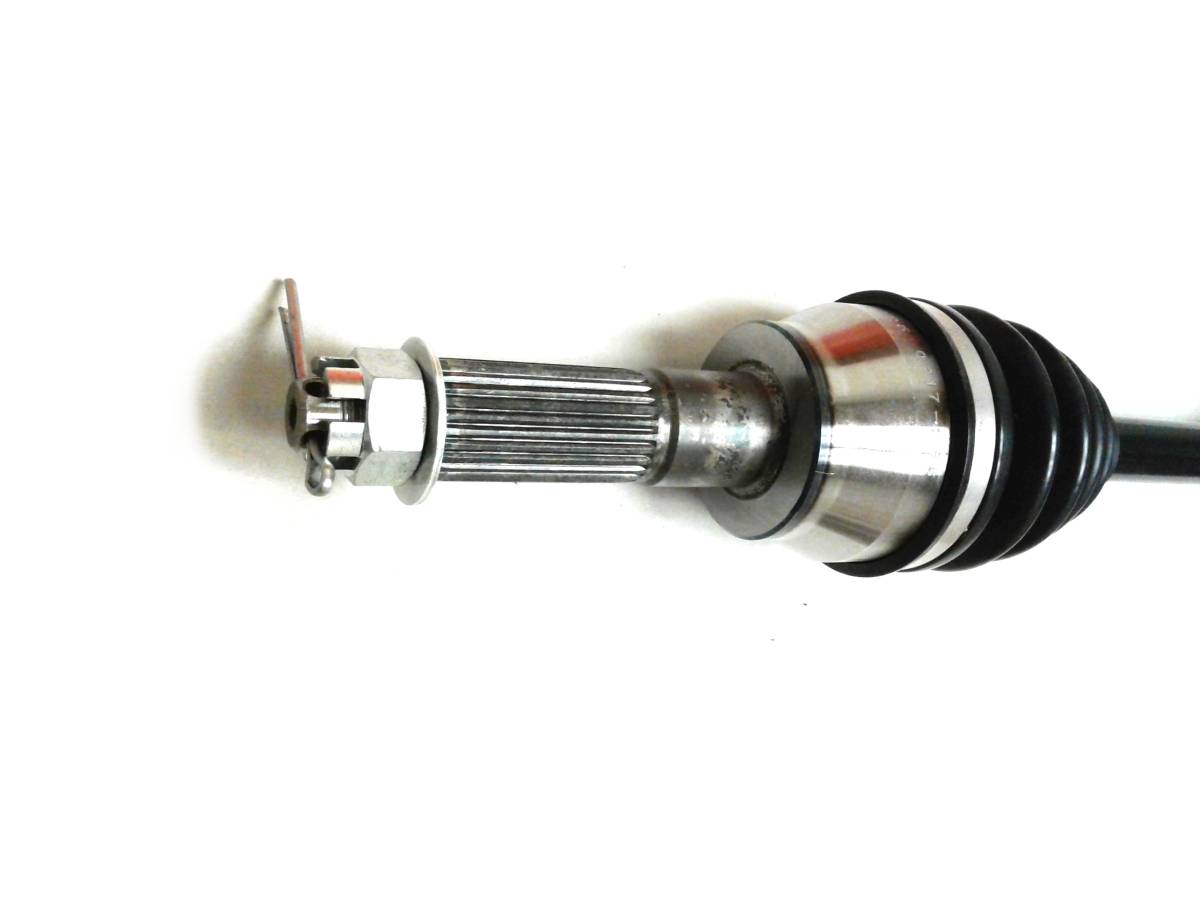

  • Inboard CV joint spline count: 28

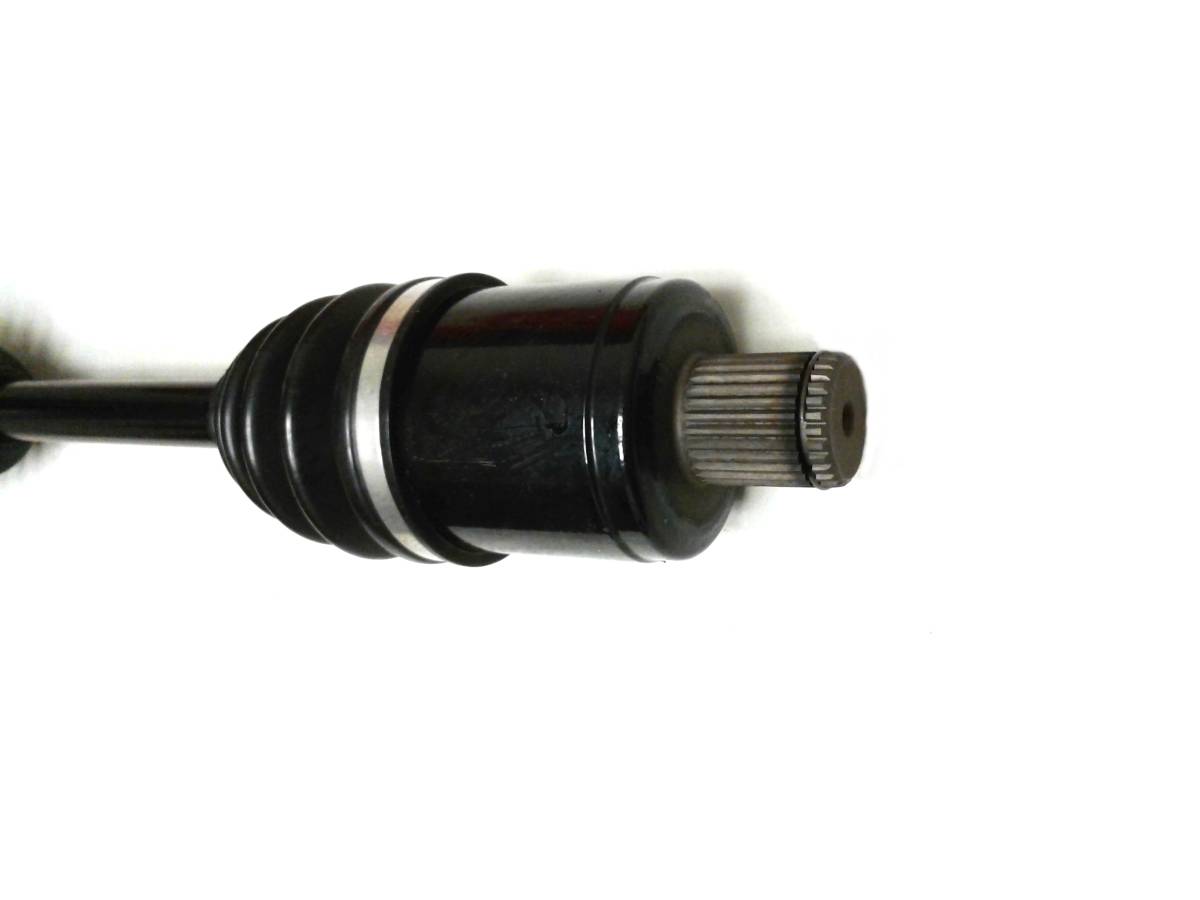

  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 558.5 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2018-2021 Sportsman 450, 2018-2020 Sportsman 570, & 2017 Farmhand 450 (built before 8/29/16).
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Compressed overall axle length: 558.5 mm, Inboard CV joint spline count: 28, Outboard CV joint spline count: 26.
  • Replaces Polaris OE # 1333275, 1333677, 1334438.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2021PolarisSportsman 450HO
    2021PolarisSportsman 450HO EPS
    2020PolarisSportsman 450HO
    2020PolarisSportsman 450HO EPS
    2019PolarisSportsman 450HO
    2019PolarisSportsman 450HO EPS
    2019PolarisSportsman 450HO EPS LE
    2019PolarisSportsman 450Utility Edition HO
    2018PolarisSportsman 450HO
    2018PolarisSportsman 450HO EPS
    2018PolarisSportsman 450Utility Edition HO
    2020PolarisSportsman 570--
    2020PolarisSportsman 570EPS
    2020PolarisSportsman 570Hunter Edition
    2020PolarisSportsman 570Premium
    2020PolarisSportsman 570Premium LE
    2020PolarisSportsman 570Utility Edition EPS
    2019PolarisSportsman 570--
    2019PolarisSportsman 570EPS
    2019PolarisSportsman 570Touring
    2019PolarisSportsman 570Touring EPS
    2019PolarisSportsman 570Utility Edition EPS
    2018PolarisSportsman 570--
    2018PolarisSportsman 570EPS
    2018PolarisSportsman 570LE EPS
    2018PolarisSportsman 570Touring
    2018PolarisSportsman 570Touring EPS
    2018PolarisSportsman 570Utility Edition EPS
    2019PolarisSportsman SP 570--
    2019PolarisSportsman SP 570Hunter Edition
    2019PolarisSportsman SP 570Touring
    2018PolarisSportsman SP 570--
    2018PolarisSportsman SP 570Hunter Edition
    2018PolarisSportsman SP 570Touring
    2020PolarisSportsman Touring 570--
    2020PolarisSportsman Touring 570EPS
    2020PolarisSportsman Touring 570Premium
    2019PolarisSportsman X2 570--
    2019PolarisSportsman X2 570EPS
    2018PolarisSportsman X2 570EPS

    Details

    Shipping Information

    • Item Requires Shipping
    • 10.7 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
