Front Right CV Axle for Arctic Cat 400 500 650 4x4 2005 ATV

Location on vehicle: Front,Right

(0) Reviews: Write first review

SKU: AC-210

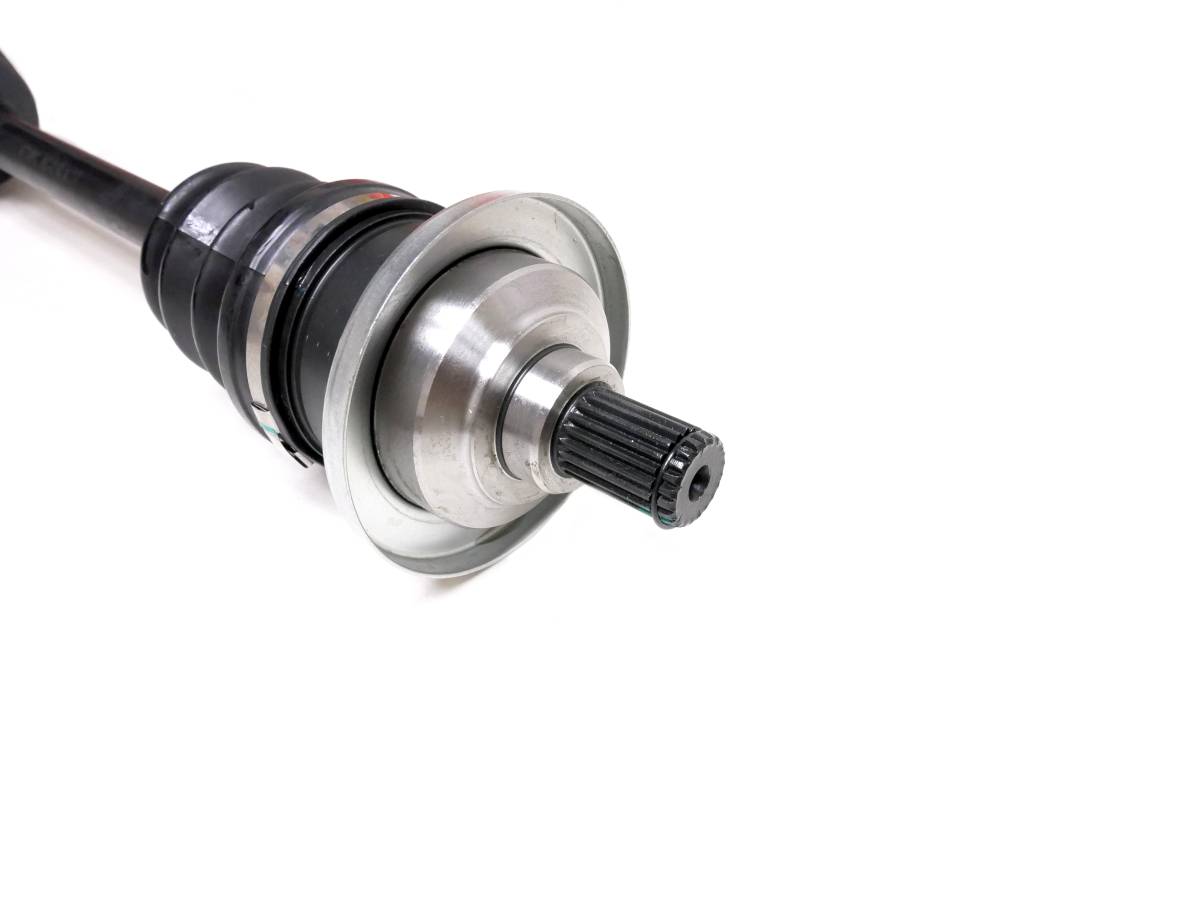

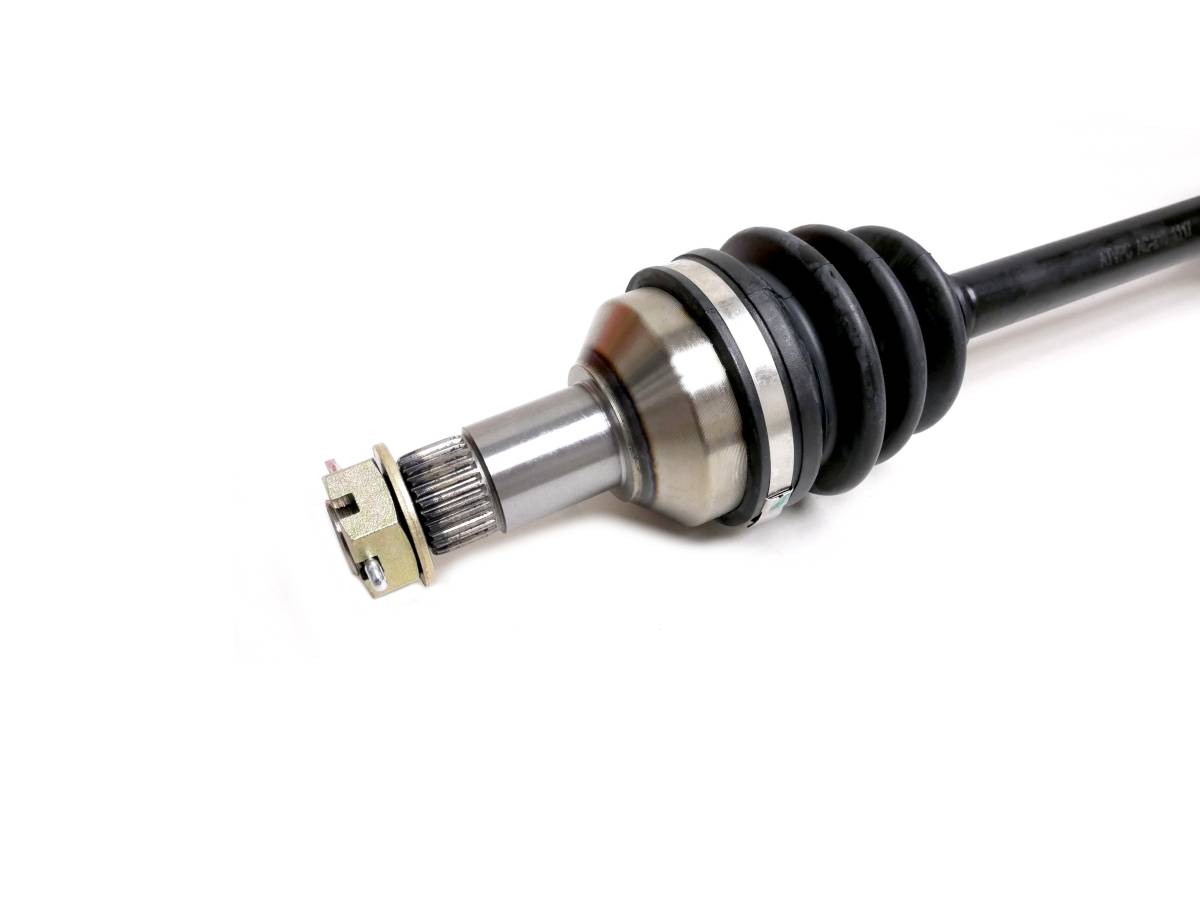

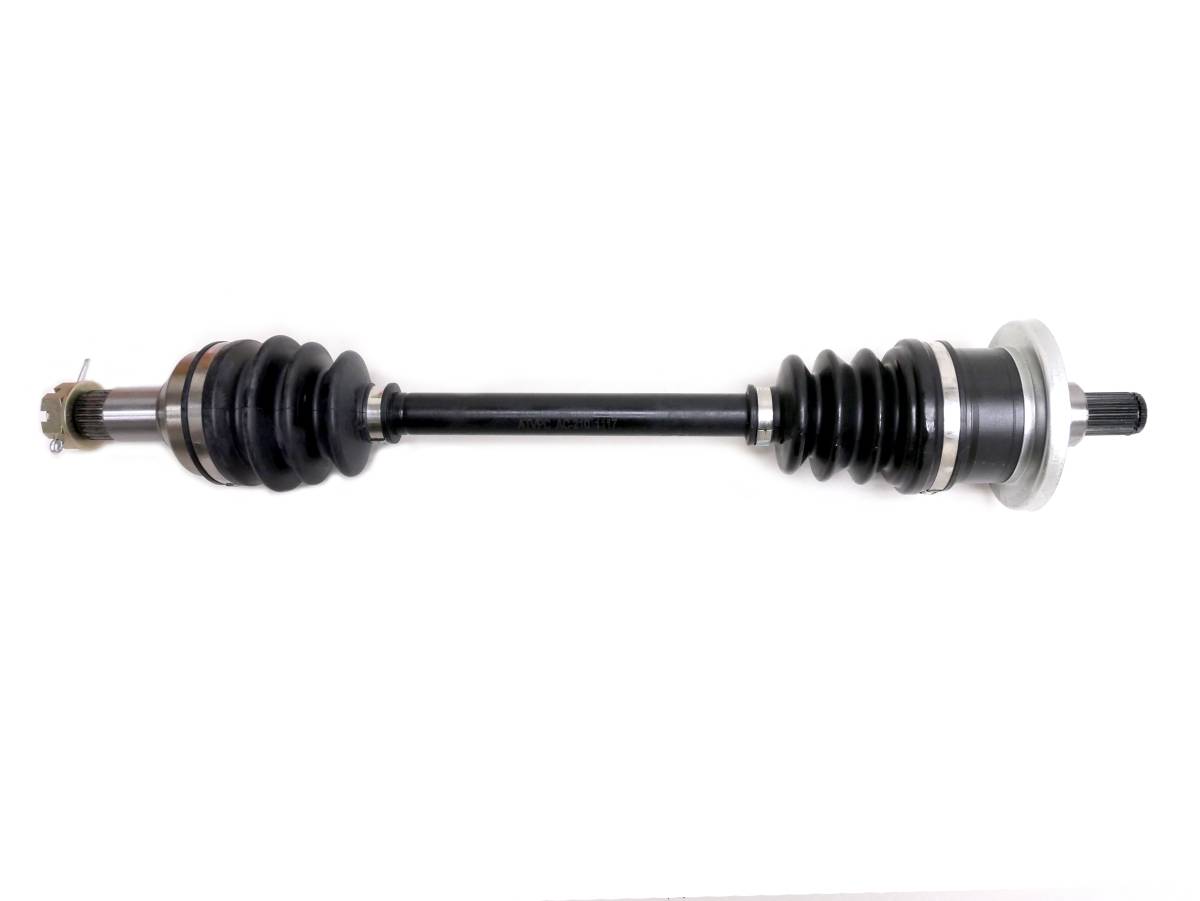

This is a new Front, Right CV axle for an Arctic Cat ATV.

It will fit the following 4x4 models:

2005 ... 400 FIS & TBX 400

2005 ... 2005 500 FIS, TBX 500, TRV 500

2005 ... 650 H1, V2

Front, Right / Passenger Side

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM, chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 21
Outboard CV joint spline count: 27
Compressed overall axle length: 550

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $84.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2005	Arctic Cat	400	4X4
2005	Arctic Cat	400	4x4 Automatic
2005	Arctic Cat	400	4x4 LE Automatic
2005	Arctic Cat	400	4x4 TBX Automatic
2005	Arctic Cat	500	4X4
2005	Arctic Cat	500	4x4 Automatic
2005	Arctic Cat	500	4x4 LE Automatic
2005	Arctic Cat	500	4x4 TBX Automatic
2005	Arctic Cat	500	4x4 TRV Automatic
2005	Arctic Cat	650	4x4 H1 Automatic
2005	Arctic Cat	650	4x4 V2 Automatic
2005	Arctic Cat	650	4x4 V2 LE Automatic

Product Notes

Fits front right (passenger side): 2005 400 FIS (Manual & Auto), 2005 500 FIS / TBX / TRV, 2005 650 H1 / V2.

Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Compressed Length: 550 mm, Inboard Spline Count: 21, Outboard Spline Count: 27.

Replaces Arctic Cat OE # 0502-542, 1502-539.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
