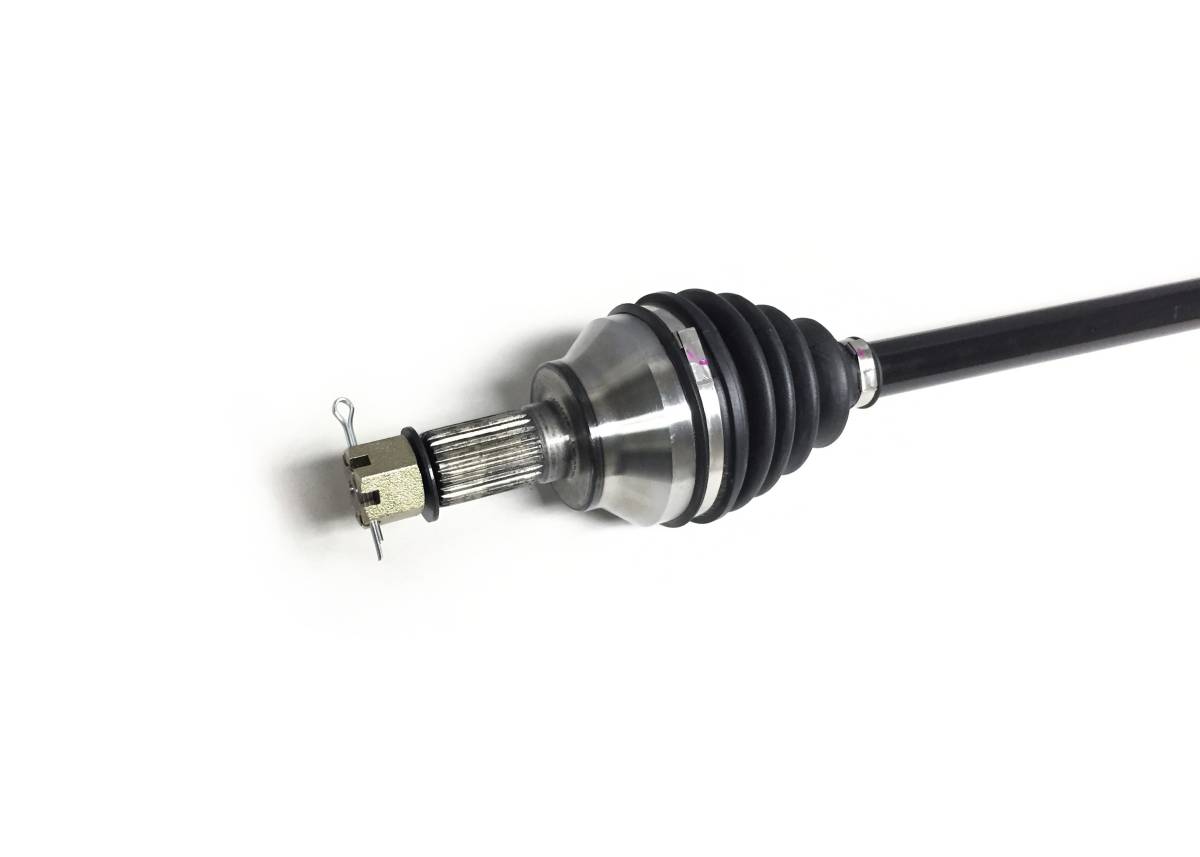

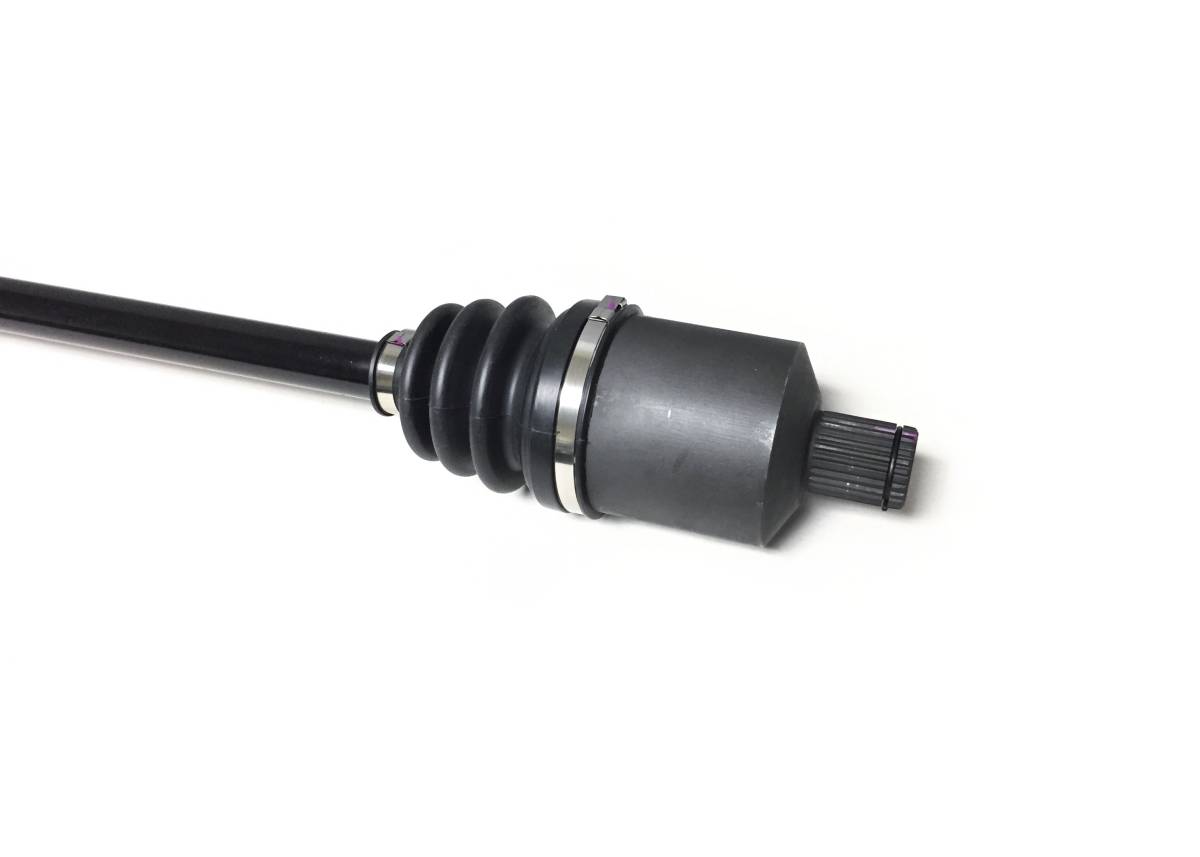

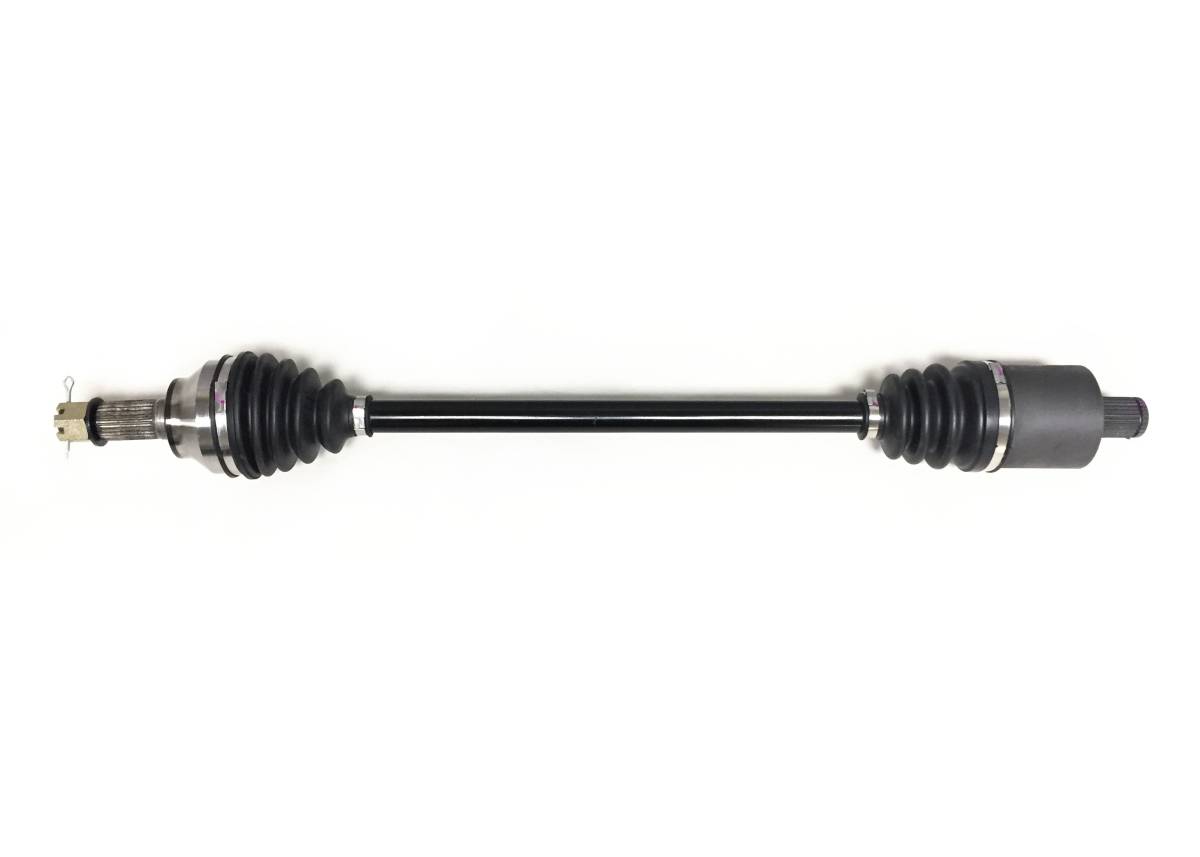

Front CV Axle for Polaris RZR Turbo XP XP4 & RS1, 1333434 1333870

Location on vehicle: Front,Left,Right

This is a new Front CV axle for a Polaris RZR.

It will fit the following 4x4 applications:

2018-2020 ... RZR RS1

2016-2021 ... RZR XP/XP4 Turbo

(please note this will not fit S models)

Front Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 28
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 752 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $109.99
Free ground shipping for lower 48 states ( some exclusions may apply)


1 year factory defect limited warranty

Product Notes

  • Fits 2016-2021 RZR XP / XP 4 Turbo & 2018-2020 RZR RS1.
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 1334273, 1333434, 1333942, 1333870.
  • Inner Splines: 28, Outer Splines: 26, Compressed length: 752 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    2020PolarisRZR RS1EPS
    2019PolarisRZR RS1EPS
    2018PolarisRZR RS1EPS
    2021PolarisRZR XPTurbo EPS
    2021PolarisRZR XPTurbo S
    2020PolarisRZR XPTurbo EPS
    2020PolarisRZR XPTurbo S
    2020PolarisRZR XPTurbo S Velocity
    2019PolarisRZR XPTurbo EPS
    2019PolarisRZR XPTurbo EPS DYNAMIX Edition
    2019PolarisRZR XPTurbo EPS LE
    2019PolarisRZR XPTurbo S
    2021PolarisRZR XP 4Turbo
    2021PolarisRZR XP 4Turbo S
    2021PolarisRZR XP 4Turbo S Velocity
    2020PolarisRZR XP 4Turbo
    2020PolarisRZR XP 4Turbo S
    2020PolarisRZR XP 4Turbo S Velocity
    2019PolarisRZR XP 4Turbo
    2019PolarisRZR XP 4Turbo EPS
    2019PolarisRZR XP 4Turbo EPS DYNAMIX Edition
    2019PolarisRZR XP 4Turbo EPS LE
    2019PolarisRZR XP 4Turbo S


    Shipping Information

    • Item Requires Shipping
    • 14.2 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
