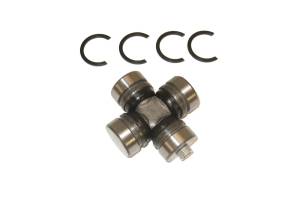

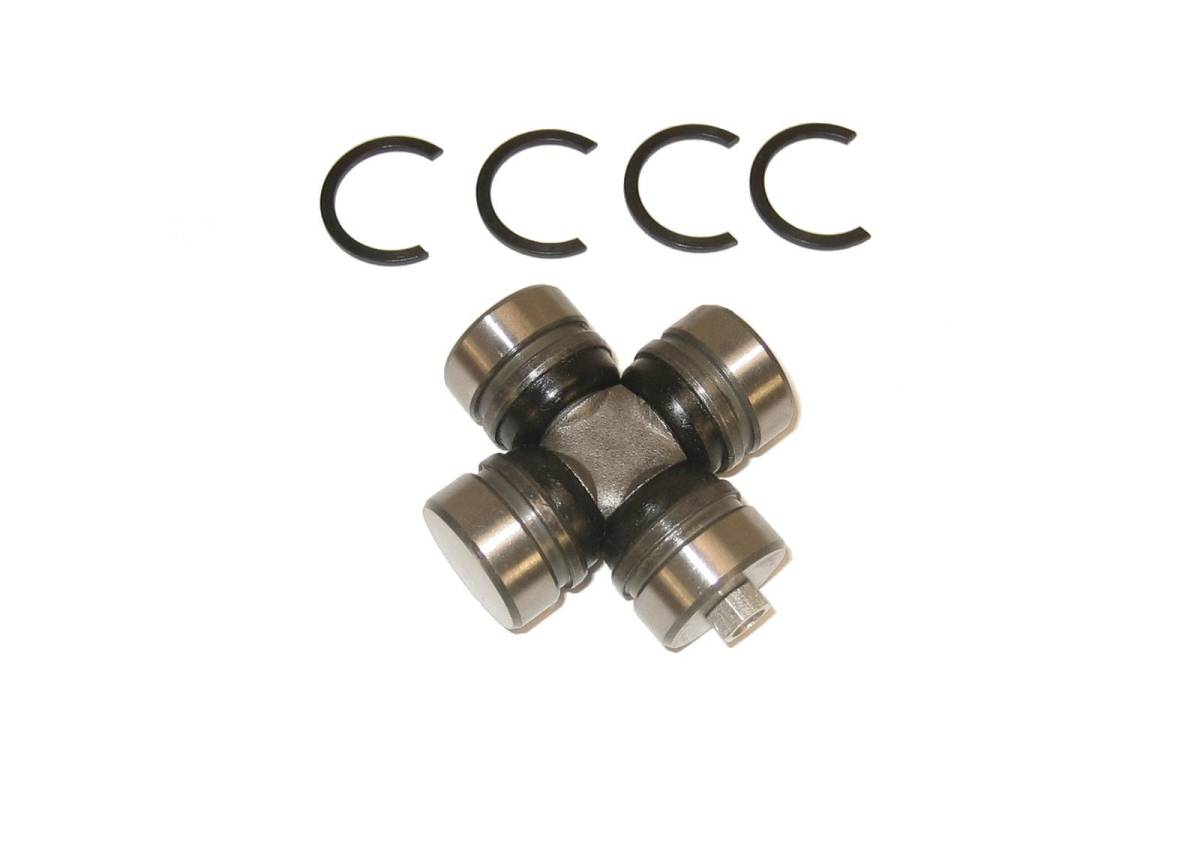

Prop Shaft Universal Joint for Kawasaki ATV UTV, 49050-1002

Location on vehicle: Rear

ATV702
This is a new universal joint for a Kawasaki ATV/UTV.

It will fit the following models (as described below):

Boths shafts, front or rear: 2005-2012 Mule 610, 2000-2002 Mule 2510, 2001-2008 Mule 3010, 2009-2012 Mule 4010

Front shaft, both positions: 2008-2011 Teryx 750 (2-seater)

Rear shaft, front position: 1999-2002 Prairie 300 4WD/Prairie 400 4WD

Rear shaft, rear posiiton: 1998-2002 Prairie 400 2WD, 1999-2002 Prairie 300 2WD

Product features:

  • Bearing Diameter : 0.866 inches
  • Stack-Up Dimension : 1.351 inches
  • Style of Snap Rings : Inside Snap Rings
  • Snap Ring Thickness : 0.063 inches
  • Cross Span : 1.771 inches
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $25.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect warranty

Product Notes

  • Fits boths shafts, front or rear: 2005-2012 Mule 610, 2000-2002 Mule 2510, 2001-2008 Mule 3010, 2009-2012 Mule 4010 ... Fits front shaft, both positions: 2008-2011 Teryx 750 (2-seater).
  • Fits rear shaft, front position: 1999-2002 Prairie 300 4WD/Prairie 400 4WD ... Fits rear shaft, rear posiiton: 1998-2002 Prairie 400 2WD, 1999-2002 Prairie 300 2WD.
  • Replaces Kawasaki OEM # 49050-1002
  • Cross Span: 1.771 in (edge to edge). Stack-up Dimension: 1.351 in (cap bottom to cap bottom). Cap diameter - 0.866 in.
  • Comes with a 1 year warranty. Please note parts are designed as an OEM replacement and use on lifted/modified vehicles will void warranty.

  • What's In The Box

  • 1 universal joint, 4 clips
  • Application List

    YearMakeModelSubmodelNotes
    2012KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2012KawasakiMule 610KAF400D 4x4 XCfits either shaft, front or rear
    2012KawasakiMule 610KAF400E 4x4 XCfits either shaft, front or rear
    2011KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2011KawasakiMule 610KAF400D 4x4 XCfits either shaft, front or rear
    2011KawasakiMule 610KAF400E 4x4 XCfits either shaft, front or rear
    2010KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2010KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2010KawasakiMule 610KAF400D 4x4 XCfits either shaft, front or rear
    2009KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2009KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2008KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2008KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2007KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2007KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2006KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2006KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2005KawasakiMule 610KAF400A 4x4fits either shaft, front or rear
    2005KawasakiMule 610KAF400C 4x4fits either shaft, front or rear
    2002KawasakiMule 2510KAF950A 4x4 Dieselfits either shaft, front or rear
    2001KawasakiMule 2510KAF950A 4x4 Dieselfits either shaft, front or rear
    2000KawasakiMule 2510KAF620A 4x4fits either shaft, front or rear
    2000KawasakiMule 2510KAF950A 4x4 Dieselfits either shaft, front or rear
    2008KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2008KawasakiMule 3010KAF620H 4x4fits either shaft, front or rear
    2008KawasakiMule 3010KAF620J 4x4 Transfits either shaft, front or rear
    2008KawasakiMule 3010KAF620K 4x4 Transfits either shaft, front or rear
    2008KawasakiMule 3010KAF950D 4x4 Dieselfits either shaft, front or rear
    2008KawasakiMule 3010KAF950E 4x4 Trans Dieselfits either shaft, front or rear
    2007KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2007KawasakiMule 3010KAF620H 4x4fits either shaft, front or rear
    2007KawasakiMule 3010KAF620J 4x4 Transfits either shaft, front or rear
    2007KawasakiMule 3010KAF620K 4x4 Transfits either shaft, front or rear
    2007KawasakiMule 3010KAF950B 4x4 Dieselfits either shaft, front or rear
    2007KawasakiMule 3010KAF950C 4x4 Trans Dieselfits either shaft, front or rear
    2006KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2006KawasakiMule 3010KAF620H 4x4fits either shaft, front or rear
    2006KawasakiMule 3010KAF620J 4x4 Transfits either shaft, front or rear
    2006KawasakiMule 3010KAF620K 4x4 Transfits either shaft, front or rear
    2006KawasakiMule 3010KAF950B 4x4 Dieselfits either shaft, front or rear
    2005KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2005KawasakiMule 3010KAF620H 4x4fits either shaft, front or rear
    2005KawasakiMule 3010KAF620J 4x4 Transfits either shaft, front or rear
    2005KawasakiMule 3010KAF620K 4x4 Transfits either shaft, front or rear
    2005KawasakiMule 3010KAF950B 4x4 Dieselfits either shaft, front or rear
    2004KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2004KawasakiMule 3010KAF950B 4x4 Dieselfits either shaft, front or rear
    2003KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2003KawasakiMule 3010KAF620H 4x4fits either shaft, front or rear
    2003KawasakiMule 3010KAF950B 4x4 Dieselfits either shaft, front or rear
    2002KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2001KawasakiMule 3010KAF620E 4x4fits either shaft, front or rear
    2012KawasakiMule 4010KAF620M 4x4fits either shaft, front or rear
    2012KawasakiMule 4010KAF620R 4x4 Transfits either shaft, front or rear
    2012KawasakiMule 4010KAF620S 4x4 Transfits either shaft, front or rear
    2012KawasakiMule 4010KAF950F 4x4 Dieselfits either shaft, front or rear
    2012KawasakiMule 4010KAF950G 4x4 Trans Dieselfits either shaft, front or rear
    2011KawasakiMule 4010KAF620M 4x4fits either shaft, front or rear
    2011KawasakiMule 4010KAF620R 4x4 Transfits either shaft, front or rear
    2011KawasakiMule 4010KAF620S 4x4 Transfits either shaft, front or rear
    2011KawasakiMule 4010KAF950F 4x4 Dieselfits either shaft, front or rear
    2011KawasakiMule 4010KAF950G 4x4 Trans Dieselfits either shaft, front or rear
    2010KawasakiMule 4010KAF620M 4x4fits either shaft, front or rear
    2010KawasakiMule 4010KAF620R 4x4 Transfits either shaft, front or rear
    2010KawasakiMule 4010KAF620S 4x4 Transfits either shaft, front or rear
    2010KawasakiMule 4010KAF950F 4x4 Dieselfits either shaft, front or rear
    2010KawasakiMule 4010KAF950G 4x4 Trans Dieselfits either shaft, front or rear
    2010KawasakiMule 4010KAF950H 4x4 Trans Dieselfits either shaft, front or rear
    2009KawasakiMule 4010KAF620M 4x4fits either shaft, front or rear
    2009KawasakiMule 4010KAF620N 4x4fits either shaft, front or rear
    2009KawasakiMule 4010KAF620R 4x4 Transfits either shaft, front or rear
    2009KawasakiMule 4010KAF620S 4x4 Transfits either shaft, front or rear
    2009KawasakiMule 4010KAF950F 4x4 Dieselfits either shaft, front or rear
    2009KawasakiMule 4010KAF950G 4x4 Trans Dieselfits either shaft, front or rear
    2002KawasakiPrairie 300KVF300A 4x4fits rear shaft, front position
    2002KawasakiPrairie 300KVF300Bfits rear shaft, rear posiiton
    2001KawasakiPrairie 300KVF300A 4x4fits rear shaft, front position
    2001KawasakiPrairie 300KVF300Bfits rear shaft, rear posiiton
    2000KawasakiPrairie 300KVF300A 4x4fits rear shaft, front position
    2000KawasakiPrairie 300KVF300Bfits rear shaft, rear posiiton
    1999KawasakiPrairie 300KVF300A 4x4fits rear shaft, front position
    1999KawasakiPrairie 300KVF300Bfits rear shaft, rear posiiton
    2002KawasakiPrairie 400KVF400C 4x4fits rear shaft, front position
    2002KawasakiPrairie 400KVF400Dfits rear shaft, rear posiiton
    2001KawasakiPrairie 400KVF400C 4x4fits rear shaft, front position
    2001KawasakiPrairie 400KVF400Dfits rear shaft, rear posiiton
    2000KawasakiPrairie 400KVF400C 4x4fits rear shaft, front position
    2000KawasakiPrairie 400KVF400Dfits rear shaft, rear posiiton
    1999KawasakiPrairie 400KVF400C 4x4fits rear shaft, front position
    1999KawasakiPrairie 400KVF400Dfits rear shaft, rear posiiton
    1998KawasakiPrairie 400KVF400Bfits rear shaft, rear posiiton
    2011KawasakiTeryx 750KRF750N 4x4 FIfits front shaft, both positions
    2011KawasakiTeryx 750KRF750P 4x4 LE FIfits front shaft, both positions
    2011KawasakiTeryx 750KRF750R 4x4 LE FIfits front shaft, both positions
    2011KawasakiTeryx 750KRF750S 4x4 Sport FIfits front shaft, both positions
    2011KawasakiTeryx 750KRF750T 4x4 Special Graphics Edition FIfits front shaft, both positions
    2010KawasakiTeryx 750KRF750 4x4fits front shaft, both positions
    2010KawasakiTeryx 750KRF750 4x4 LEfits front shaft, both positions
    2010KawasakiTeryx 750KRF750 4x4 Sportfits front shaft, both positions
    2010KawasakiTeryx 750KRF750N 4x4 FIfits front shaft, both positions
    2010KawasakiTeryx 750KRF750P 4x4 LE FIfits front shaft, both positions
    2010KawasakiTeryx 750KRF750R 4x4 LE FIfits front shaft, both positions
    2010KawasakiTeryx 750KRF750S 4x4 Sport FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750 4x4fits front shaft, both positions
    2009KawasakiTeryx 750KRF750 4x4 LEfits front shaft, both positions
    2009KawasakiTeryx 750KRF750 4x4 LE Sport FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750 4x4 Sportfits front shaft, both positions
    2009KawasakiTeryx 750KRF750G 4x4 FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750J 4x4 LE FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750K 4x4 LE FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750L 4x4 Sport FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750LA 4x4 Sport Monster Energy FIfits front shaft, both positions
    2009KawasakiTeryx 750KRF750M 4x4 NRA FIfits front shaft, both positions
    2008KawasakiTeryx 750KRF750 4x4 LE FIfits front shaft, both positions
    2008KawasakiTeryx 750KRF750A 4x4fits front shaft, both positions
    2008KawasakiTeryx 750KRF750B 4x4fits front shaft, both positions
    2008KawasakiTeryx 750KRF750C 4x4 LEfits front shaft, both positions
    2008KawasakiTeryx 750KRF750D 4x4 LEfits front shaft, both positions
    2008KawasakiTeryx 750KRF750F 4x4 NRAfits front shaft, both positions

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 0.5 lbs.
    • W5.0000” x H5.0000” x L4.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
