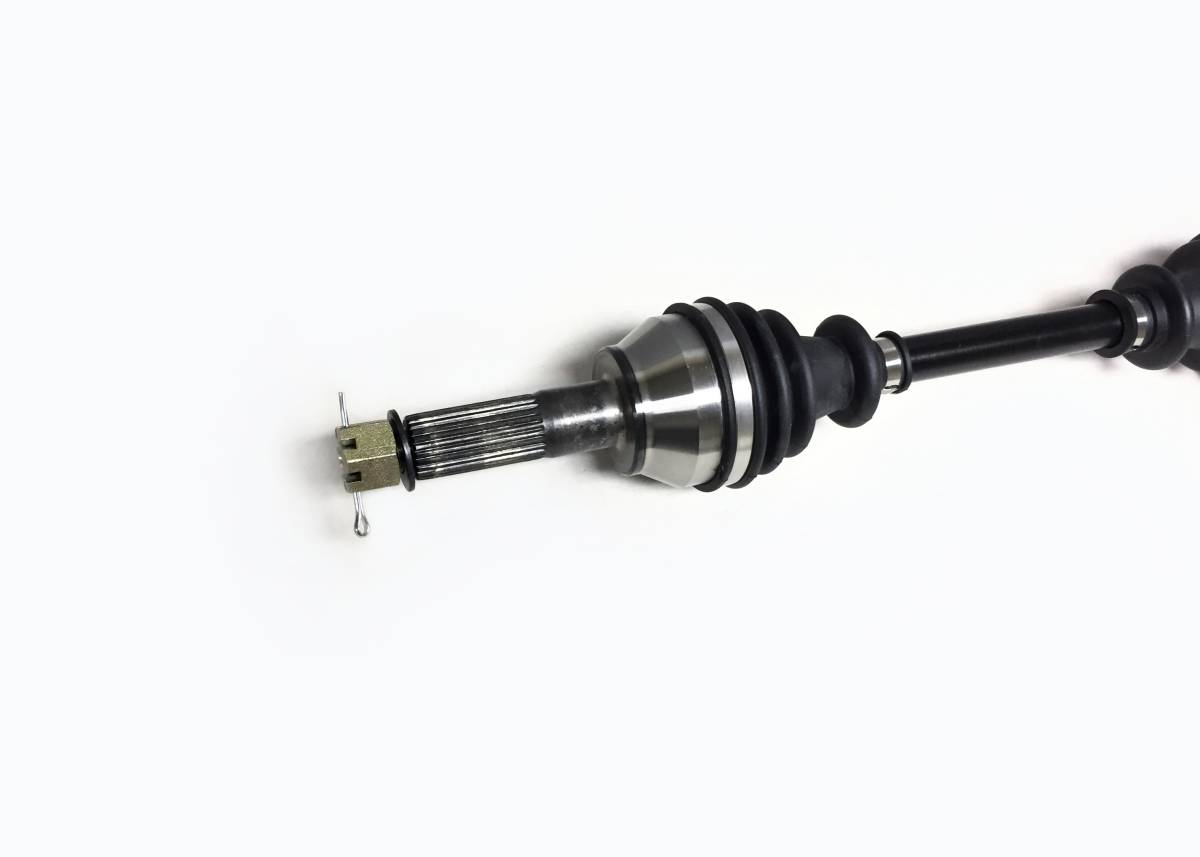

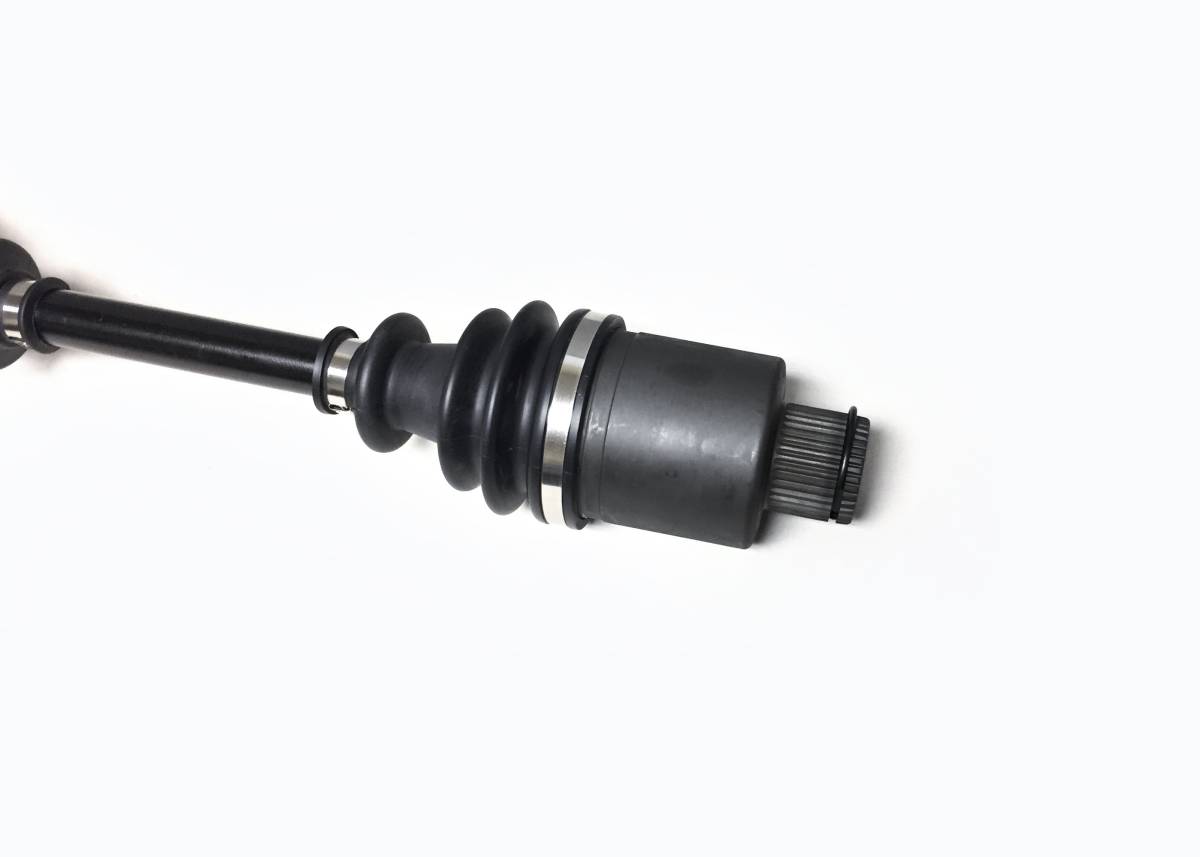

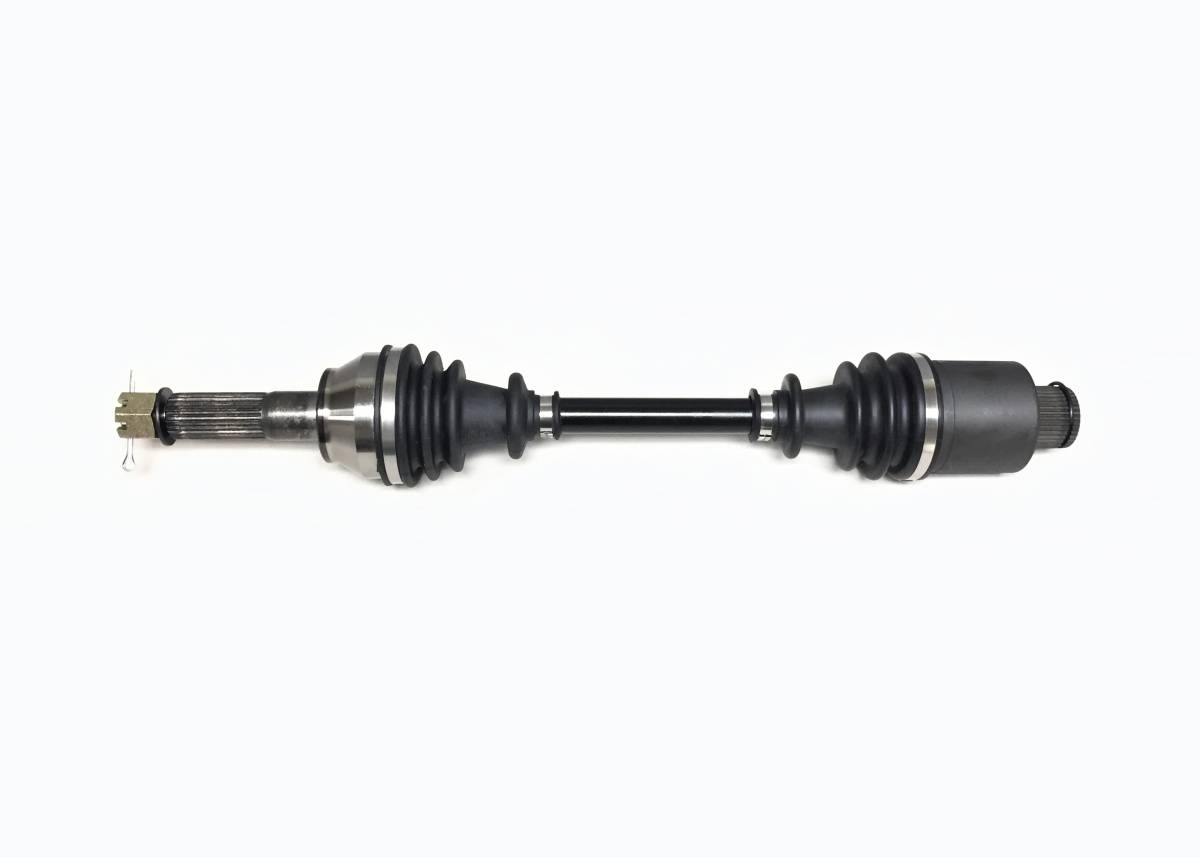

Rear CV Axle for Polaris Sportsman 400 500 570 800 & Hawkeye 400 4x4

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
PO-329
This is a new Rear CV axle for a Polaris ATV.

It will fit the following models:

2011-2014 ... Hawkeye 400

2011-2014 ... Sportsman 400

2011-2014 ... Sportsman 500 (excluding 'Touring' models)

2014 ... Sportsman 570

2011-2015 ... Sportsman 800

(also fits middle left & right on Sportsman 6x6 800 models)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 36
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 558.5 mm
  • Replaces Polaris OE # 1332935, 1332421, 1332511, 1332654
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $79.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014PolarisHawkeye 400HO 2x4
2013PolarisHawkeye 400HO 2x4
2012PolarisHawkeye 400HO 2x4
2011PolarisHawkeye 400HO 2x4
2014PolarisSportsman 500Forrest Tractor
2014PolarisSportsman 400--
2014PolarisSportsman 400HO
2014PolarisSportsman 400South Edition HO
2013PolarisSportsman 4004x4 HO
2013PolarisSportsman 4004x4 South Edition HO
2012PolarisSportsman 4004x4 HO
2011PolarisSportsman 4004x4 HO
2013PolarisSportsman 5004x4 HO
2013PolarisSportsman 500Forest
2013PolarisSportsman 500Forest Tractor
2013PolarisSportsman 500Pursuit HO
2012PolarisSportsman 5004x4 HO
2012PolarisSportsman 5004x4 Pursuit HO
2012PolarisSportsman 500Forest
2012PolarisSportsman 500Forest Tractor
2012PolarisSportsman 500LE HO
2011PolarisSportsman 5004x4 HO
2011PolarisSportsman 500Forest
2011PolarisSportsman 500Forest Tractor
2014PolarisSportsman 570EFI
2014PolarisSportsman 570EFI EPS
2014PolarisSportsman 570Forest
2014PolarisSportsman 570Pursuit EFI
2014PolarisSportsman 570Pursuit EFI EPS
2014PolarisSportsman 570Touring
2014PolarisSportsman 570Touring EFI EPS
2014PolarisSportsman 800EFI
2014PolarisSportsman 800Forest
2013PolarisSportsman 800EFI
2013PolarisSportsman 800Forest
2012PolarisSportsman 800EFI
2012PolarisSportsman 800Forest
2011PolarisSportsman 800EFI

Product Notes

  • Fits: 2011-2014 Hawkeye 400 HO, 2011-2014 Sportsman 400, 2011-2014 Sportsman 500 (excluding Touring models), 2014 Sportsman 570, 2011-2015 Sportsman 800 4x4 & 6x6 * Also fits the middle left & right side on Sportsman 800 6x6 models from 2011-2015.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 539.5 mm. Inboard Spline Count - 36. Outboard Spline Count - 26.
  • Replaces Polaris OE # 1332471, 1332501, 1332881.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-329
    • PO-329
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.1 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
