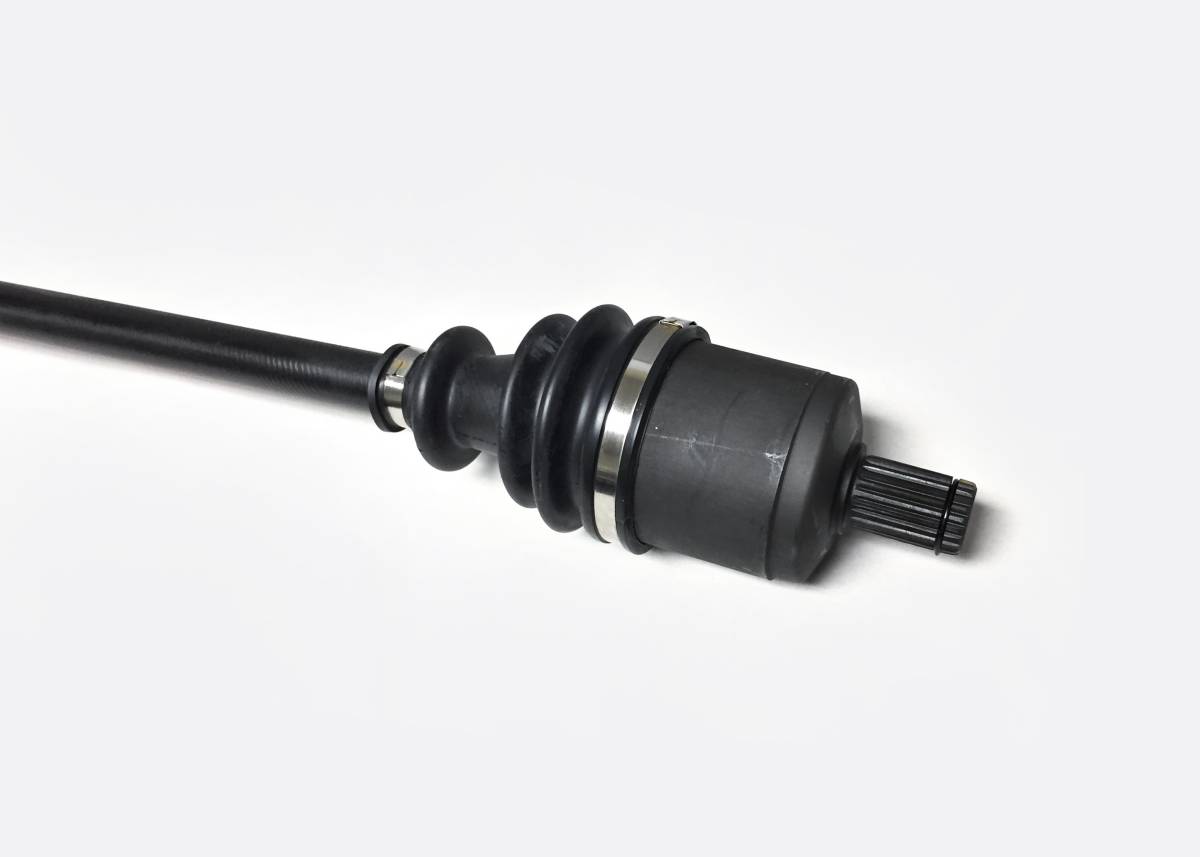

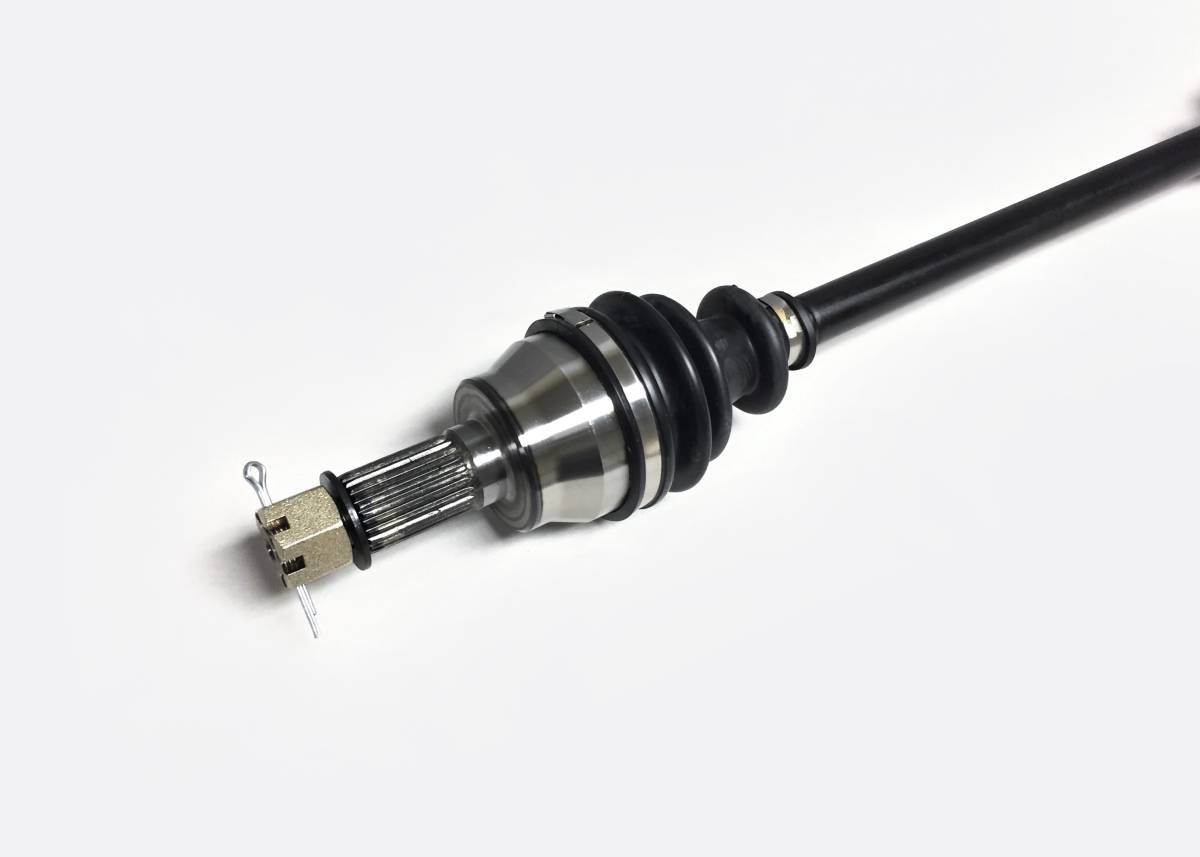

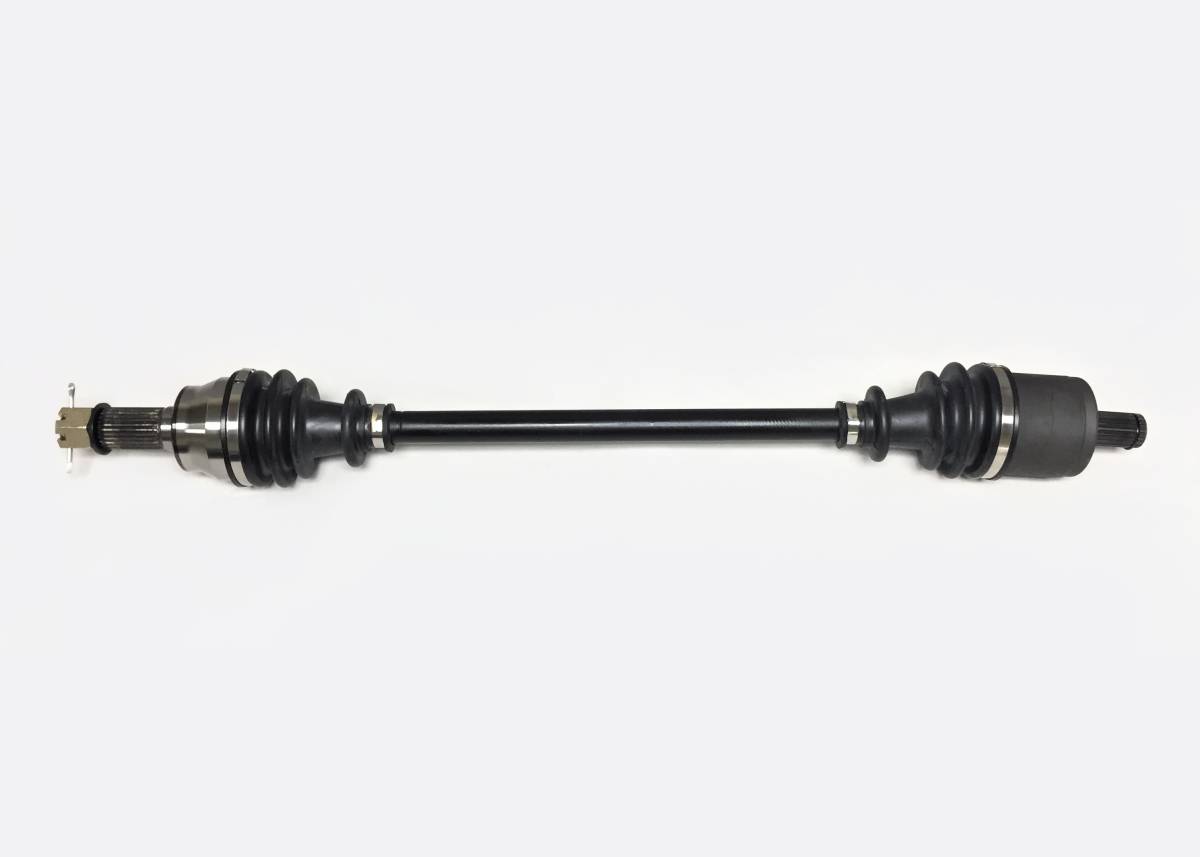

Front CV Axle for Polaris RZR S 900/1000 & General 1000, 1333263, 1333946

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-330
This is a new CV axle for a Polaris UTV/SXS.

It fit FRONT, LEFT or RIGHT on the following 4x4 models:

2016-2020 General 1000/1000-4 (excluding XP models), 2015-2022 RZR S 900/Trail S 900, 2015-2018 RZR 4 900

2016-2023 RZR S 1000/Trail S 1000, 2019-2021 RZR S4 1000

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 692 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $85.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020PolarisGeneral 4 1000Deluxe EPS
2020PolarisGeneral 4 1000EPS
2019PolarisGeneral 4 1000EPS
2019PolarisGeneral 4 1000EPS Ride Command Edition
2018PolarisGeneral 4 1000EPS
2018PolarisGeneral 4 1000EPS Ride Command Edition
2017PolarisGeneral 4 1000EPS
2020PolarisGeneral 1000Deluxe EPS
2020PolarisGeneral 1000EPS
2020PolarisGeneral 1000Premium EPS
2020PolarisGeneral 1000Sport
2019PolarisGeneral 1000Deluxe EPS
2019PolarisGeneral 1000EPS
2019PolarisGeneral 1000EPS Hunter Edition
2019PolarisGeneral 1000EPS Limited Edition
2019PolarisGeneral 1000Premium EPS
2019PolarisGeneral 1000Ride Command Edition EPS
2018PolarisGeneral 1000Deluxe EPS
2018PolarisGeneral 1000EPS
2018PolarisGeneral 1000EPS Hunter Edition
2018PolarisGeneral 1000EPS Limited Edition
2018PolarisGeneral 1000Premium EPS
2018PolarisGeneral 1000Ride Command Edition EPS
2017PolarisGeneral 1000Deluxe EPS
2017PolarisGeneral 1000EPS
2017PolarisGeneral 1000Hunter Edition EPS
2017PolarisGeneral 1000Ride Command Edition EPS
2017PolarisGeneral 1000White Lightning Edition EPS
2016PolarisGeneral 1000Deluxe EPS
2016PolarisGeneral 1000EPS
2016PolarisGeneral 1000Premium EPS
2018PolarisRZR 4 900EPS
2017PolarisRZR 4 900EPS
2016PolarisRZR 4 900EPS
2015PolarisRZR 4 900EPS
2020PolarisRZR S4 1000EPS
2019PolarisRZR S4 1000EPS
2021PolarisRZR S 900--60 inch
2021PolarisRZR S 900Premium60 inch
2020PolarisRZR S 900--60 inch
2020PolarisRZR S 900EPS60 inch
2020PolarisRZR S 900Premium60 inch
2019PolarisRZR S 900--60 inch
2019PolarisRZR S 900EPS60 inch
2018PolarisRZR S 900--60 inch
2018PolarisRZR S 900EPS60 inch
2017PolarisRZR S 900--60 inch
2017PolarisRZR S 900EPS60 inch
2016PolarisRZR S 900--60 inch
2016PolarisRZR S 900EPS60 inch
2015PolarisRZR S 900--60 inch
2015PolarisRZR S 900EPS60 inch
2021PolarisRZR S 1000EPS
2020PolarisRZR S 1000EPS
2019PolarisRZR S 1000EPS
2018PolarisRZR S 1000EPS
2017PolarisRZR S 1000EPS
2016PolarisRZR S 1000EPS
2022PolarisRZR Trail S 900Sport60 inch models
2021PolarisRZR Trail S 900--60 inch models
2021PolarisRZR Trail S 900Premium60 inch models
2021PolarisRZR Trail S 900Sport60 inch models
2022PolarisRZR Trail S 1000Premium
2022PolarisRZR Trail S 1000Ultimate
2021PolarisRZR Trail S 1000Premium
2021PolarisRZR Trail S 1000Ultimate

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Polaris models: 2016-2020 General 1000/1000-4 (excluding XP models), 2015-2022 RZR S 900/Trail S 900, 2015-2018 RZR 4 900, 2016-2023 RZR S 1000/Trail S 1000, 2019-2021 RZR S4 1000.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner Splines: 22, Outer Splines: 26, Compressed length: 692 mm.
  • Replaces OEM # 1333263, 1333946.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-330
    • PO-330
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
