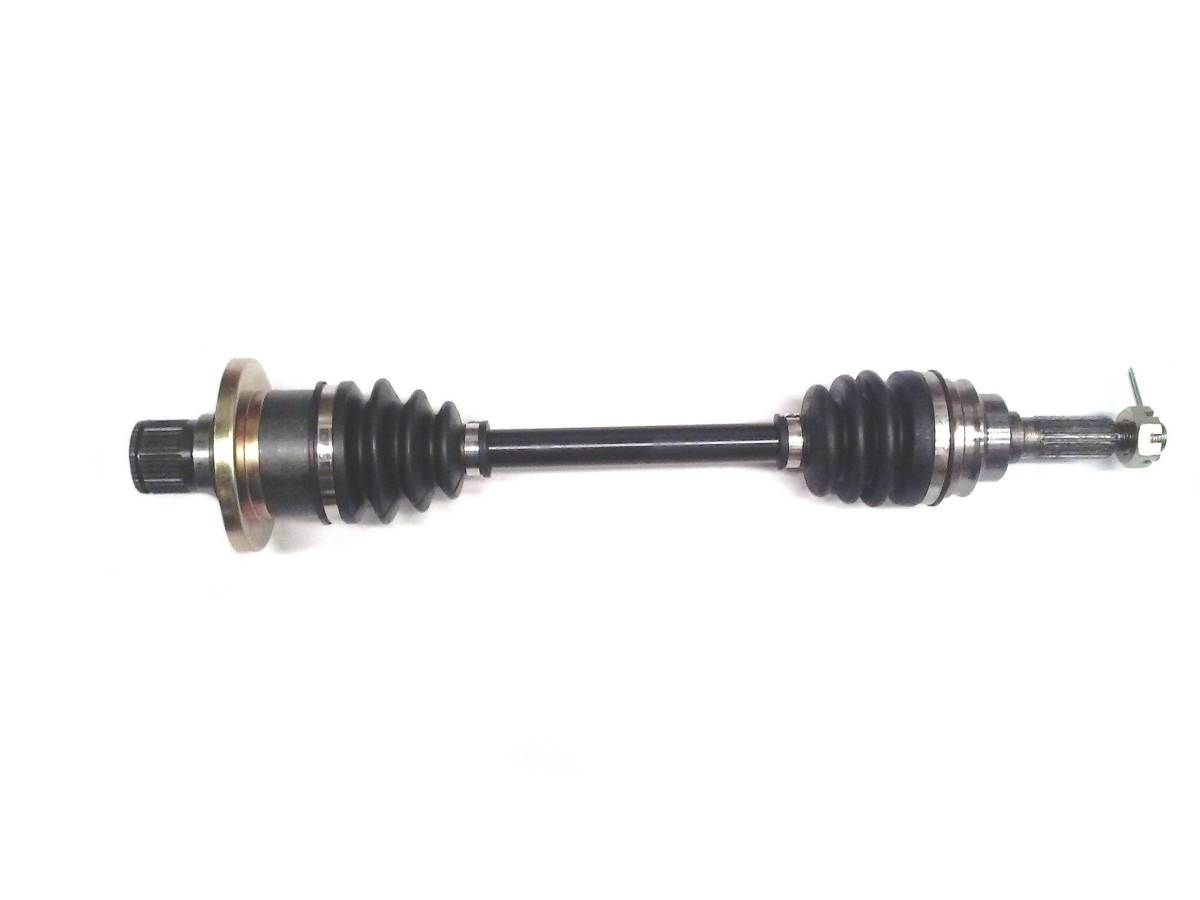

Rear CV Axle for Suzuki King Quad 700 4x4 2005-2006

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review

SKU: SK-321

This is a new Rear CV axle for a Suzuki ATV.

It will fit the following 4x4 models:

2005-2006 ..... King Quad 700

***Includes the differential seal pre installed***

Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly hardened steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance

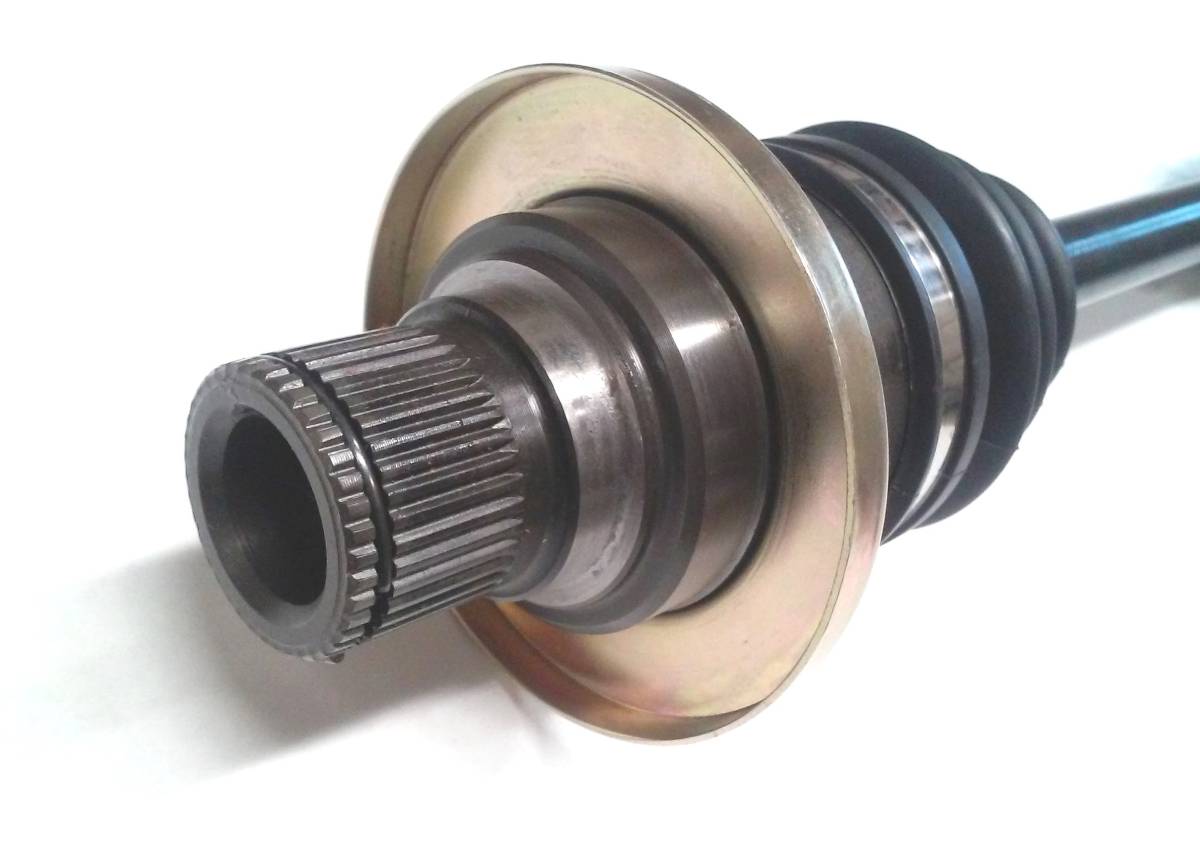

Inboard CV joint spline count: 39

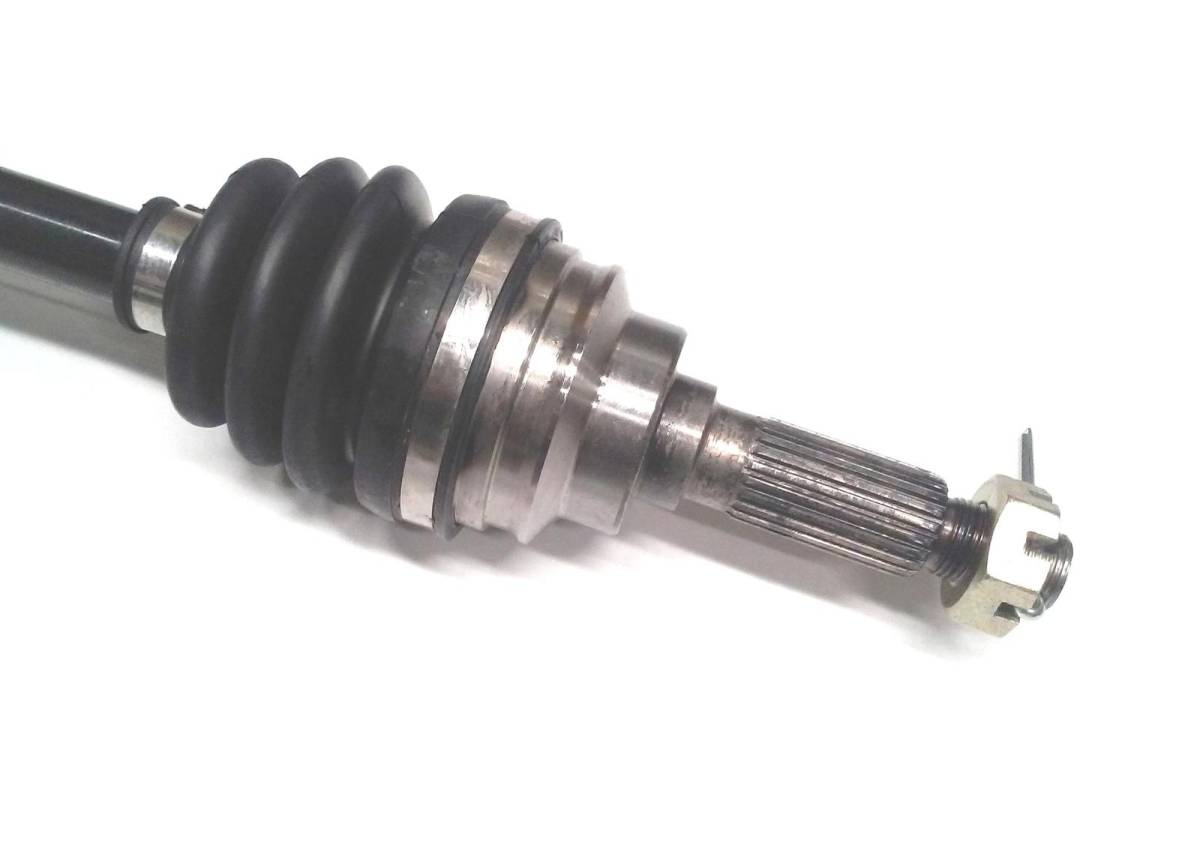

Outboard CV joint spline count: 22
Compressed overall axle length: 532 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $87.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel	Notes
2006	Suzuki	King Quad 700	LTA700X 4x4
2005	Suzuki	King Quad 700	LTA700X 4x4

Product Notes

Fits rear left or right on the Suzuki King Quad 700 4x4 2005-2006 & comes with the differential seal pre-assembled, so you don't have to purchase that separately.

Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Compressed Length - 532 mm, Inner Spline Count - 39, Outer Spline Count - 22.

Replaces Suzuki OE # 64901-31G03 64901-31G00.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
