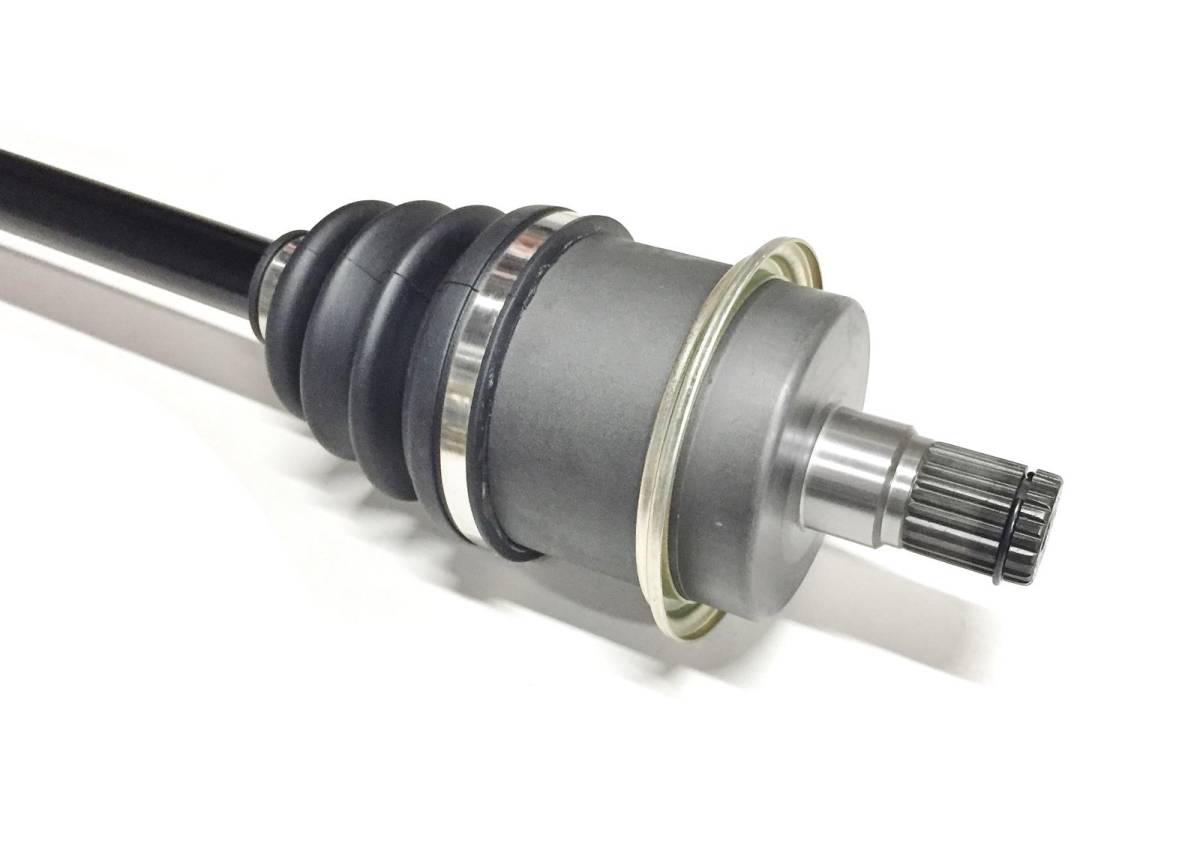

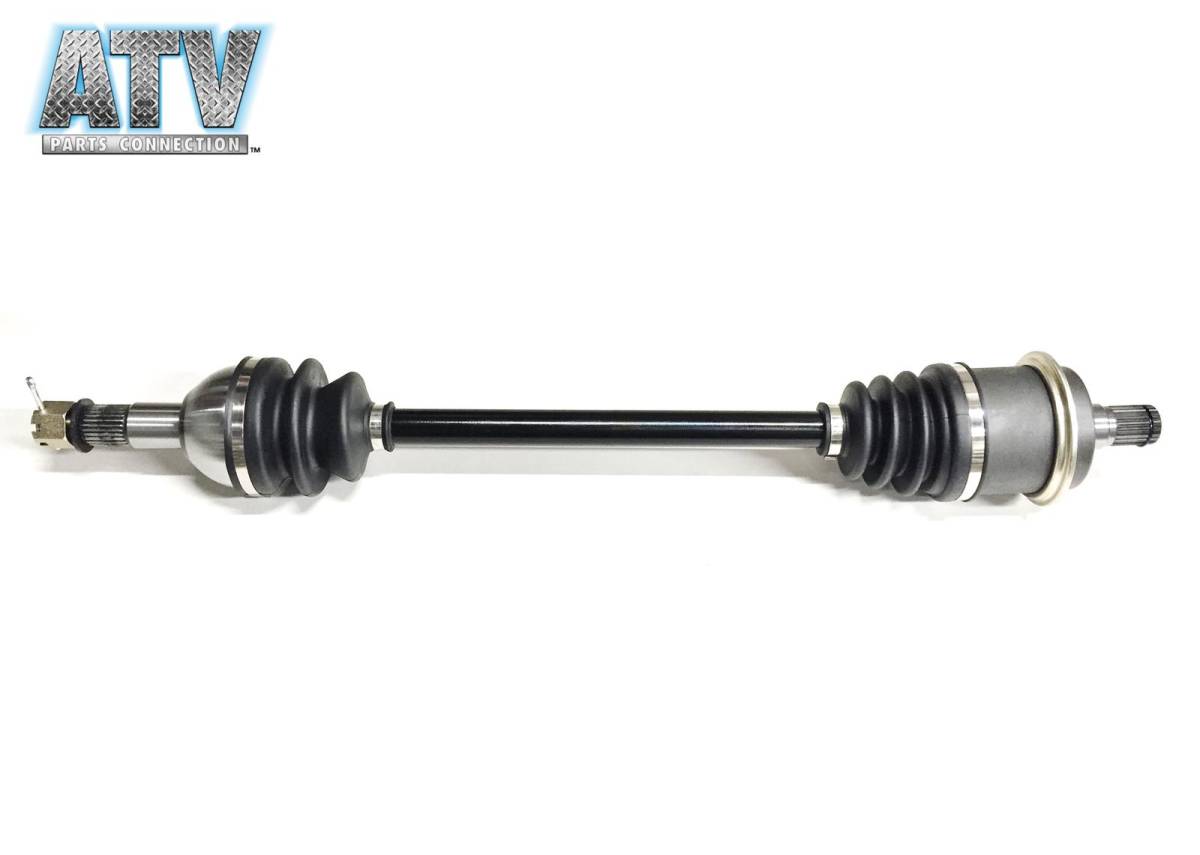

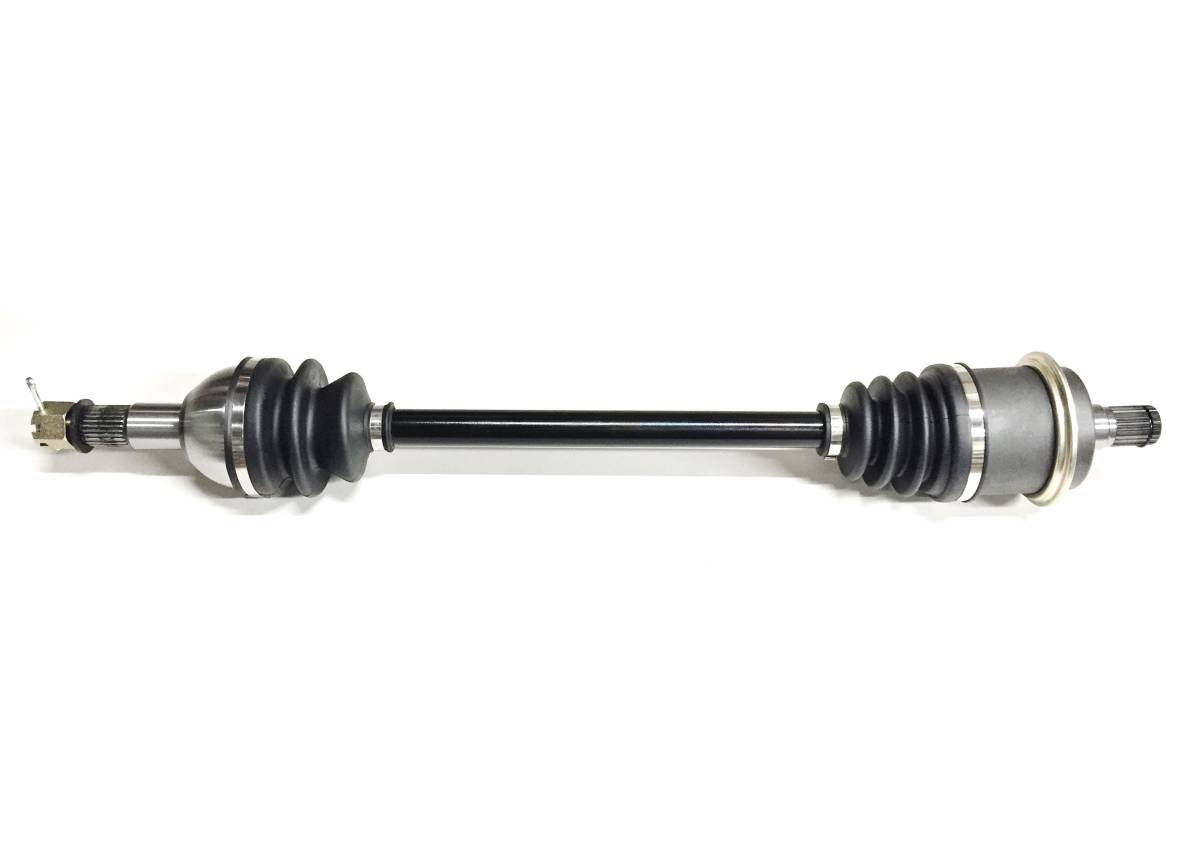

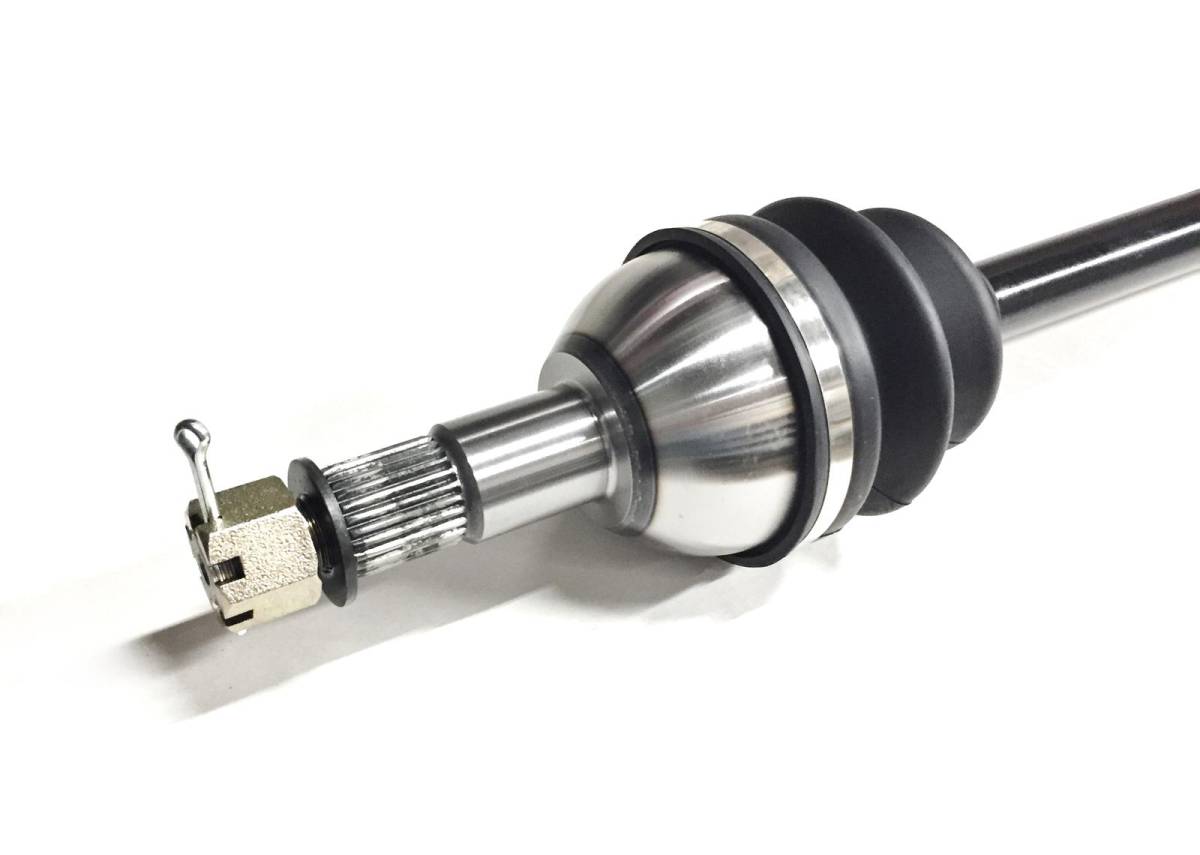

Rear CV Axle for Can-Am Commander 800 & 1000 4x4 2011-2015

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
CA-306
This is for one new Rear CV axle for a Can-Am UTV.

This axle will fit the following 4x4 applications:

2011-2015 ... Commander 800

2011-2015 ... Commander 1000/Max 1000

Rear, Left or Right

(please note this will not work on models with a locking rear differential)

*Not intended for use in lifted / modified suspensions

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 26
  • Compressed overall axle length: 680 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $86.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2015Can-AmCommander 8004X4
2015Can-AmCommander 8004x4 DPS
2015Can-AmCommander 8004x4 XT
2015Can-AmCommander 8004x4 XT Rear Open Differential
2014Can-AmCommander 8004X4
2014Can-AmCommander 8004x4 DPS
2014Can-AmCommander 8004x4 XT
2014Can-AmCommander 8004x4 XT Rear Open Differential
2011Can-AmCommander 8004x4 XT
2015Can-AmCommander 800R4X4
2015Can-AmCommander 800R4x4 DPS
2015Can-AmCommander 800R4x4 XT
2013Can-AmCommander 800R4x4 DPS EFI
2013Can-AmCommander 800R4x4 EFI
2013Can-AmCommander 800R4x4 XT EFI
2012Can-AmCommander 800R4x4 EFI
2012Can-AmCommander 800R4x4 XT EFI
2011Can-AmCommander 800R4X4
2011Can-AmCommander 800R4x4 XT
2015Can-AmCommander 10004X4
2015Can-AmCommander 10004x4 DPS
2015Can-AmCommander 10004x4 LTD
2015Can-AmCommander 10004x4 XT
2015Can-AmCommander 10004x4 XTP
2014Can-AmCommander 10004X4
2014Can-AmCommander 10004x4 DPS
2014Can-AmCommander 10004x4 LTD
2014Can-AmCommander 10004x4 XT
2014Can-AmCommander 10004x4 XTP
2013Can-AmCommander 10004x4 DPS EFI
2013Can-AmCommander 10004x4 EFI
2013Can-AmCommander 10004x4 LTD
2013Can-AmCommander 10004x4 X EFI
2013Can-AmCommander 10004x4 XT EFI
2012Can-AmCommander 10004x4 EFI
2012Can-AmCommander 10004x4 LTD EFI
2012Can-AmCommander 10004x4 X EFI
2012Can-AmCommander 10004x4 XT EFI
2011Can-AmCommander 10004X4
2011Can-AmCommander 10004x4 X
2011Can-AmCommander 10004x4 XT
2015Can-AmCommander Max 10004x4 DPS
2015Can-AmCommander Max 10004x4 LTD
2015Can-AmCommander Max 10004x4 XT
2014Can-AmCommander Max 10004X4
2014Can-AmCommander Max 10004x4 DPS
2014Can-AmCommander Max 10004x4 XT

Product Notes

  • Fits REAR, LEFT or RIGHT: 2011-2015 Commander 800 & 2011-2015 Commander 1000 / Max 1000.
  • Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear & puncture resistance.
  • Replaces OE # 705501481, 705502359, 705500960, 705501456.
  • Inner Splines: 24, Outer Splines: 26, Compressed length: 680 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 16.0 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
