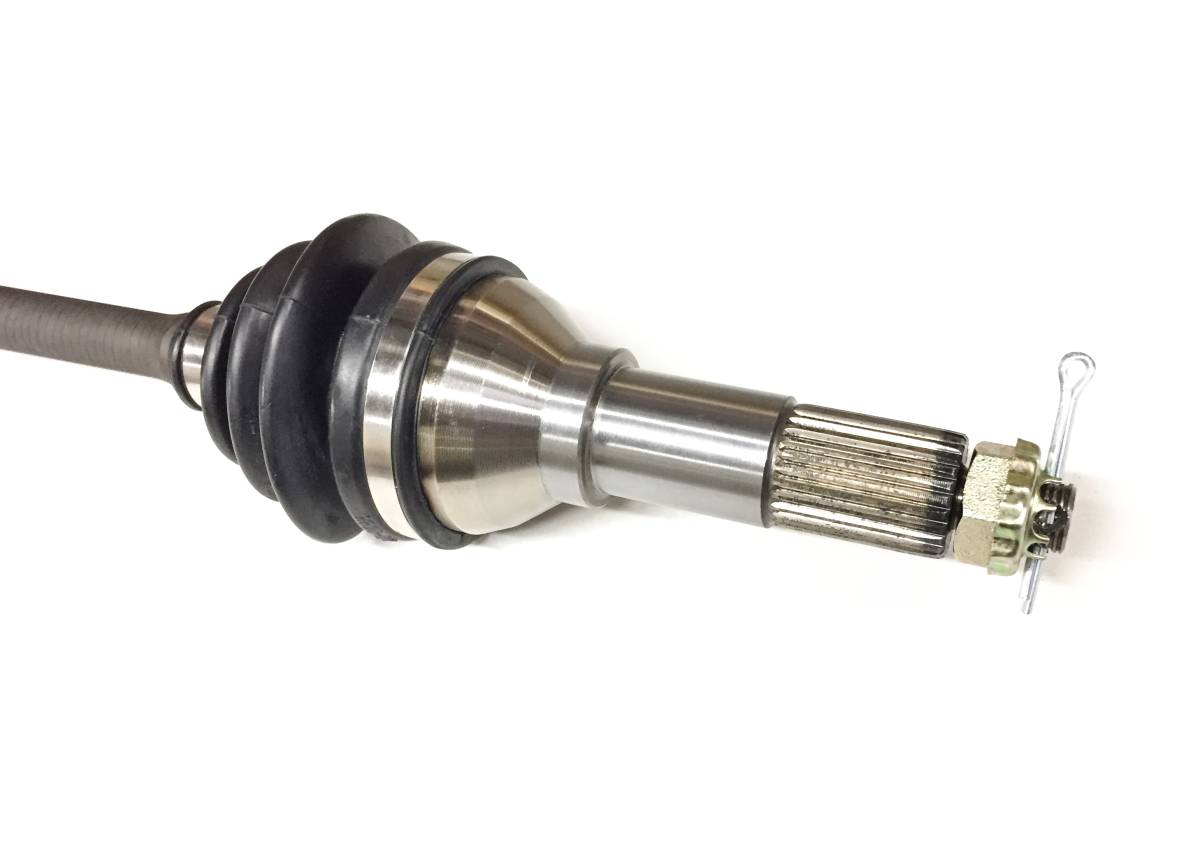

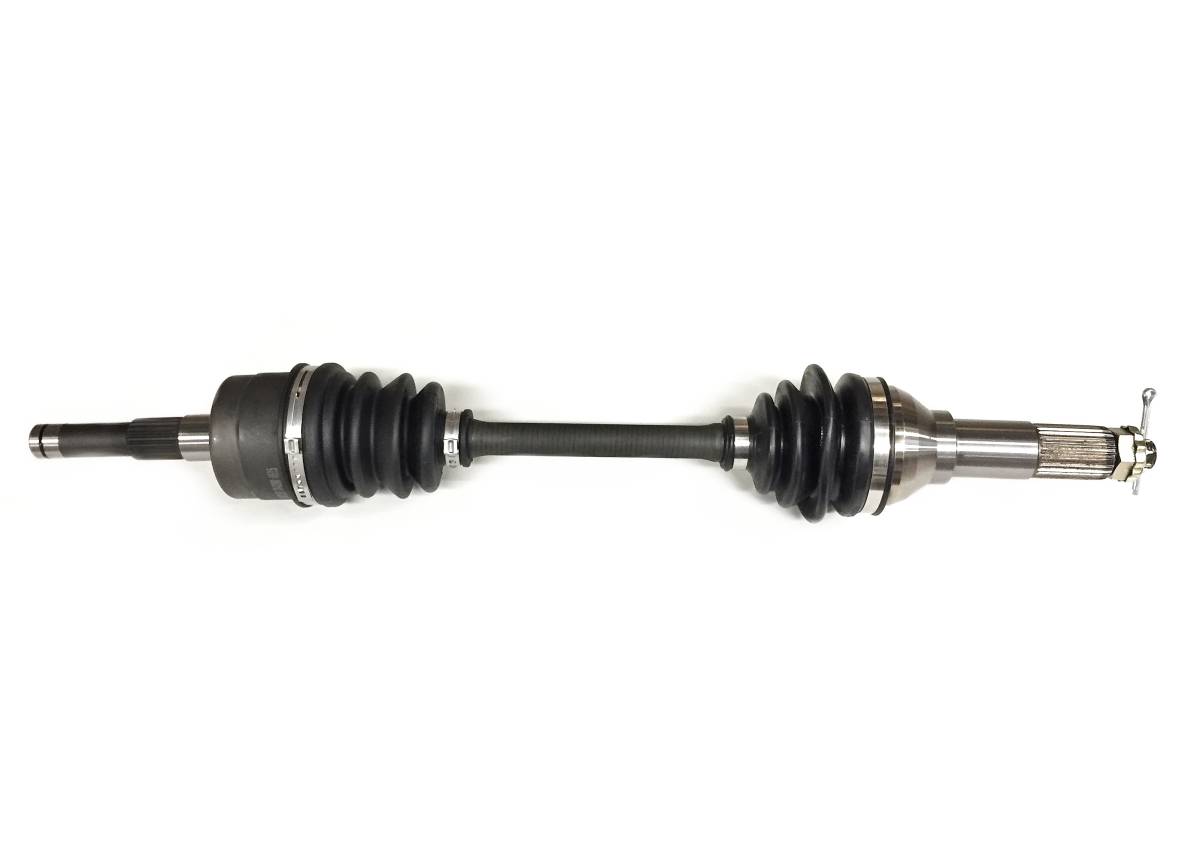

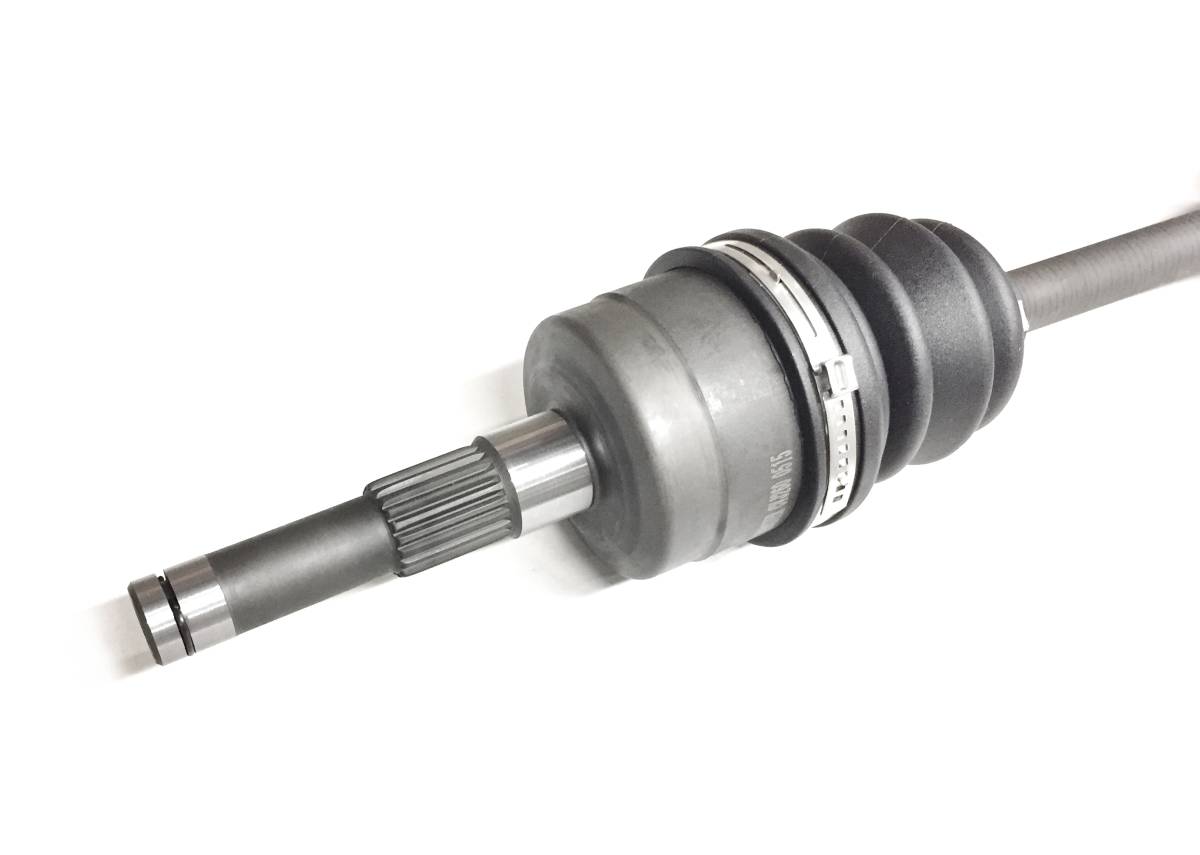

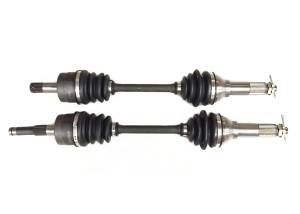

Front Left CV Axle for Yamaha Grizzly 660 4x4 2002 ATV

Location on vehicle: Front,Left

YA-213
This is a new Front, Left CV axle for a Yamaha ATV.

It will fit the following 4x4 applications:

2002 ... Grizzly 660

Front, Left / Driver's Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 552 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left (driver's side) on the 2002 Yamaha Grizzly 660 4x4.
  • Features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Replaces OE # 5KM-2510J-00-00, 5KM-2510F-00-00.
  • Inner Splines: 21, Outer Splines: 27, Compressed length: 551 mm
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2002YamahaGrizzly 660YFM660F 4x4
    2002YamahaGrizzly 660YFM660FH 4x4 Hunter Edition

    Details

    Shipping Information

    • Item Requires Shipping
    • 7.9 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
