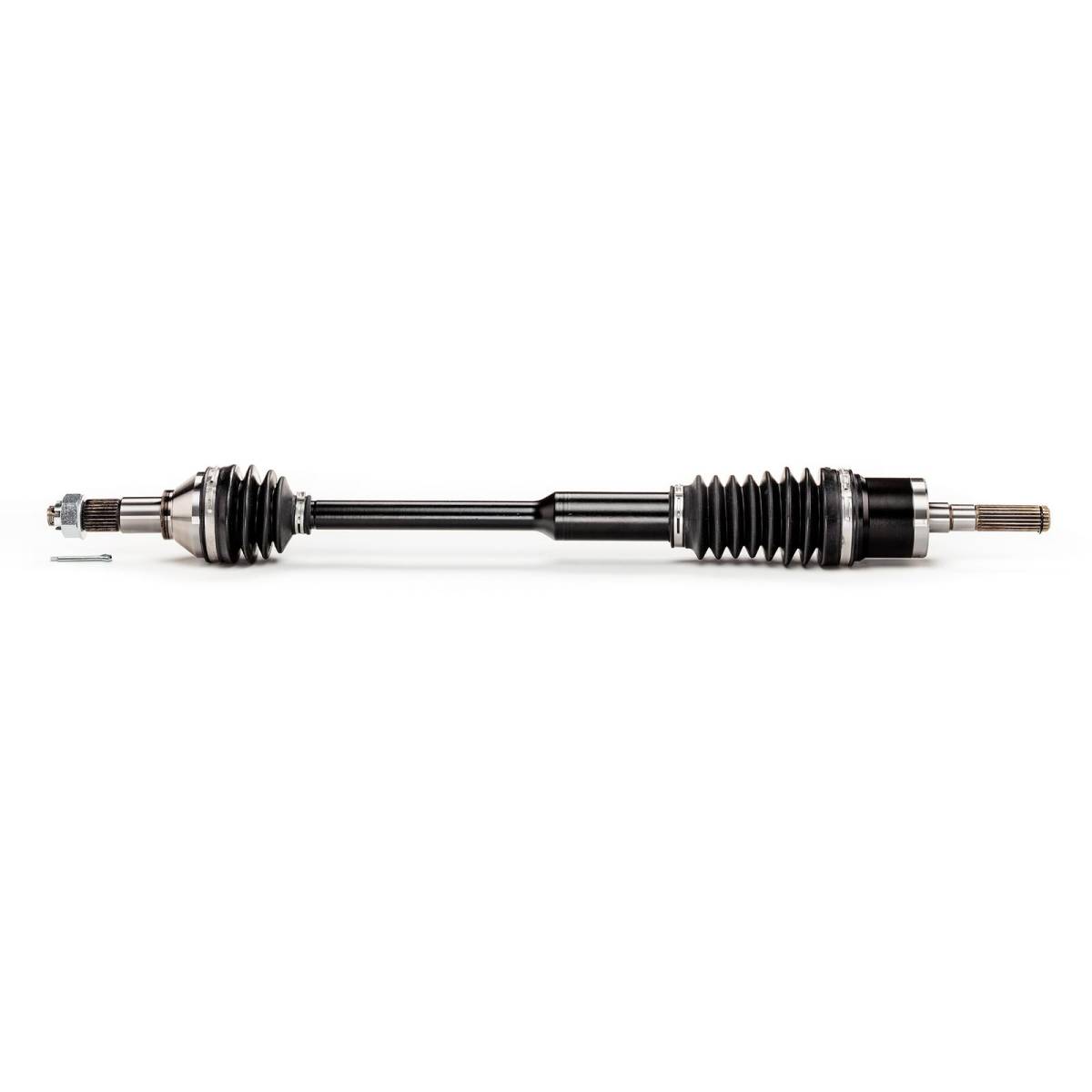

Monster Axles Front Right CV Axle for Can-Am Maverick 1000 2013-2018, XP Series

Location on vehicle: Front,Right

CA-217XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013Can-AmMaverick 10004x4 XRS
2018Can-AmMaverick 1000R4x4 DPS
2017Can-AmMaverick 1000R4x4 DPS
2017Can-AmMaverick 1000R4x4 Turbo DPS
2016Can-AmMaverick 1000R4X4
2016Can-AmMaverick 1000R4x4 DPS
2016Can-AmMaverick 1000R4x4 Turbo DPS
2016Can-AmMaverick 1000R4x4 XDS DPS
2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick 1000R4X4
2015Can-AmMaverick 1000R4x4 XDS
2015Can-AmMaverick 1000R4x4 XDS Turbo
2015Can-AmMaverick 1000R4x4 XRS DPS
2014Can-AmMaverick 1000R4X4
2014Can-AmMaverick 1000R4x4 XRS
2014Can-AmMaverick 1000R4x4 XRS DPS
2013Can-AmMaverick 1000R4X4
2018Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 DPS
2016Can-AmMaverick Max 1000R4x4 Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XDS DPS
2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick Max 1000R4X4
2015Can-AmMaverick Max 1000R4x4 XDS
2015Can-AmMaverick Max 1000R4x4 XDS Turbo
2015Can-AmMaverick Max 1000R4x4 XRS DPS
2014Can-AmMaverick Max 1000R4X4
2014Can-AmMaverick Max 1000R4x4 XRS DPS

Product Notes

  • Fits FRONT, RIGHT (passenger side) on the 2013-2018 Can-Am Maverick 1000 & MAX 1000. Please note this is for STD, DPS, XRS, XRS-DPS & Turbo - and will not fit XC, XXC, XMR models.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 705401236, 705401874. Compressed axle length: 768 mm, Inner splines: 21, Outer splines: 26. Comes with a 1 year limited warranty (excluding torn boots).

  • What's In The Box

  • 1 axle
  • Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Product Videos

    Details

    • CA-217XP
    • CA-217XP
    • CUSTOM
    • MONSTER AXLES
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 14.2 lbs.
    • W5.0000” x H5.0000” x L33.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
