Front CV Axle for Yamaha Grizzly 700 4x4 2014-2015 ATV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: YA-316

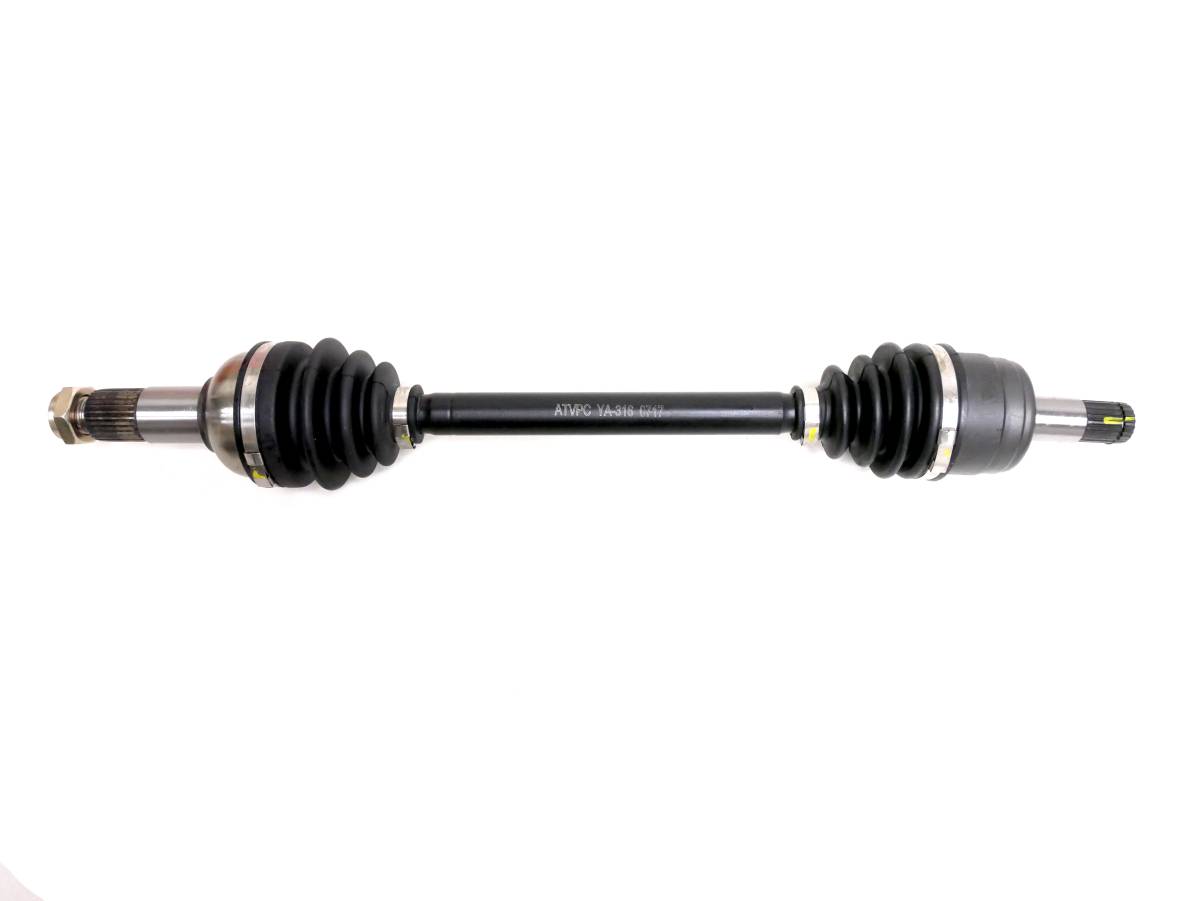

This is a new Front CV axle for a Yamaha ATV.

It will fit the following 4x4 applications:

2014-2015 ..... Grizzly 700

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 21
Outboard CV joint spline count: 27
Compressed overall axle length: 536 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $69.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2015	Yamaha	Grizzly 700	YFM700D 4x4 FI
2015	Yamaha	Grizzly 700	YFM700DHH 4x4 Hunter Edition FI
2015	Yamaha	Grizzly 700	YFM700FGP 4x4 FI EPS
2015	Yamaha	Grizzly 700	YFM700FGPSE 4x4 Special Edition FI EPS
2015	Yamaha	Grizzly 700	YFM700PHFH 4x4 Hunter Edition FI EPS
2014	Yamaha	Grizzly 700	YFM700D 4x4 FI
2014	Yamaha	Grizzly 700	YFM700DHH 4x4 Hunter Edition FI
2014	Yamaha	Grizzly 700	YFM700P 4x4 FI EPS
2014	Yamaha	Grizzly 700	YFM700PHH 4x4 Hunter Edition FI EPS
2014	Yamaha	Grizzly 700	YFM700PSE 4x4 Special Edition FI EPS

Product Notes

Fits FRONT, LEFT or RIGHT on the 2014-2015 Yamaha Grizzly 700 (including standard, EPS, FI, & SE models).

Fitted with neoprene CV boots for added wear and puncture resistance. Greased with a moly based grease to provide superior joint lubrication.

Compressed Length - 536 mm, Inner Spline Count - 21, Outer Spline Count - 27.

Replaces OE # 28P-2510J-00-00, 28P-2510J-01-00, 28P-2510F-00-00, 28P-2510F-01-00, 28P-2510F-04-00, 2BG-2518E-00-00

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
