Rear CV Axle for Yamaha Grizzly 350 400 450 & Kodiak 400 450 4x4

Location on vehicle: Rear,Left,Right

YA-313
Free Ground Shipping
Pricing: $72.99
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
    • Qty:

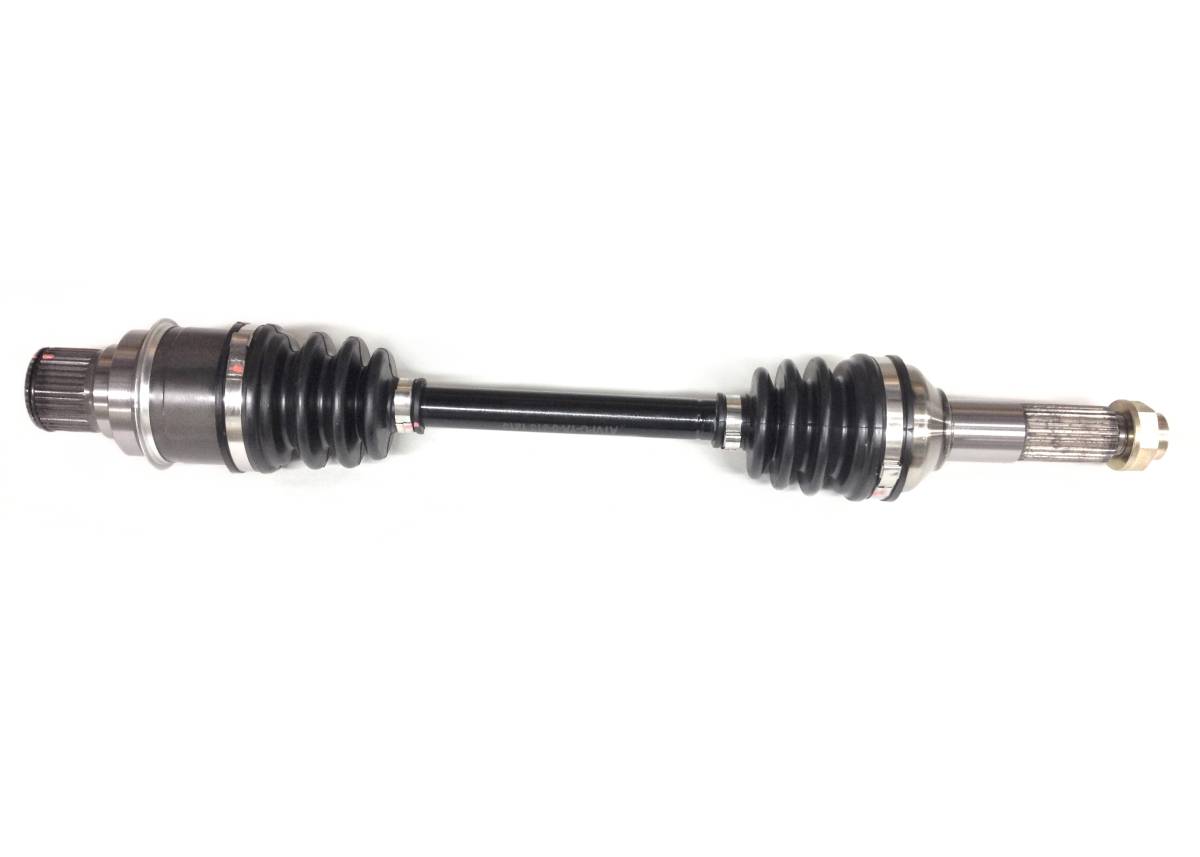

    This is a new Rear CV axle for a Yamaha ATV.

    It will fit the following 4x4 models:

    2007-2011 ... Grizzly 350 IRS

    2007-2008 ... Grizzly 400

    2007-2010 ... Grizzly 450

    2005-2006 ... Kodiak 400

    2005-2006 ... Kodiak 450

    Rear, Left or Right side

    *Not intended for use in lifted vehicles

    Product features:

    • Stronger than OEM chromoly forged steel axle bar
    • Greased with a moly based grease to provide superior joint lubrication
    • Fitted with neoprene CV boots for added wear & puncture resistance

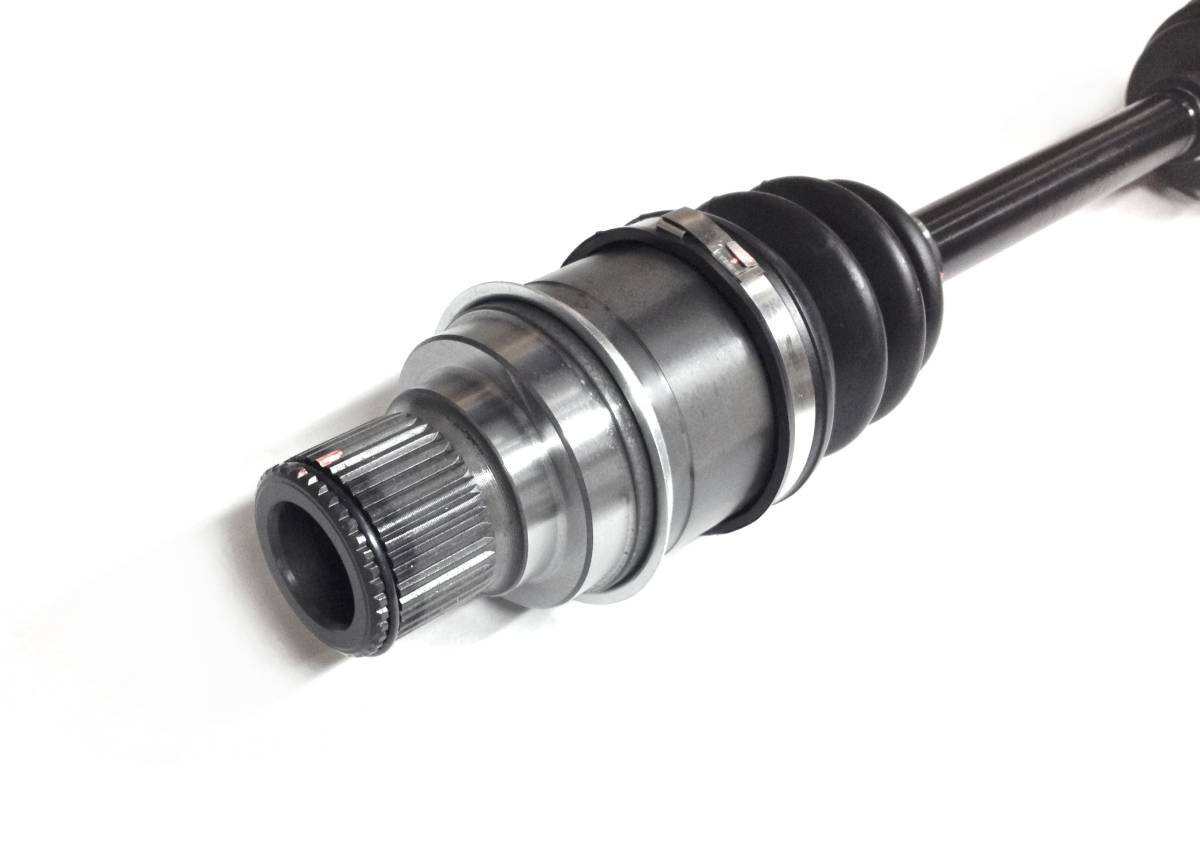

    • Inboard CV joint spline count: 39

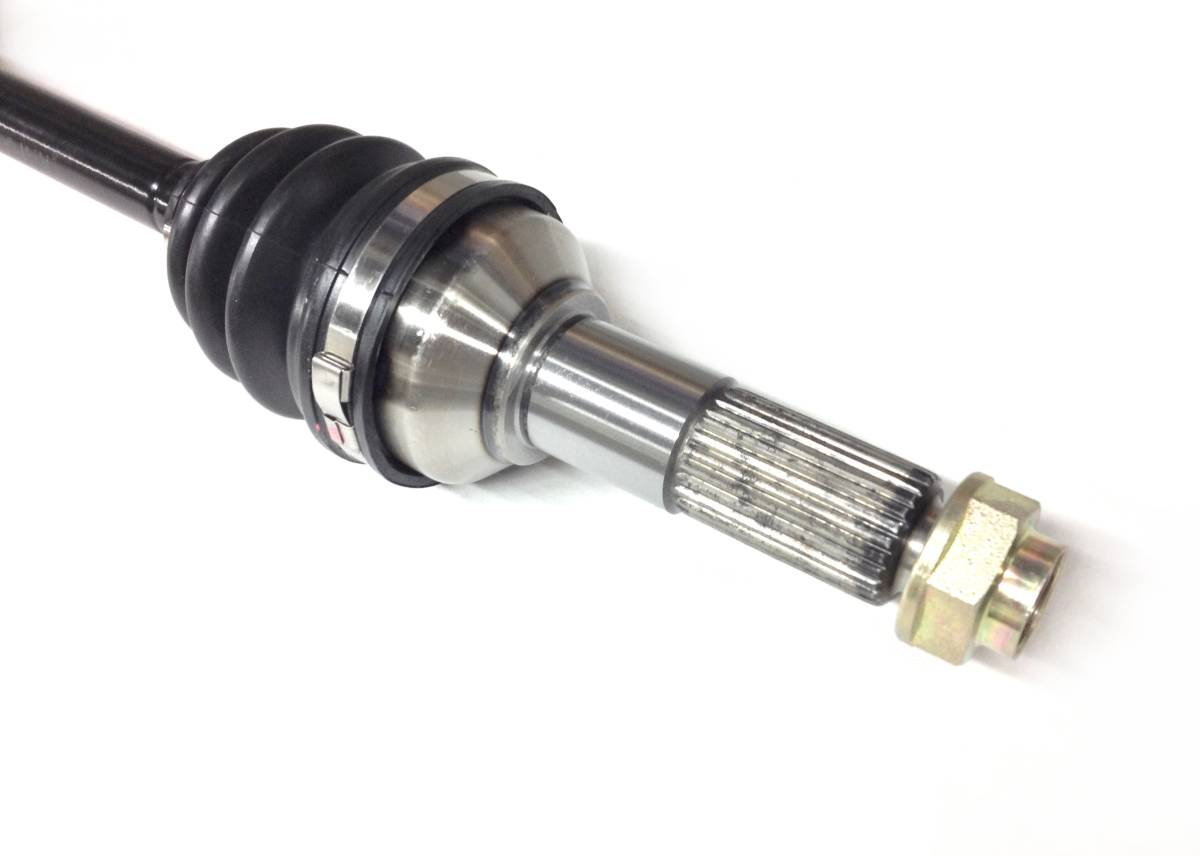

    • Outboard CV joint spline count: 27
    • Compressed overall axle length: 508 mm
    • Replaces Yamaha OE # 4S2-2530U-00-00, 4S1-2530V-00-00

    Application List

    YearMakeModelSubmodelNotes
    2011YamahaGrizzly 350YFM350FGI 4x4 IRS
    2011YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2010YamahaGrizzly 350YFM350FGI 4x4 IRS
    2010YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2009YamahaGrizzly 350YFM350FGI 4x4 IRS
    2009YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 350YFM350FGI 4x4 IRS
    2008YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2007YamahaGrizzly 350YFM350FGI 4x4 IRS
    2007YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 400YFM400FG 4x4
    2008YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2007YamahaGrizzly 400YFM400FG 4x4
    2007YamahaGrizzly 400YFM400FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FG 4x4
    2010YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FG 4x4
    2009YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2009YamahaGrizzly 450YFM450FGI 4x4 IRS
    2008YamahaGrizzly 450YFM450FG 4x4
    2008YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FG 4x4
    2007YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FGOH 4x4 Outdoorsman Edition
    2007YamahaGrizzly 450YFM450FGSE 4x4 Special Edition
    2006YamahaKodiak 400YFM400FA 4x4
    2006YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2005YamahaKodiak 400YFM400FA 4x4
    2005YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2006YamahaKodiak 450YFM450FA 4x4
    2006YamahaKodiak 450YFM450FAH 4x4 Outdoorsman Edition
    2006YamahaKodiak 450YFM450FASE 4x4 Special Edition
    2005YamahaKodiak 450YFM450FA 4x4
    2005YamahaKodiak 450YFM450FAH 4x4 Hunter Edition
    2005YamahaKodiak 450YFM450FSE 4x4 Special Edition
