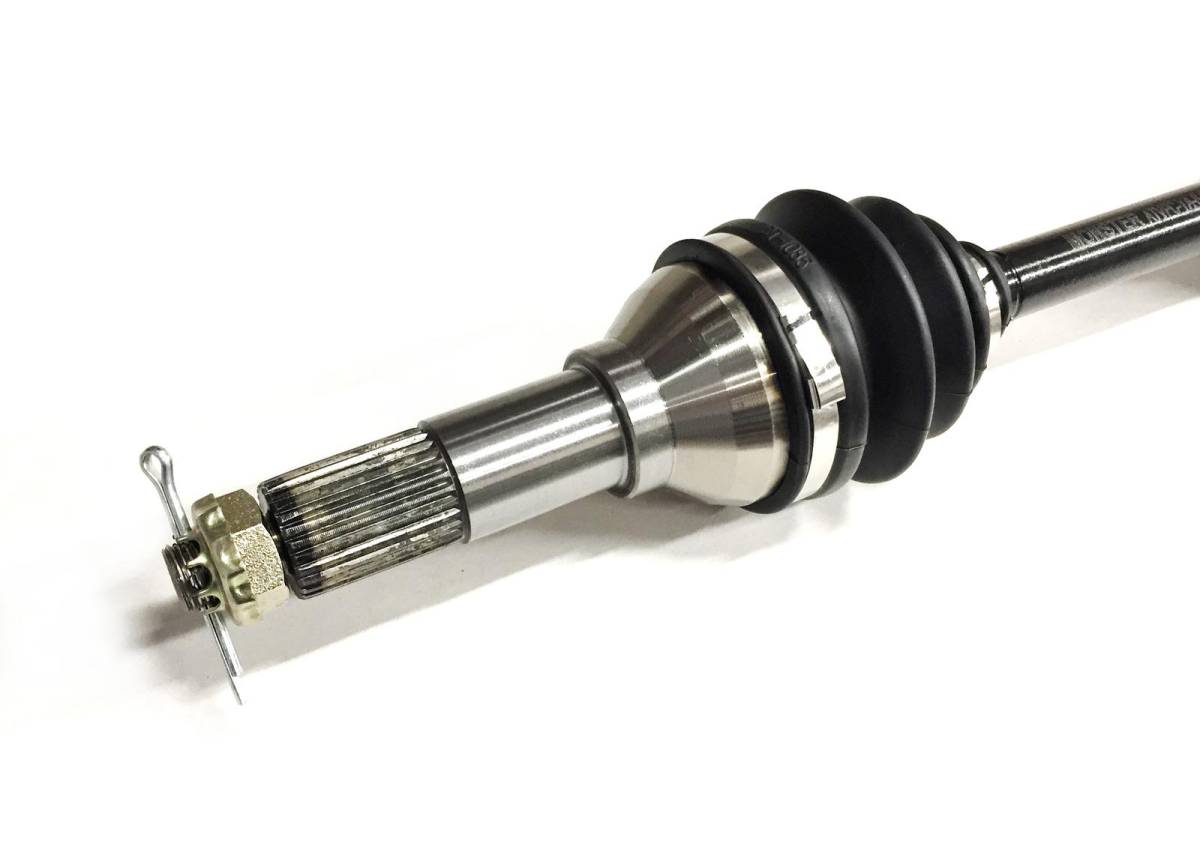

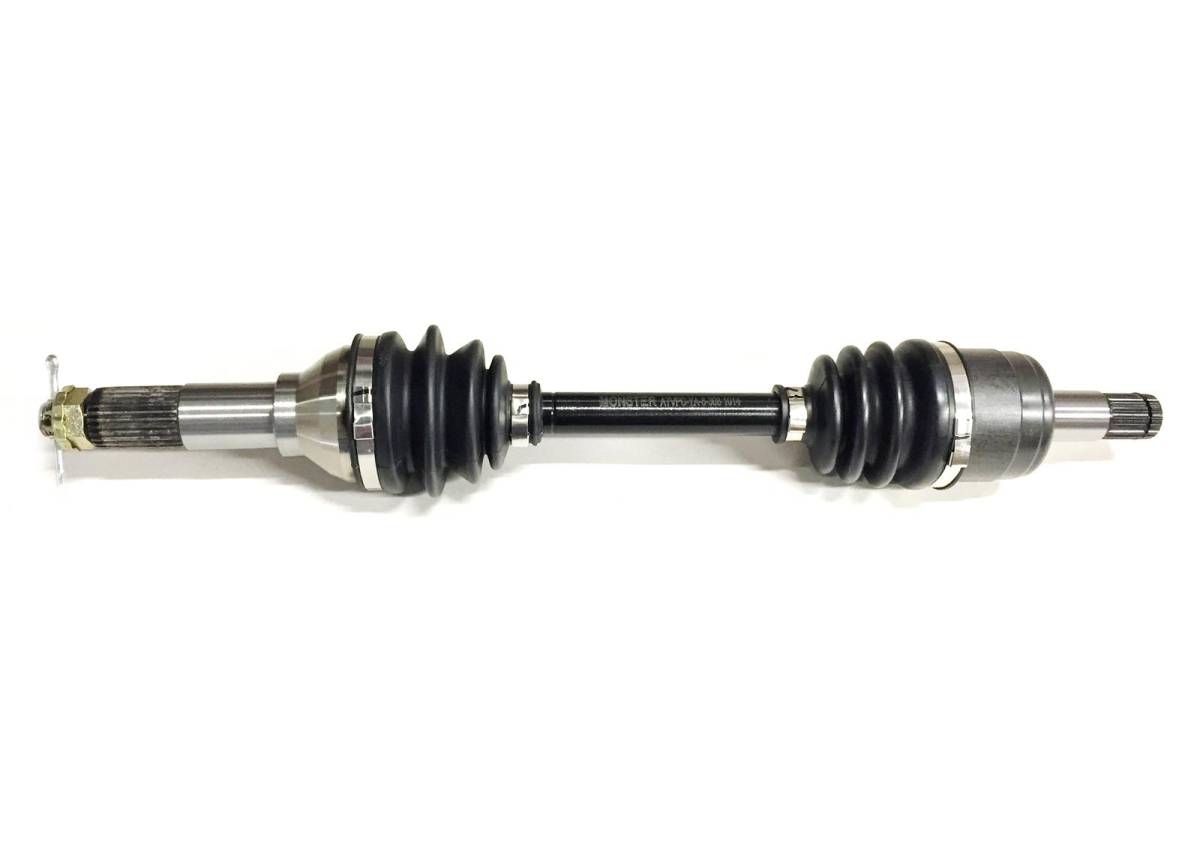

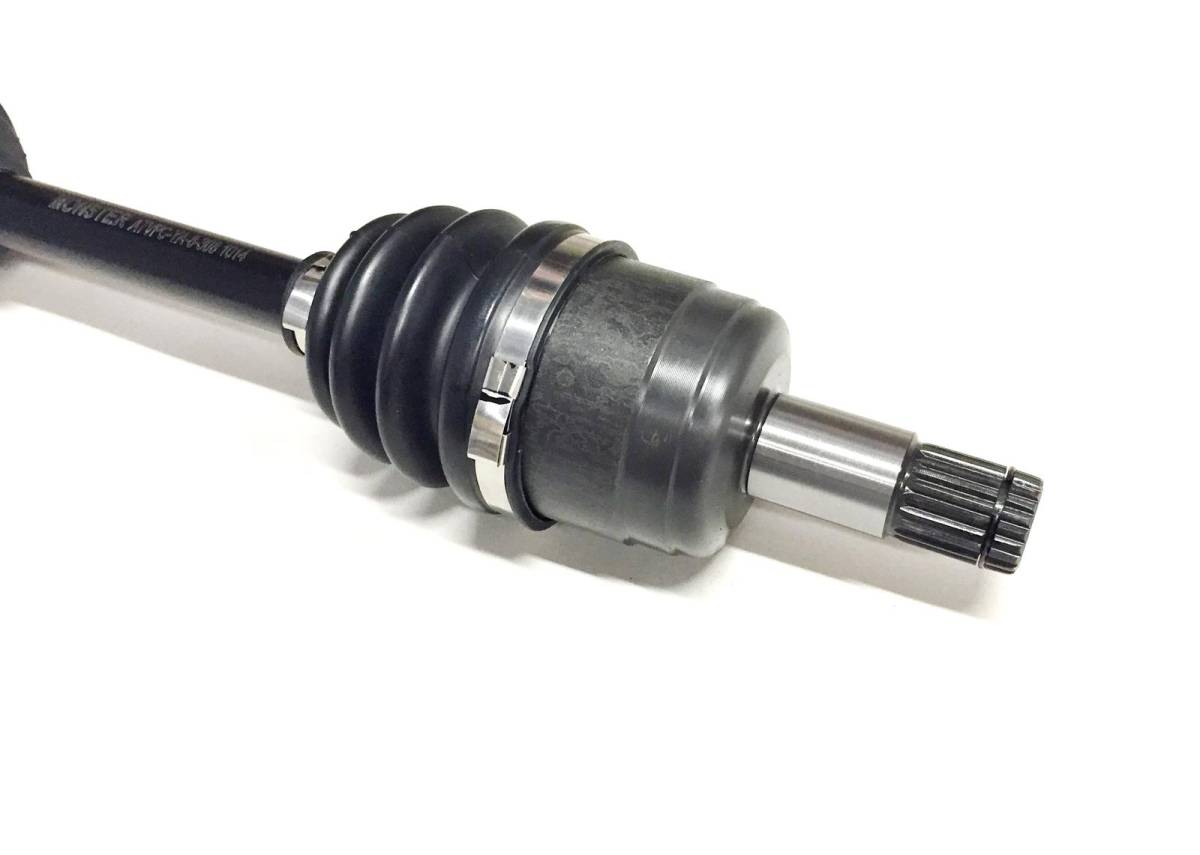

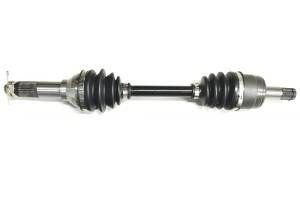

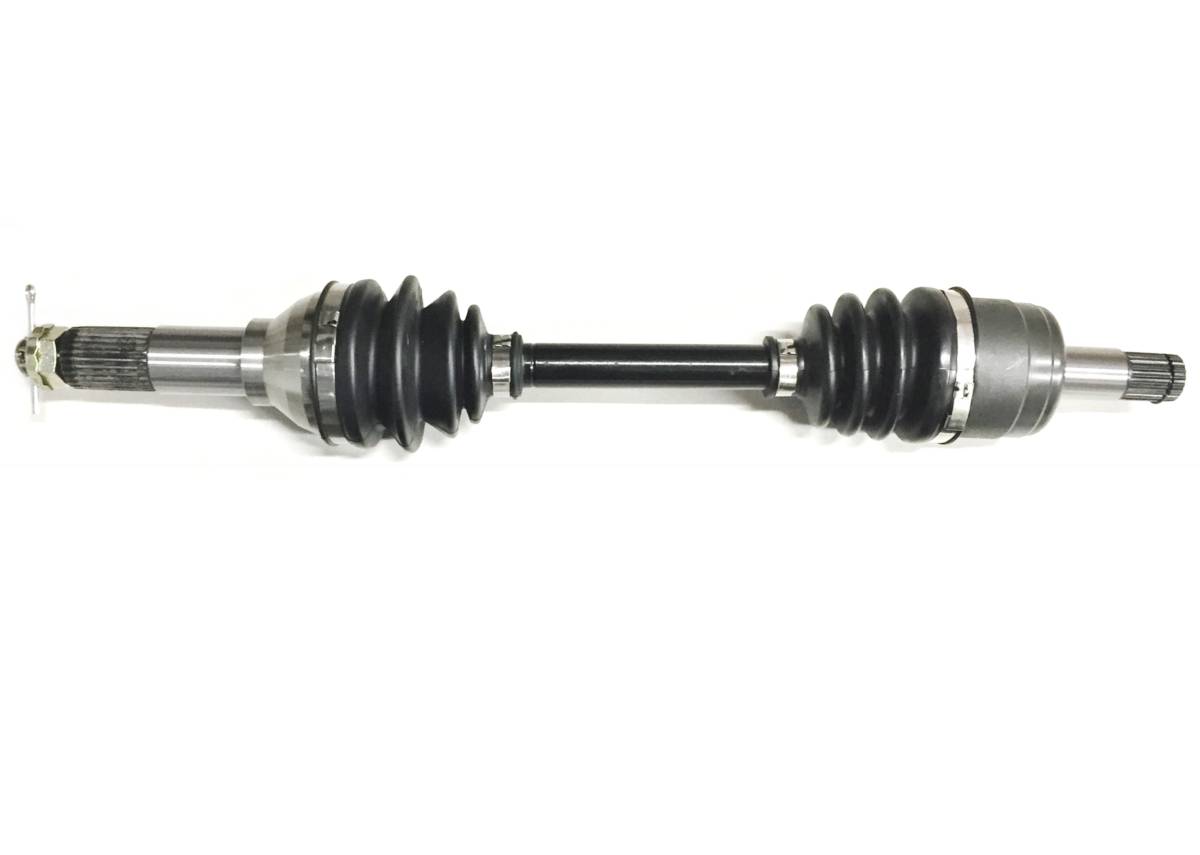

Front CV Axle for Yamaha Kodiak 400 4x4 2000-2002 ATV, Left or Right

Location on vehicle: Front,Left,Right

YA-308
This is a new Front CV axle for a Yamaha ATV.

It will fit the following 4x4 applications:

2000-2002 ... Kodiak 400

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 489 mm
  • Replaces OEM # 5GH-2510F-00-00 + 5GH-2510J-00-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $69.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on the 2000-2002 Yamaha Kodiak 400 4x4 ATV.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner splines: 21, Outer splines: 27, Compressed length: 489 mm.
  • Replaces Yamaha OEM # 5GH-2510F-00-00, 5GH-2510J-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2002YamahaKodiak 400YFM400A
    2002YamahaKodiak 400YFM400FA 4x4
    2002YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2002YamahaKodiak 400YFM400FAH 4x4 Realtree Xtra
    2001YamahaKodiak 400YFM400A
    2001YamahaKodiak 400YFM400FA 4x4
    2001YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2001YamahaKodiak 400YFM400FAH 4x4 Realtree Xtra
    2000YamahaKodiak 400YFM400A
    2000YamahaKodiak 400YFM400FA 4x4
    2000YamahaKodiak 400YFM400FAH 4x4 Hunter Edition
    2000YamahaKodiak 400YFM400FAH 4x4 Realtree Xtra
