Front Inner CV Joint Kit for Polaris ATV UTV 1590395, 2202826

Placement on halfshaft: Inner - Front,Left,Right

IJ551

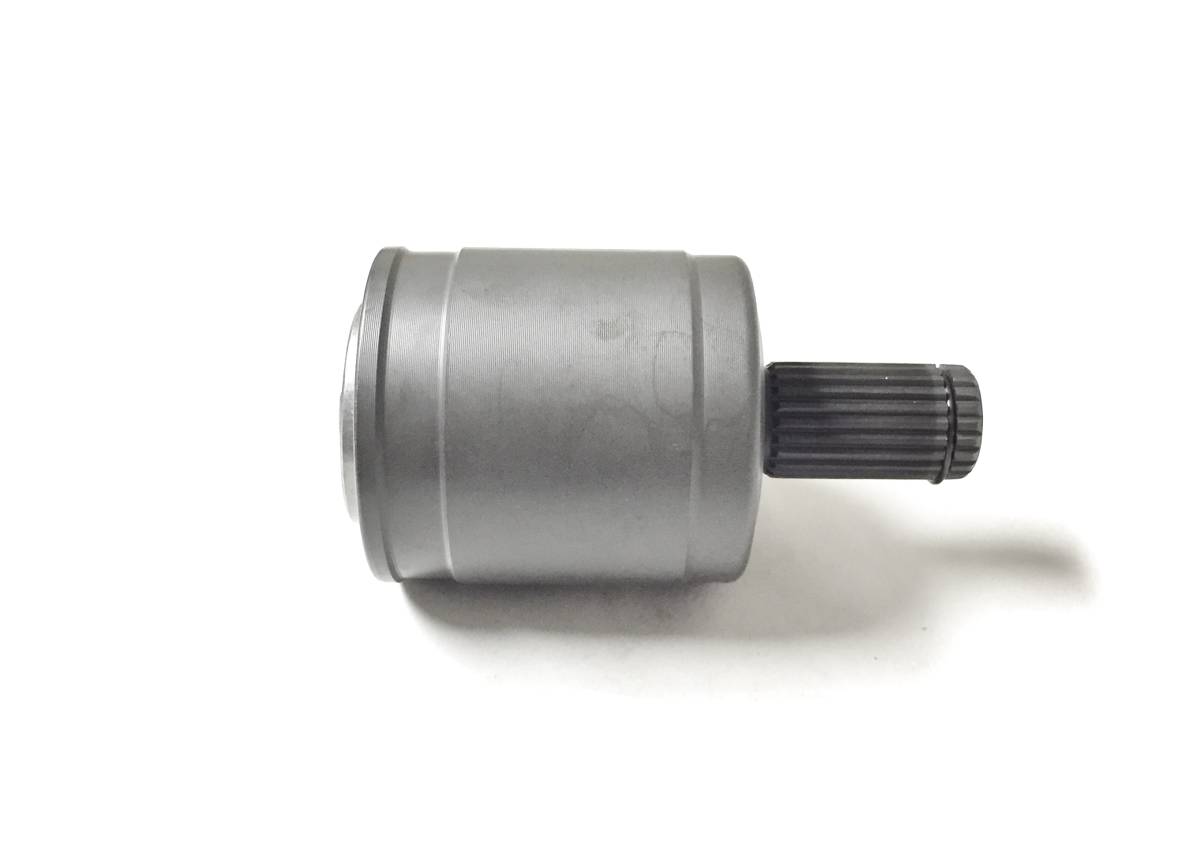

This is a new Front, Inner CV joint kit for a Polaris ATV/UTV.

It will fit the following 4x4 models:

2005 ATP 330/ATP 500 HO, 2005-2006 Magnum 330 4x4, 2006-2007 Ranger 500 4x4, 2006-2007 Ranger 700 4x4 6x6, 2005 Sportsman 400 500 600 700, & 2005-2006 Sportmsnan 800 4x4

Front Left or Right Axle, Inboard / Differential Side

*Not intended for use in lifted vehicles

Product features:

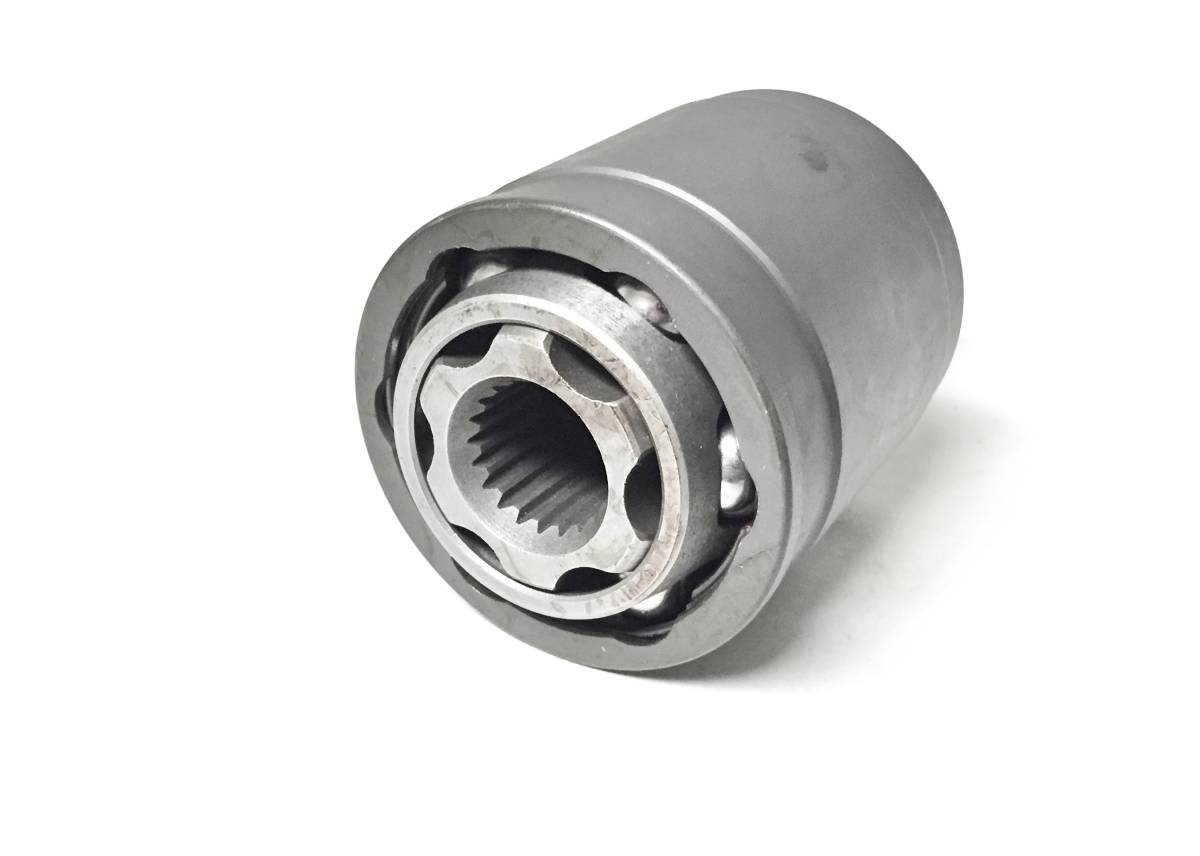

  • 1 CV joint - fully assembled with race, cage, and ball bearings
  • 1 neoprene rubber CV boot & grease packet
  • 2 boot clamps
  • Stub Height: 1.75 inches
  • Number of CV housing splines: 22
  • Inner race spline count: 20
  • Housing diameter: 2.64 inches
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $31.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the front inner (differential side): 2005 ATP 330/ATP 500 HO, 2005-2006 Magnum 330 4x4, 2006-2007 Ranger 500 4x4, 2006-2007 Ranger 700 4x4 6x6, 2005 Sportsman 400 500 600 700, & 2005-2006 Sportmsnan 800 4x4.

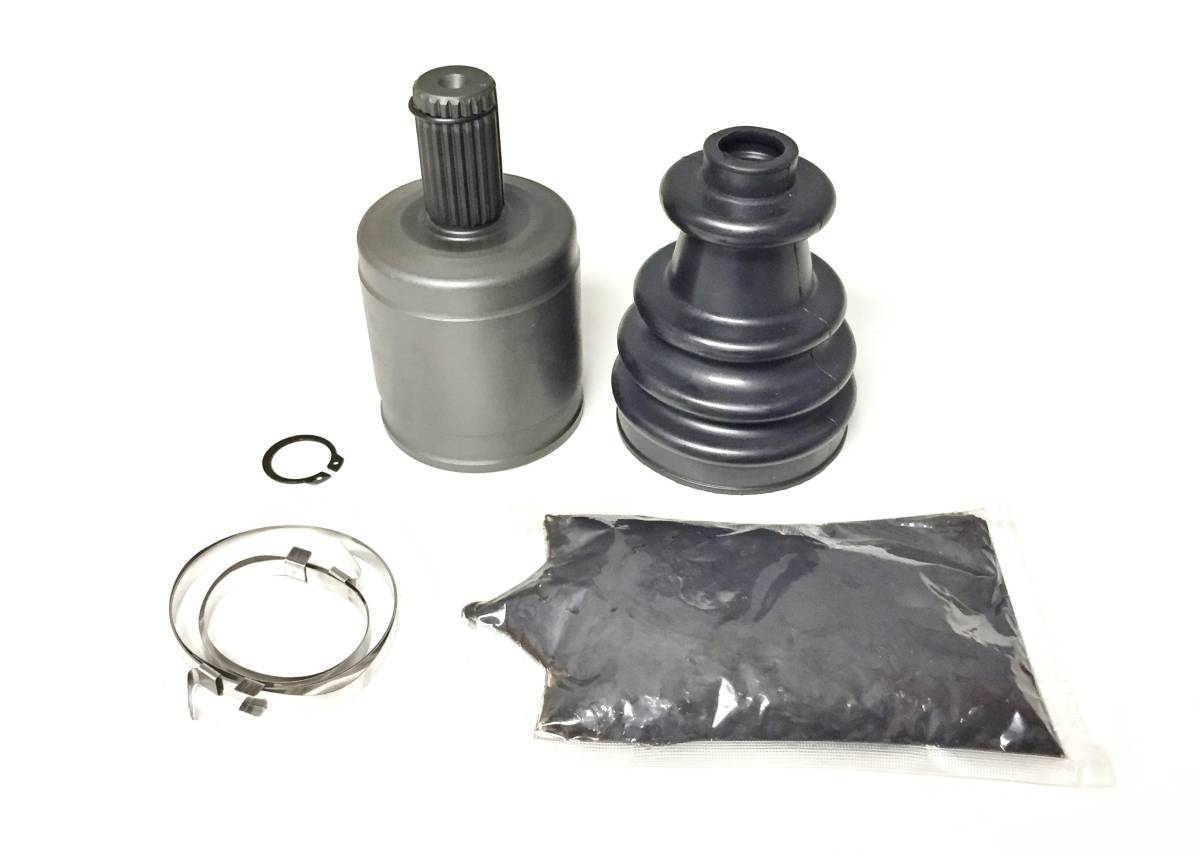

  • Includes 1 CV joint (fully assembled with race, cage, and ball bearings), 1 neoprene rubber CV boot, 1 grease packet, 2 boot clamps.
  • Stub Height: 1.75 inches, Number of CV housing splines: 22, Inner race spline count: 20, Housing diameter: 2.64 inches.
  • Replaces Polaris OEM # 1590395, 2202826.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV Joint, 1 CV Boot, 1 Grease Pack, 2 Clamps
  • Application List

    YearMakeModelSubmodelNotes
    2005PolarisSportsman MV7--
    2005PolarisSportsman 800Twin EFI
    2005PolarisSportsman 700Twin EFI
    2005PolarisSportsman 700Twin
    2005PolarisSportsman 600Twin
    2005PolarisSportsman 5004x4 HO
    2005PolarisSportsman 4004X4
    2006PolarisRanger XP 7004x4 EFI
    2007PolarisRanger XP 7004x4 EFI
    2007PolarisRanger XP 7004x4 Browning EFI
    2006PolarisRanger 7006x6 EFI
    2007PolarisRanger 7006x6 EFI
    2007PolarisRanger 7004x4 MVRS
    2007PolarisRanger 7004x4 EFI
    2006PolarisRanger 5004x4 EFI
    2006PolarisRanger 5004X4
    2007PolarisRanger 5004x4 EFI
    2007PolarisRanger 5004X4
    2005PolarisMagnum 3304X4
    2005PolarisMagnum 3302x4
    2006PolarisMagnum 3304X4
    2005PolarisATP 5004x4 HO
    2005PolarisATP 3304X4

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 3.6 lbs.
    • W5.0000” x H5.0000” x L8.0000”
