Front Left CV Axle for Kawasaki Prairie 360 650 700 & Brute Force 650 4x4

Location on vehicle: Front,Left

(0) Reviews: Write first review
KW-105

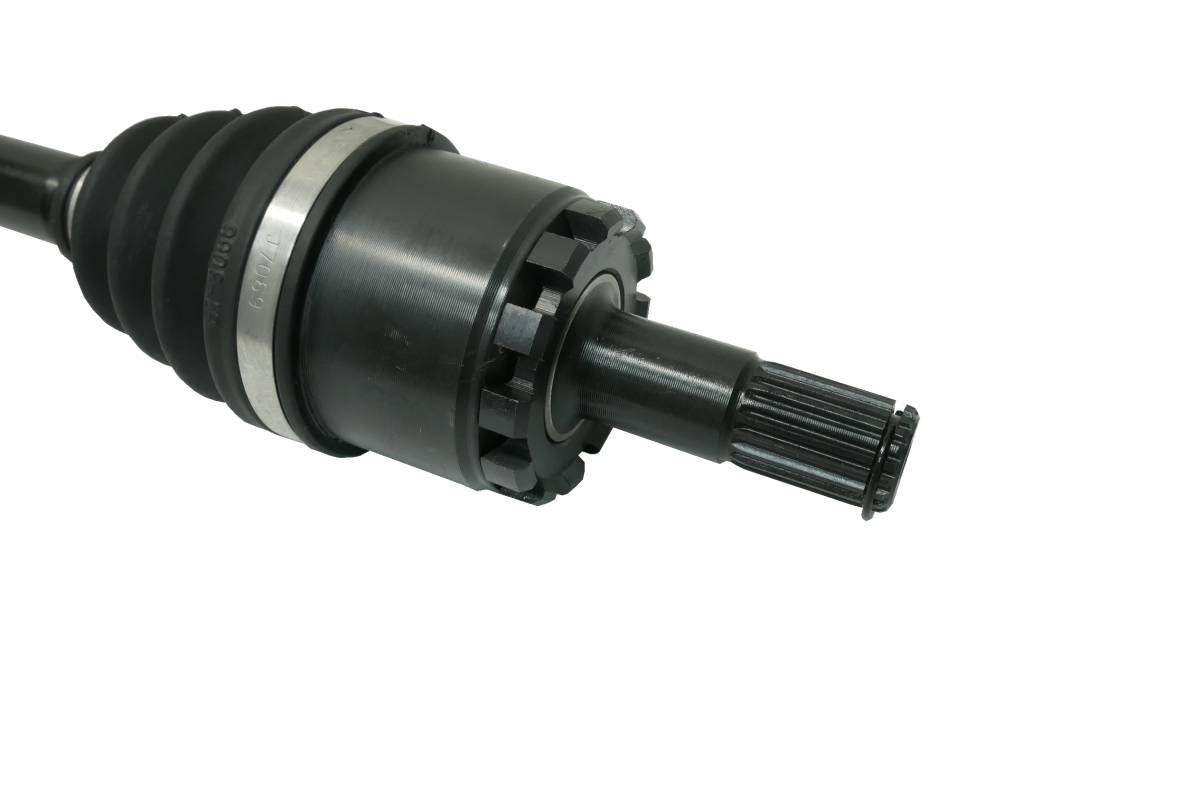

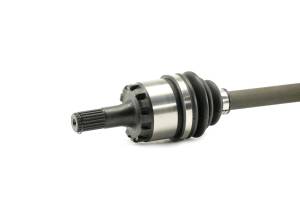

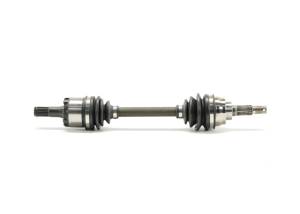

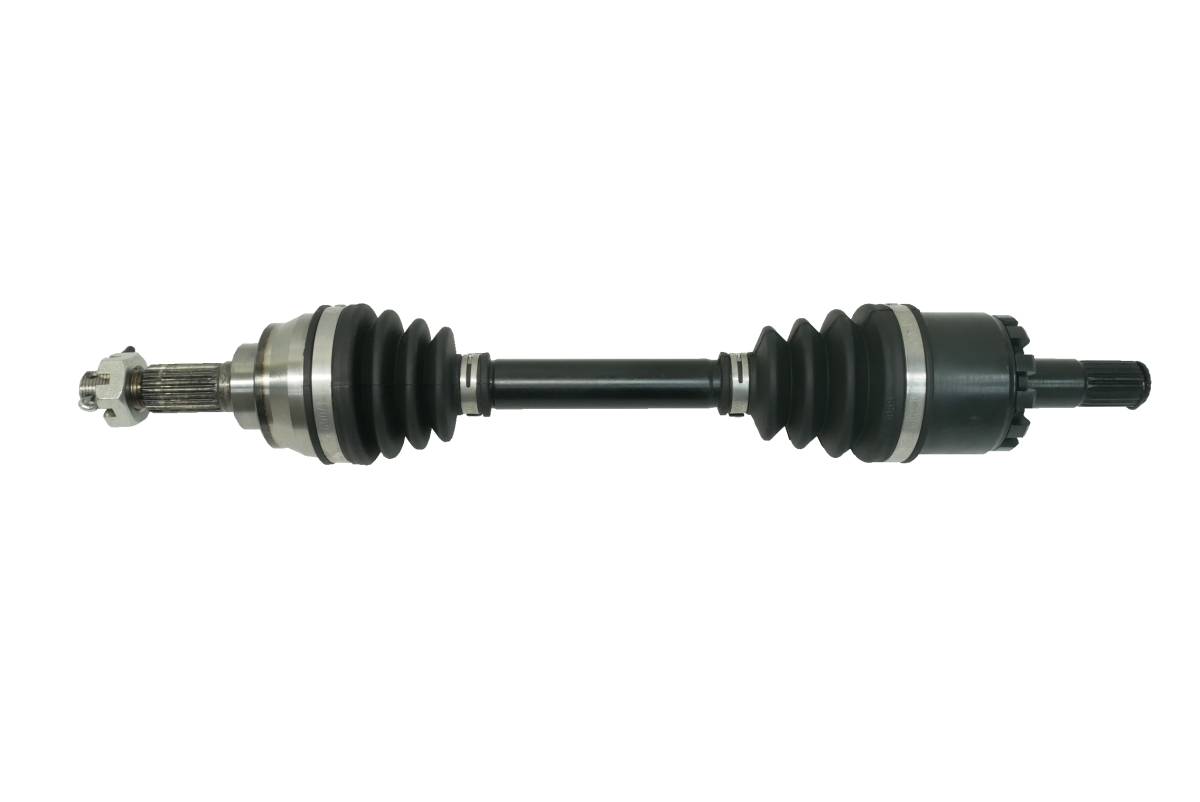

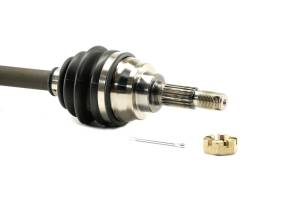

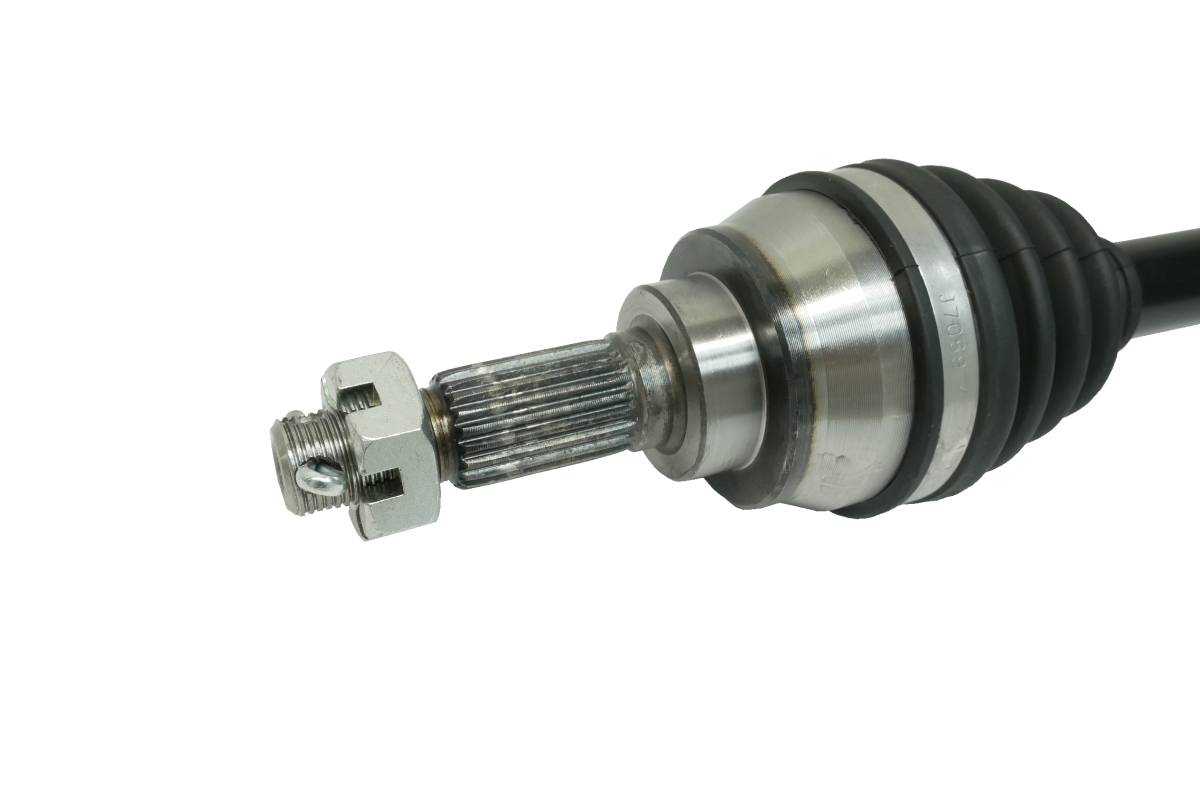

This is a new complete CV axle for a Kawasaki ATV.

It fits FRONT, LEFT (driver side) on the following 4x4 models:

2005-2013 Brute Force 650 (excluding 650 'i' models)

2003-2013 Prairie 360

2002-2003 Prairie 650

2004-2006 Prairie 700

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Compressed overall axle length: 485.5 mm
  • Inner CV joint spline count: 20
  • Outer CV joint spline count: 21
  • Replaces OEM # 59266-1135, 59266-0032, 59266-1129
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $94.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013KawasakiBrute Force 650KVF650D 4x4
2012KawasakiBrute Force 650KVF650D 4x4
2011KawasakiBrute Force 650KVF650D 4x4
2010KawasakiBrute Force 650KVF650D 4x4
2009KawasakiBrute Force 650KVF650D 4x4
2009KawasakiBrute Force 650KVF650E 4x4
2008KawasakiBrute Force 650KVF650D 4x4
2007KawasakiBrute Force 650KVF650D 4x4
2007KawasakiBrute Force 650KVF650E 4x4
2006KawasakiBrute Force 650KVF650D 4x4
2006KawasakiBrute Force 650KVF650E 4x4
2005KawasakiBrute Force 650KVF650D 4x4
2005KawasakiBrute Force 650KVF650E 4x4
2013KawasakiPrairie 360KVF360A 4x4
2012KawasakiPrairie 360KVF360A 4x4
2011KawasakiPrairie 360KVF360A 4x4
2011KawasakiPrairie 360KVF360C 4x4
2010KawasakiPrairie 360KVF360A 4x4
2010KawasakiPrairie 360KVF360C 4x4
2009KawasakiPrairie 360KVF360A 4x4
2009KawasakiPrairie 360KVF360C 4x4
2008KawasakiPrairie 360KVF360A 4x4
2008KawasakiPrairie 360KVF360C 4x4
2007KawasakiPrairie 360KVF360A 4x4
2007KawasakiPrairie 360KVF360C 4x4
2006KawasakiPrairie 360KVF360A 4x4
2006KawasakiPrairie 360KVF360C 4x4
2005KawasakiPrairie 360KVF360A 4x4
2005KawasakiPrairie 360KVF360C 4x4
2004KawasakiPrairie 360KVF360A 4x4
2004KawasakiPrairie 360KVF360C 4x4
2003KawasakiPrairie 360KVF360A 4x4
2003KawasakiPrairie 360KVF360C 4x4
2003KawasakiPrairie 650KVF650A 4x4
2002KawasakiPrairie 650KVF650A 4x4
2006KawasakiPrairie 700KVF700A 4x4
2006KawasakiPrairie 700KVF700D 4x4 Team Green
2005KawasakiPrairie 700KVF700A 4x4
2005KawasakiPrairie 700KVF700B 4x4
2005KawasakiPrairie 700KVF700D 4x4 Team Green
2004KawasakiPrairie 700KVF700A 4x4
2004KawasakiPrairie 700KVF700B 4x4

Product Notes

  • Fits front, left (driver side) on the following Kawasaki ATV models: 2005-2013 Brute Force 650, 2003-2013 Prairie 360, 2002-2003 Prairie 650, 2004-2006 Prairie 700.
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 59266-1135, 59266-0032, 59266-1129. Inboard CV joint spline count: 20, Outboard CV joint spline count: 21, Compressed axle length: 458.5.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • KW-105
    • KW-105
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 7.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
