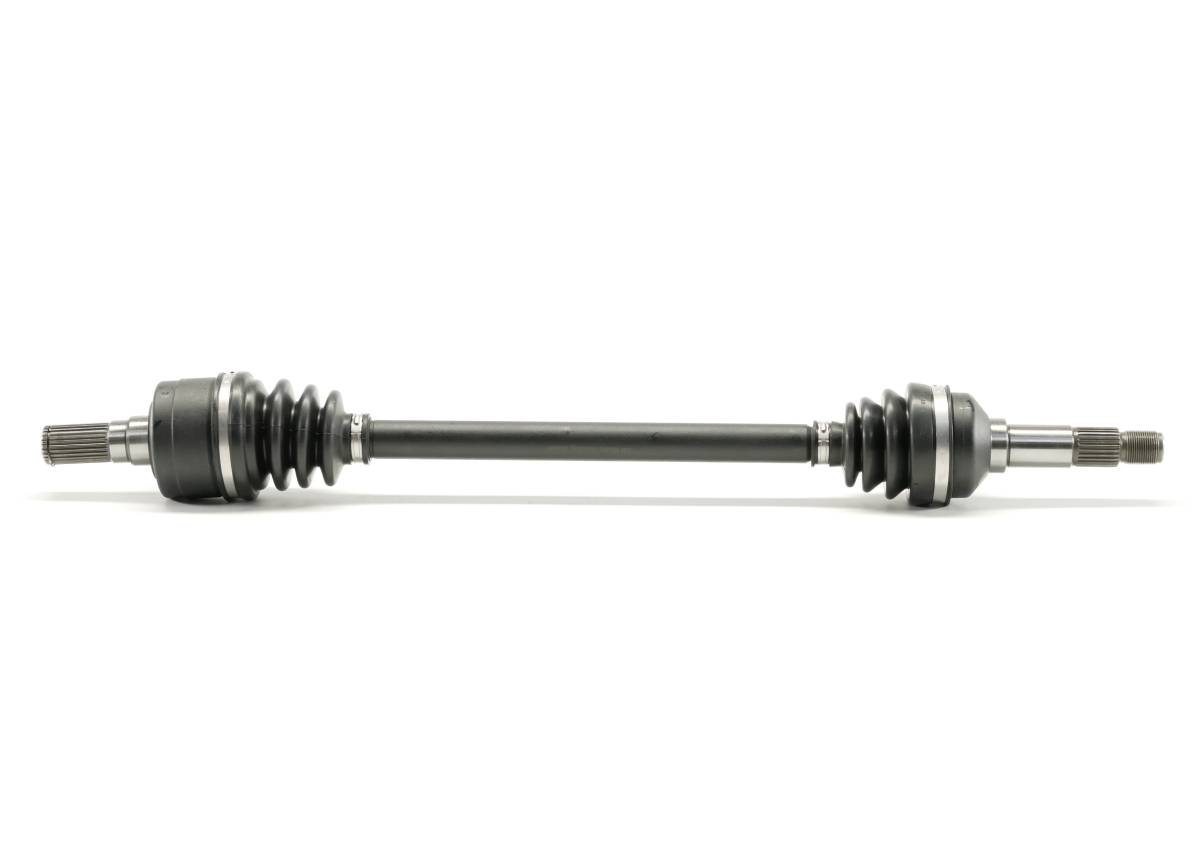

Rear CV Axle for Yamaha YXZ 1000R 4x4 2016-2022, Left or Right

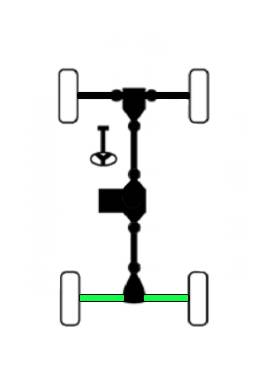

Location on vehicle: Rear,Left,Right

YA-358
This is for a new rear CV axle for a Yamaha UTV.

This axle will fit the following 4x4 models:

2016-2022 ... YXZ 1000R (all models)

rear, left or right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

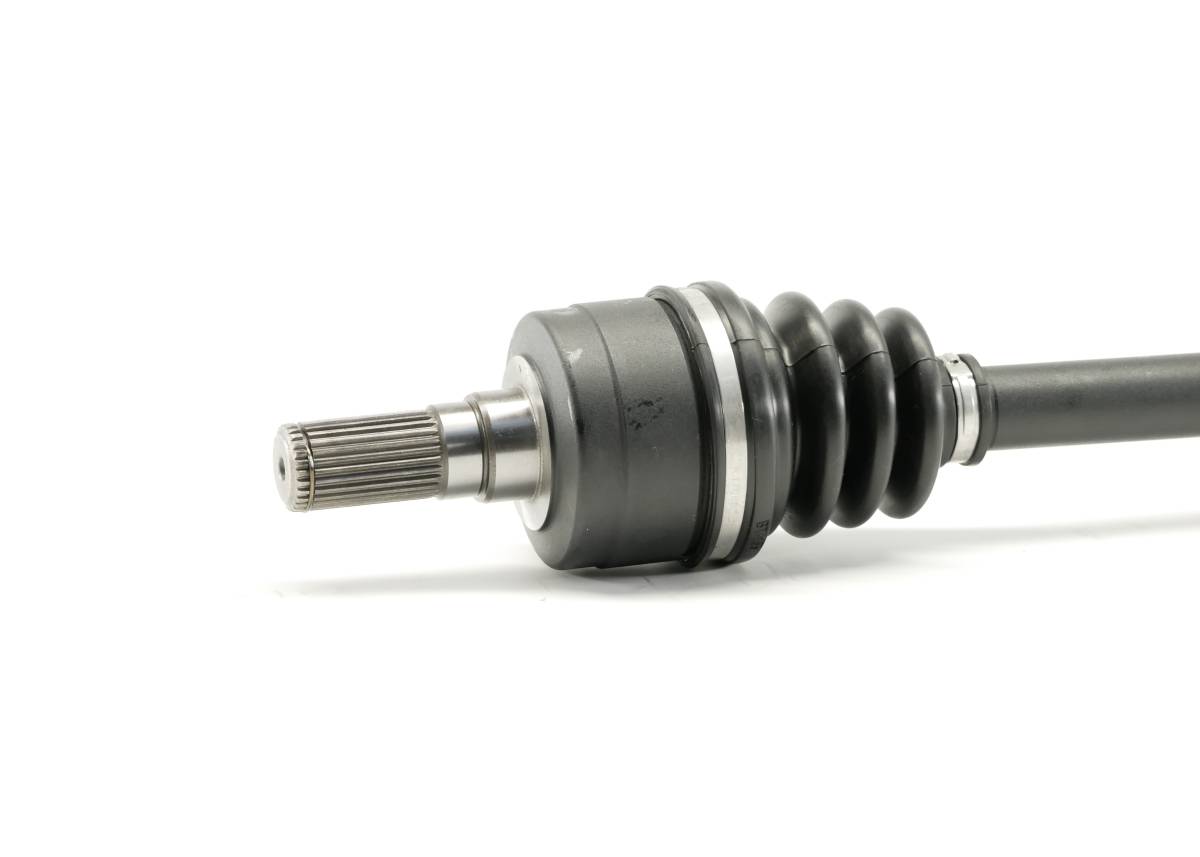

  • inobard CV joint spline count: 27

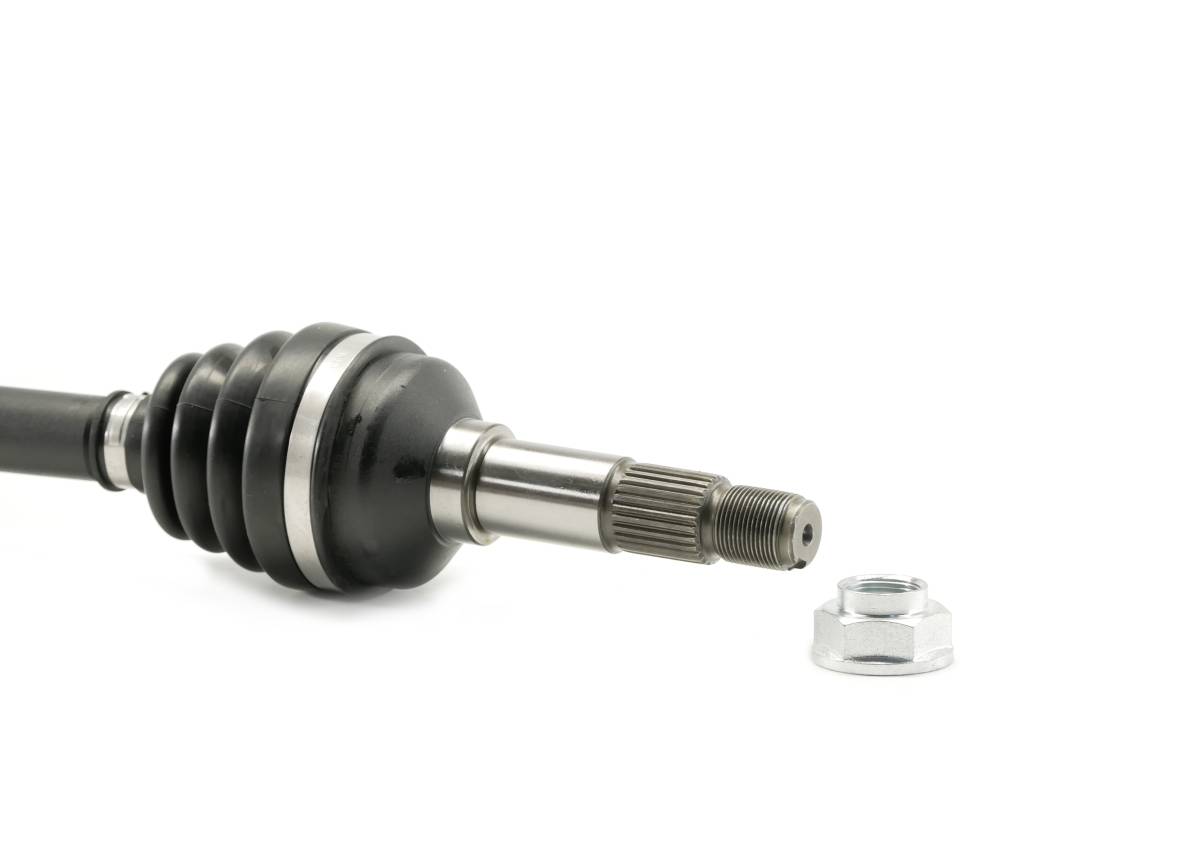

  • outboard CV joint spline count: 27
  • Compressed overall axle length: 756 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022YamahaYXZ1000REPS
2022YamahaYXZ1000RSS EPS
2022YamahaYXZ1000RSS XT-R
2021YamahaYXZ1000REPS
2021YamahaYXZ1000RSE EPS
2021YamahaYXZ1000RSS EPS
2021YamahaYXZ1000RSS SE EPS
2021YamahaYXZ1000RSS XT-R
2020YamahaYXZ1000REPS
2020YamahaYXZ1000RSE EPS
2020YamahaYXZ1000RSS EPS
2020YamahaYXZ1000RSS SE EPS
2020YamahaYXZ1000RSS XT-R
2019YamahaYXZ1000REPS
2019YamahaYXZ1000RSE EPS
2019YamahaYXZ1000RSS EPS
2019YamahaYXZ1000RSS SE EPS
2018YamahaYXZ1000REPS
2018YamahaYXZ1000RSE
2018YamahaYXZ1000RSE EPS
2018YamahaYXZ1000RSS EPS
2018YamahaYXZ1000RSS SE EPS
2017YamahaYXZ1000R--
2017YamahaYXZ1000RSE
2017YamahaYXZ1000RSS
2017YamahaYXZ1000RSS SE
2016YamahaYXZ1000R--
2016YamahaYXZ1000RSpecial Edition

Product Notes

  • Fits rear, left or right on the following Yamaha ATV models: 2016-2022 YXZ1000R (indlucing EPS, SE, SS, & XTR).
  • Features a stronger than OEM, 4340 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 2HC-2531H-10-00, 2HC-2531H-12-00, 2HC-2531H-13-00. Inner splines: 27, Outer splines: 27, Compressed length: 756 mm.
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

  • 1 axle
  • Warranty

    1 year factory defect limited warranty

    Details

    • YA-358
    • YA-358
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 14.8 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
