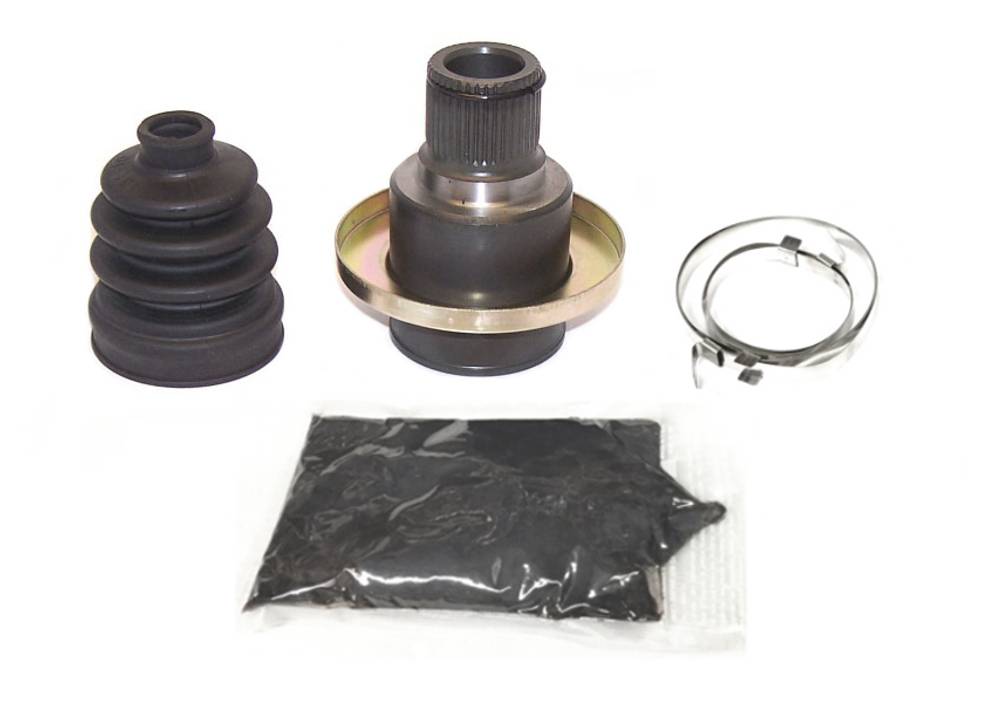

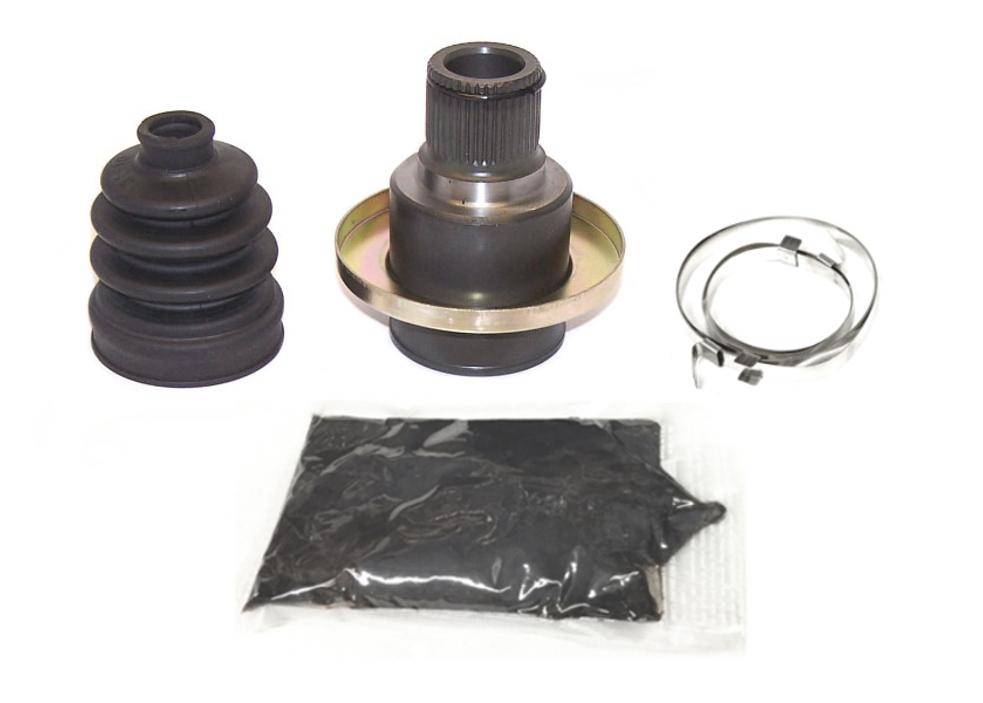

Rear Left Inner CV Joint Kit for Yamaha Rhino 450 & Rhino 660 4x4 2005-2006

Placement on halfshaft: Inner - Rear,Right

IJ264
This is a new Rear Left, Inner CV joint kit for a Yamaha ATV.

It fits the following 4x4 models:

2006 ... Rhino 450

2005-2006 ... Rhino 660

Rear Left Axle, Inboard Side

*Not intended for use in lifted vehicles

Product features:

  • 1 CV joint - fully assembled with race, cage, and ball bearings
  • 1 neoprene rubber CV boot & grease packet
  • 2 boot clamps
  • Stub Height: 1.69 inches
  • Number of CV housing splines: 39
  • Inner race spline count: 18
  • Housing diameter: 2.52 inches
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $31.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the rear left inner (differential side) position on the 2006 Rhino 450 & 2005-2006 Rhino 660 4x4.
  • Includes 1 CV joint (fully assembled with race, cage, and ball bearings), 1 neoprene rubber CV boot, 1 grease packet, 2 boot clamps.
  • Stub Height: 1.69 inches, Number of CV housing splines: 39, Inner race spline count: 18, Housing diameter: 2.52 inches.
  • Replaces Yamaha OEM # 5KM-2530V-00-00, 5KM-2530W-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV Joint, 1 CV Boot, 1 Grease Pack, 2 Clamps
  • Application List

    YearMakeModelSubmodelNotes
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2006YamahaRhino 450YXR450FA 4x4

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 3.2 lbs.
    • W5.0000” x H5.0000” x L8.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
