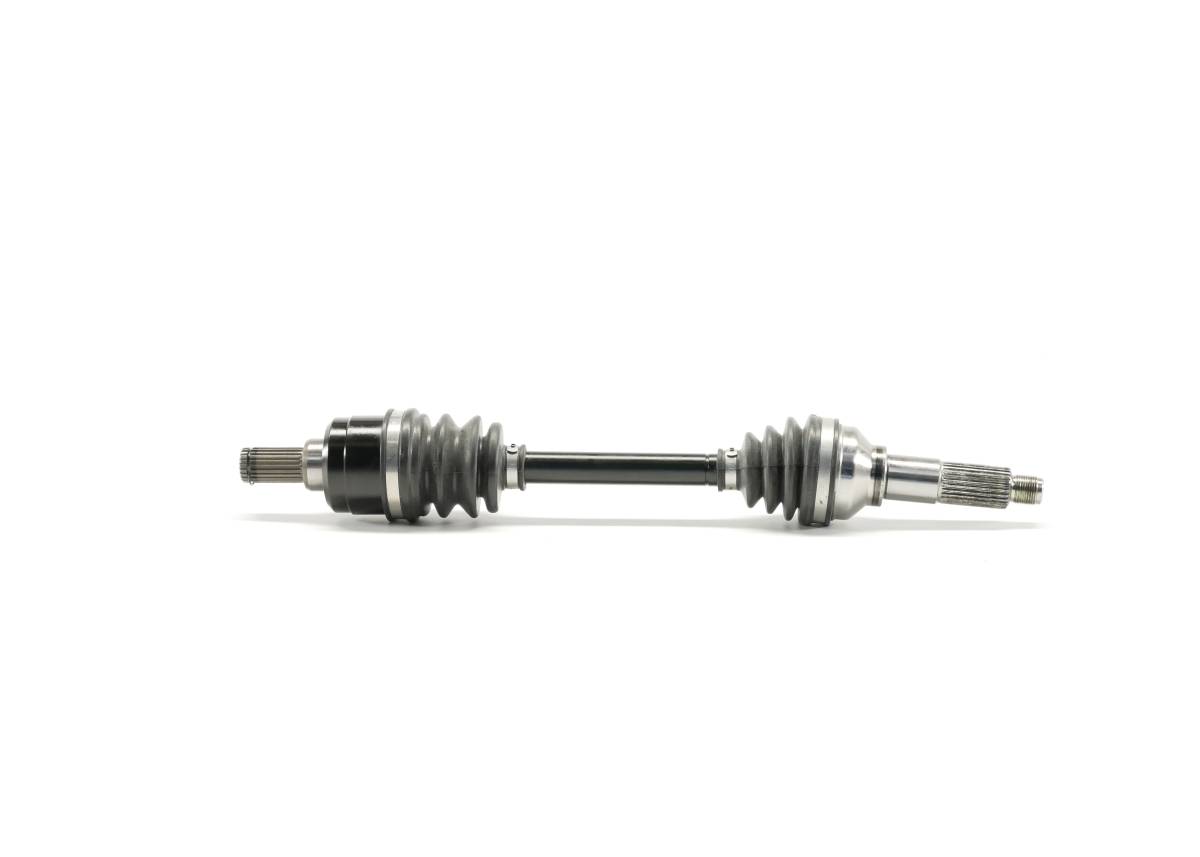

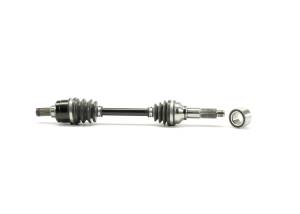

Rear CV Axle for Yamaha Grizzly 450 4x4 2011-2014

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
YA-336
This is a new Rear CV axle for a Yamaha ATV.

It will fit the following 4x4 models:

2011-2014 ... Grizzly 450/450 EPS

Rear, Left or Right Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

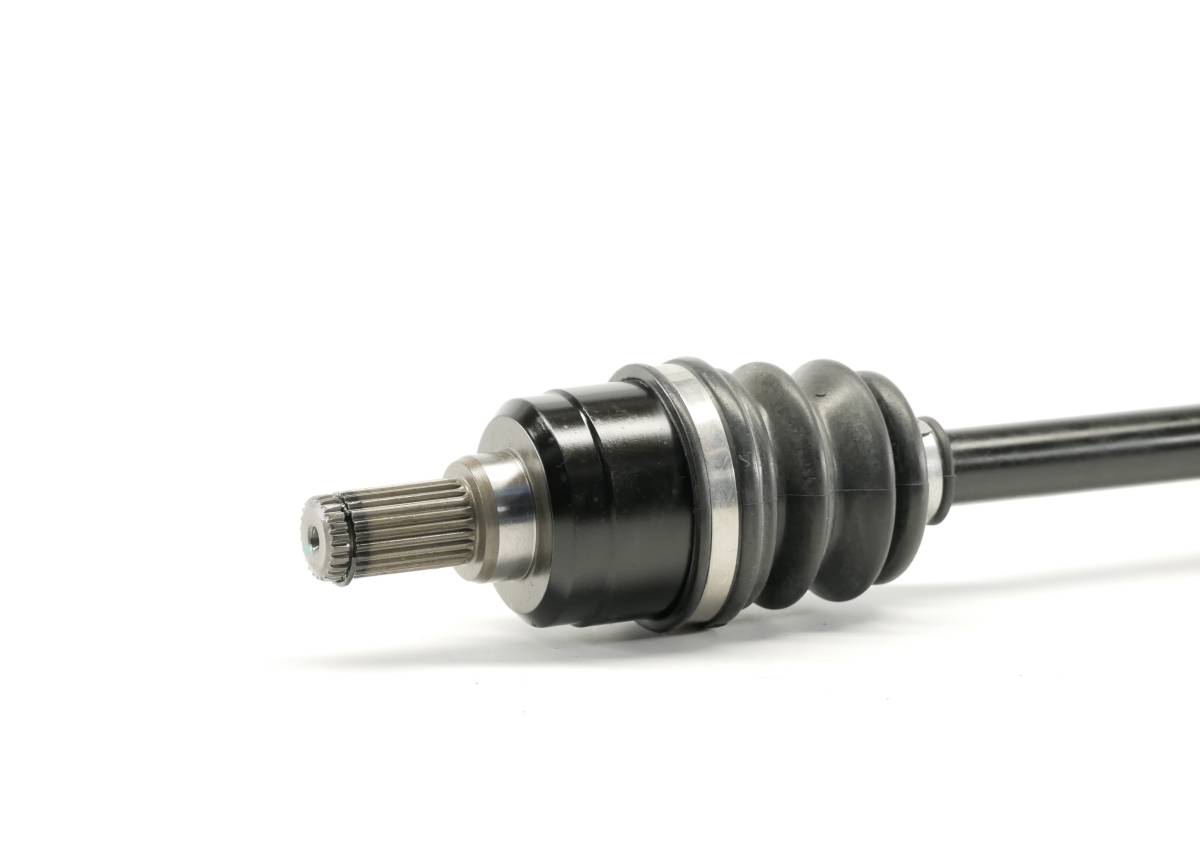

  • Inboard CV joint spline count: 23

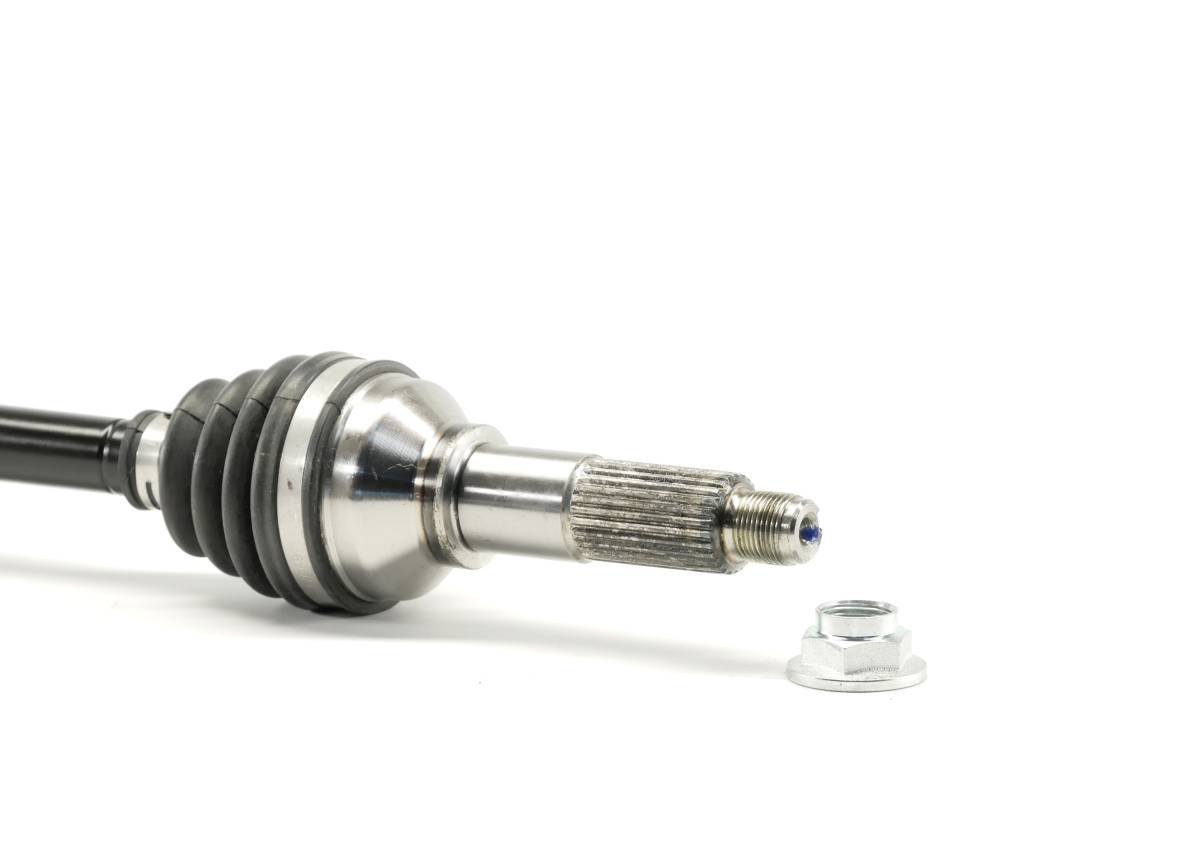

  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 508 mm
  • Replaces Yamaha OEM # 1CT-2530V-00-00, 1CT-2510F-00-00
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Grizzly 450 / 450 EPS 4x4 models from 2011-2014.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 508 mm, Inboard Spline Count - 23, Outboard Spline Count - 27.
  • Replaces Yamaha OEM # 1CT-2530V-00-00, 1CT-2510F-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2014YamahaGrizzly 450YFM450D 4x4
    2014YamahaGrizzly 450YFM450DAH 4x4 Hunter Edition
    2014YamahaGrizzly 450YFM450P 4x4 EPS
    2014YamahaGrizzly 450YFM450PHH 4x4 Hunter Edition EPS
    2014YamahaGrizzly 450YFM450RSE 4x4 Special Edition
    2013YamahaGrizzly 450YFM450FG 4x4
    2013YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2013YamahaGrizzly 450YFM450FGP 4x4 EPS
    2013YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2012YamahaGrizzly 450YFM450FG 4x4
    2012YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2012YamahaGrizzly 450YFM450FGP 4x4 EPS
    2012YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2011YamahaGrizzly 450YFM450FG 4x4
    2011YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2011YamahaGrizzly 450YFM450FGP 4x4 EPS
    2011YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS

    Details

    • YA-336
    • YA-336
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 8.5 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
